300 mm (12″) modular CSD

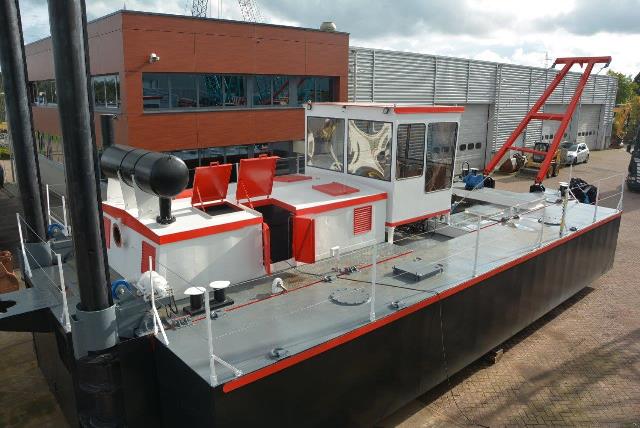

Overhauled Dutch built modular CSD 300. Location: The Netherlands. Enquire
| General | |
| Built | 2012 |
| Dimensions | |
| Length o.a. | 22 m |
| Length pontoon | 12 m |
| Beam | 7.20 m |
| Depth | 1.55 m |
| Draft max | 0.98 m |
| Other particulars | |
| Dredging depth | 8.0 m |
| Suction diameter | 300 mm |
| Delivery diameter | 250 mm |
| Cutter power | 50 kW |
| Machinery | |

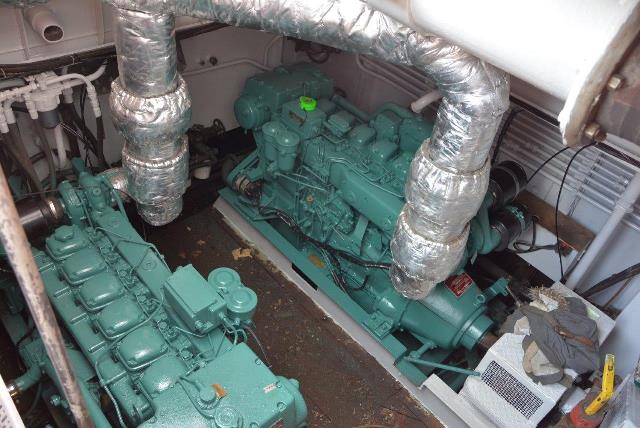

| Engines | 2 x V-Penta, 300 kW each |
| Dredge pump | Warman |
| Power pack | Yes |
