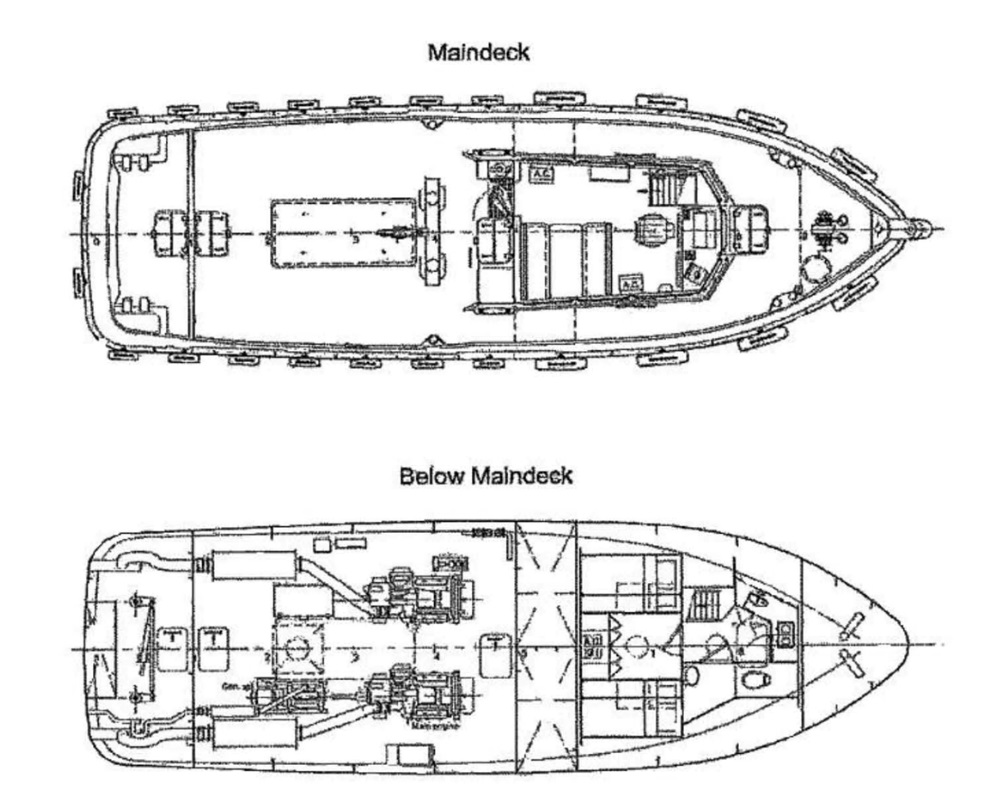

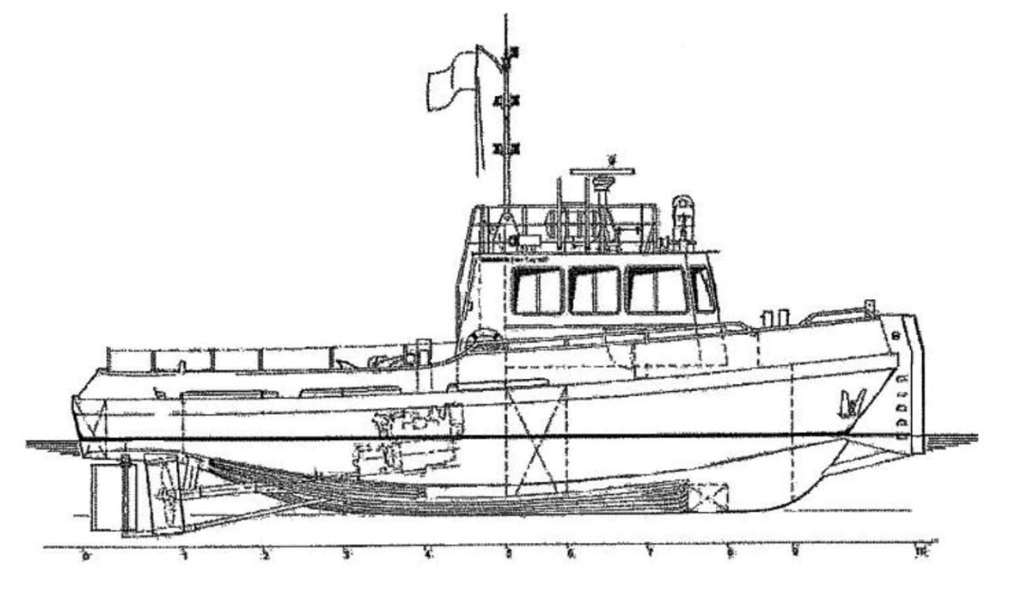

Coastal assistance, Barge handling & towing, survey, pilot, launch
2004, BV Coastal, versitale workboats, solid built. l x w x d (m): 17.0 x 5.25 x 2.50. 2 Cat 3408, 312 kW each, 12tbp. In Europe soon. Price: Inquire
General | |
Class | BV 1 ✠ HULL, MACH; Tug; Coastal area |
Built | 2004 |
Hull material | Steel |
Dimensions | |
Length over all | 17.0 m |
Width | 5.25 m |
Draft (max.) | 2.5 m |
GT | 39 |
Machinery & propulsion | |
Main engine | 2 x Caterpillar 3408, 312 kW each |
Propulsion | 2 x fixed pitch |
Performance | |
Speed ahead (max.) | 10 knots |
Speed (eco.) | 8 knots |
Bollard pull (ahead) | 12 ton |
Tank capacity | |
Fuel oil | 13.7 m³ |
Potable water | 0.7 m³ |
Life-saving equipment | |
Life bouys | 3 |
Life jackets | 6 |
Life rafts | 1 |
Capacity per life raft | 8 persons |
Accommodation | |
Crew | 2 persons |
Surveyors/Passengers | 4 persons |
Navigation & communication | |
Magnetic compass | Kelvin Hughes Observator |
Echo sounder | Furuno LS-6100 |
VHF | Sailor |
Radar | |
GPS | Furuno GP-32 |
Offshore crane: TTS, SWL 35 t
Including: Certificates, Approved drawings, Manuals, Spare parts, Load charts, etc. Price: Inquire
Offshore industry spec, mono hull, jet props
L x b x d(m): 19.0 x 5.1 x 0.95, Speed: 28 knots at full load (30t displacement) condition, 4 ton cargo capacity, deck area: 21m² @ 500kg/m², propulsion: 2 x 675 kW, Hamilton, jets. Endurance: 300 Nm, 25 pax + 2 crew or 30 pax + 2 crew.
2008, built in China, BV class, unrestricted navigation, l x b x d(m): 105 x 27.50 x 6.40, Deadweight: approx. 10,000 tons, deckstrength: 15 tons/m2. 3.60 m high coaming all around, including standard accessories.
