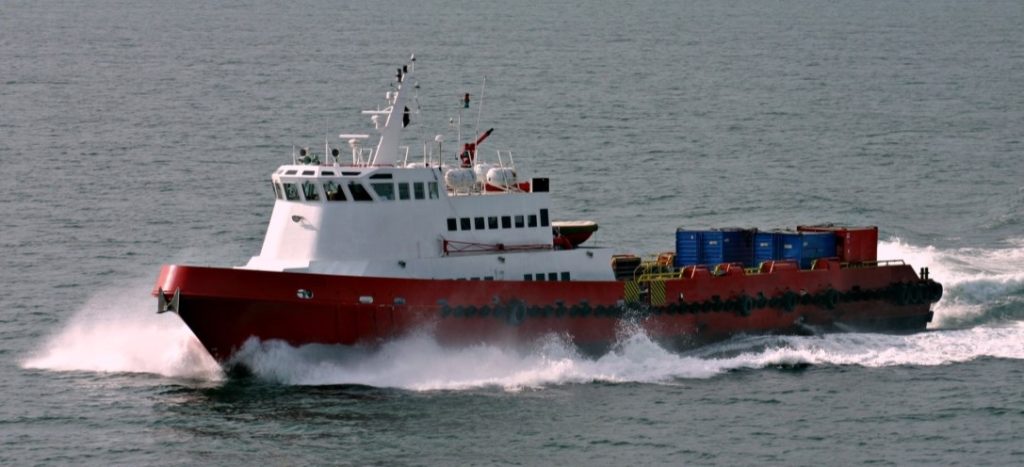

FSIV (Fast Intervention & Supply Vessel)
L x b x draft(m): 50.00 x 9.00 x 2.40. Propulsion: 4 x 2,400 hp. Speed: 26 knots. Deck area: 181 m2 @ 1,500kg/m2. For Charter & for Sale: Inquire
| GENERAL | |
| Built | 2002 |
| Class | BV |
| Notation | I + HULL + MACH, crew boat, unrestricted navigation |
| DIMENSIONS | |
| Loa | 50 m |
| Width | 9.10 m |
| Depth | 3.852 m |
| Draft | 2.378 m |
| Freeboard (summer) | 1.474 m |
| Clear deck area | 181 m2 |
| TONNAGES | |
| GT / NT | 421 / 126 |
| Deck cargo | 150 mt |
| Deadweight | 365.5 mt |
| Deck load | 1.50 t/ m2 |
| MACHINERY & CONSUMPTION | |
| Service speed / | 14.0 kn/9.5 m3/[email protected] mt |
| Consumption | 20.0 kn/28.0 m3/[email protected] mt |
| 26.0 kn/34.5 m3/[email protected] mt | |
| Main engine power | 4 x 2,400 BHP / 1,771kW @1,600 r.p.m., total 9,600 BHP |
| Main engines | 4 x Diesel engines, Caterpillar 3516B SCAC DITA |
| Generators | 2 x Diesel, 181 kW each A.C. 3-ph, 415/220V, 50 hz + DC, 24V |
| Bow thruster | Tunnel thruster, 198 BHP, 147kW |
| Cargo Fuel pump | 50 m3/h |
| Cargo FW pump | 50 m3/h |
| TANK CAPACITIES | |
| Fuel oil | 181 m3 |
| Fresh water | 96 m3 |
| Dispersant | 3.5 m3 |
| ACCOMMODATION | |
| Passengers | 62 (in business class seats) |
| 7/12 (Cabins/Berths) | 12 for crew |
| OTHER | |
| Anti-pollution | Oil dispersant spray boom, each side, dispersant tank |
| Deck crane | 1 Palfinger/Hydraulic crane, 1.0 mT @ 4.0 m outreach |
| FiFi | 1200 m3/hr with 1 ME-driven firepump |
| 1 monitor, water spray shield/deluge system | |
