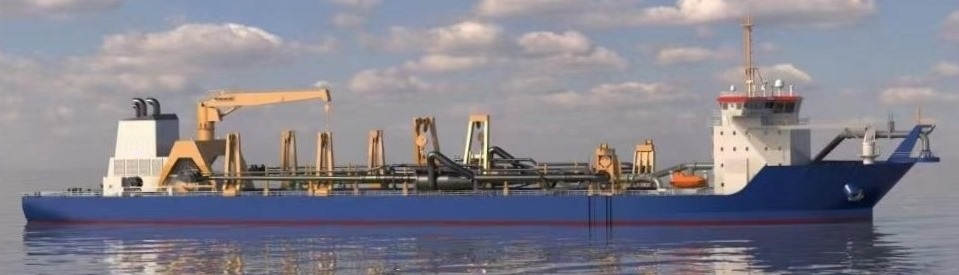

26,500 m3 Trailing Suction Hopper Dredger
2024 built, state of the art & versatile DP-1 hopper dredger, capable to operate on a variety of dredging, trenching & mining projects up to depths of 115 m. Finance can be arranged subject a due diligence. Only serious buyers to respond. Location: China. Enquire
| General | |
| Built | 2024 |
| Class | CCS, ★ CSA Trailing Suction Hopper Dredger; Dredging within R1; DP-1, |
| ★ CSM AUT-0; G-EP(OIL1,SC,RC,NEC2,INC,RSC1,AFS); G-ECO(BWM(T)) | |
| Dimensions | |
| Length | 170 m |
| Beam | 36 m |
| Depth | 15.8 m |
| Draft | 11.5 m @ dredging load line |
| GT | ≈ 27,000 |
| Dredging particulars | |
| Hopper volume | 26,500 m3 |
| Deadweight | 42,000 t @ dredging load line |
| Speed | 13.5 knots |
| Endurance | 20 days @ 85% MCR |
| Dredging equipment | |
| Dredge pipes | 2 x 1200 mm |
| Dredging depth | 40 m / 70 m / 115 m |
| Discharge method | 2 x 8 bottom door sets, |
| bow connection, rainbow | |
| Overflow | 2 x |
| Machinery | |
| Main engines | 2 x 7200 kW |
| Propulsion | 2 x CPP in nozzles |
| Bow thrusters | 2 x 1100 kW elec. drive |
| Stern thruster | 1 x 1100 kW elec. drive |
| Shaft generators | 2 x 7000 kW |
| Main generator | 1 x 7000 kW |
| Aux generator | 2 x 1800 kW, 1 x 500 kW |
| Dredging machinery | |
| Dredge pumps | 2 x 6000 kW |
| Underwater pumps | 2 x 3300 kW |
| Jet pumps | 2 x 2000 kW |
| Deck equipment | |
| Gantry crane | 45 t @ 6-30 m |
| Accommodation | |
| Cabins | For 40 crew, all en-suite |
