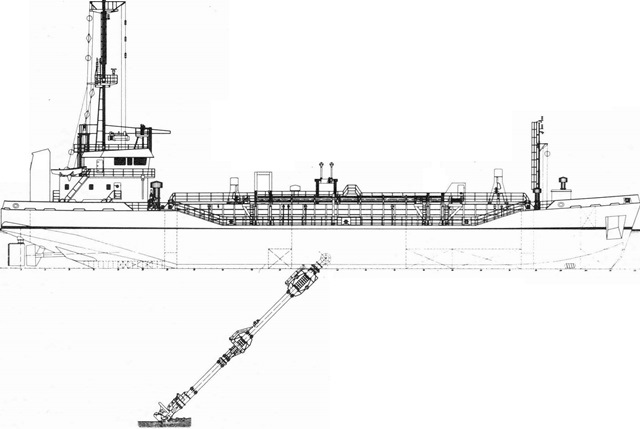

2.000 m³ Split Hopper Dredger
Direct from owners: Well maintained. 1983, BV class. Loa 78.0 m, Width 14.5 m, Depth 5.25 m, Dredging Draft 4.75 m. Availability and Rates: Inquire
| GENERAL | |
| Built | 1983 |
| Class | BV, I + Hull + Mach, Split hopper dredger, |
| Coastal area, Dredging within 15 Miles from | |
| shore or within 20 Miles from port, + Mach | |
| DIMENSIONS | |
| Length o.a. | 78.0 m |
| Width | 14.5 m |
| Depth | 5.25 m |
| Draft (loaded) | 4.75 m |
| GRT | 2035 |
| Hopper volume | 2000 m³ |
| Deadweight | 2800 ton |
| Dredging depth | 20 m |
| Speed (empty) | 11.7 knots |
| Speed (loaded) | 10.0 knots |
| Suction pipe | 1 x 0.75 m dia |
| MACHINERY | |
| Maine engines | 2 x 1250 kW |
| Shaft generator | 1 x 580 kW / 725 kVA |
| Generator | 2 x 152 kW / 190 kVA |
| Propellers | 2 x CPP |
| Bow thruster | 1 x 150 kW |
| Dredge pump | 1 x 590 kW |
| Jet pump | 600 m3/h, 7 bar |
| OTHER | |
| Fuel tanks | 174 m3 |
| Accommodation | 10 crew |
