580 m3 inland Hopper Dredger
Built 1969, inland waters. Equipped for trailing and alluvial sand extraction. L x W x D(m): 67.0. x 8.25 x 3.10. Dredging depth 14/27m. Crew: 2. Inquire
| GENERAL | |
| Type | Inland Trailing Suction Hopper Dredger |
| Year | 1969 |
| DIMENSIONS | |
| Length | 67.0 m |
| Beam | 8.25 m |
| Draft loaded | 3.10 m |
| Depth unloaded | 1.40 m |
| Hopper volume | 580 m3 |
| Deadweight | ≈ 1,070 t |
| PERFORMANCE | |
| Speed empty | ≈ 9 knots |
| Speed loaded | ≈ 8 knots |
| DREDGING | |
| Dredge pump | 350 mm, Warman |
| Dredging depth (trailing) | 17 m |
| Dredging depth (sand extraction) | 24 m |
| Dredge pipe diam | 350 mm |
| MACHINERY | |
| Propulsion | 2 x Cat.3406, 380 hp each |
| Generator | 1 x 150 hp |
| Dredge pump engine | 1 x 340 hp |
| Jet pump / bow propeller | 1 x 365 hp |
| FEATURES | |
| Deep suction pipe | |
Related products
-

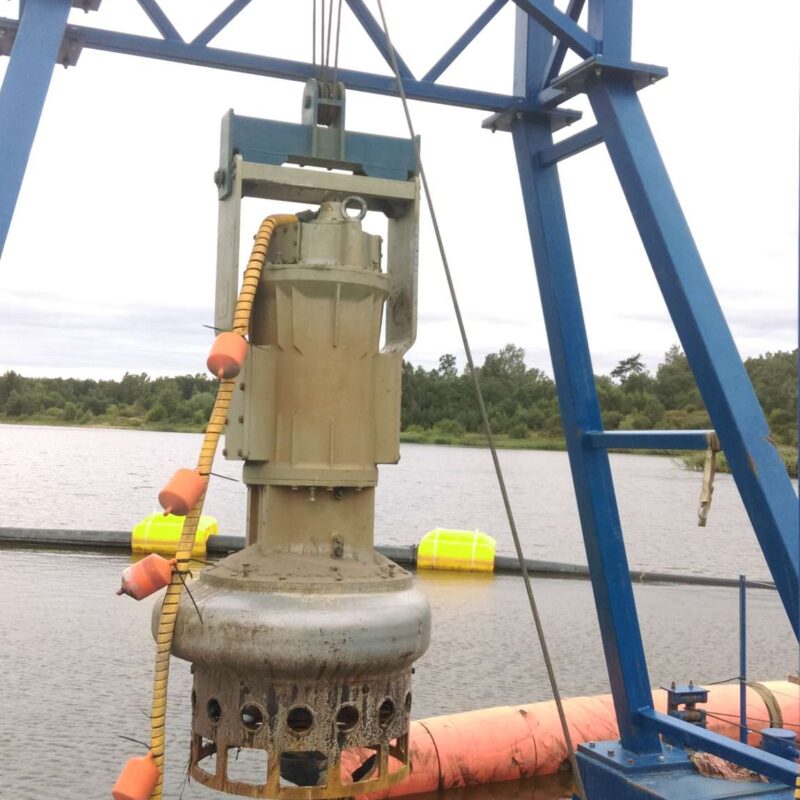

500 mm, 1000 kW, 20kV LMG Electrical Booster unit
