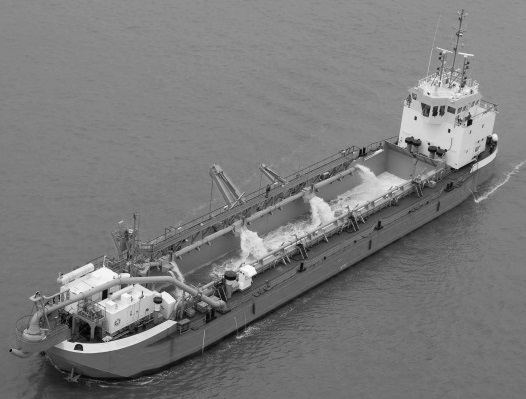

1.850 m³ Split Hopper Dredger
Direct from owners: 1974 EU built Split Hopper Dredger, 2011 fully upgraded, BV class. SS passed Feb-2017 . l x w x d (m): 80.0 x 13.8 x 5.6. draft loaded (m): 4.8. Propulsion: 2 x Cat 3512, totalling 1.900 kW, each driving a rudder proppellor. For Charter only. Inquire
| General | |
| Built / complete upgrade | 1974 / 2011 |
| Class | BV, I ✠ Hull ✠ Mach, Split hopper dredger, |
| Coastal waters, Dredging within 15 Miles | |
| from shore or within 20 Miles from port | |
| Special Survey | feb-2017 |
| Dimensions | |
| Length oa | 80.0 m |
| Width | 13.8 m |
| Depth mld | 5.6 m |
| Draft Empty | 2.6 m |
| Draft Loaded | 4.8 m (Load Line Exemption) |
| GRT | 1,740 |
| Dredging particulars | |
| Loading Capacity (DWT) | 2,270 t |
| Hopper Capacity | 1,830 m3 |
| Maximum Dredging Depth | 23.5 m |
| Diameter Suction Pipe | 0.55 m |
| Diameter Discharge Pipe | 0.55 m |
| Discharge Systems | Rainbow, Split Dumping, |
| Pump Ashore Bow Connection | |
| Speed Empty / loaded | 10.8 / 8.0 knots |
| Software | Dredgepack, with Hypack Office |
| Machinery | |
| Total Installed Power | 3,631 kW |
| Propulsion Power | 2 x Cat 3512, 954 kW each |
| Suction Pump Power (UWP) | 540 kW |
| Discharge Pump Power | 710 kW |
| Jet Power | 265 kW |
