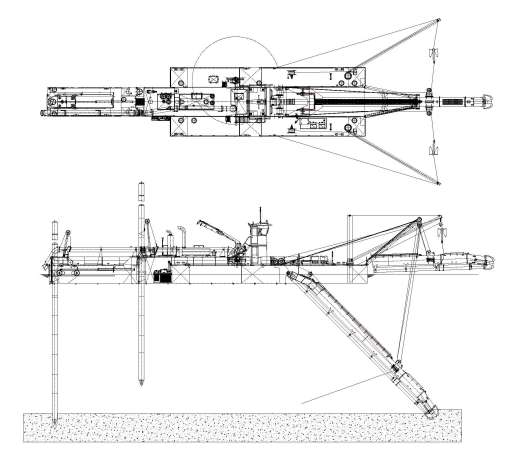

550 mm (22″) Modular CSD

2009 built modular Damen CSD500, including floating line, multicat, minicat and speedboat. very few running hours and said to be in a good condition. Location: West Africa. Enquire

SKU: A0475 Categories: , Tag:
General
Built 2009
Type Modular CSD

Dimensions
Length o.a. 50 m
Length pontoon 36.5 m
Beam 8.0 m
Depth 2.0 m
Draft 1.15 m

Dredging particulars
Suction line 550 mm
Discharge line 500 mm
Dredging depth 14 m
Cutter power 180 kW

Machinery
Dredge pump engine 1 x Caterpillar 3512B, 954 kW
Power pack engine 1 x Caterpillar 3406C, 345 kW
  driving cutter, winches and spuds

Deck Equipment
Ladder winch 1 x 12 t, 0-15 m/min
Swing winch 2 x 12 t, 0-15 m/min
Anchor boom winch 2 x 4.0 t, 0-25 m/min
Spuds 2 x 22 m x 610 mm
Spud hoisting 2 x cylinder, 1.50 m stroke
Spud carrier 1 x cylinder, 3.50 m stroke
Deck crane 10 t

Tanks
Fuel 22 m3

Accommodation
Cabin PS fwd pontoon

Additional equipment (optional)
Floating line 2,500 m x 500 mm
Multicat 12 m
Minicat 10 m
Speedboat
