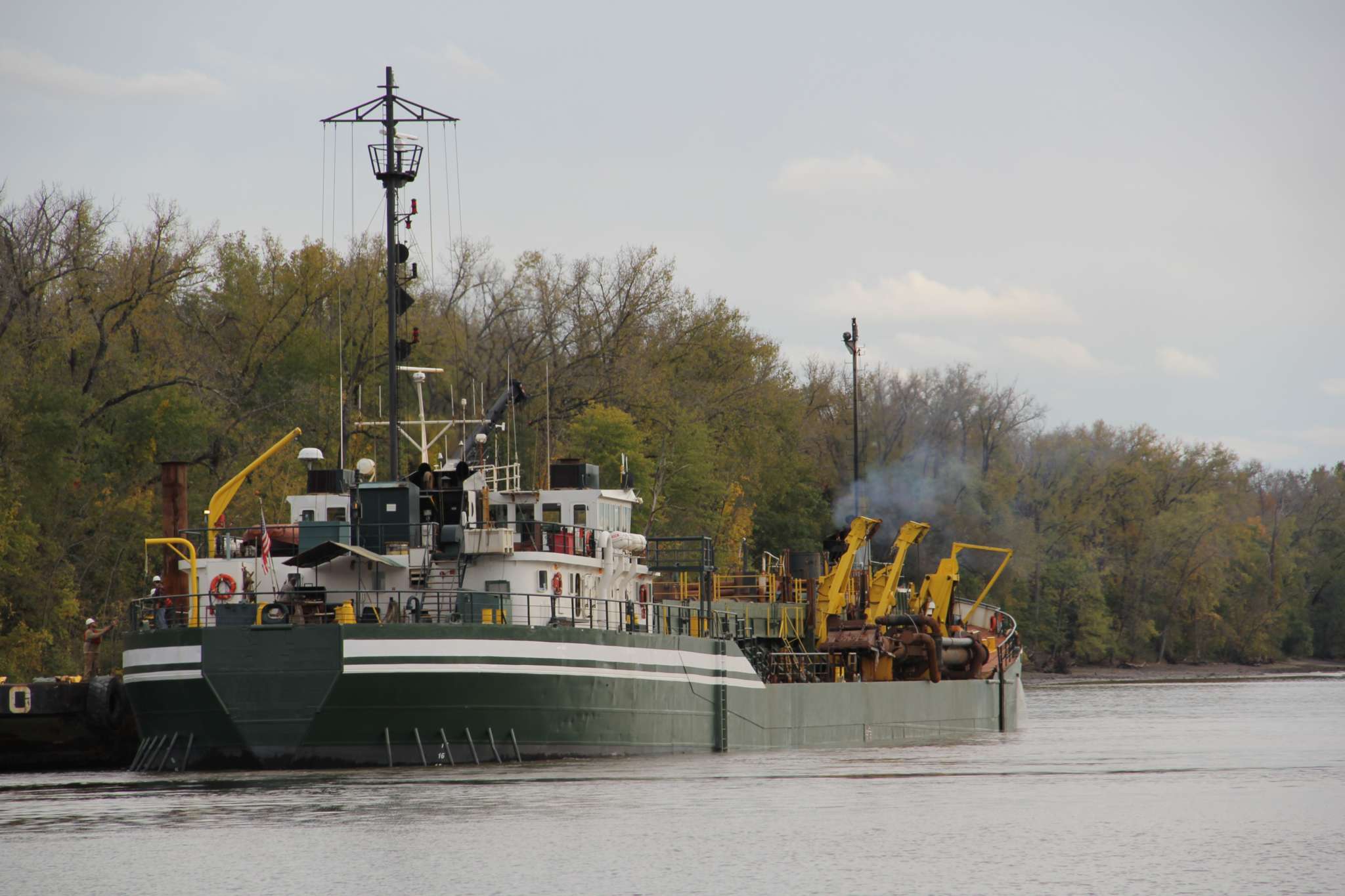

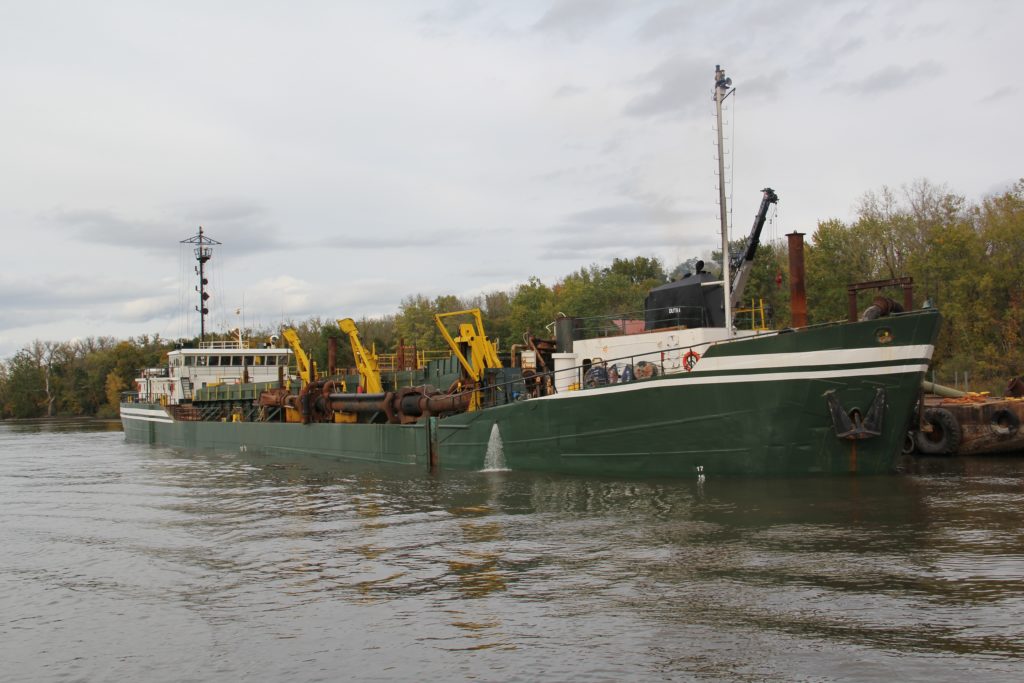

Direct from Owners: Vintage model, Length oa: 100 m, Width: 15.5 m, Draft: 5.0 m, Well maintained, Gulf of Mexico region. Presently in operation. Price: Inquire
Dimensions | |
Length oa | 100 m |
Width | 15.5 m |
Depth | 6.75 m |
Draft (loaded) | 5.0 m |
GRT | 3100 |
Dredging particulars | |
Hopper volume | 2800 m3 |
Dredge pipe | 1 x SB mounted |
Dredging depth | 20 m |
Discharge method | Bottom doors |
Machinery | |
Main engine | 2 x GM, 1125 kW each |
Dredge pump engine | 1 x 1460 kW |
Speed (loaded) | 12 knts |
IACS class, l x b x d (m): 48.0 x 9.0 x 3.4 Deadweight 760 t. Propulsion: 2 x 220 kW rudder propeller. Location: EU. Inquire
2013, IHC Beaver 5020C, BV class. Modular. Loa x B x D (m): 32.5 x 7.9 x 2.45. Dredgeing depth: 20 m. Dredgepump power: 745 kW. Location: Central America Enquire
Direct from owners: Well maintained. 1983, BV class. Loa 78.0 m, Width 14.5 m, Depth 5.25 m, Dredging Draft 4.75 m. Availability and Rates: Inquire
