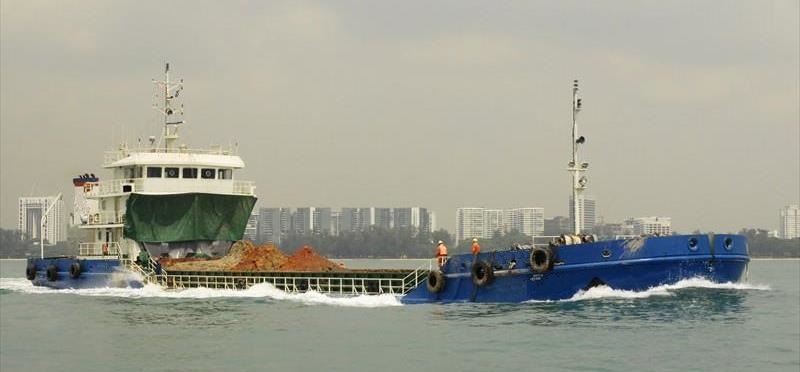

1500 m³ Self-propelled Split Hopper Barge (2 sisters)
2015/2016 built. Multiple sisters. IACS class, All next Special Survey 2025. 1,500 m³ / 2,500 t deadweight. Cummins engines. Location: Singapore region Enquire
| General | |
| Built | 2015/2016 |
| Class | BV, I ✠ Hull ✠ Mach, Coastal area |
| RINa, C ✠, MN, Split Hopper Unit | |
| Mon-Shaft, Costal Area | |
| Nex Special | all units 2025 |
| Dimensions | |
| Length | 68.5 m |
| Beam | 13.8 m |
| Depth | 5.20 m |
| Draft | 4.30 m |
| GT | 1,510 |
| Capacity | |
| Deadweight | 2,550 t |
| Hopper volume | 1,500 m3 |
| Speed | 10 knots |
| Machinery | |
| Main engines | 2 x Cummins K38-M, 596 kW each |
| Generator | 2 x 80 kW |
| Harbour Generator | 1 x 30 kW |
| Accommodation | |
| Cabins | 7 x 1-berth and 2 x 2-berth cabins |
| 1 x hospital | |
