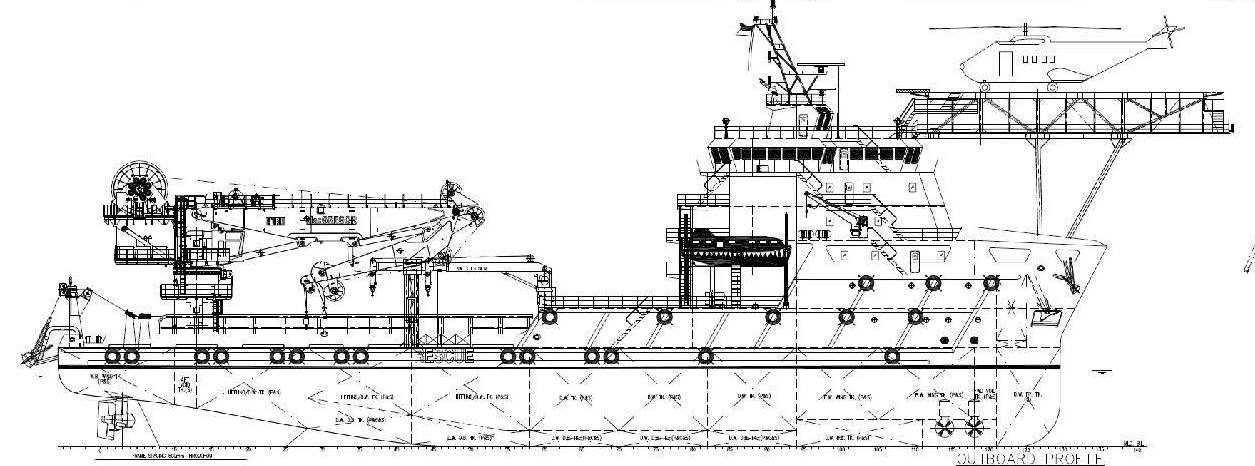

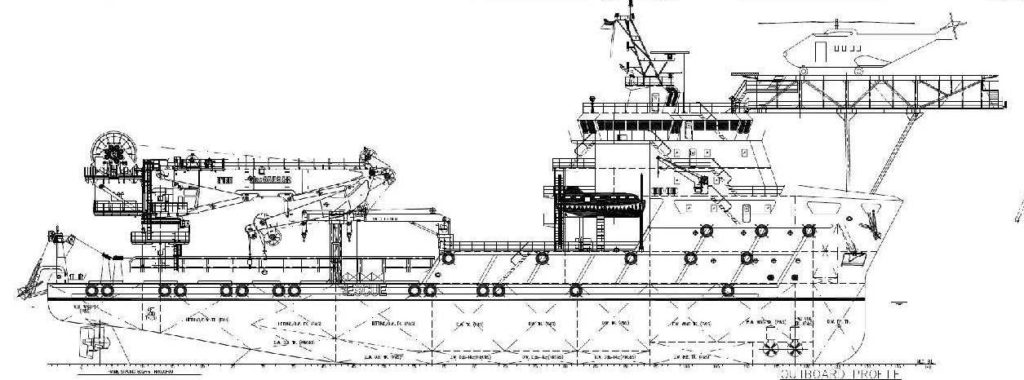

DP-2, 4-PM, FiFi-1 IMR/Accom. Vessel

2015, BV. SPS, Helideck, Moonpool: 8.0 m x 8.0 m. Loa 85.0 m, width 22.00 m, depth 8.00 m, max draft 6.30 m. Deck Area 730 m2. DW 3,100 tons. Deck crane 100 ton AHC Knuckle Boom. 200 berths. Location: Far East. Inquire

SKU: B0090 Category: Tag:
GENERAL
Built 2016
Class Notation ABS + A1 (E), Offshore Support Vessel (Supply-HNLS,
FFV1), + AMS, ACCU, DPS-2, SPS, RW, HELIDK.

MAIN PARTICULARS
Length Overall 85.00 m
Breath Moulded 22.00 m
Depth Moulded 8.00 m
Draft 6.30 m
Deadweight ~3,100 t
Gross Tonnage ~4,670
Trial Speed ~12.5 knots

FEATURES
Moon Pool 8.00 m x 8.00 m
Heli-Deck Capable of the reception of a Sikorsky S61

CARGO CAPACITIES
Clear Deck Area 730 m2
Deck Cargo 800 T
Deck Loading 7.5 T/ m2
Fuel Oil 1168.4 m3
Fresh Water 744 m3
Drill Water 1757.9 m3
Water Ballast 282.3 m3
Mud/Brine 418 m3
Heeling 449.9 m3
Dry Bulk Cement 226 m3 (4 x 2000 ft3)

DECK / AHT EQUIPMENT
Windlass 1 x 16T @ 12 m/min for 58mm dia. Chain, elec./hydr.
Capstan 2 x electro hydraulic type of 10T @ 15 m/min
Anchor 2 x high-hold type, stowed in anchor-pockets each of 3240kg
Tugger Winch 2 x electro-hydraulic type of 10T @ 15 m/min
Cargo Rail 300 mm  on main deck (P&S) Approx. 2500 mm to top of pipes
Main Crane 1 x, AHC 100T @ 15 m, elec/hydr.
Deck Crane 1 x marine crane of 3T SWL @ 14.0 m
Gangway 1 x aluminium gangway about 6.0 m
Mooring System 4 point mooring
Mooring Winches 4 x 1200 m x 40 mm with CCTV monitoring system

PROPULSION /MACHINERY
Main Engine 2 X Niigata 6L28AH, 3000 bhp each
Propulsion system 2 x Azimuth thruster
Bow Thruster 2 x Kawasaki, 800 kW each, CPP, 12t thrust
Main Generator 3 x Caterpillar, 830 kW each
Shaft Generator 2 x Leroy Somer, 1500 kW each
Emergency Generator 1 x Cummins, 192 kW, 415V/50Hz

CARGO DELIVERY RATES
Fuel Oil 2 x 150 m3 /hr @ 75 m head
Fresh Water 1 x 150 m3 /hr @ 75 m head
Drill Water 1 x 150 m3 /hr @ 75 m head
Mud 2 x 70 m3 /hr @ 85 m head
Bilge 2 x 75 m3 /hr @ 60 m head
GS/Fire 1 x 100 m3 /hr @ 75 m head
Sludge 1 x 5 m3 /hr @ 29 m head
Ballast 1 x 200 m3 /hr @ 40 m head

ACCOMMODATION
4 x 1 man cabin 4 men
10 x 2 men cabin 20 men
44 x 4 men cabin 176 men
Total 200 men
1 x hospital 2 men
Chiller / Freezer ~35 m3 / ~35 m3 (approx.)
Offices • Mess Rooms • Gymnasium • Galley •Smoking Room

LIFE SAVING EQUIPMENT
Life Raft 8 x 25 men
Life Buoy-ring 12 sets
Lifejackets 250 sets
Fireman Outfit 8 sets
EEBD 9 sets
MOB-Light Smoke Signal 4 sets
First Aid Kit 1 set
Lifeboat c/w davit 2 sets (SOLAS approved)
Immersion Suits 204 sets
Air Breathing Apparatus 4 sets
DYNAMIC POSITIONING SYSTEM
Meets the DPS-2 class notation of ABS
1 x DGPS
1 x Laser Reference System
1 x HIPAP 500 Position Reference System
3 x wind sensor
3 x vertical reference units
3 x gyro sensors
2 x UPS
1 x lightweight taut wire (500 m)
2 x printer for alarm log
1 x FMEA consultant

EXTERNAL FIRE FIGHTING SYSTEM
External FiFi-1 c/w water spraying system
Fire Monitor 2 x 1200 m3/hr @ 50 m
Fire Pump 2 x 2000 m3/hr @ 14 bar
Sea Chests 2 x independent type
Foam tank capacity 20.5 m3
Dispersant Capacity 20.5 m3

INTERNAL FIRE FIGHTING SYSTEM
CO2-Fire Alarm System Provided in engine room
Fixed water mist Main Engine Room
Fire main 1 x Fire main, 12 x hydrants
Fire Blankets 2 off
Fire Axe 1 off

NAVIGATION EQUIPMENT
X-band radar range 96 nm 1 set
S-band radar range 96 nm 1 set
Echo Sounder 1 set
GPS Plotter 1 set
Gyro Compass 3 sets
Magnetic Compass 1 set
Autopilot & Steering Gear 1 set
Weather Facsimile Receiver 1 set
Doppler Speed Log 1 set
AIS 1 set
MF/HF Transceiver (GMDSS) 1 set
Satellite EPIRB (GMDSS) 1 unit
2-way Portable VHF (GMDSS) 3 units
SART 2 sets
Navtex Receiver (GMDSS) 1 unit
Anemometer 3 units
SUPPLY & DRAINAGE PLANT
FW Hydrophore Plant 1 x 15 m3/hr @ 60 m head
SW Hydrophore Plant 1 x 15 m3/hr @ 60 m head
Standby Hydrophore Plant 1 x 15 m3/hr @ 60 m head
Sewage System For 200 persons
Freshwater Maker 2 x reverse osmosis type of 30t/day
Oily Bilge Water Separator 1x 1.0 m3/hr with oil content <15ppm
Hot Water Calorifier 2 x 80 kW of 1000L c/w 2 circulating pumps
