9 August 2023330 ft Cargo Barge (keen sellers)

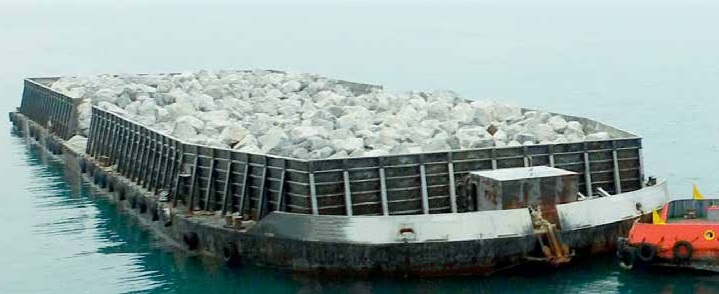

For Sale. RINA classed, well maintained spoon bow 10,000 dwt cargo barge. Multiple sister barges available. Location: Middle East Gulf region. Enquire

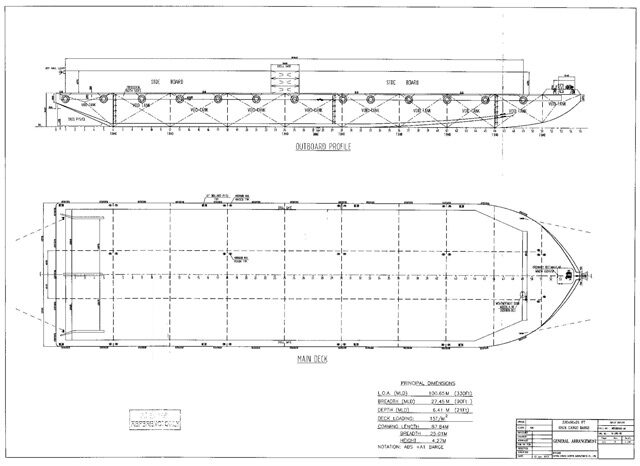

General | |
Build | 2014 |
Class | RINA, C ✠ Hull, unrestricted navigation |
Dimensions | |
Length | 100.6 m (330 ft) |
Beam | 27.5 m ( 90 ft) |
Depth | 6.4 m ( 21 ft) |
Draft | 5.05 m ( 16.5 ft) |
GT | 4,550 |
Deck & cargo Capacity | |
Deadweight | 10,500 t |
Deck load | 15 t/m2 (even distribution) |
Cargo area | 86.5 m x 24.5 m = 2,120 m2 |
Coamings | 4 m high |
Coaming openings | Midship, both sides |
