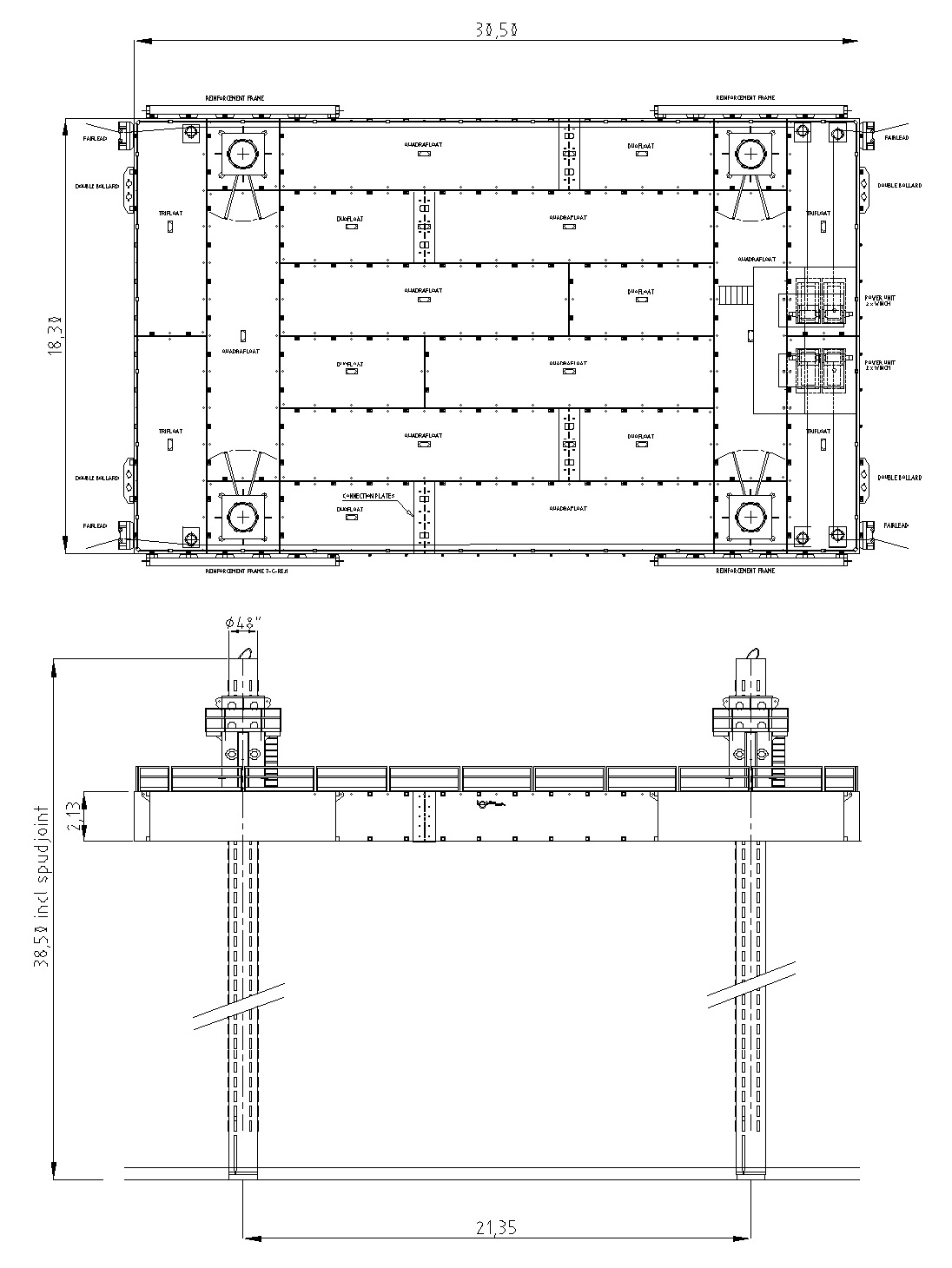

Self-elevating Platform, Modular

Payload: 400 ton, Length x Width(m): 30 x 18, modular Self-elevation Platform / Jack-up Barge. Enquire

General
Type Self-elevating Platform – Modular
Class DNV-GL, ✠ 100 A5 RSA(20) Self Elevating Unit
Dimensions
Length 30.5 m
Beam 18.3 m
Depth 2.15 m
Draft 1.65 m @ 325 t payload
Deck space +/- 500 m²
Load & jacking capacity
Pay load 400 t
Deck strength 15 t/m²
Type Hydraulic, mechanically engaged
Speed 8 m/hr
Capacity 300 t/leg, hydraulic
Leg dimensions
Length 38.5 m, extension possible
Diameter 48’’
Machinery
Power packs 2 x 104 kW, silenced
Mooring System
Winches 4 x 15 t pull, 17 t hold, hydraulic
Wires 150 meter Ø 26mm
Installation conditions
Max. wave height 0.7 m (depending soil conditions)
Operational conditions
Water depth (38.5 m legs) max 28.0 m, without seabed penetration
Max. wave height 2.0 m
Wind speed 50 km/h, 30 knots, Bft 7
Air gap 4.0 m
Survival conditions
Water depth 28 m max
Max. wave height 3.0 m
Wind speed 120 km/h, 65 knots, Bft 11/12
Air gap 4.0 m
