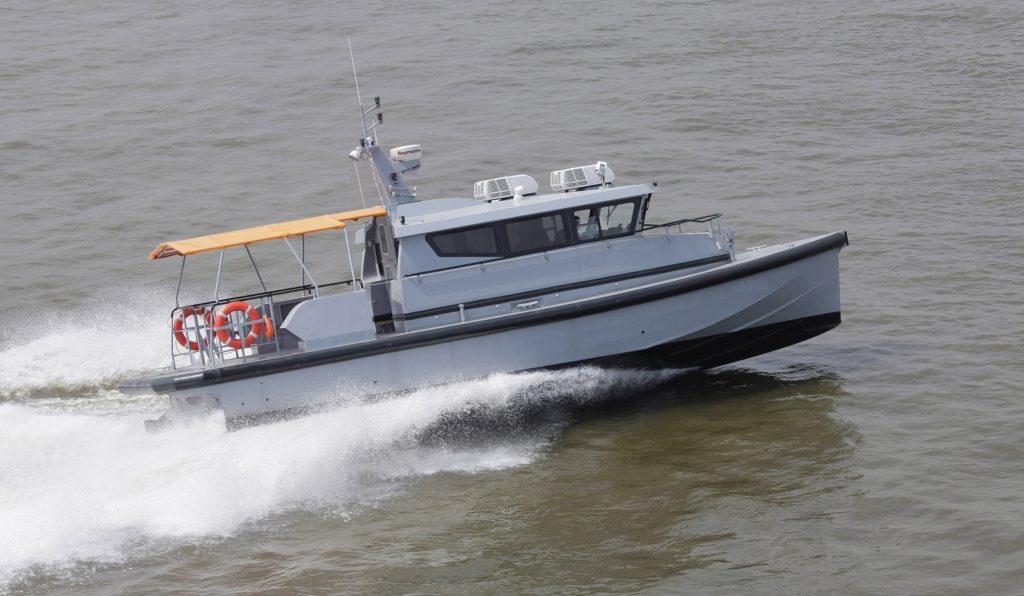

2012, BV class, 12 pax, aluminium hull. 0.8m draft. 2 x 339 KW Cat C7, driving waterjets. Speed upto 35 knots. Location: SEA and ME. Enquire
General | |
Built | 2012 |
Class | BV, ● Hull ● Mach, Light Ship, |
Fast Utility Vessel, Sea area 3 | |
Hull / Superstructure | Aluminium / FRP |
Dimensions | |
Length | 12,5 m |
Beam | 3,8 m |
Depth | 1,7 m |
Draft | 0,8 m |
GRT | 15 |
Lightweight | 10,5 ton |
Performance | |
Deadweight | 2,5 ton |
Speed max | 35 knots, E-rated |
Speed service | 28 knots, C-rated |
Machinery | |
Main engines | 2 x Cat. C7TA, E-rated, 339 kW each |
Generator | 1 x Cummins Onan, 4 kW |
waterjets | 2 x Ultrajet 340 |
Tank capacity | |
Fuel oil | 0,85 m³ |
Fresh Water | 80 ltr |
Navigation | |
Radar, GPS, C-map charts, Echo sounder, magnetic compass | |
Safety equipment | |
2 x lifebuoys, 14 x life jackets, 6 x flares, 2 x 8 pax life rafts | |
Fire fighting | Fixed ER, Marinex, Stat X |
Accommodation | |
Seats for 12 persons + 2 crew | |
Other | |
Lifting lugs |
