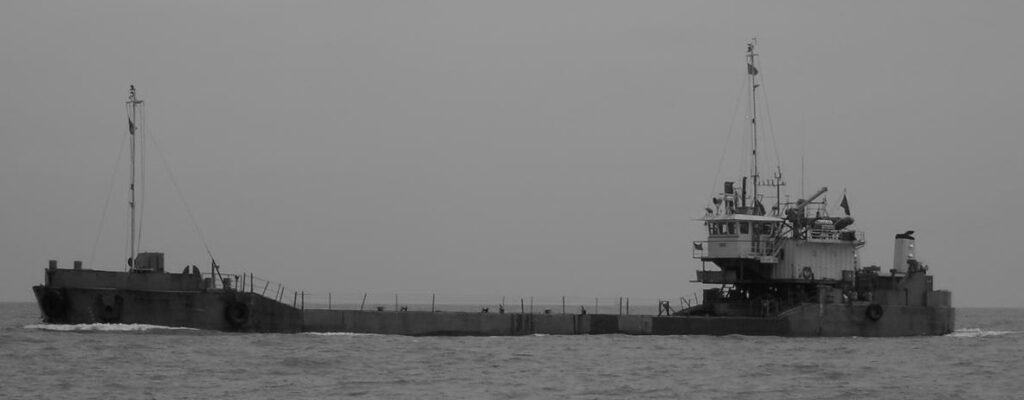

1,000 m3 Self-propelled Split Hopper Barge (2 sisters)
Well designed, high capacity Self-propelled Split Hopper units for sale. Location: Middle East Gulf region. Enquire
| General | |
| Built | 80-ties |
| Class | BV, I ✠ Hull ✠ Mach, Split Hopper Unit, Coastal area |
| Load Line Exemption | Dredging < 15 Miles from shore or < 20 Miles from port |
| Dimensions | |
| Length | 65 m |
| Beam | 12 m |
| Depth | 4.0 m |
| Draft (exemption load line) | 3.56 m |
| GT | 865 |
| Performance | |
| Hopper volume | 1,000 m3 |
| Deadweight | 1,840 t |
| Speed loaded | 7 knots |
| Speed ballast | 8.5 knots |
| Machinery | |
| Main engines | 2 x Deutz, 430 kW ea |
| Propulsion | 2 x Rudder propellor |
| Generators | 1 x 40 kW, 1 x 25 kW |
| Tank capacity | |
| Fuel | 78 m3 |
| Fresh water | 5.5 m3 |
| Accommodation | |
| Cabins | 2 x 1-berth cabin |
| Other | Mess / galley, sanitary |
