Conventional twin screw Tugs, Workboats, Multicats and Line handling boats
Shallow-draft AHT

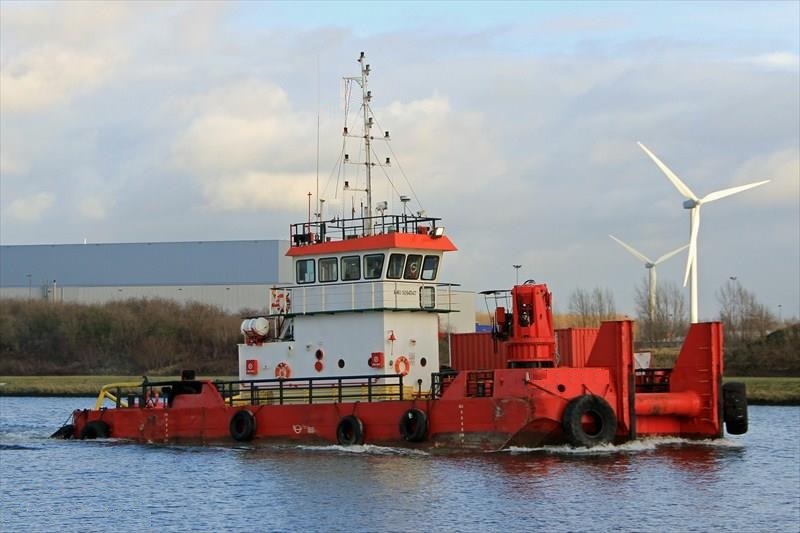

54 tbp Shallowater AHT
Towing, Anchor Handling, Shallow Water operations, Dredge/Field Support
2007, Lloyds Register. l x w x d (m): 35.00 x 11.50 x max. draft 3.15 m. 3 x Cummins, 5,100 bhp total, 54 tbp. knuckleboom crane: 185 tonmeter. Philippines / South China Sea. Owners consider westward tow. For charter only. Inquire
| Built | 2007 | |
| Classification | Lloyds +100 A1 Tug LMC UMS, Ice Class 1B, Fi-Fi 1 | |
| Dimensions | Length | 35.00 m |
| Beam | 11.50 m | |
| Draft | 2.4m (min.) 3.15m (max.) | |
| Main Engines | 3 x Cummins KTA50-M2 engines, total 5100bhp at 1800rpm, each driving 1800mm diameter fixed pitch propellers in Kort nozzles through reduction gearboxes, fitted with box coolers. | |
| Bollard pull | 54.5 tonnes | |
| Speed | 13 knots free running | |
| Tank Capacities | Fuel | 218m3 |
| Fresh Water | 135m3 | |
| Navigation | GPS and magnetic compasses, DGPS, 2 x radars, echosounder, doppler log, AIS, cameras and displays, Navtex, electronic chart display, autopilot, GMDSS area A3, Inmarasat C, MF/HF radio, VHF radios, Epirb and Sart, 3 x loudhailers and intercoms, iridium satellite phone with email, cell phone, satellite broadband modem | |
| Equipment | 50 tonnes pull double drum towing and anchor handling winch, tow drum capacity 550m of 52mm wire, anchor handling drum capacity 380m of 48mm wire, 9 tonne tugger winch, 185 tm hydraulic crane, 32.5 tonnes at 4m radius to 6.35 tonnes at 17m radius. storage reel for spare tow wire, 3 x tow pins with hold down hook, 50 tonne stern roller, tow hook, timber covered working deck with container fixing points, 2 remote controlled fire-fighting monitors each with 1200cu m per hour capacity | |
| Accommodation | Heated and air conditioned for up to 18 persons in 10 cabins | |

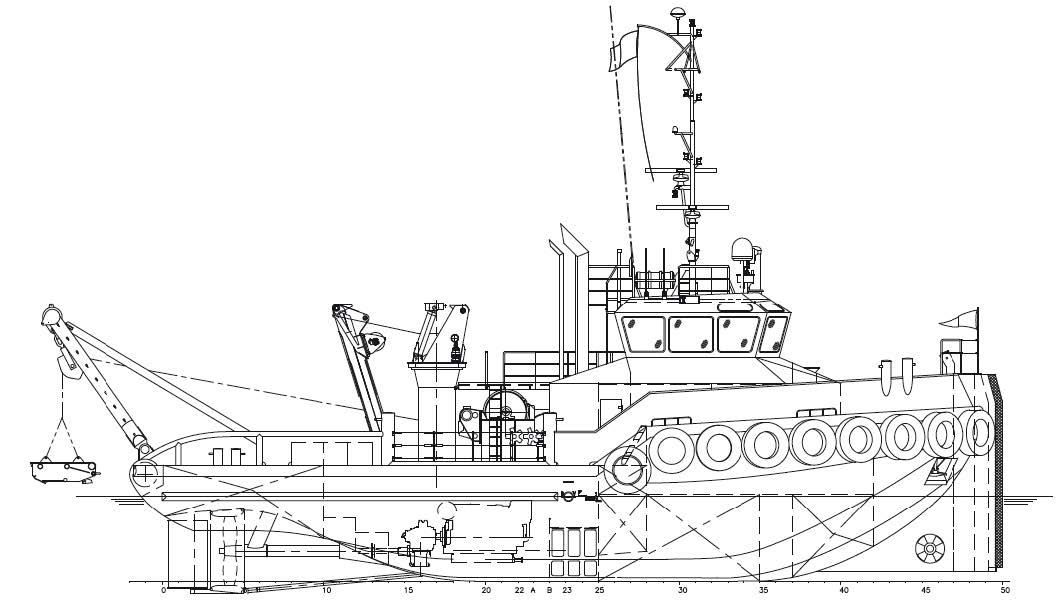

Shoalbuster 2709
Towing, Anchor Handling, Dredge Support and Ploughing
2013, BV. l x w x d (m): 27,00 x 9,00 x 3,50, max. draft 2,65 m. 2 x Cat 3512, 2.250 kW, 38 tbp. knuckleboom crane: 5,2 ton @ 18 m. Northsea.
Owners are open to sale, long term BB or short/medium term TC. Inquire
| General | |
| Year of Build | 2013 |
| Bollard Pull | 38,5 Tonnes |
| Class | Bureau Veritas I 3/3 (E) Unrestricted Service, MCA Cat 1 -150 miles from safe haven. |
| Dimensions | |
| Length | 27.00m |
| Width | 9.12m |
| Depth at Sides | 3.60m |
| Draft Aft | 2.63m |
| Gross Tonnage | 141 Tonnes |
| Main Engines & Generators | |
| Propulsion | 2 x Caterpillar 3512c TA/A, 2.250 kW, at 1600RPM |
| Propellers | 2100 mm Promarin Fixed Pitch Propellor |
| Bow Thruster | 200HP, Hydraulically Driven |
| Nozzles | Damen Marine Components “Optima” |
| Controls / Steering | Straathof / WK Hydraulics |
| Gearboxes | Reintjes WAF 665 / 5.95:1 |
| Survey Equipment | |
| Moon Pool | Forward Peak |
| Digital Plough Monitoring System | Tower Software Ltd, real time digital progress system and log |
| Bunker Capacity | |
| Fuel Oil | 125 m³ |
| Fresh Water | 30 m³ |
| Accommodation | |
| 7 persons | |
| 3 x Single Cabins | |
| 2 x Double Cabins | |
| AC & Heating | |
| Gallery/ Mess & Sanitary Facilities | |
| Deck Equipment | |
| Anchor | 2 x 275 kg Pool (HPP) |
| Anchor Chain | 19mm stud-link, X2 192.5m |
| Anchor Winch | DMT, 200-h19 Hydraulic Driven |

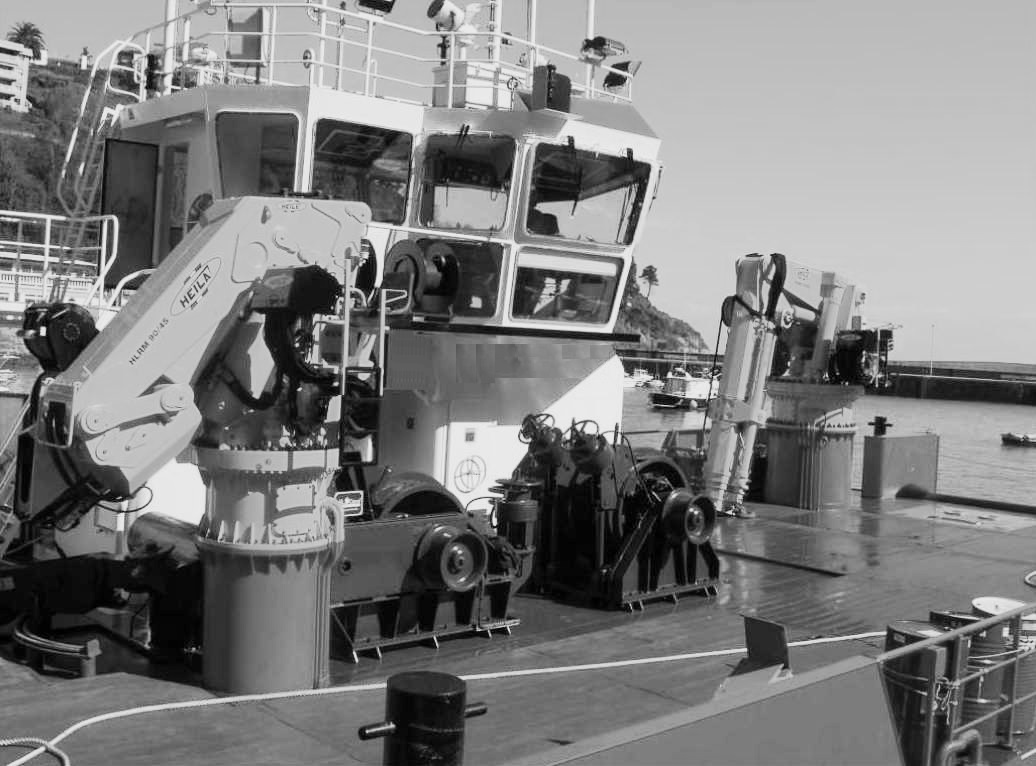

| Deck Crane | Heila HLRM 140-4SL, 5.3 Tonnes at 18.03m |
| Anchor Handling/ Towing Winch | DMT, Waterfall Execution |
| Capacity Towing Part | 50T at 4.0m/min pull, slack 0-23/min, holding power 120T, wire cap 850m 40mm |
| Capacity Anchor Handling Part | 100T at 2.5m/min pull, slack 0-14.5/min holding power 120T, wires cap. 650m 40mm |
| Towing Pins | WK Hydraulics Double Pin Type with Chain Stop |
| Tugger Winch | Dromec HPV-12000, 12T (m) at 4.5m/min |
| Stern Roller SWL | 50T at a 45-degree angle downwards |
| Navigation & Communication Equipment | |
| Searchlights | 2 x Pesch 200w |
| Magnetic Compass | Cassens & Path Reflecta |
| Gyro Compass | Anschutz Compact 22 |
| Radar System | Furuno FAR-2117 |
| Radar Transponder | Jotron, Type Tronsart |
| GPS Navigator | Furuno GP150D |
| Auto Pilot | Radio Zeeland Sea Pilot |
| AIS | Furuno FA 150 |
| Echo Sounder | Furuno FE-700 |
| VHF/DSC | 2 x Thrane & Thrane Sailor 6222 DSC Class A |
| Speed Log | Furuno, Type DS-80 |
| Watch Alarm | Marble 421 |
| Handheld VHF | 2 x Jotron, TRON TR20 |
| SSB/DSC | Thrane & Thrane 6310 |
| Navtex | Furuno NX – 700 |
| Mini-C Systems GMDSS | 2 x Thrane & Thrane, Type TT-300E |
| EPIRB | Jotron, Type TRON-40S |
| Chart Plotter | Transas, Navigator Pro |
| SART | TRON SART |
| Intercom | Sigma 700 (8 stations) |
| Immarsat-C | Thrane & Thrane TT 300E |
| GSM Telephone | Siemens MC55i |
| Fleet Broadband | Thrane & Thrane FBB 500 |
| CCTV Camera | 2 x Engine Room, 2 x Deck |

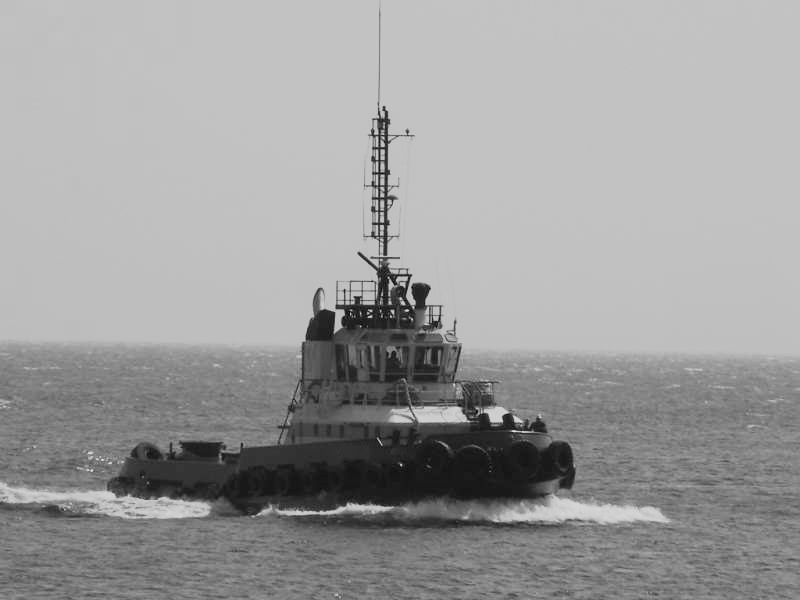

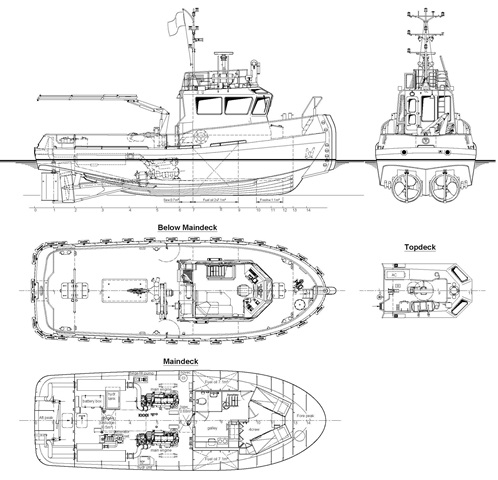

Shoalbuster 2609
Towing, Anchor Handling and Dredge Support
2004, BV. l x w x d (m): 26,00 x 9,00 x 3,50, max. draft 2,65 m. 2 x Cat 3508, 1.650 kW, 30 tbp. knuckleboom crane: 7,5ton @ 15,5 m. Australia. Inquire
| General | ||
| Class | Bureau Vertias I 3/3 {E} Unrestricted area *MACH* Tug | |
| Year Built | 2004 | |
| Dimensions | ||
| Length over all | 26,0 | m |
| Beam | 9,3 | m |
| Depth at Sides | 3,5 | m |
| Maximum Draft | 2,6 | m |
| Tank capacity | ||
| Fuel Oil | 130 | m3 |
| Fresh Water | 28 | m3 |
| Performance | ||
| Bollard Pull | 30 | ton |
| Speed | 11 | knts |
| Propulsion | ||
| Main Engines | 2 | Caterpillar 3508 B TA |
| Total Output | 1.650 | kW |
| Propulsion | 2 | Fixed Pitch Propellers |
| Bow Thruster | 100 | kW |
| Rudders | 2 | Fishtail (45 degrees) |
| Aux. equipment | ||
| Generators (x2) | 87 | kVa |
| Deck equipment | ||
| Anchor Winch | ||
| Deck Crane | 7,5 | ton |
| crane reach | 15 | m |
| crane winch | 5 | ton |
| Towing Winch | 50 | ton, double drum |
| Towing Hook | 35 | ton Mampaey |
| Towing Pins | 3 | Hydraulic Towing / Anchor Handling Pins |
| Tugger Winch | 6 | ton Pull |

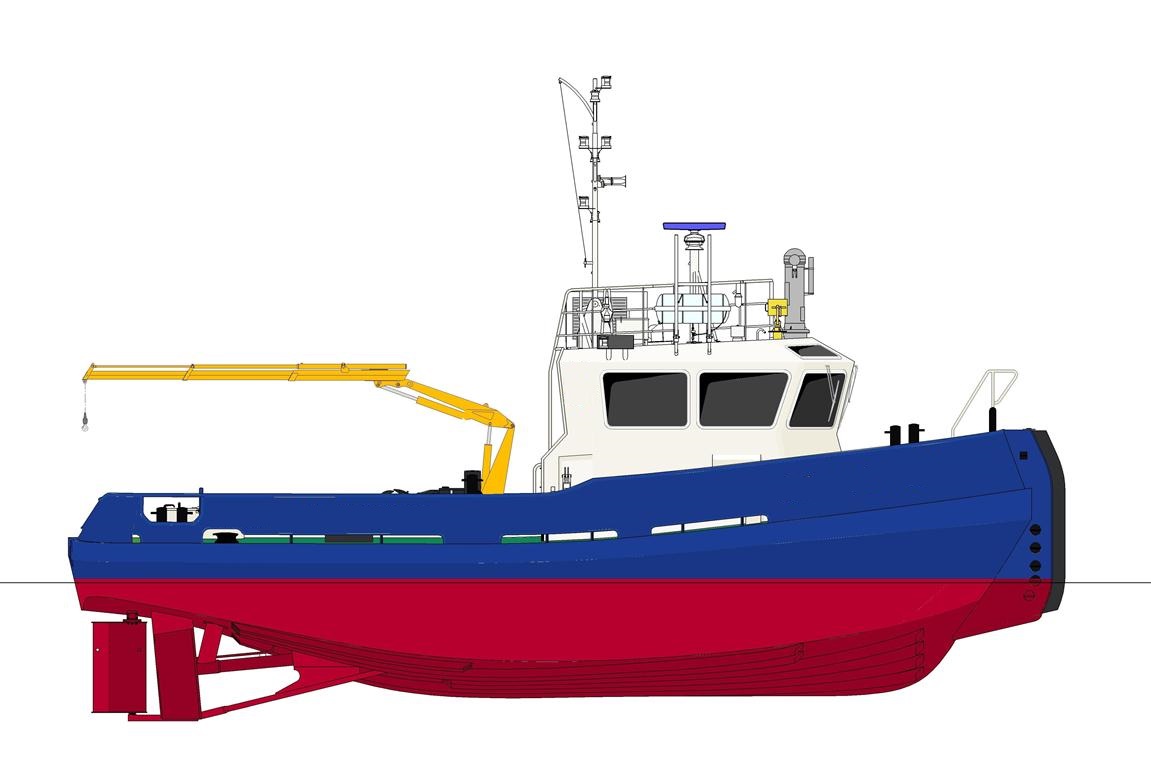

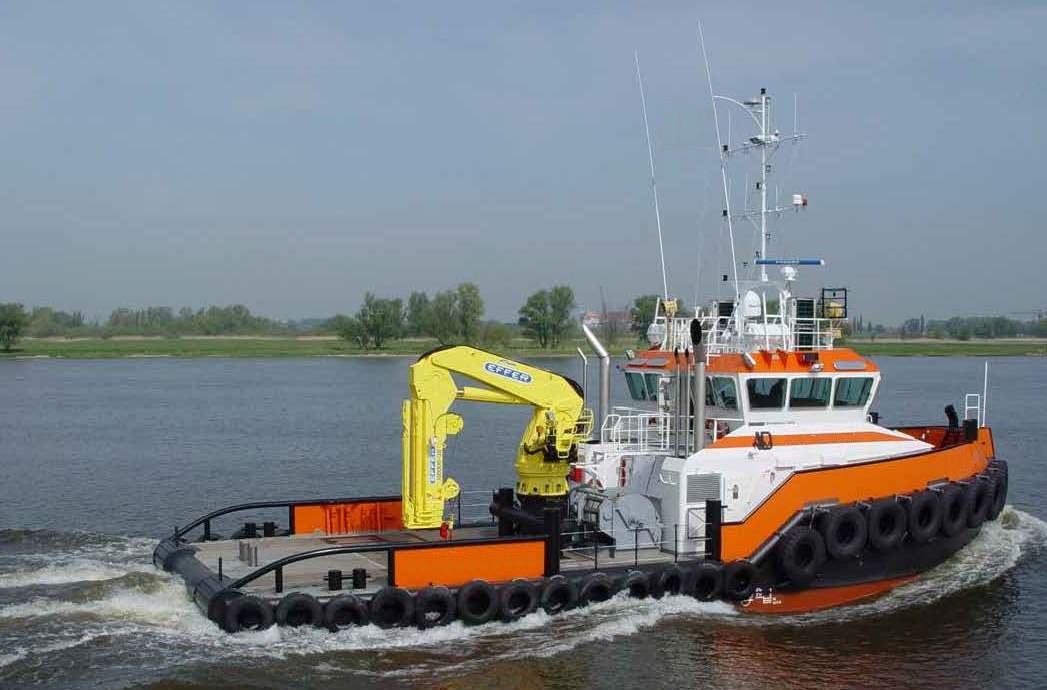

Shoalbuster 2208
Towing, Anchor Handling and Dredge Support
2002, BV. l x w x d (m): 22,00 x 8,60 x 3,0, max. draft 2,0 m. 2 x Cat 3412, 980 kW, 19 tbp. knuckleboom crane: 5,0 ton @ 11,5 m. Western Europe. Inquire
| General | |
| Built | 2002 – Shoalbuster – Damen, Holland |
| Classification | Bureau Veritas 1 Hull & Machinery, Tug Coastal area. |
| UK MCA Workboat code of practice category 2, up to 60 miles from safe haven | |
| Dimensions | |
| Length | 22.35 m |
| Beam | 8.64 m |
| Draft | 2.0 m |
| Performance | |
| Bollard pull | 19.1 tonnes |
| Speed | 10.5 knots, free running |
| Tank Capacities | |
| Fuel | 46 m3 |
| Fresh Water | 13.9 m3 |
| Machinery | |
| Main Engines | 2 x Caterpillar 3412ETA, total 1,460 bhp, |
| Propulsion | Fixed pitch propellers in fixed nozzles |
| Generators | 2 x 30 kva |
| Bow thruster | 100bhp |
| transfer pumps | fuel and fresh water, compressors |
| Rudders | High lift high angle |
| Equipment | |
| Winch | 30 tonne anchor handling and towing winch |
| Deck crane | Effer 65 tm hydraulic knuckle boom crane 5 tonnes at 11.5m |
| A-frame | demountable 25 tonne and bed levelling plough |
| Moonpool | 0.6 m x 0.4 m |
| Stern roller, push bow & towing hook | |
| Navigation | |
| Magnetic compass, gyro compass, autopilot, 2 x radars, echosounder, DGPS, electronic chart display, 3 x VHF radios, MH/HF SSB radio, Navtex, GMDSS area A2, telephone, searchlights, GSM phone, iridium satellite phone, with email | |
| Accommodation | |
| Heated and air conditioned for up to 5 persons in 4 cabins | |
26m utility AHT (3 sisters)
Towing, Anchor Handling, Utility and Dredge Support
2008, GL. l x w x d (m): 26.0 x 9.2 x 3.6, max. draft 2.8 m. 2 x Cat 3412, 720 bhp each, 12.6 tbp. telescopic crane: 60 tm. Far East. Inquire
| GENERAL | |
| Built: | 2008 |
| Classification: | GL, + 100 A5 Tug (+) MC |
| DIMENSIONS | |
| Length Overall : | 26.0 m |
| Breadth: | 9.2 m |
| Depth / Draft: | 3.6 m / 2.8 m |
| GRT: | 225 |
| MACHINERY | |
| Main Engine: | 2 x Caterpillar 3412 DITA, 720 bhp each |
| Main Generator: | 2 x Cummins, 78 kW each |
| Gearbox: | Twin Disc MG5222 Ratio 6:10:1 |
| Propulsion: | 2 x FPP |
| PERFORMANCE | |
| Bollard Pull: | 12.6 ton |
| Max Speed: | 10 knots |
| DECK EQUIPMENT | |
| AH/Towing Winch: | ME Single Drum Hydraulic |
| 40T @ 1st layer. | |
| Brake Holding 80T | |
| Drum Capacity: | 38m x 400m |
| Crane: | ME Telescopic type 60 t/m |
| SWL 5T @ 12m | |
| Stern Roller: | Fitted |
| Clear Deck Space: | 80.8m2 |
| SAFETY EQUIPMENT | |
| Life Jacket: | 14 pax |
| Life Raft: | 2 x 10 men, SOLAS standard |
| Life Buoy: | 8 sets, SOLAS standard |
| NAVIGATION / COMMUNICATION EQUIPMENT | |
| Radar: | Furuno 1831 – 32 Nm |
| GPS: | Furuno GP – 31 |
| Magnetic Compass: | Type T – 150B |
| VHF: | Furuno FM3000 |
| Echo Sounder: | Furuno 1831 FCV -66 |
| EPIRB: | GME 406mHz |
| PA System: | Fitted |
| TANK CAPACITY | |
| Fresh Water: | 60m3 |
| Fuel Oil: | 90m3 |
| ACCOMMODATION | |
| Single Cabin: | 2 units |
| 2 men Cabin: | 3 units |
| Total: | 8 men |

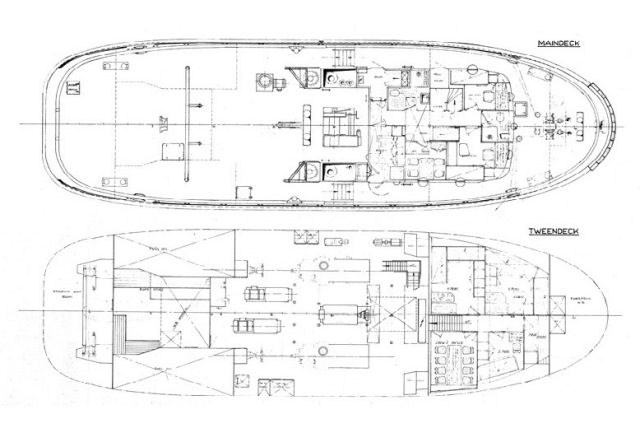

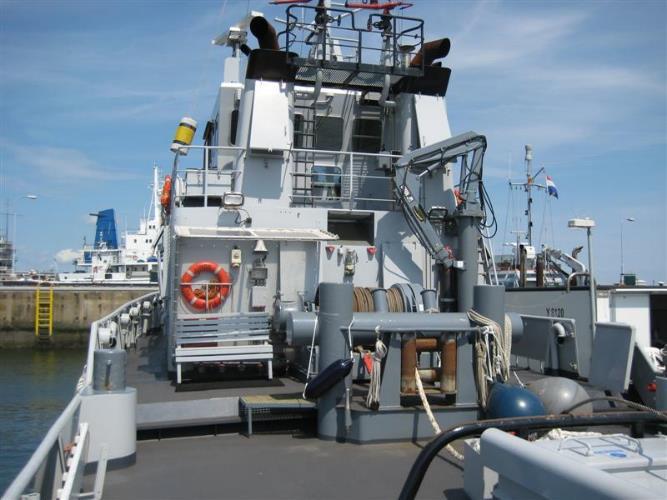

37 m utility AHT
Towing, Anchor Handling and Utility
1998, BV. Length: 37.0 m, Beam: 10.5. max. draft 3.1 m. 2 x 1470 kW each each, 47 tbp. Crane: 36 tm. WAF. Inquire
| GENERAL | |
| Built | 1998 |
| Class | BV, 1 + HULL, + MACH, Tug; Unrestricted navigation |
| DIMENSIONS | |
| Length over all | 37.0 m |
| Beam | 10.5 m |
| Draft | 4.0 m |
| GRT | 440 |
| MACHINERY/PROPULSION | |
| Main engines | 2 x Yanmar Z280A-EN, 1470 kW each |
| Propulsion | 2 x fixed pitch Conventional |
| Bow thruster | 1 x 250 kW |
| PERFORMANCE | |
| Bollard pull | 47 t |
| Speed (max) | 13 knots |
| Speed (economic) | 10 knots |
| TANK CAPACITY | |
| Fuel oil | 290 m3 |
| Potable water | 86 m3 |
| Foam | 15 m3 |
| ACCOMMODATION | |
| 14 persons | air-conditioned |
| DECK AREA | |
| Deck area | 120 m2 |
| DECK EQUIPMENT | |
| Aft winch Hydraulic | Waterfall (2 drums) – 80 t. brake load |
| Upper drum – Line pull 35 t @ 9.6 m/min. on 1st layer | |
| Lower drum – Line pull 35 t @ 9.6 m/min. on 1st layer | |
| Stern roller | 3.6 m x 1.5m, 250 t SWL |
| Tugger winch | 1 x 5.5 t @ 14 m/min. |
| Towing pins | 2 x Ulstein combination 75 t SWL |
| Stopper pins | 1 x Ulstein combination 75 t SWL |
| OTHER EQUIPMENT | |
| Fire-fighting monitors | 2 X 180 m3/hr |
| Crane | 3 t SWL@ 12 m outreach |
Conventional Tugs

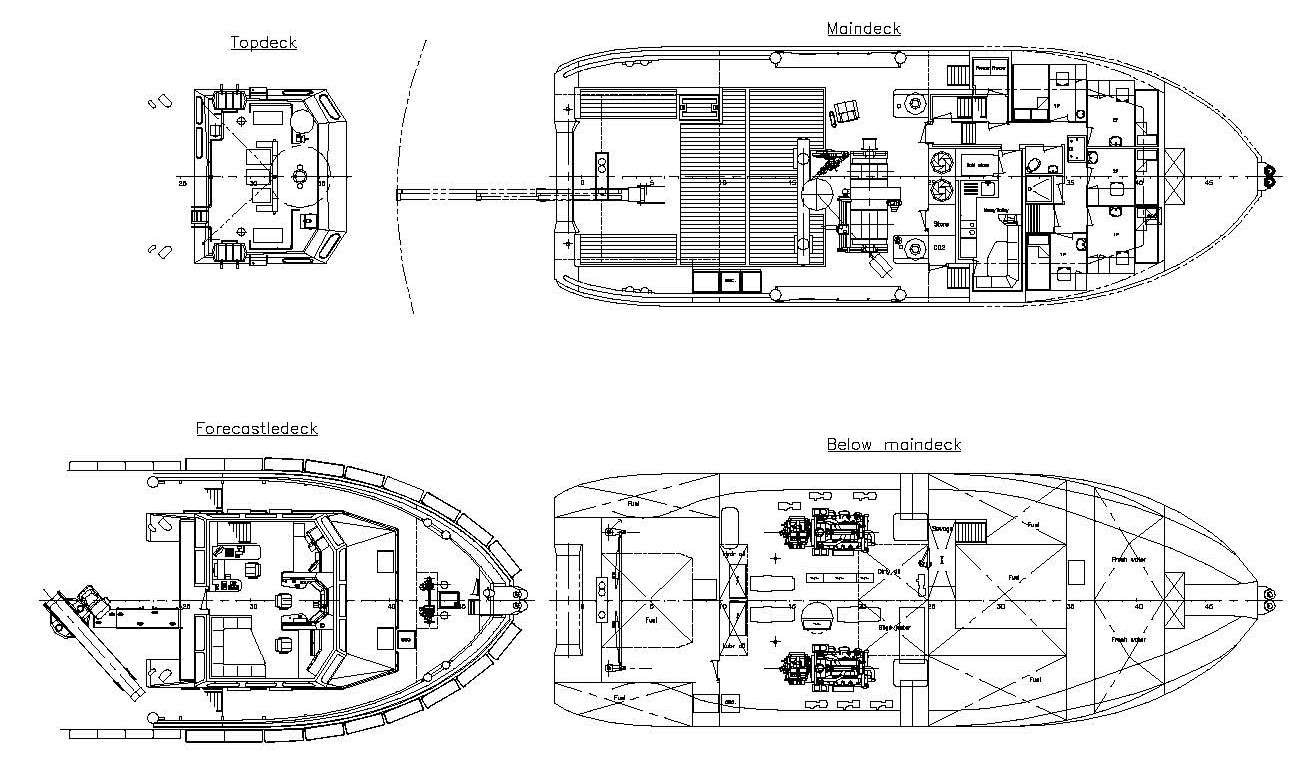

40 tbp AHT (3 sisters)
Ocean & Coastal Towage, Anchor Handling & Supply
2009, BV class, l x w x d (m): 36.0 x 10.9 x 5.0. Draft 4.0 m, 2 x Cummins KTA-50, 1,600 bhp each, Towing/AH winch waterfall configuration. Sternroller and other AH related equipment. Inquire
2 x 600 m³/hr FiFi monitors (1 sister only).
| GENERAL | |
| Built : | 2009 |
| Class : | BV, I +Hull + Mach Tug, Special Service, Anchor |
| Handling Vessel, Unrestricted Navigation | |
| PRINCIPAL DIMENSIONS | |
| Length: | 36.00m |
| Breadth Mld : | 10.40m |
| Depth Mld : | 5.00m |
| Design Draft : | 4.00m |
| GRT: | 450 |
| Deck Strength : | 2.5 t/m² |
| Deck Space : | 114 m² |
| PERFORMANCE AND CONSUMPTION | |
| Bollard Pull : | 40 t |
| Maximum Speed : | 12 Knots |
| Economical Speed : | 9.5 Knots |
| Fuel Consumption : | 10.5 Tons/day |
| MACHINERY | |
| Main Engine : | 2 x Cummins KTA 50-M2, 1600 bhp each |
| Generator : | 2 x Cummins 240KW 415V/3/50Hz |
| Gearbox : | Reintjes Gearbox Ratio 5.95:1 |
| Bow Thruster : | 3 Tons, ATB Sever |
| Propulsion System : | 4 Blade FPP with fixed nozzles |
| DECK MACHINERY & EQUIPMENT | |
| Anchor Windlass : | 1 x Electric-Hydraulic anchor windlass |
| c/w double gypsy drum | |
| Anchor : | 2 x 572kg stockless anchor |
| Anchor Chain : | 2 x Dia. 24mm studlink chains |
| Tugger Winch : | 1 x 5T @ 15 m/min |
| Hydr. Capstan : | 1 x Hyd. Capstans, 5 tons @ 15 m/min |
| Deck Crane : | 1 x Hyd. Crane @ 1.5 Ton S.W.L. @ 9 m radius |
| Towing Winch : | 1 x Hyd. double drum |
| Wire Size : | Dia. 44 mm x 600 m length |
| Line Pull (1st ) : | 40 Tons |
| Brake Holding : | 80 Tons on 1st layer for each drum |
| Tow Pin : | 1 x 200 t |
| Shark Jaw : | 1 x 200 t |
| Stern Roller : | 1 x 150 t S.W.L. |
| TANK CAPACITY | |
| Fuel : | 299 Tons |
| Fresh Water : | 100 Tons |
| Lube Oil : | 3.0 Tons |
| ACCOMODATION | |
| Berth : | 2 x 1 man cabin = 2 men |
| 1 x 2 men cabin = 2 men | |
| 3 x 4 men cabin = 12 men | |
| Total | 16 men |
| NAVIGATION & COMMUNICATION EQUIPMENT | |
| Radar, Magnetic Compass, Echo Sounder, DGPS, Autopilot, GMDSS, MF/HF, VHF-DSC, Radar responder, EPIRB, Navtex Receiver, Inmarsat-C, SSB, SART, AIS | |
| FIRE-FIGHTING EQUIPMENT | |
| FiFi System | 600 m3/hr monitors (one sister only) |
| As per SOLAS requirements | |
| LIFE SAVING EQUIPMENT | |
| As per SOLAS requirements | |
50 tbp 40m AHT
Ocean & Coastal Towage, Anchor Handling & Supply
2006, BV class, l x w x d (m): 40.00 x 11.80 x 4.6, 2 x Cat. 3512, 1,450 kW each, Towing/AH winch waterfall configuration. Sternroller and other AH related equipment. 2 x 600 m³/hr monitors. Inquire
| GENERAL | |
| Vessel Type | Anchor Handling Tug Supply |
| Year Built | 2007 |
| Classification | BV + Hull + Mach, Unrestricted Navigation, Tug |
| DIMENSIONS | |
| Length Overall | 40.0 m |
| Breadth | 11.8 m |
| Depth Moulded | 4.6 m |
| Maximum draft | 3.8 m |
| Clear deck Space | 150 m² |
| Deck loading | 5 t/m² |
| GT | 499 |
| PERFORMANCE | |
| Max Speed | 12 knots |
| Bollard Pull | 50.85 t |
| CAPACITY | |
| Fuel Oil | 350 m³ |
| Potable Water | 160 m³ |
| Sewage Holding Tank | 9.3 m³ |
| Foam | 7.8 m³ |
| MACHINERY | |
| Main Engines | 2 x Caterpillar 3512, 1,450 kW each |
| Generators | 2 x Caterpillar 3406C, 200 kW each 415v 50Hz |
| Bow Thruster | HRP 3001TT 220 kW |
| Propulsion | Fixed pitch in Kort Nozzles |
| ACCOMMODATION | |
| Berths | 2 x 1-berth cabin, 2 x 2-berth cabin, |
| 1 x 4-berth cabin, 2 x 4-berth cabin | |
| Total | 18 |
| FIRE FIGHTING | |
| Monitors | 2 monitors @ 600 m³/hr |
| Pumps | 1,200 m³/hr |
| DECK EQUIPMENT | |
| Towing / AH Winch | Waterfall double drums |
| Pull | 50 t |
| Brake Holding | 120 t |
| Wire Capacity | 1000 m x 48 mm |
| Tugger Winch | 2 units, 5t 1st layer, 100m x 26mm |
| Towing Pins | Hydraulic type 100 t SWL |
| Shark Jaws | Hydraulic type 100 t SWL |
| Stern Roller | 1.45 x 3.5m SWL, 150 t |
| Crane | 2 t @ 6 m |
| LIFESAVING | |
| Liferafts | 4 x 18 man |
| Lifejackets | 28 |
| Lifebuoys | 8 |
| Rescue Boat | Narwhal SV420 |

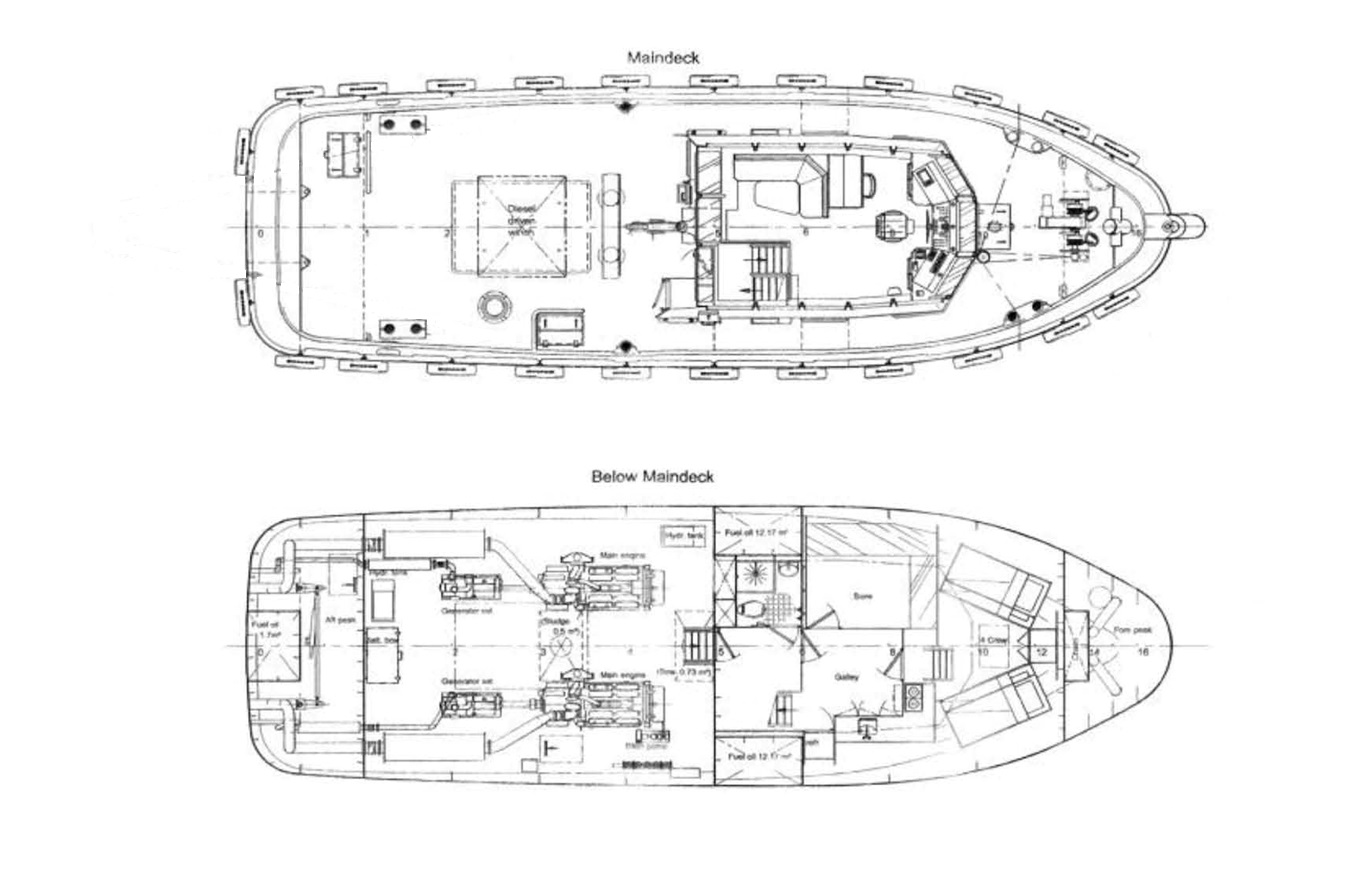

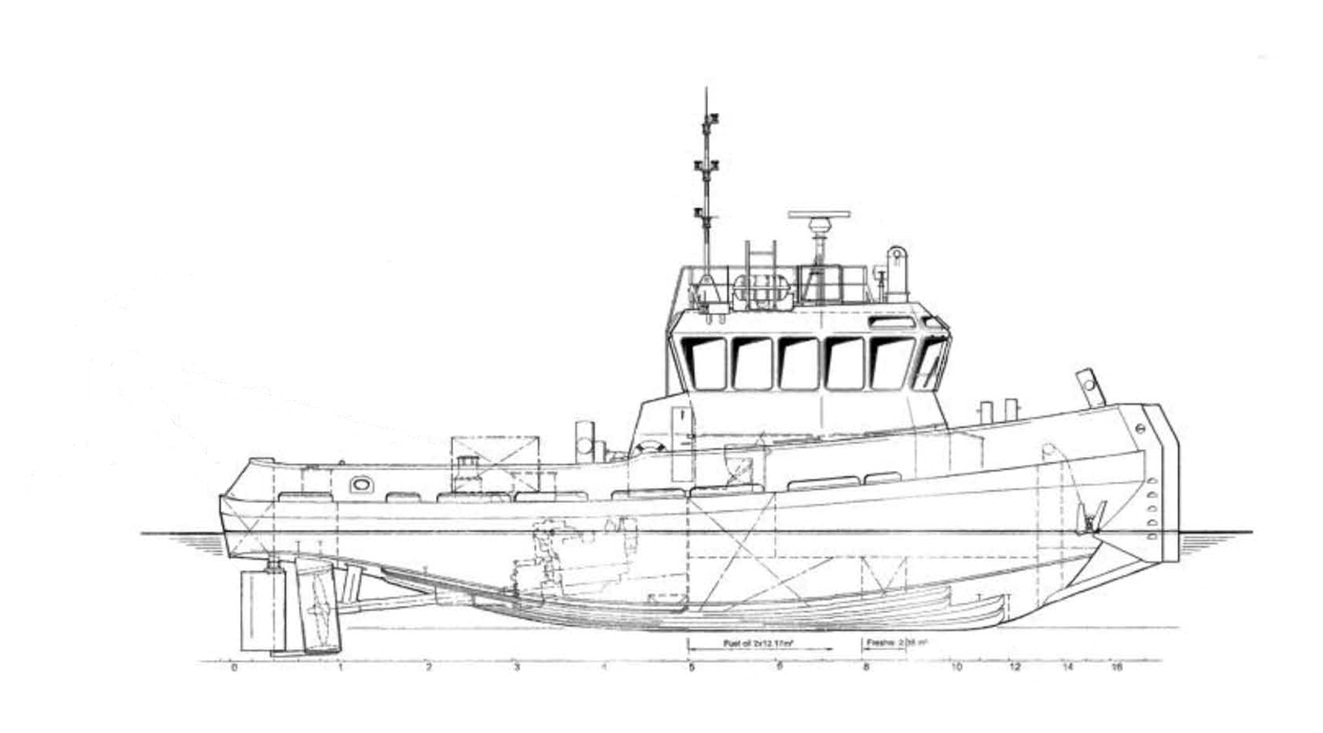

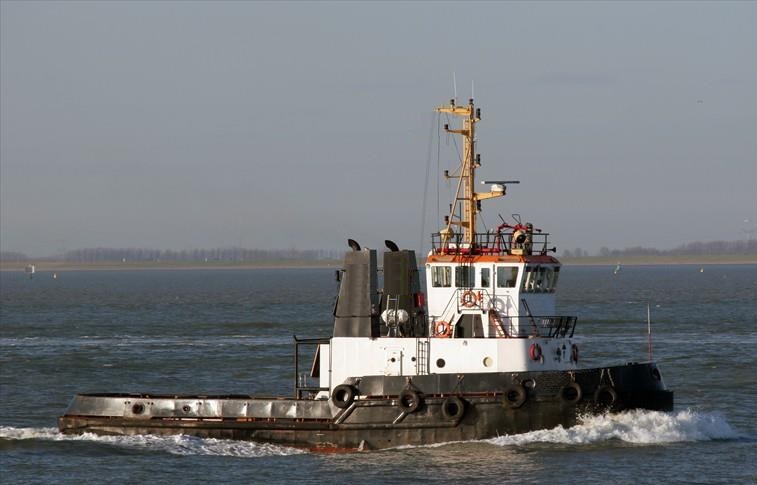

41 tbp twin screw tug
Towage, Barge handling, General assistance
2005, BV class, l x w x draft (m): 25.0 x 8.60 x 3.1. 2 x Cat. 3512, 1,120 kW each, 41 tbp. 90 ton brake single drum towing winch. Inquire
| GENERAL | |
| Built | 2005 |
| Class | BV, 1 +Hull, +Mach, Tug, Unrestricted navigation |
| DIMENSIONS | |
| Length oa | 25.0 m |
| Beam oa | 8.60 m |
| Maximum draft | 3.10 m |
| GRT | 205 |
| MACHINERY/PROPULSION | |
| Main engines | 2 x Caterpillar 3512B DITA, 1120 kW each |
| Propulsion | 2 x fixed pitch Conventional |
| Bollard pull | 41 ton |
| Speed | 12 knots |
| TANK CAPACITY | |
| Fuel oil | 71 m3 |
| Potable water | 29 m3 |
| Foam | 4 m3 |
| ACCOMMODATION | |
| 9 persons | air-conditioned |
| DECK EQUIPMENT | |
| Towing hook | 45 ton quick-release, hydraulic |
| Aft winch | Single drum – 90 t brake load, 35 t @ 10 m/min. on 1st layer |
| NAVIGATIONAL AND COMMUNICATION EQUIPMENT | |
| Magnetic compass | Cassens & Plathe Type 11 |
| Echo sounder | Simrad CE144 |
| VHF | Simrad RT4822 |
| Radar | Simrad RA 42C |
| GPS | Simrad Hemisphere R131 |
| OTHER EQUIPMENT | |
| Fire-fighting monitor | 1 x 250 m3/hr |
50 tbp 32m Tug (2 sisters)
Ocean & Coastal Towage
2006, ABS, l x w x d (m): 32.00 x 10.60 x 4.95, Niigata 6MG25HX, 2,650 kW, ME. Inquire
| GENERAL | |
| OPERATING AREAS | Sea Areas 1 + 2 + 3 |
| TYPE OF SHIP | 3600 Bhp Towing Tug |
| CLASSIFICATION | ABS (American Bureau of Shipping) |
| YEAR BUILT | 2006 |
| PLACE BUILT | Malaysia |
| LENGTH OVERALL | 33.70 m |
| REGISTERED LENGTH | 31.47 m |
| BREADTH | 10.60 m |
| DEPTH | 4.96 m |
| DRAFT MAX. DESIGN | 4.20 m |
| CLEAR DECK AREA | 50 m2 |
| GRT / NRT | 444 / 133 |
| PROPULSION SYSTEM | |
| MAIN ENGINES | 2 x NIIGATA 6MG25HX 2 x 1,800 BHP @ 750 rpm (2 x 1323kW) |
| GEAR BOX | 2 x MGN2843Z / Ratio 3.01:1 |
| GENERATOR | 2 x VOLVO PENTA D7A-T 2 x 99kW, 415V / 3 ph / 50Hz |
| PROPELLERS | 2 x SOLID FIXED PITCH PROPELLERS |
| PERFORMANCE SPEED | 13 knots |
| BOLLARD PULL | 50 tons @ 100% MCR |
| TANK CAPACITY | |
| FUEL OIL | Approx. 320.00 m3 |
| FRESH WATER TANK | Approx. 65.00 m3 |
| DECK CARGO SPACE | Approx. 500.00 m2 |
| DISCHARGE RATES | |
| F.O. TRANSFER PUMP | 1 x 30m/hr @ 20m Head |
| DECK MACHINERIES | |
| TOWING WINCH | 40T with drum cap. 700m x 48 dia Brake Holding cap. 100T |
| ANCHOR WINDLASS | 5T @ 12m/min |
| TOWING HOOK | 45T |
| NAVIGATION EQUIPMENT & COMMUNICATION EQUIPMENT | |
| TWO (2) MAIN RADAR 72 NM | |
| ONE (1) UNIT GPS | |
| ONE (1) ECHO SOUNDER | |
| ONE (1) SPEED LOG | |
| ONE (1) WEATHER FAX RECEIVER | |
| ONE (1) AUTO PILOT | |
| ONE (1) UNIT GMDSS EXTENDED PACKAGED | |
| ONE (1) NAVTEX RECEIVER | |
| 3 SETS PORTABLE VHF TRANSCEIVER | |
| SHIP SECURITY ALERT SYSTEM | |
| FIRE FIGHTING EQIUPMENT (As per FIFI CLASS 1) | |
| FIRE FIGHTING CONNECTION | 2 x 1-way delivery head |
| FIRE HOSE | 2 x 15m hose c/w coupling & nozzle |
| FIRE HYDRANT | 2 x 65 mm |
| FIREMAN’S OUTFIT | 1 set |
| DRY CHEMICAL POWDER | 2 x 5kg |
| DRY CHEMICAL POWDER | 3 x10kg |
| FIRE EXTINGUISHER | 4x 9Ltr |
| LIFE SAVING EQUIPMENT | |
| LIFERAFT | 2 x 10 Persons |
| LIFE BOUY | 8 sets c/w throwing apparatus |
| LIFE JACKET | 12 sets |
| BREATHING APP. | 1 set c/w recharging compressor |
| OTHER FACILITIES | |
| GALLEY | One (1) unit c/w equipment & utensils |
| ACCOMMODATION | |
| 2 x 1 Berth Cabin | 2 Men |
| 2 x 2 Berth Cabins | 4 Men |
| 4 x 1 Berth Cabins | 4 Men |
| TOTAL | 10 Men |

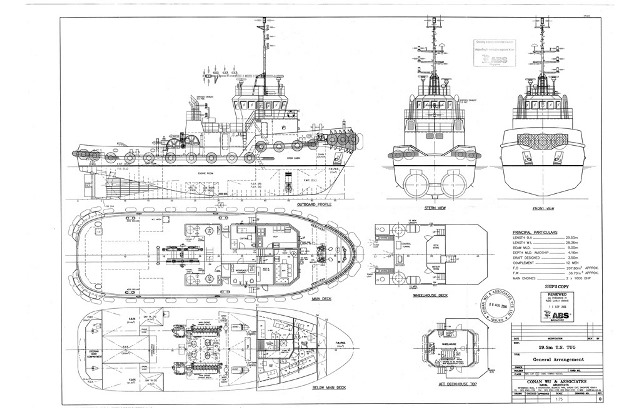

33 tbp 3200 bhp 29m Tug
Coastal Towage, Barge Handling, General assistance
2010, ABS-BKI, l x w x d (m): 29.50 x 9.00 x 4.16, Cummins KTA50, 1,600 bhp each, Far East. Inquire
| GENERAL: | ||
| Built | 2010 | |
| Classification | ABS and BKI (Dual Class) | |
| Bollard Pull | 33 Tons | |
| DIMENSIONS: | ||
| Length Overall | 29.50 m | |
| Breadth | 9.00 m | |
| Depth | 4.16 m | |
| Loaded Draft | 3.50 m | |
| GRT | 248 | |
| MACHINERY AND PROPULSION: | ||
| Main Engines | 2 x Cummins KTA50 M2, 1600 hp each | |
| Gearbox | 2 x Twindisc MG-5506 (6.00:1) | |
| Aux. Engines | 2 x 174 HP Volvo Penta D7A-B-TA HE | |
| Emergency Generator | 1 x 2.6 HP Kama KDE-2500X | |
| Propulsion | FPP with Kort Nozzles | |
| Bow Thruster | 1 x 1.5 Tons Schottel STT060TLK | |
| CARGO CAPACITIES: | ||
| Clear Deck Space | 52.5 m2 (7.5 m x 7 m ) | |
| Fuel Oil | 207 m3 | |
| Fresh Water | 36 m3 | |
| DECK MACHINERY AND MOORING: | ||
| Anchor Windlass | 1 x 2.1 Tons @ 10 m/min Marine Equip | |
| Main Towing Hook | 1 x 50 Tons SL TY50 Disc Towing Hook | |
| Emergency Towing | Single Drum Electro-Hydro 45 tons | |
| Winch | Line Pull, Brake Holding 120 Tons, 700 m x 45mm wire | |
| COMMUNICATION AND NAVIGATION: | ||
| SSB | lcom IC-M710 | |
| GPS | Furuno GP-150 | |
| VHF | Furuno FM-8800S | |
| Radar | Furuno 1932 Mark-2 & Furuno 1715 | |
| Echo Sounder | Furuno FE-700 | |
| Navtex | McMurdo Nav-7 | |
| GMDSS | Type A1 | |
| OTHERS: | ||
| Complement | 12 Persons (max) | |
| Life Saving Appliances/ Fire Fighting | As per SOLAS requirements | |
38 tbp 3200 bhp 36m Tug
Coastal Towage, Barge Handling, General assistance
2008, BV, l x w x d (m): 36.10 x 10.60 x 4.90, Draft 4.0m. 2 x Cummins KTA50, 1,600 bhp each, Far East. Inquire
| GENERAL | |
| Built | 2008 |
| Class | B.V., 1 + Hull + Mach Tug, Unrestricted Navigation |
| DIMENSIONS | |
| Length Overall | 36.10 m |
| Breadth Moulded | 10.60 m |
| Depth Moulded | 4.90 m |
| Draught Designed | 4.00 m |
| GRT | 473 |
| PERFORMANCE | |
| Maximum Speed | 12.0 knots |
| Type of Fuel | Marine Gas Oil |
| Bollard Pull | 38.5 t (Static) |
| CAPACITIES | |
| Fuel Oil | 390 m³ |
| Fresh Water | 70 m³ |
| Ballast Water | 59.8 m³ |
| Dirty Oil | 9.2 m³ |
| DISCHARGE RATES | |
| Fuel Oil | 1 x 25 m³/hr @ 0.6 Mpa |
| Fresh Water | 1 x 21 m³/hr @ 21m Head |
| MACHINERY | |
| Main Engines | 2 x Cummins KTA50-M2, 1600 bhp each |
| Gear Box | TwinDisc MG5506 (Ratio 6:1) |
| Diesel Gen. Set | 2 x Cummins 6CT.8.3GM115, 100 kW each |
| Bow Thruster | HRP 2001 TT (2.8T Thrust) |
| Bow Thruster Engine | Cummins NT855-M270, 202 kW |
| Propellers | FPP x 2 (with Kort Nozzle) |
| Rudders | 2 x Conventional |
| ACCOMMODATION | |
| Cabins | 2 x 1 man cabin = 2 men |
| 2 x 2 men cabin = 4 men | |
| 2 x 4 men cabin = 8 men | |
| Total | 14 berth |
| All cabins fully air-conditioned | |
| DECK | |
| Deck Strength | 5 tonnes/m2 |
| Clear Deck Area | 160 m2 |
| RADIO & NAVIGATION EQUIPMENT | |
| Radar no.1 | 1 x Furuno (FR-1510 MK3) |
| Radar no.2 | 1 x Furuno (FR-1942 MK2) |
| Magnetic Compass | 1 x Furuno |
| GPS | 1 x Furuno (GP-150) |
| Anemometer | 1 x Navman (W3150) |
| Echo Sounder | 1 x Furuno (FE-700) |
| Speed Log | 1 x Furuno (DS-80) |
| Gyro Compass | 1 x Anschütz (Standard 22) |
| AIS | 1 x Furuno (FA-150) |
| Autopilot | 1 x Anschütz (NP60) |
| GMDSS Radio | 2 x Furuno (FM-8800S/DSC) |
| EPIRB | 1 x McMurdo (E3) |
| SART | 2 x McMurdo (S4) |
| Navtex | 1 x Furuno (NX-700B) |
| Weather Fax | 1 x Furuno (FAX-408) |
| DECK & AUX. EQUIPMENT | |
| Anchor Windlass | Elec. Hydr., 3.5 Tonnes @ 10m/min |
| Bow Anchor | Stockless, 2 x 660kg |
| Anchor Chain/Cable | 302.5m length @ 26mm Dia. Grade 2 Stud link chains |
| Towing Winch | Elec. Hydr., 40 Tonnes @ 5m/min |
| Break Holding | 100 Tonnes |
| Drum Capacity | 900m / 44mm Dia. Wire rope |
| Towing Hook | 50 Tonnes SWL c/w quick release control |
| FIRE FIGHTING EQUIPMENT | |
| Fire Main | 1 x 36 m3/hr @ 41m Head |
| Other internal | As per SOLAS and Class requirements |
| Emer. Fire Pump | 25 m3/hr @ 40m Head, Engine Driven |
| Fixed CO2 System | Engine Room |
| LIFE SAVING EQUIPMENT | |
| Inflatable Liferaft | 2 units x 15 person |
| All other | As per SOLAS and Class requirements |
| OTHERS | |
| Sewage Plant | 1 unit (cap: 1 Tonnes) |
| Separator | 1 unit (cap: 0.5 m3/hr) @ 15 ppm |
45 tbp 3200 bhp 29m Towing Tug
Coastal Towage, Barge Handling, General assistance
2009, BV, l x w x d (m): 29.50 x 9.00 x 4.50, Draft 3.9 m. 2 x Yanmar 8N21A, 1,600 bhp each, Far East. Inquire
| GENERAL | |
| Year Built | 2009 |
| Classification | ABS *A1 + AMS Circle E |
| DIMENSIONS | |
| Length Overall | 29.50 m |
| Beam Moulded | 9.0 m |
| Depth Moulded | 4.25 m |
| Design Draft | 3.5 m |
| Draft maximum | 3.90 m |
| GRT | 249 |
| PERFORMANCE | |
| Speed | 11 knots @ free running |
| Bollard Pull | 45 tons |
| TANK CAPACITIES | |
| Fuel Oil | 166 m3 |
| Fresh Water | 27 m3 |
| MACHINERY & EQUIPMENT | |
| Main Engines | 2 x Yanmar 8N21A-SN, each 1600 hp |
| Gearboxes | Yanmar YX-1800C gearbox, ratio 3.01 :1 |
| Steering Gears | Electro-hydraulic, 1.25T.M per cylinder |
| Generators | 2 x Volvo Penta diesel engine. Type d7a-ta |
| Bow Thruster | 1 x 1 ton tunnel bow thruster |
| Air Compressor | 2 x 17 m3/hr, |
| Anchors | 2 x 480 kg stockless bower anchors |
| Propellers | 2 x KAPLAN Ni-Al-Bronze |
| Towing Winch | 1 x 40 ton pull single drum, 100mt brake |
| Tow Hook | 40 mt SWL |
| FIRE FIGHTING & SAFETY EQUIPMENT | |
| Fire Fighting & LSA | As per SOLAS |
| TANKS, PIPING & PUMPS | |
| Sewage Treatment Plant | 1 x Taiko Kikai SBT-15, |
| Oily Water Separator | 0.5 m3 /hr |
| ACCOMMODATION | |
| Cabins | 2 x 1-man cabin |
| 1 x 2-man cabin | |
| 2 x 4-man cabin | |
| Total Complement | 12 |

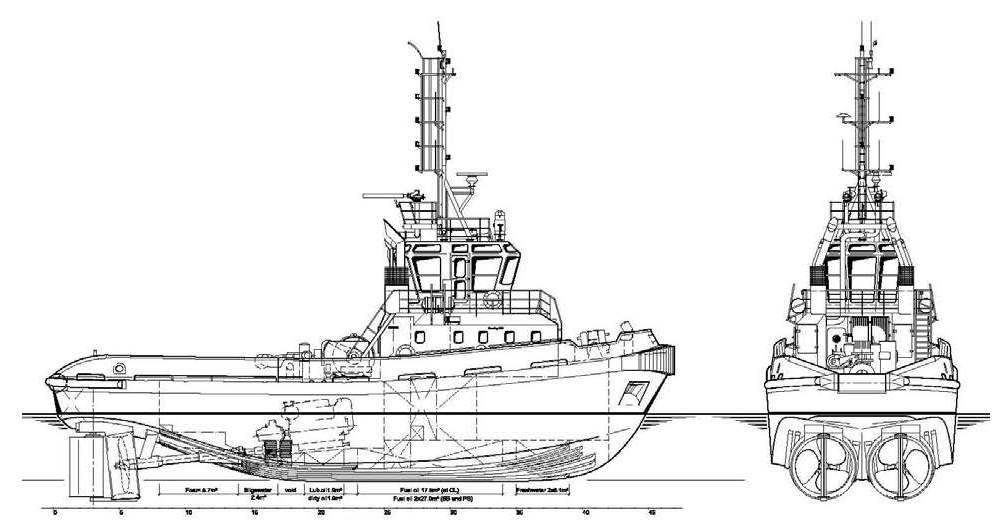

52 tbp Damen Stan Tug 2608 FiFi
Towing, Mooring, Fire Fighting, & Pollution Control
2007, LRS, l x w x d (m): 26.00 x 8.00 x 3.95, 2 x Cat 3512, 2,850 kW, Caribbean. Inquire
| General | ||
| Class | LRS [x] 100 A1 Tug [x] LMC | |
| Built | 2007 | |
| Dimensions | ||
| Length over all | 26 | m |
| Width | 8 | m |
| Draft (max.) | 3,95 | m |
| Deck area | 80 | m2 |
| GT | 176 | |
| Deadweight | 52 | ton |
| Machinery & propulsion | ||
| Main engine | 2 | Caterpillar 3512B TA HD+/B |
| Total power | 2.850 | kW |
| Propulsion | 2 | fixed pitch |
| Performance | ||
| Speed | 13,2 | knots |
| Bollard pull (ahead) | 52 | ton |
| Tank capacity | ||
| Fuel oil | 80 | m3 |
| Potable water | 12 | m3 |
| Oil dispersant | 3 | m3 |
| Accommodation | ||
| Accommodation | 8 | crew |
| Navigation & communication | ||
| Echo sounder | Furuno LS 6100 | |
| VHF | “Sailor” Compact RT5022 | |
| Radar | Furuno FR-8062 | |
| GPS | Furuno GP-150 | |
| Autopilot | Simrad AP 50 | |
| SSB Radio Telephone | Furuno FS-1570 | |
| Navtex | Furuno NX-700 | |
| Inmarsat | 2 | Furuno Felcom 15 |
| AIS | Furuno FA-150 | |
| Deck equipment | ||
| Towing hook | ||
| Towing / anchor handling winch | ||
| Other equipment | ||
| Fire-fighting monitors | 2 | |
| Capacity each monitor | 1200 | m3/hr |
64 tbp Damen Stan Tug 2909 (2 sisters)
Coastal towing, Mooring, Fire Fighting, & Pollution Control
2000, LRS, l x w x d (m): 29.20 x 8.85 x 4.40, 2 x Cat 3516, 3,375 kW, Caribbean. Inquire
| General | ||
| Class | LRS + 100 A1 Tug + LMC | |
| Built | 2000 | |
| Dimensions | ||
| Length over all | 29,20 | m |
| Width | 8,85 | m |
| Draft (max.) | 4,40 | m |
| Deck area | 90 | m2 |
| GT | 269 | |
| Machinery & propulsion | ||
| Main engine | 2 | Caterpillar 3516B TA HD |
| Total power | 3.375 | kW |
| Propulsion | 2 | fixed pitch |
| Performance | ||
| Speed | 12,5 | knots |
| Bollard pull (ahead) | 64 | ton |
| Tank capacity | ||
| Fuel oil | 140 | m3 |
| Potable water | 30 | m3 |
| Oil dispersant | 3 | m3 |
| Accommodation | ||
| Bunks | 8 | |
| Deck equipment | ||
| Towing hook | ||
| Towing / anchor handling winch | ||
| Other equipment | ||
| Fire-fighting monitors | 2 | |
| Capacity each monitor | 1400 | m3/hr |

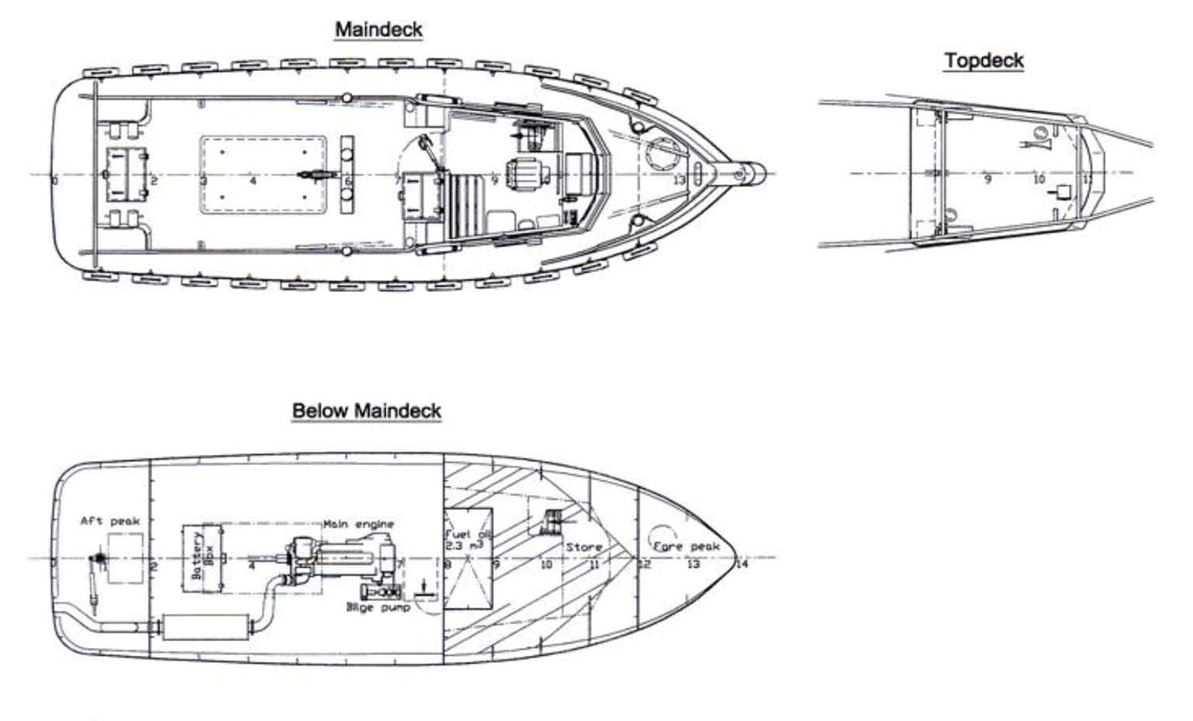

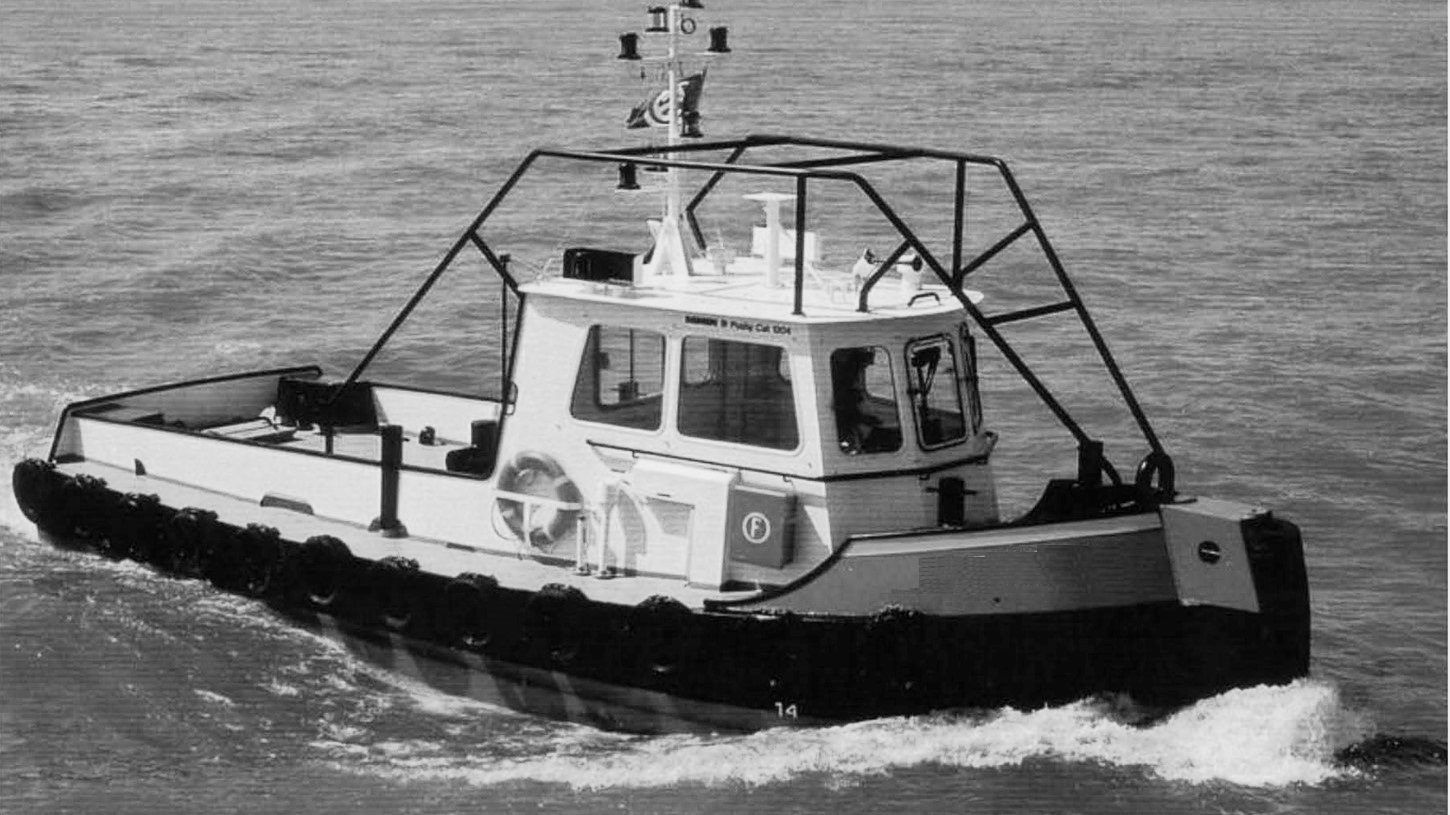

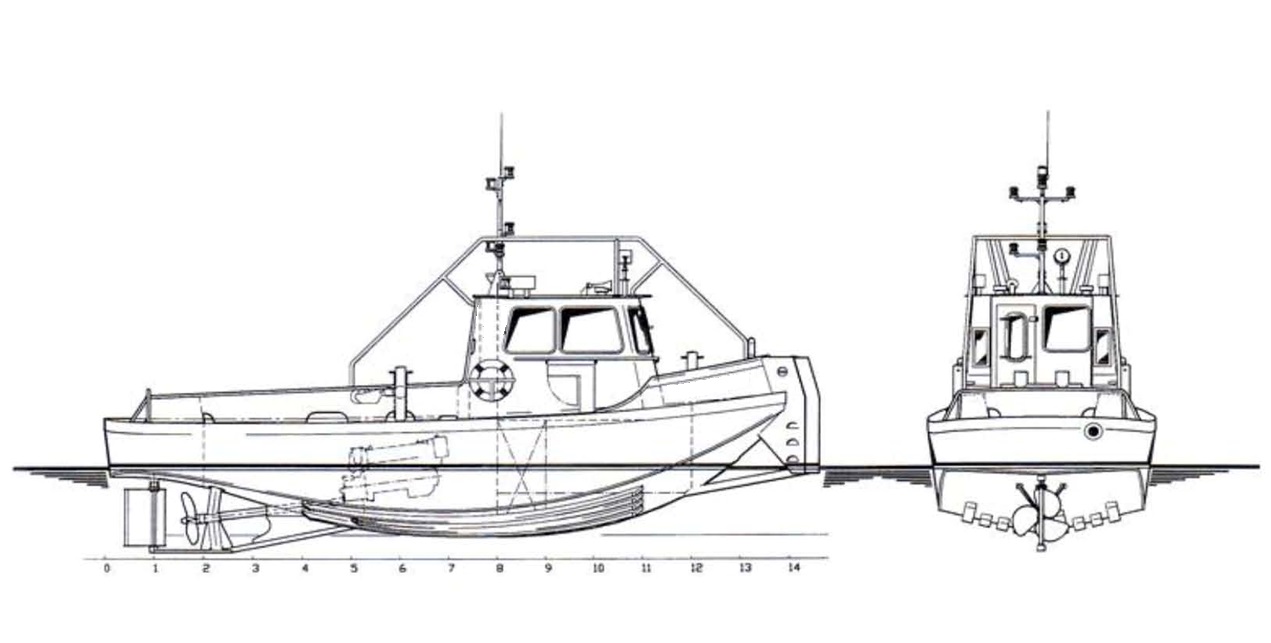

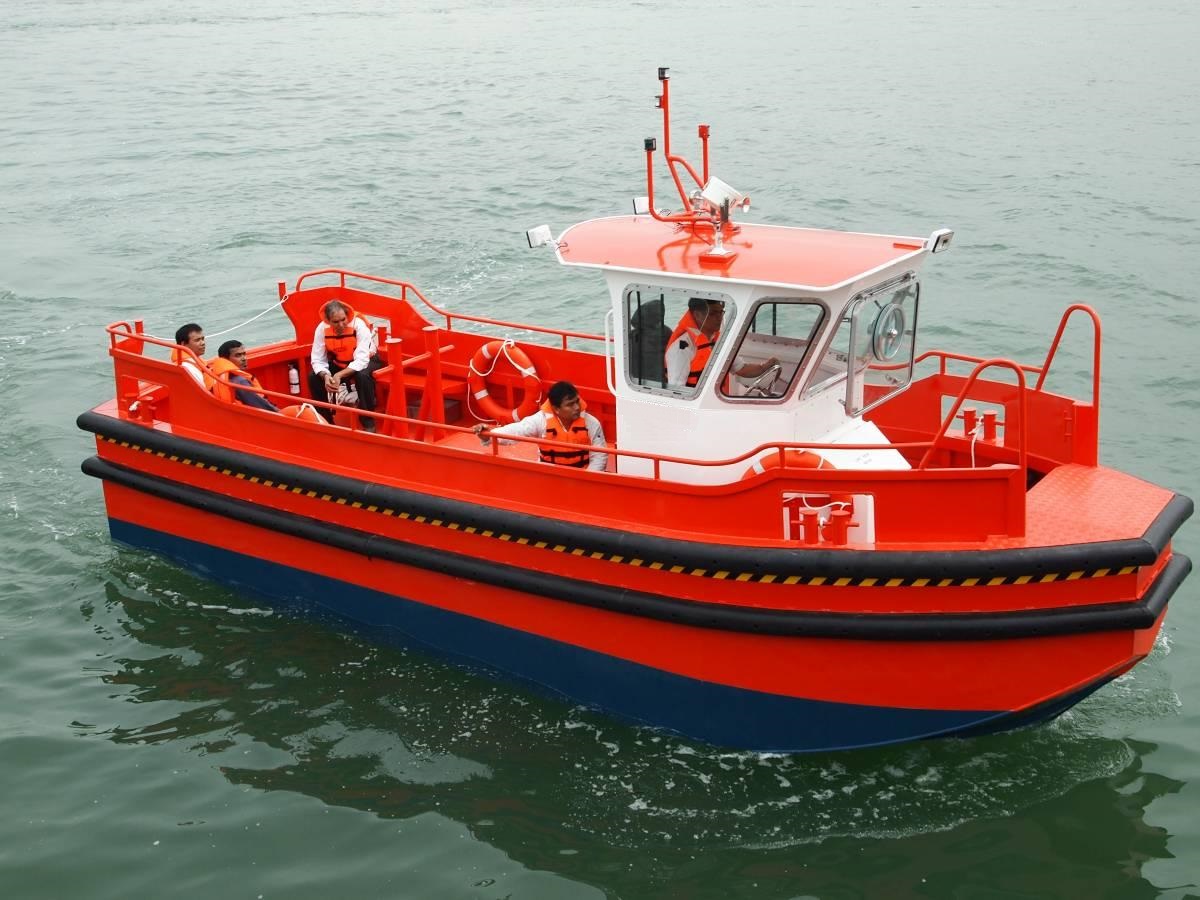

Damen Pushycat 1204
Line handling, launch service, survey, pilot, workboat
2001, RMS. l x w x d (m): 12.00 x 3.85 x 1.65, 1 x Cat 3306, 186 kW. Eastern Europe. Attractively priced. Inquire
| General | |
| Class | RMS KM*III |
| Built | 2001 |
| Hull material | Steel |
| Dimensions | |
| Length over all | 12.00 m |
| Width | 3.84 m |
| Draft (max.) | 1.65 m |
| GT | 17 |
| Machinery & propulsion | |
| Main engine | 1 x Caterpillar 3306BT A/C |
| Total power | 186 kW |
| Propulsion | 1 x fixed pitch |
| Performance | |
| Speed ahead (max.) | 9 knots |
| Speed (eco.) | 6 knots |
| Bollard pull (ahead) | 2 T |
| Tank capacity | |
| Fuel oil | 2.30 m3 |
| Life-saving equipment | |
| No. of life bouys | 2 |
| No. of life jackets | 4 |
| No. of life rafts | 1 |
| Capacity per life raft | 6 persons |
| Accommodation | |
| Crew | 1 persons |
| Surveyors/Passengers | 2 persons |
| Navigation & communication | |
| Magnetic compass | YKPM-M2 |
| Echo sounder | Furuno LS-6000 |
| VHF | Sailor |
| Radar | Furuno RDP-118 |
| GPS | Samyung SPR-1400 |
Damen Stan Tug 1605 (2 sisters)
Coastal assistance, Barge handling & towing, survey, pilot, launch
2004, BV Coastal, versitale workboats, solid built. l x w x d (m): 16,89 x 5.25 x 2.51. 2 Cat 3408, 312 kW each, 12 ton Bollard pull. West Africa. Price: Inquire
| General | ||
| Class | BV 1 [x] HULL, MACH; Tug; Coastal area | |
| Built | 2004 | |
| Hull material | Steel | |
| Dimensions | ||
| Length over all | 16,89 | m |
| Width | 5,25 | m |
| Draft (max.) | 2,51 | m |
| GT | 39 | |
| Machinery & propulsion | ||
| Main engine | 2 | Caterpillar 3408 C T NB |
| Total power | 624 | kW |
| Propulsion | 2 | fixed pitch |
| Performance | ||
| Speed ahead (max.) | 10 | knots |
| Speed (eco.) | 8 | knots |
| Bollard pull (ahead) | 12 | ton |
| Tank capacity | ||
| Fuel oil | 13,70 | m3 |
| Potable water | 0,70 | m3 |
| Life-saving equipment | ||
| Life bouys | 3 | |
| Life jackets | 6 | |
| Life rafts | 1 | |
| Capacity per life raft | 8 | persons |
| Accommodation | ||
| Crew | 2 | persons |
| Surveyors/Passengers | 4 | persons |
| Navigation & communication | ||
| Magnetic compass | Kelvin Hughes Observator | |
| Echo sounder | Furuno LS-6100 | |
| VHF | Sailor | |
| Radar | Unknown | |
| GPS | Furuno GP-32 |

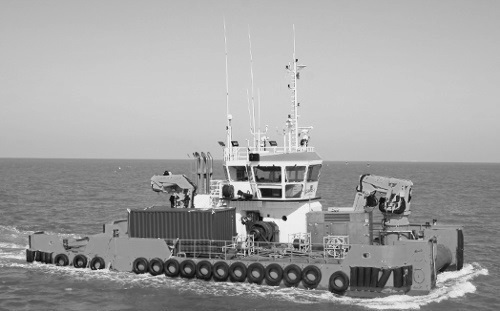

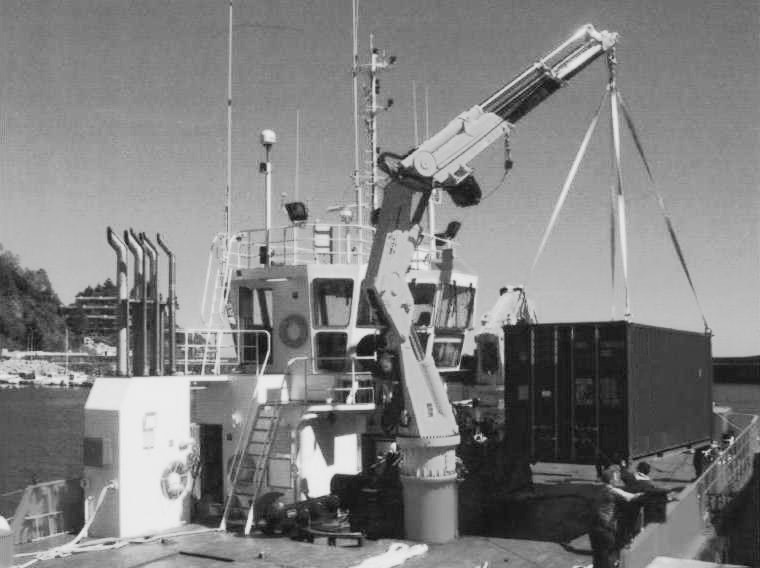

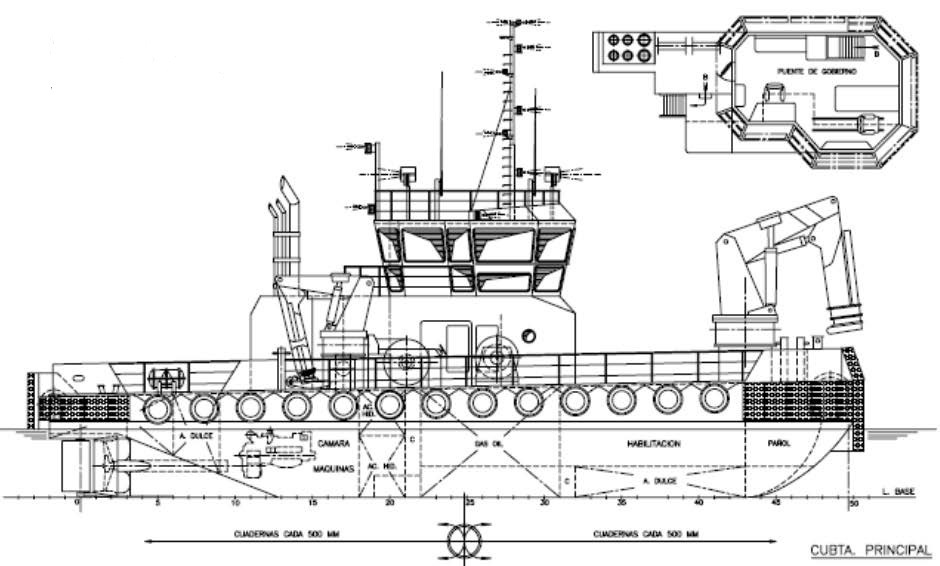

Damen Stan Tug 1606 (2 sisters)
Coastal/Harbour assistance, Barge handling & towing, survey, pilot, launch service
2009, BV Coastal, versitale workboat with deck crane, solid built. l x w x d (m): 16,50 x 5.50 x 2.50. 2 x Cat C18, 450 kW each, 16 ton Bollard pull. Australasia. Price: Inquire
| General | |
| Built | 2009 |
| Class | Bureau Veritas |
| Notation | I + Hull ● Mach Tug Coastal Area |
| Dimensions & Capacities | |
| Length Overall | 16.50 m |
| Beam, Moulded | 5.50 m |
| Fuel | 12 mt |
| Potable Water | 1.1 mt |
| Sewage Tank | 0.7 mt |
| GT/NT | 46/14 |
| Performance | |
| Draft Max | 2.50 m |
| Speed Max | 11 knots |
| Bollard Pull | 16 mt |
| Machinery & Deck Equipment | |
| Main Engines | 2x Caterpillar C18 TA/B |
| Horsepower | 1,200 BHP |
| Generators | 1x Caterpillar, 18kW |
| Towing Hook | 25 mt |
| Deck crane | Knuckle boom, reach 6.8 m, 3.5 tm |
| Fendered Pusher Bow | |
| Accommodation | |
| Cabins | 1 x 4 berths |
Damen Stan Tug 1906 (2 sisters)
Coastal assistance, Barge handling & towing, Assisting berthing tug and Port operations
2007, BV Coastal, Versatile workboats, solid built. l x w x d (m): 19.65 x 6.00 x 2.20. 2 x Cat 3412, bollardpull 20 tons. accommodation 4 crew. ME gulf. Price: Inquire
| General | ||
| Class | Bureau Veritas 1 + HULL, + MACH, Tug, Coastal Area, Arabian Gulf, Gulf of Oman, Coast of Yemen and Red Sea coastal area | |
| Built | 2007 | |
| Hull material | Steel | |
| Dimensions | ||
| Length over all | 19,65 | m |
| Width | 6,00 | m |
| Draft (max.) | 2,20 | m |
| GT | 72 | |
| Machinery & propulsion | ||
| Main engine | 2 | Caterpillar 3412 C TAIB |
| Total power | 2.148 | kW |
| Propulsion | 2 | fixed pitch |
| Performance | ||
| Speed ahead (max.) | 11 | knots |
| Speed (eco.) | 7 | knots |
| Bollard pull (ahead) | 20 | ton |
| Tank capacity | ||
| Fuel oil | 26,00 | m3 |
| Potable water | 23,00 | m3 |
| Life-saving equipment | ||
| Life buoys | 3 | |
| Life jackets | 4 | |
| Life rafts | 1 | |
| Capacity per life raft | 6 | persons |
| Accommodation | ||
| Crew | 4 | persons |
| Surveyors/Passengers | – | persons |
| Navigation & communication | ||
| Magnetic compass | Cassens & Plath Kotter type | |
| Echo sounder | Furuno LS6100 | |
| VHF | Furuno | |
| Radar | Furuno 1932 Mk2 | |
| GPS | Furuno GP-32 |
Damen Stan Tug 2608 FiFi (2 sisters)
Coastal towage, barge handling & towage, general assistance tug
1999, BV coastal, versatile, solid built. 2 x Cat 3512, Bollard pul 39 tons. l x w x d (m): 26.15 x 7.90 x 3.45. FiFi capability. Accommodation 10 crew. ME Gulf, Price: Inquire
| General | ||
| Class | BV, 1 + HULL, MACH, Tug, Coastal area | |
| Built | 1999 | |
| Dimensions | ||
| Length over all | 26,15 | m |
| Width | 7,9 | m |
| Draft (max.) | 3,45 | m |
| GT | 191 | |
| Machinery & propulsion | ||
| Main engine | 2 | Caterpillar 3512 DI-T A/B |
| Total power | 2.028 | kW |
| Propulsion | 2 | fixed pitch |
| Performance | ||
| Speed ahead (max.) | 13 | knots |
| Speed (eco.) | 9 | knots |
| Bollard pull (ahead) | 39 | ton |
| Tank capacity | ||
| Fuel oil | 72 | m3 |
| Potable water | 12 | m3 |
| Foam | 9 | m3 |
| Accommodation | ||
| Crew | 10 | persons |
| Navigation & communication | ||
| Magnetic compass | Kelvin Hughes Observator Mk3 | |
| Echo sounder | Furuno FE-700 | |
| VHF | Sailor RT-2048 | |
| Radar | Furuno FR-8051 | |
| GPS | JMCGP-200 | |
| Deck equipment | ||
| Towing hook | 45 | ton, Mampaey, disc type |
| Aft winch | Hydraulic, single drum | |
| Brake load | 60 | ton |
| Line pull | 10 | ton |
| Line speed | 10 | m / min (3rd layer) |
| Other equipment | ||
| Fire-fighting monitors | 2 | |
| Capacity each monitor | 600 | m3/hr |
| Crane load | 1,25 | ton |
| Crane outreach | 8,6 | m |
Damen Stan Tug 3008 FiFi (3 sisters)
Coastal towage, barge handling & towage, general assistance tug
1998, BV unrestricted, versatile, solid built. 2 x Cat 3516, 48 ton bollard pull, FiFi 2 x 180m3/h. Accommodation for 12 crew. West Africa. Price: Inquire
| GENERAL | |
| Year | 1998 |
| Class | Bureau Veritas |
| Notation | 1 + Hull, Mach; Tug, Unrestricted navigation |
| DIMENSIONS | |
| Length over all | 30.30 m |
| Beam over all | 8.42 m |
| Maximum draught | 3.44 m |
| GT | 210 |
| MACHINERY & PROPULSION | |
| Main engines | 2 x Caterpillar 3516T A |
| Total power | 2,550 kW |
| Propulsion | 2 x controllable pitch Conventional |
| Bow thruster | 1 x 112 kW |
| PERFORMANCE | |
| Bollard pull (ahead) | 48 T |
| Speed ahead (maximum) | 13 knots |
| Speed (economic) | 9 knots |
| TANK CAPACITY | |
| Fuel oil | – |
| Potable water | 14 m3 |
| DECK EQUIPMENT – AFT | |
| Towing hook | Pneumatic, quick-release, 65t on SWL |
| Aft winch | Hydraulic |
| Single drum – 100 T brake load | |
| Line pull 10 T @ 1O m /min on 1st layer | |
| NAVIGATIONAL AND COMMUNICATION EQUIPMENT | |
| Magnetic compass | Observator Kotter |
| Echo sounder | Furuno FE-4300 |
| VHF | Sailor RT-2048 |
| Radar | Furuno 8 051 |
| GPS | Dassault Sercel NP DGPS 1209 |
| OTHER EQUIPMENT | |
| Fire-fighting monitors | 2 x 180 m3/hr |
| Waterspray | yes |
Damen Stan Tug 3008 FiFi
Coastal towage, barge handling & towage, general assistance tug
1998, BV unrestricted, versatile, solid built. 2 x Cat 3512, 31 ton bollard pull, FiFi 2 x 180m³/h. accommodation for 12 crew. West Africa. Price: Inquire
| General | ||
| Class | BV, 1 + HULL, MACH, Tug, Unrestricted Navigation | |
| Built | 1998 | |
| Dimensions | ||
| Length over all | 30,30 | m |
| Width | 8,42 | m |
| Draft (max.) | 3,29 | m |
| GT | 212 | |
| Machinery & propulsion | ||
| Main engine | 2 | Caterpillar 3512-01-TA/A |
| Total power | 1.910 | kW |
| Propulsion | 2 | fixed pitch |
| Bow thruster | 112 | kW |
| Performance | ||
| Speed ahead (max.) | 13 | knots |
| Speed (eco.) | 11 | knots |
| Bollard pull (ahead) | 31 | ton |
| Tank capacity | ||
| Fuel oil | 62 | m3 |
| Potable water | 42 | m3 |
| Foam | 5 | m3 |
| Accommodation | ||
| Crew | 12 | persons |
| Navigation & communication | ||
| Magnetic compass | Kelvin Hughes Observator | |
| Echo sounder | Furuno FE-700 | |
| VHF | Sailor RT2048 | |
| Radar | Furuno FR- 8050 | |
| GPS | Trimble | |
| Deck equipment | ||
| Towing hook | 45 | ton, Mampaey, disc type |
| Aft winch | Hydraulic, single drum | |
| Brake load | 100 | ton |
| Line pull | 10 | ton |
| Line speed | 10 | m / min (3rd layer) |
| Other equipment | ||
| Fire-fighting monitors | 2 | |
| Capacity each monitor | 180 | m3/hr |

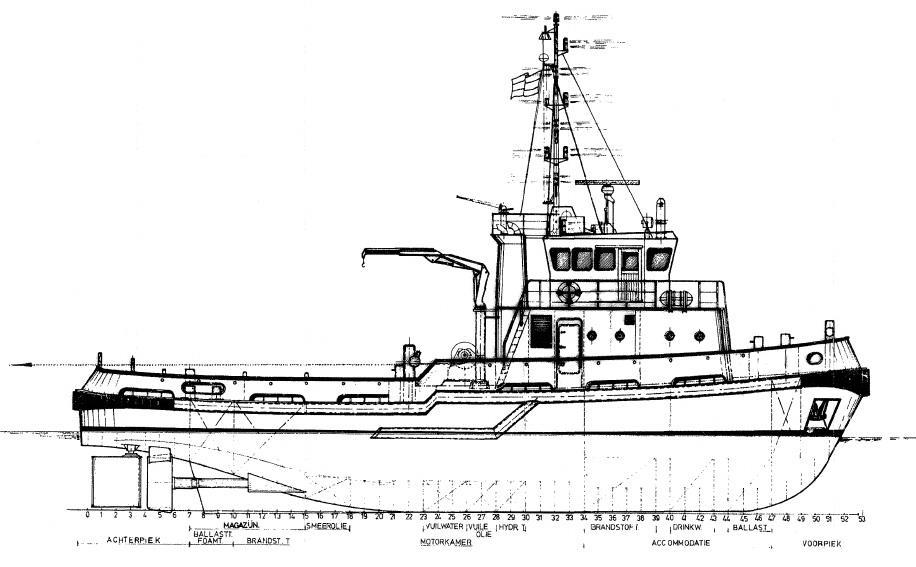

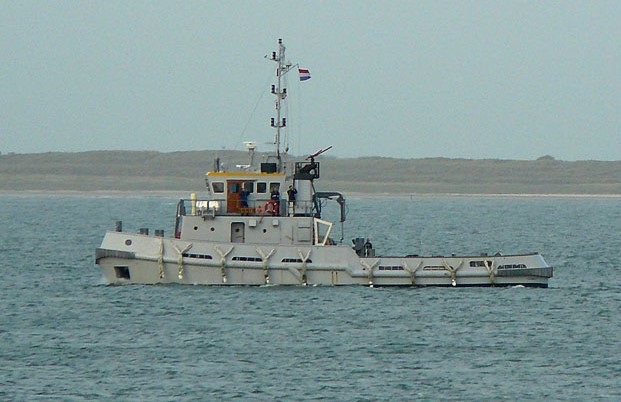

32 tbp Coastal Tug
Coastal towage, barge handling & towage, general assistance tug
1987, LR coastal, 2 x 900 kW, 32 ton bollard pull, Single drum towing winch. FiFi 1 x 750 m³/h. Accommodation for 12 crew. West Africa. Inquire
| GENERAL | |
| Built | 1987 |
| Class | LR, +100A1 +LMC |
| DIMENSIONS | |
| Length oa | 28.5 m |
| Beam | 8.8 m |
| Draft | 3.25 m |
| GRT | 240 |
| PERFORMANCE | |
| Bollard pull | 32 t |
| Speed | 12 knots |
| DECK EQUIPMENT | |
| Winch | Single drum – 80 t brake |
| Towing hook | Mampaey, 50 ton SWL |
| Fire-fighting | 1 x 750 m³/hr monitor |
| MACHINERY | |
| Main engines | 2 x MWM-6, 900 kW each |
| Propulsion | 2 x FPP in nozzle |
| TANK CAPACITY | |
| Fuel | 95 m³ |
| Potable water | 35 m³ |
| Foam | 5 m³ |
| NAVIGATIONAL AND COMMUNICATION EQUIPMENT | |
| Radar | Sperry Bridgemaster |
| GPS | Furuno GP 37 |
| VHF Sailor | RT 2048 |
| Echo sounder | Furuno FE 700 |
| Magnetic compass | Observator Pilot MK3 |
| ACCOMMODATION | |
| Cabins | for 12 persons |
| Air-conditioned | |

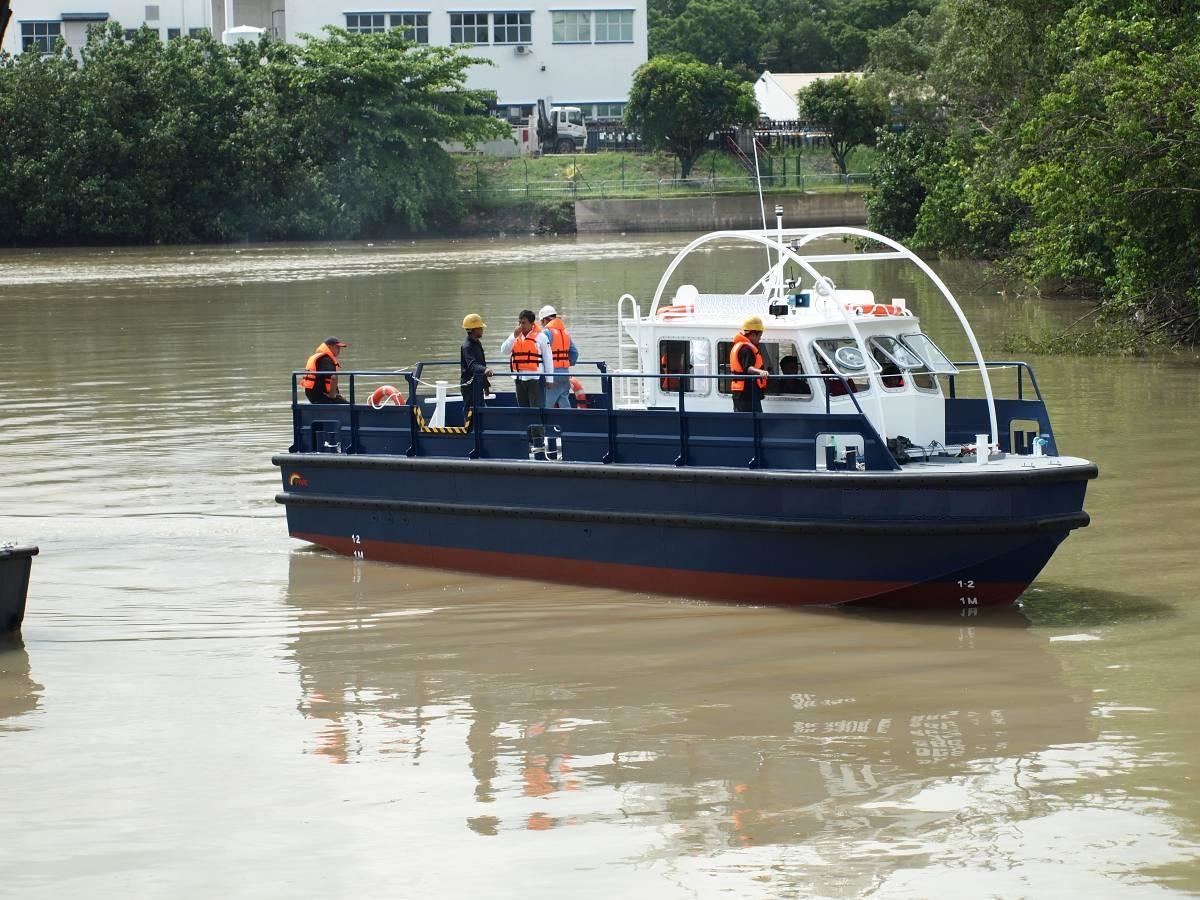

Survey Launch
Line handling, launch service, survey, pilot, workboat
1984 (2011), MCA. l x w x d (m): 14.00 x 4,90 x 1.35, 1 x Doosan, 470 hp. UK waters. Inquire
| Built | 1984 – Damen Shipyards, Holland |
| Full re-fit and re-engine 2011 | |
| Classification | UK MCA Workboat category 2, up to 60 miles from safe haven |
| Dimensions | Length 14.5 m, Beam 4.9 m, Draft 1.35 m |
| Main Engines | 2 x Doosan L136Ti, total 470 bhp at 2,100 rpm |
| Bollard pull | 6 tonnes |
| Speed | 9 knots free running |
| Tank Capacities | Fuel 3900 litres |
| Navigation | Compass, 2 x VHF, radar, echo sounder, GPS navigator, electronic chart display |
| Equipment |
6 tonne winch, A-frame and 5 meter plough, pushbow, towing hook, 220v generator, trunking for survey echosounder, 19” survey computer racking, keel cooling of main engines, survey moonpool 600 mm x 400 mm |
| Accommodation | Sleeping accommodation for 2 crew, galley, dinette in wheelhouse, toilet |

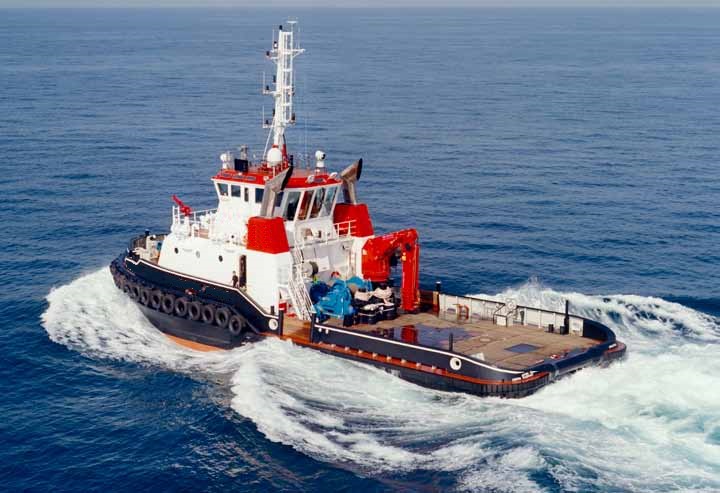

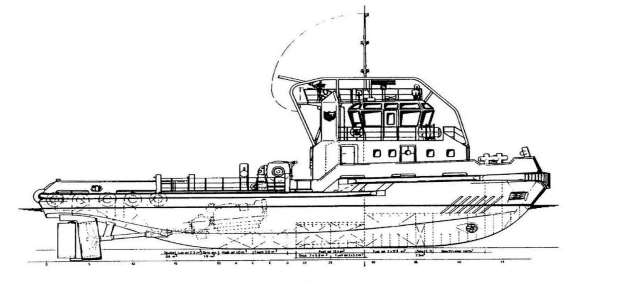

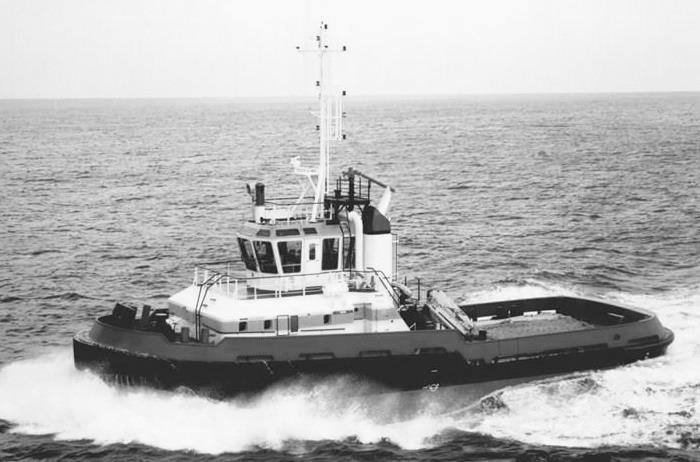

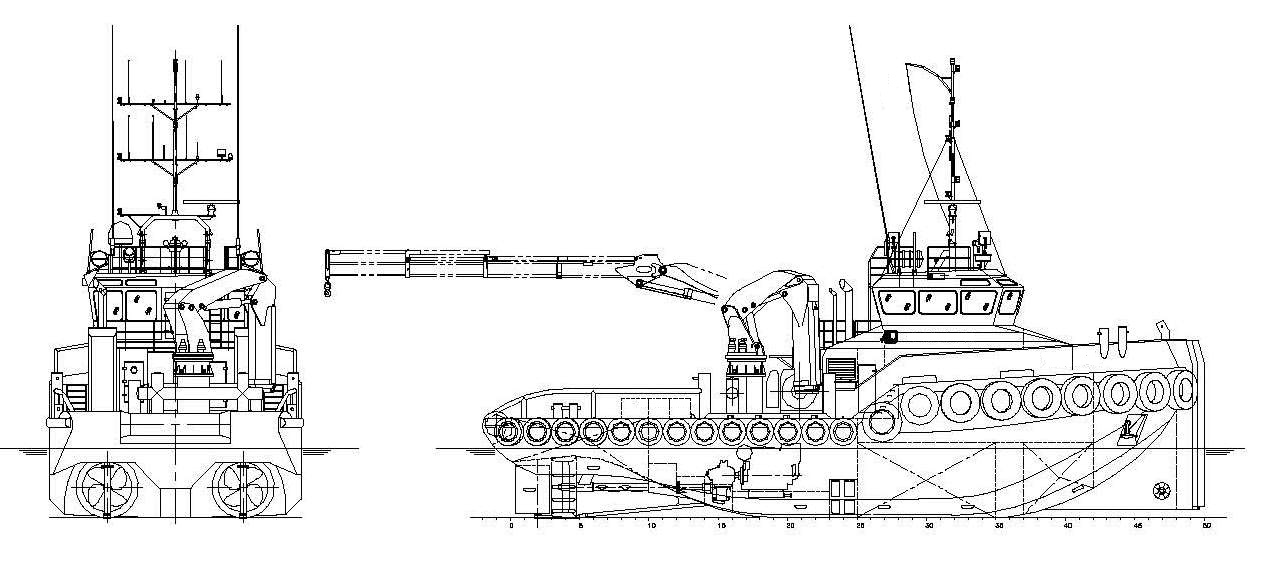

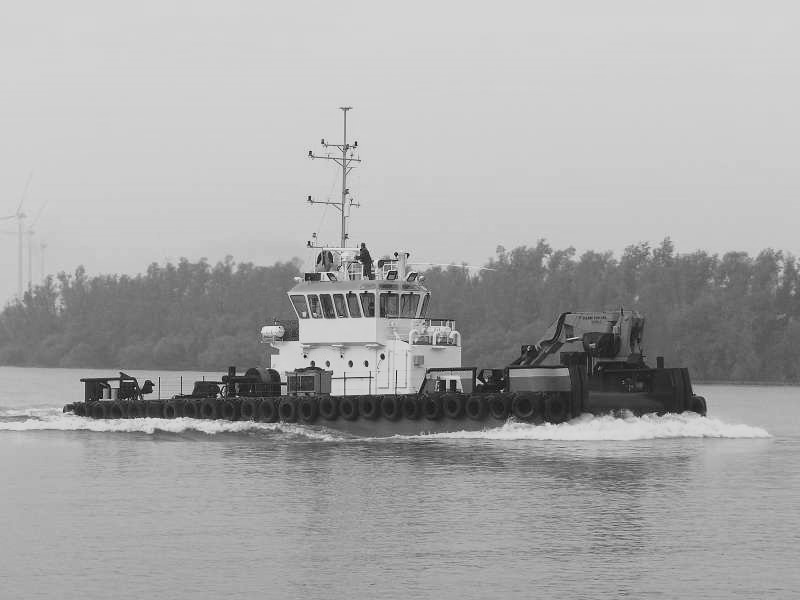

15 tbp shallow draft AHT
Towing, AHT, Dredge Support
2013, BV. l x w x d (m): 23.00 x 8,00 x 3,10. Max Draft: 2,60 m , 2 x Cat. C18, Winch, Double drum, Waterfall configuration. Inquire
| GENERAL | |
| Year of built | 2012 |
| Classification | Bureau Veritas, I HULL MACH AUT – |
| UMS unrestricted | |
| DIMENSIONS | |
| Length over all | 23,00 m |
| Width | 8,00 m |
| Depth midships | 3,10 m |
| Draft max. | 2,60 m |
| GT / NT | 135 / 40 |
| CARGO / TANK CAPACITIES | |
| Deck cargo cap. | 2 TEU – 30 tons |
| Clear deck area | 35,0 m2 |
| Cargo deck load | 3,0 t/m2 |
| Fuel oil / gasoil | 40,0 m3 |
| Fresh water | 20,0 m3 |
| PERFORMANCE | |
| Speed free sailing (ave.) | 10,0 knots |
| Endurance with/without tow | 2.500 / 3.600 naut. miles |
| Bollard pull | 15 tons |
| MACHINERY | |
| Propulsion | 2 x Cat. C18, 358 kW each |
| Generators | 2 x Cat. C 4.4. DI, 45 Kva each |
| Bow thruster | 92 kW |
| DECK EQUIPMENT | |
| Towing winch | Doubledrum waterfall |
| Tow wires | 1 x 450 m and 1 x 75 m |
| Tow wire diameter | Mainwire 30 mm |
| Knuckle Boom crane | Heila 25/3S – 25 tonmeter |
| 8.0 tons @ 2.80 m | |
| 2.0 tons @ 10.50 m | |
| NAVIGATION & COMMUNICATION | |
| Sea/river radar, GSM, 2 x echosounder, speed log, GPS, autopilot, 2 x compass, AIS, Navtex, Sart, Epirb, 3 x VHF, SSB, 2 x Inmarsat C, Satcom-C | |

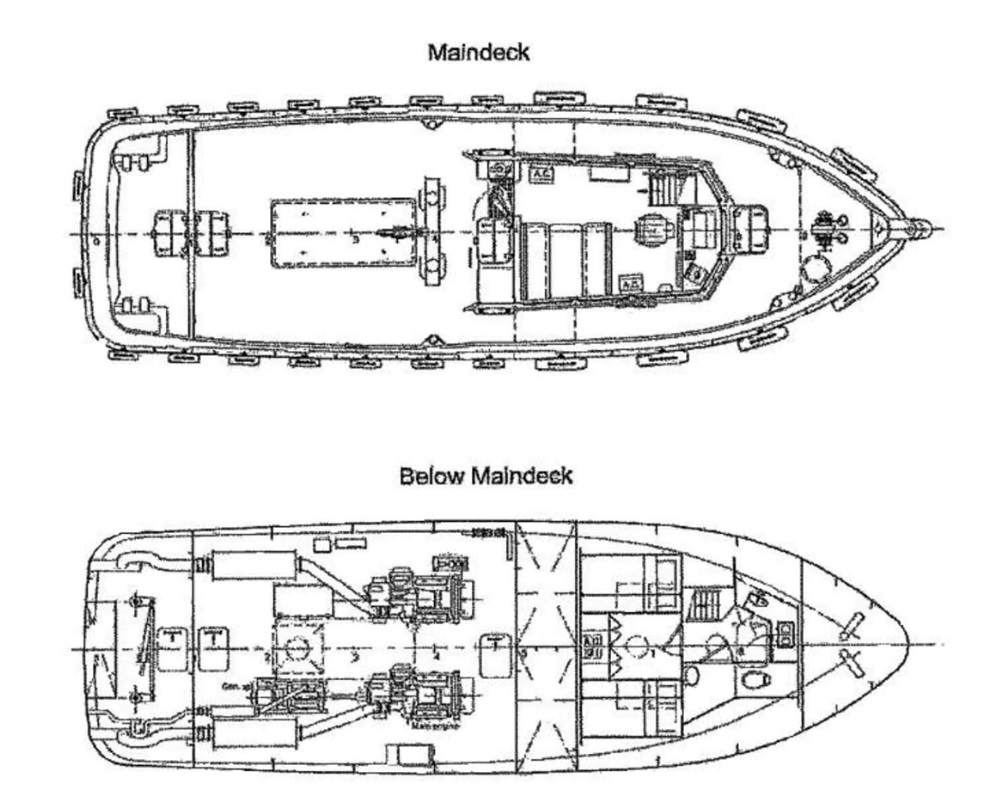

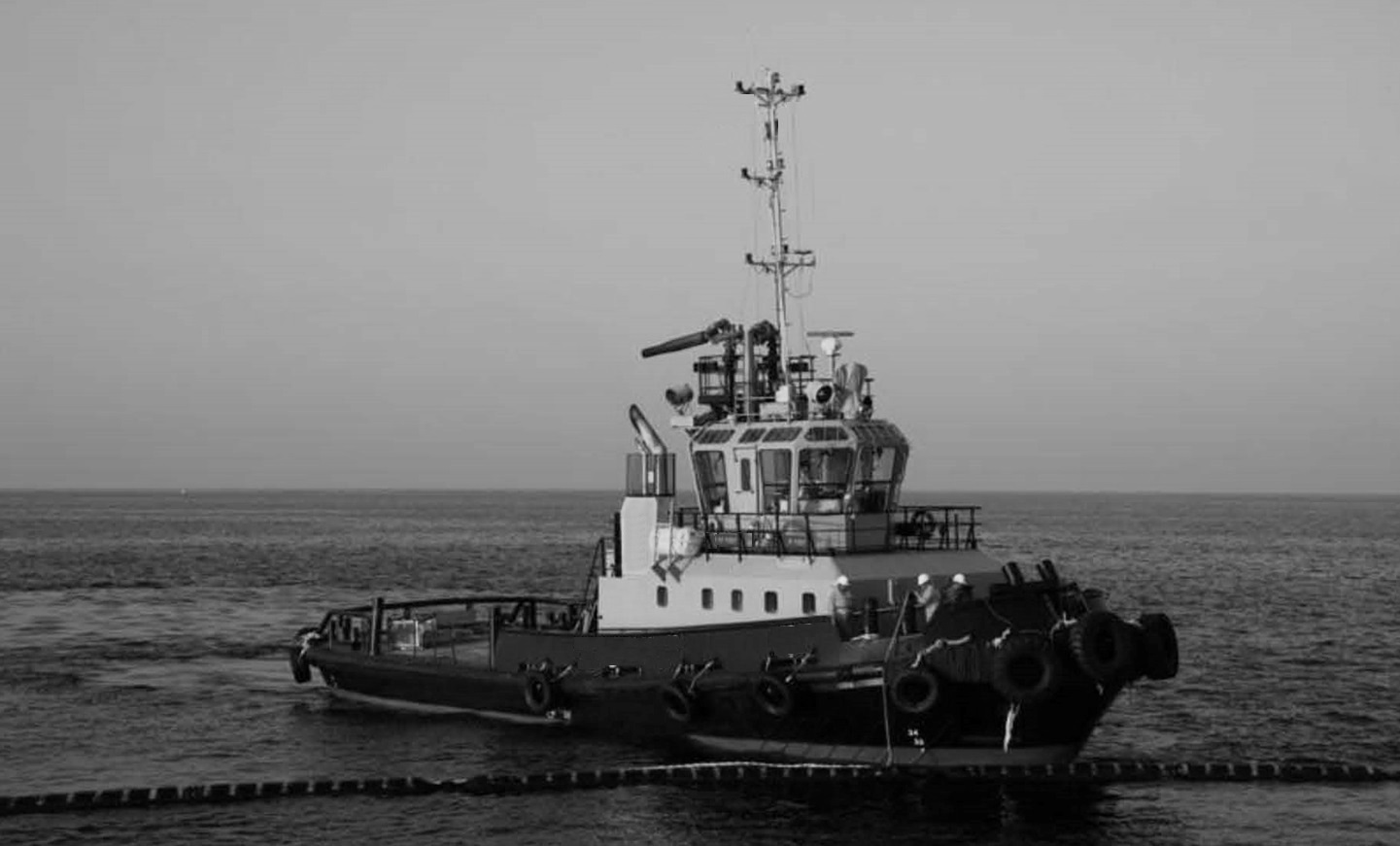

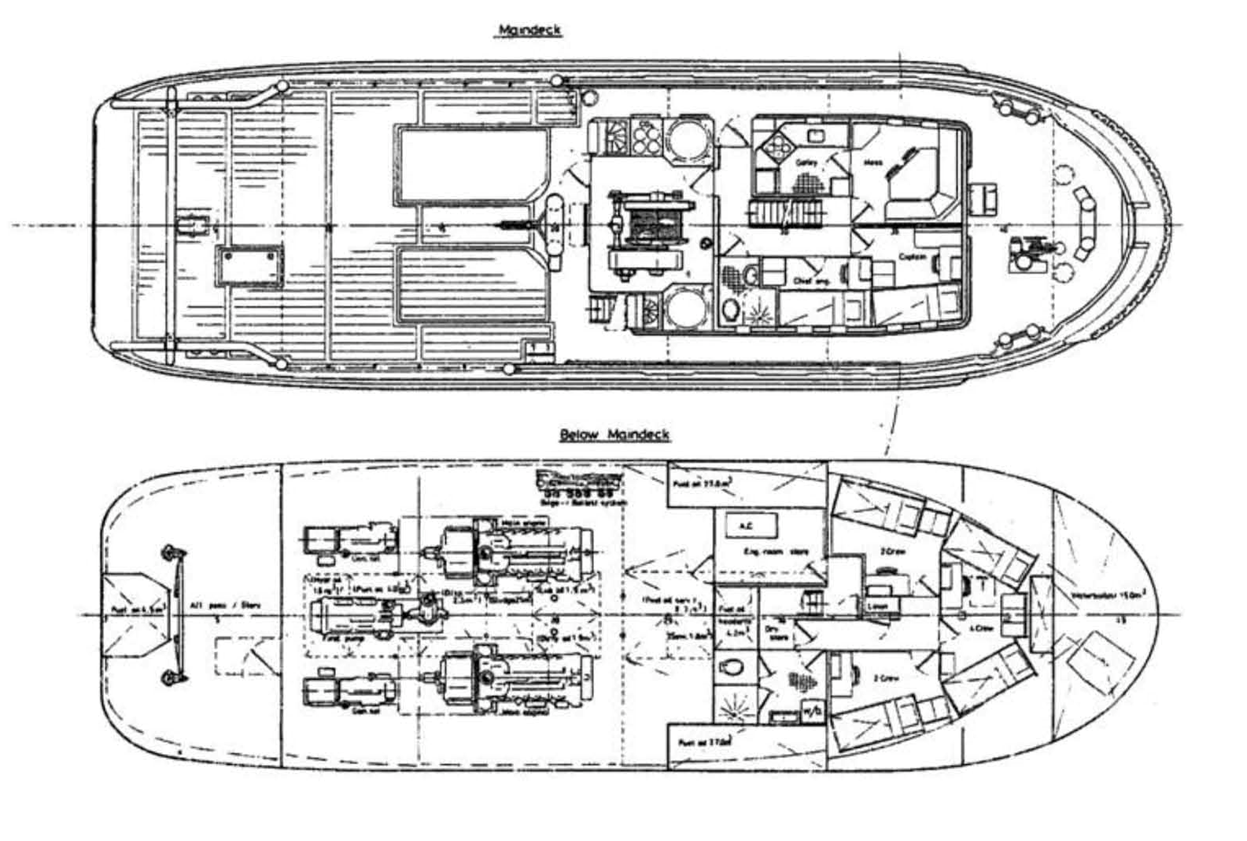

14 tbp Coastal Tug
Coastal Towing, Barge Handling, General Support
1993 (2014 refit), BV. l x w x d (m): 21.00 x 6,00 x 3,30, 2 x Cummins KTA-19, 404 kW each. Location: North Sea. Inquire
| GENERAL | |
| Year of built (refit) | 1993 (2014) |
| Classification | BV, I Hull • MACH • AUT-UMS, |
| Tug, Coastal Area | |
| DIMENSIONS | |
| Length over all | 21,00 m |
| Width | 7,00 m |
| Depth midships | 3,30 m |
| Draft max. | 3,40 m |
| GT / NT | 122 / 37 |
| TANK CAPACITIES | |
| Fuel oil / gasoil | 69,0 m3 |
| Fresh water | 18,0 m3 |
| Lube oil | 3,9 m3 |
| PERFORMANCE | |
| Speed free sailing (ave.) | 8.4 knots |
| Endurance with / without tow | 2.500 / 4.000 naut. miles |
| Bollard pull | 14 tons |
| MACHINERY | |
| Propulsion | 2x Cummins KTA-19-M, 404 kW each |
| Generators | 2x Perkins RE51275, 47 kVA each |
| DECK EQUIPMENT | |
| Towing winch | Single drum |
| Tow wires | 1 x 650 m x 28 mm |
| Towing hook | 1x Mampay 45 ton SWL |
| NAVIGATION & COMMUNICATION | |
| Radar, echosounder, speed log, GPS, autopilot, compass, AIS, Navtex, Sart, Epirb, VHF, SSB | |

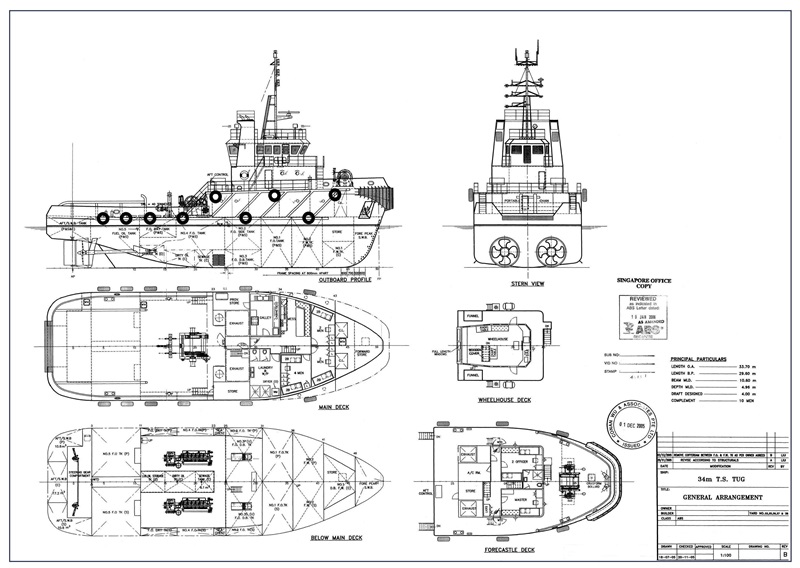

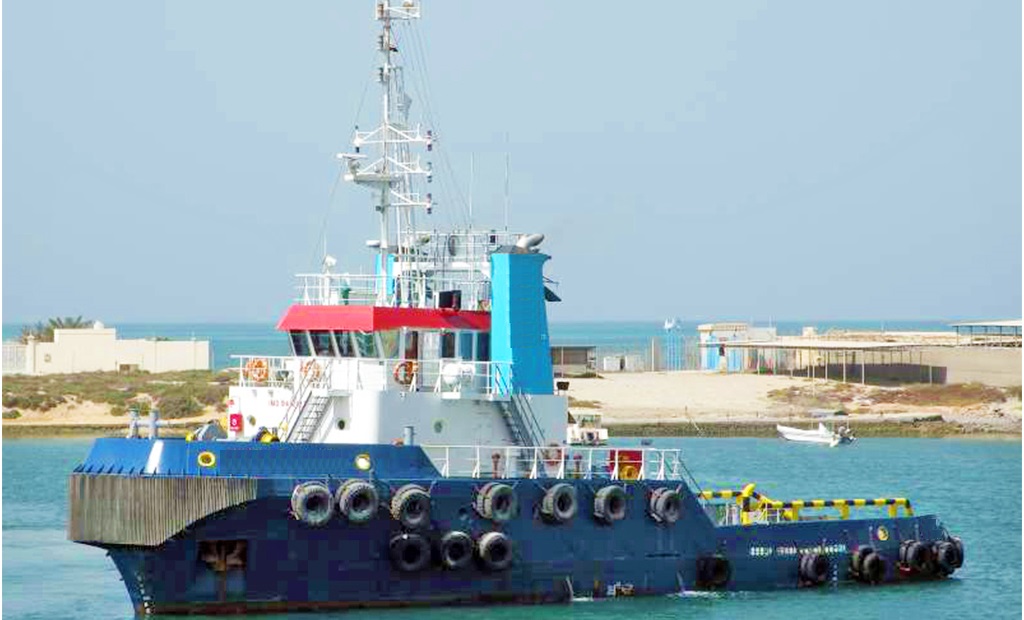

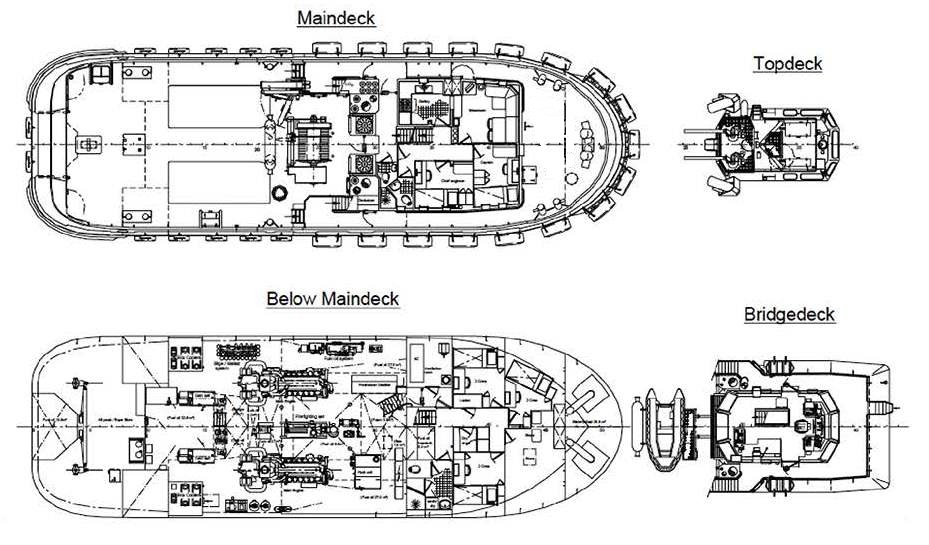

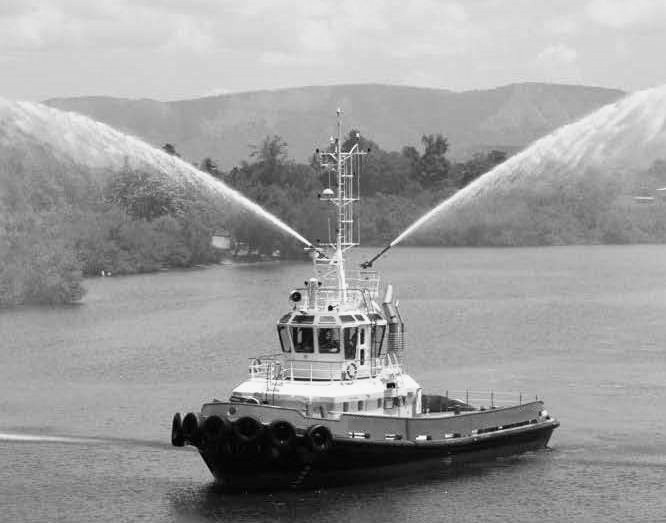

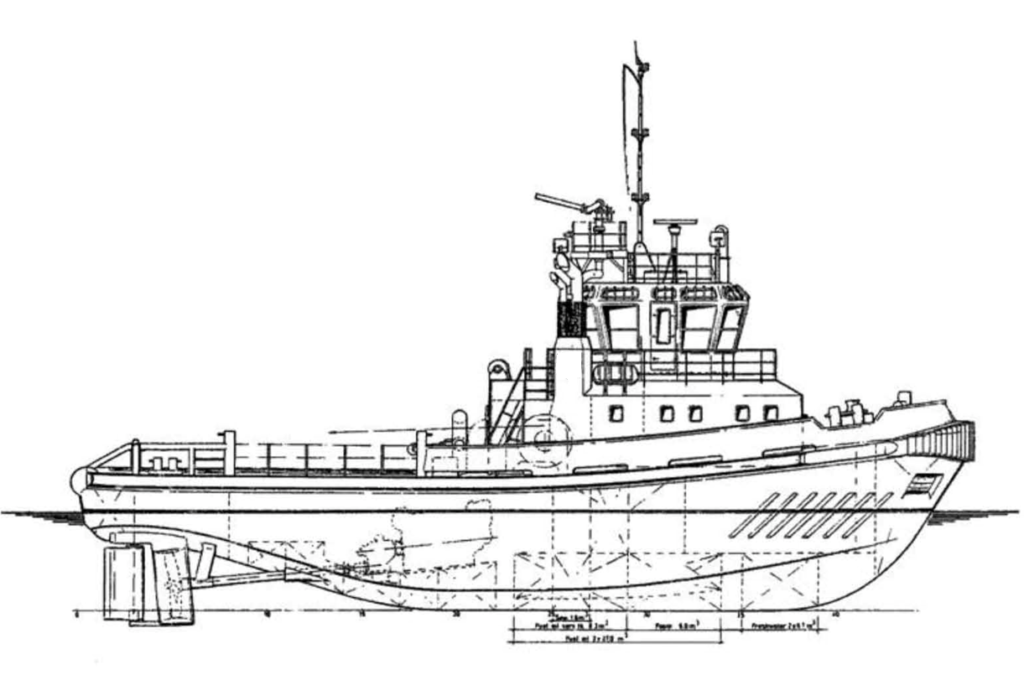

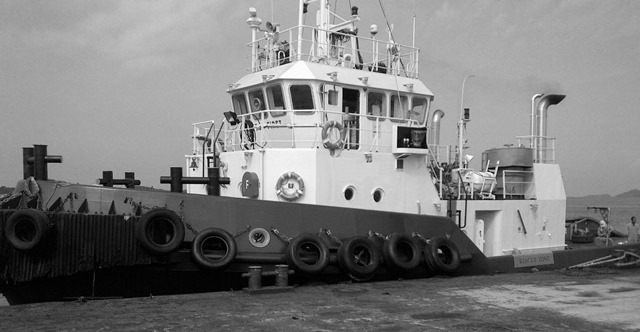

26 tbp Coastal Tug
Coastal Towing, Barge Handling, General Support
2006, DNV-GL. l x w x d (m): 30.00 x 8.6 x 4.3, 2 x Cat 3508, 750 kW each. Location: Far East. Inquire
| GENERAL | |
| Built: | 2006 |
| Classification: | DNV-GL |
| DIMENSIONS | |
| Length: | 30 m |
| Breath: | 8.6 m |
| Depth / Draft: | 4.3 m / 3.6 m |
| GRT: | 270 |
| Bollard Pull: | 26 tons |
| MAIN ENGINE / GENERATOR | |
| Main Engine: | 2 x Cat. 3508B, 1000 bhp each |
| Main Generator: | 2 x Cummins, 78 kW each |
| Gear Box: | 2 x Twin Disc MG5301 |
| Propulsion: | 2 x Fixed pitch propeller |
| Max Speed: | 10 knots |
| DECK EQUIPMENT | |
| Towing Winch: | 15 tons / 90 tons brake |
| Wire Rope: | Tow wire : 36 mm x 600 m |
| SAFETY EQUIPMENT | |
| Fire Fighting: | 2 x 600 m³/hr monitor |
| Life Rafts: | 2 x 15 men |
| Life Jackets: | 14 units |
| OTHER INFORMATION | |
| Deck Space: | 8.5 m x 6.2 m = 52.7 m² |
| Deck Strength: | 5 tons / m2 |
| NAVIGATION / COMMUNICATION EQUIPMENT | |
| Radar: | Furuno FS – 1532 |
| Echo Sounder: | Furuno FCV – 667 |
| GPS: | Furuno GP – 32 |
| Auto Pilot: | Simrad AP32 |
| Compass: | Magnetic type – Daiko Keiki |
| Inmarsat C: | Fitted |
| SSB: | Furuno FS – 1570 |
| VHF: | Furuno FM880S |
| Navtex: | Furuno NX – 700B |
| EPIRB: | Samyung SEP406 |
| SART: | 2 x ACR 9GH |
| PA System: | Fitted |
| TANK CAPACITY | |
| Fuel Oil: | 245 m3 |
| Fresh Water: | 35 m3 |
| Lube Oil: | 3 m3 |
| Dirty Oil: | 7 m3 |
| Ballast: | 37 m3 |
| ACCOMMODATION | |
| Cabin: | 2 x 1-beth, 1 x 2-berth, 1 x 8-berth |
| Total: | 12 men |

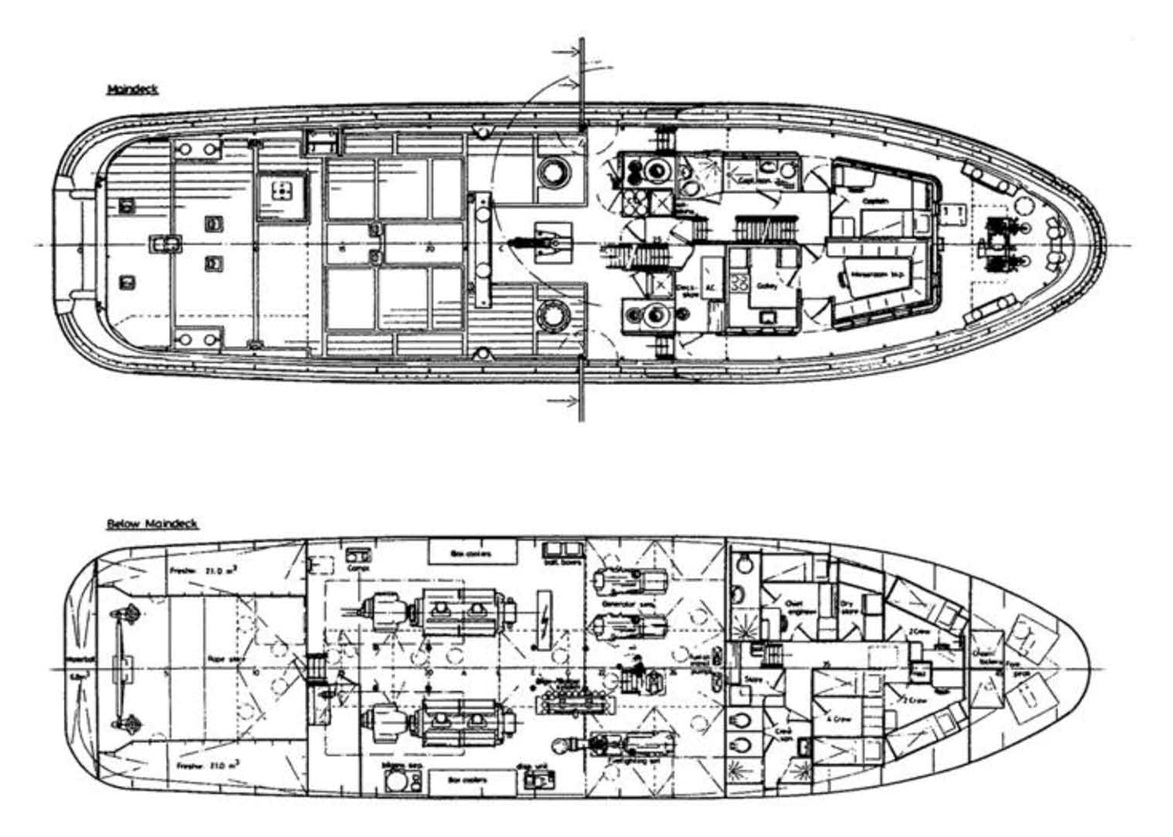

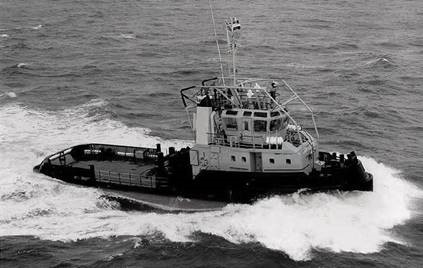

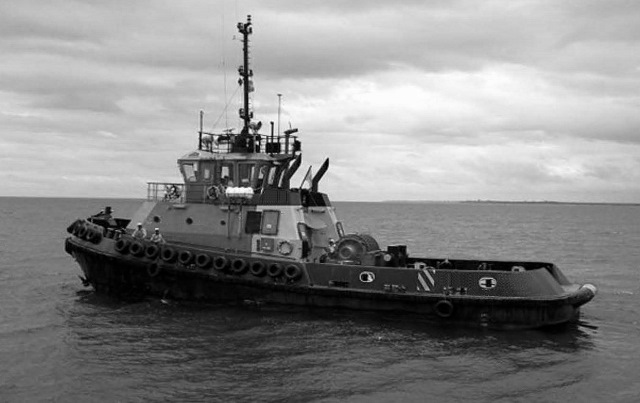

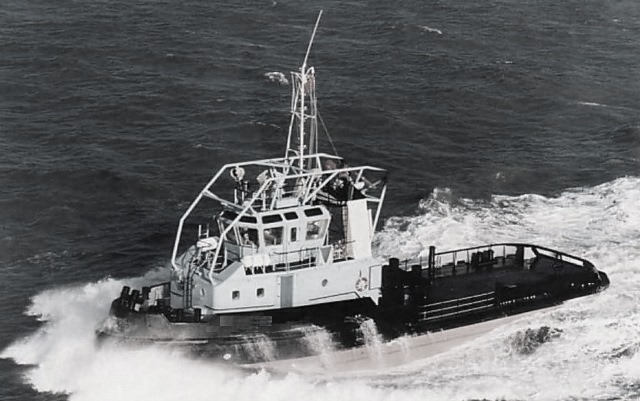

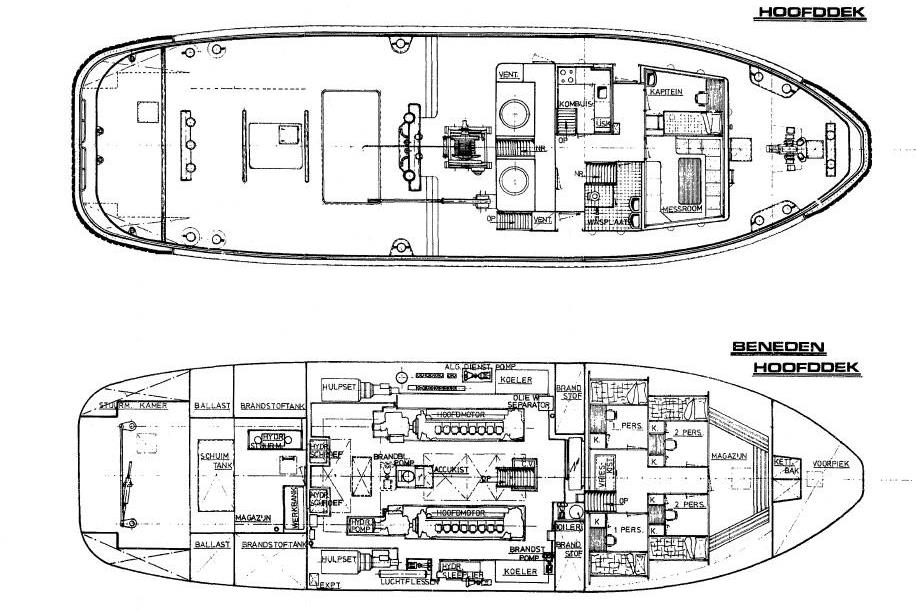

21tbp Coastal Tug (4 sisters)
Coastal Towing, Barge Handling, General Support
1987, LR. Twin CPP. L x w x d (m): 27.50 x 8,30 x 3,80, Immaculate condition, Location: North Sea. Inquire
| General | |
| Built | 1987, The Netherlands |
| Class | Lloyds Register 100 A1 Tug LMC |
| Dimensions | |
| L x W x D (m) | 27,50 m x 8,30 m x 3,80 m |
| Draft | 2,70 m |
| GRT | 200 |
| Machinery | |

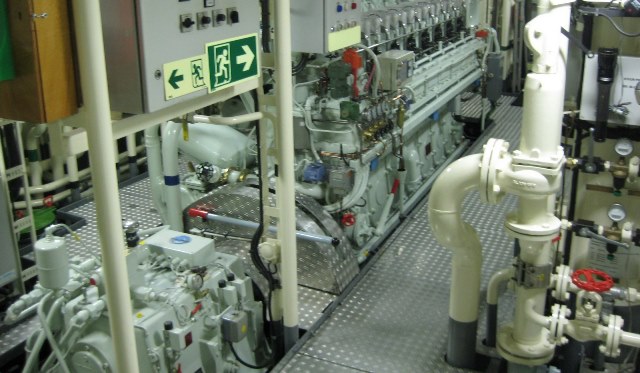

| Main engines | 2x Stork Werkspoor, DRO218K 800 hp each at 750 rpm (± 15.000 running hrs) |
| Gearboxes | 2x Reintjes, type Val 1040, ratio 2,5:1 |
| Propulsion | 2 x controllable pitch propeller in fixed nozzles |
| Aux. Engines | 2x DAF, DK 1160 MGK, 109 kW each, driving 120 kVA Stamford alternator |
| Performance | |
| Speed | 12 knots (max) |
| Bollard pull | 21 tons |
| Deck equipment | |
| Towing winch | Hydraulic, P=10 tons at 10 m/ min. B=20 tons |
| Crane | Hydraulic, make HIAB |
| FiFi pump | Hydraulic PTO driving Stork, capacity 150 m3 /hr |
| FiFi equipment | 2 monitors |
| Anchor windlass | |
| Tank capacities | |
| Fuel oil | 65,0 m3 |
| Fresh water | 11,0m3 |
| Foam | 2,5 m3 |
| Ballast | 27,0 m3 |
| Accommodation | 3 x single cabin, 2 x double cabin, galley, mess room, store |
| Nav. & Comm. | Radar, VHF, gyro compass, magnetic compass, UHF, echo sounder |
| Survey status | |
| Special survey done and class certificates valid until 2021. Latest dry docking 2014 | |
| Remark | |
| Vessels in excellent condition, maintained to the highest standard. | |
| Works executed | |
| – Both main engines and gearboxes completely overhauled; | |
| – Vulcan coupling between gearbox and engines overhauled (rubber elements renewed); | |
| – Box coolers cleaned and coated, pressure tested and replaced with new seals; | |
| – Rudder bearings renewed; | |
| – Both CPP propeller shafts completely overhauled; | |
| – All pumps were overhauled; | |
| – All tanks opened and cleaned; | |
| – Towing winch overhauled. | |
Multi-purpose Utility Vessels / Multicats

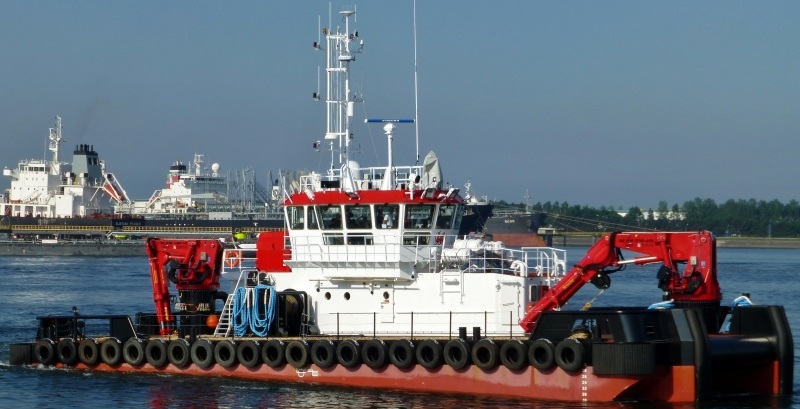

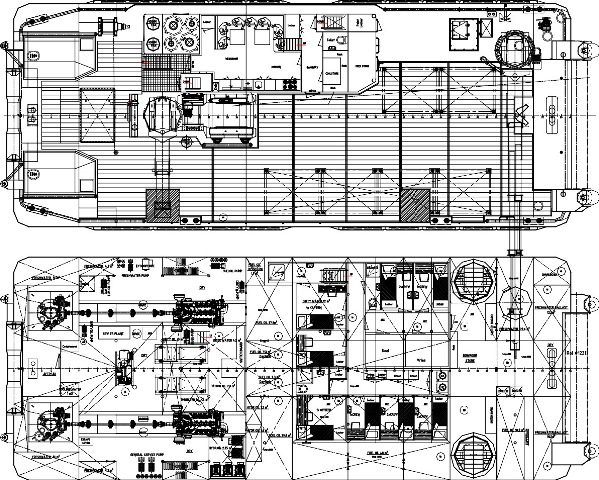

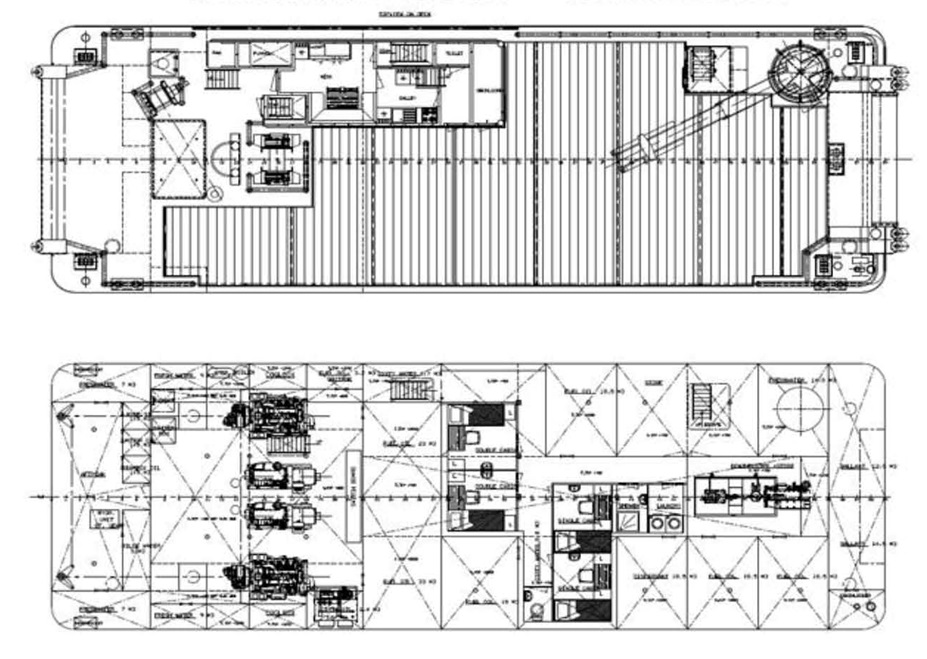

32 x 11 Multi-purpose Utility Vessel
Versatile workboat, Dredging support, Diving support, Cable repair, Supply, Anchor handling, 4-point mooring
2012, BV class. l x w x d (m): 32.00 x 11.00 x 2.85, M/E: 2 x Cummins 1.400 hp each, bollard pull 36 tons. 2 x Knuckle boom crane, AH/Towing winch, bow & stern roller. Accommodation for 11 crew. Location: South China Sea. For charter only: Inquire
| General | |
| Built | 2012 |
| Classification | Bureau Veritas 1+ Hull – Machinery, Special Service, Multi Purpose Ship, Unrestricted Navigation. |
| Dimensions | |
| Length | 32.0 m |
| Beam | 11.0 m |
| Draft | 2.8 m |
| Performance | |
| Bollard pull | 36 tonnes |
| Speed | 10 knots max |
| Machinery | |
| Main Engines | 2 x Cummins QSM38, total 2,800 bhp |
| Propulsion | FPP in nozzles, Twin Disc MG5321 reverse reduction gearboxes |
| Generators | 2 x Caterpillar C9 + 1 x Caterpillar C6 |
| Bow thruster | 265 bhp |
| Supply pumps | Fuel and Fresh water and hoses |
| Tank Capacities | |
| Fuel | 153 m³ |
| Fresh Water | 49 m³ |
| Dirty Water | 10.5 m³ |
| Equipment | |
| Winch #1 | 80 tonne |
| Winch #2 | 50 tonne |
| Tugger winch | 15 tonne |
| Anchoring | 4 point mooring system, 4×7 tonne hydraulic winches |
| Crane aft | 230 tm knuckle boom crane Heila HLRM 200-4SL mx reach 16.3 m |
| Crane forward | 140 tm knuckle boom Heila HLRM 140-3S Crane |
| Towing hook, push bows, bow roller, hardwood covered working deck, anchor handling gear includes sharks jaws and hydraulic pin arrangement forward plus hydraulic pins aft, stern roller, container points on deck, container locking points | |
| Navigation | |
| Aids Magnetic and GPS compasses, autopilot, 2 x daylight viewing radars, speed log, echosounder, Inmarsat C9, 2 x DSC VHF radios, MF/HF radio, electronic chart display, watch keeping alarm, AIS, DGPS navigator, Navtex, talkback units, searchlight, GSM phone, iridium Satphone with email | |
| Accommodation | |
| 11 heated and air conditioned cabins, 5 of which are twin berth | |

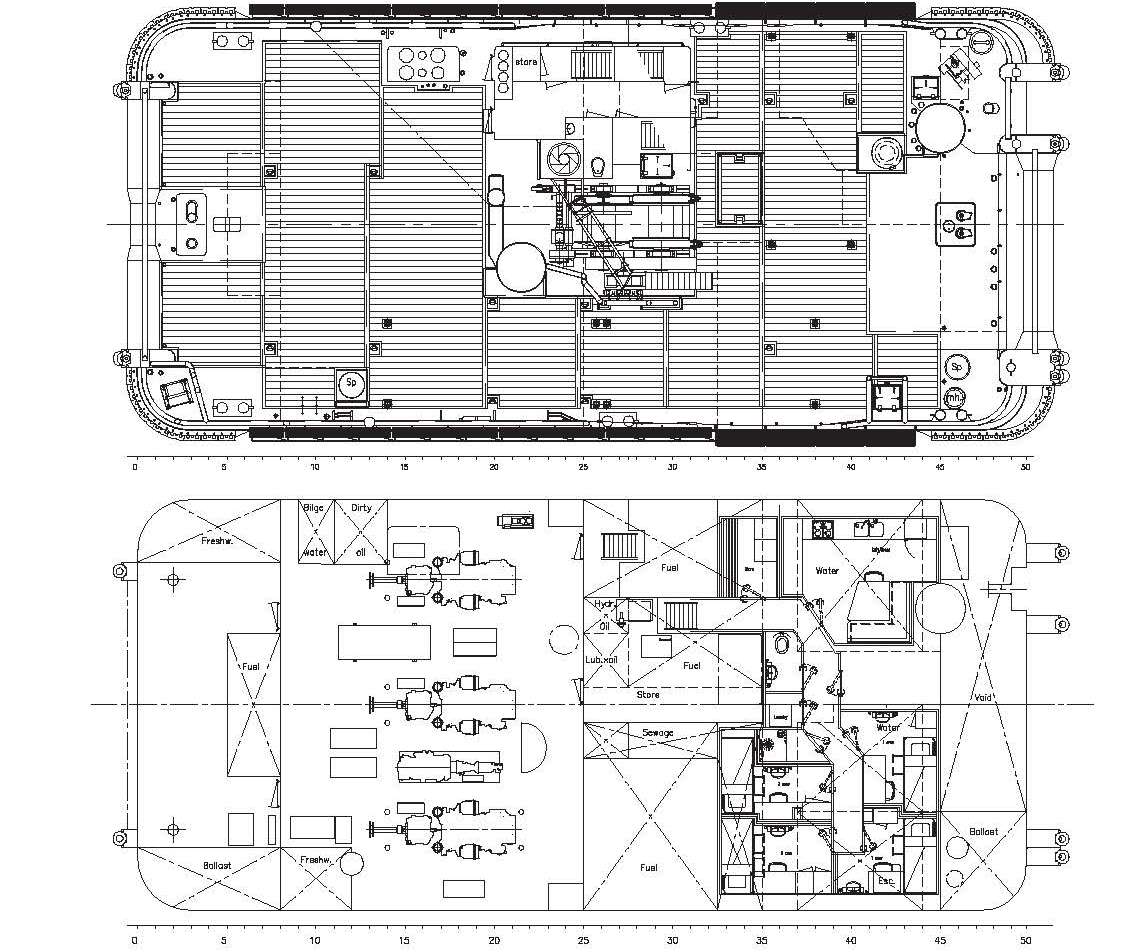

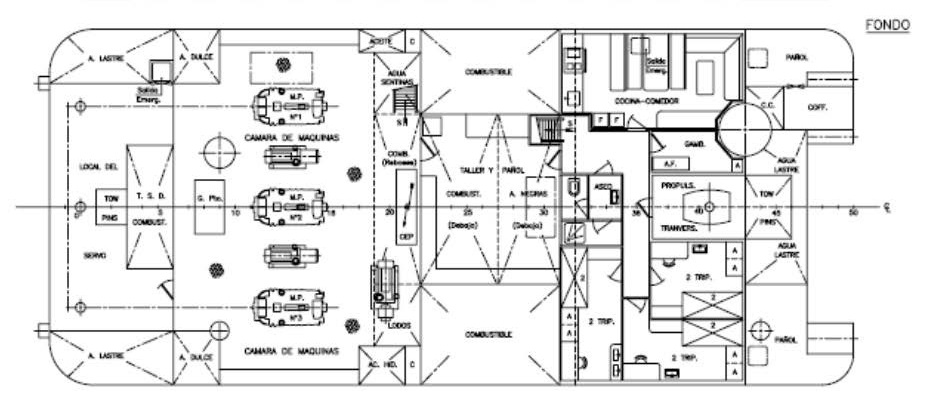

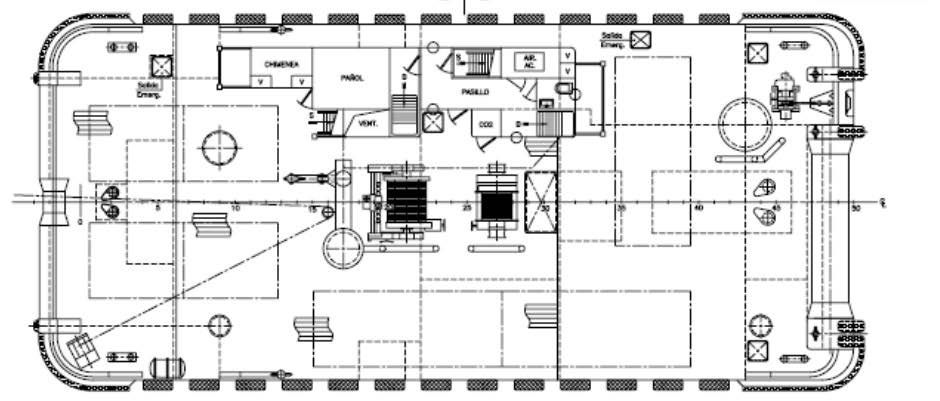

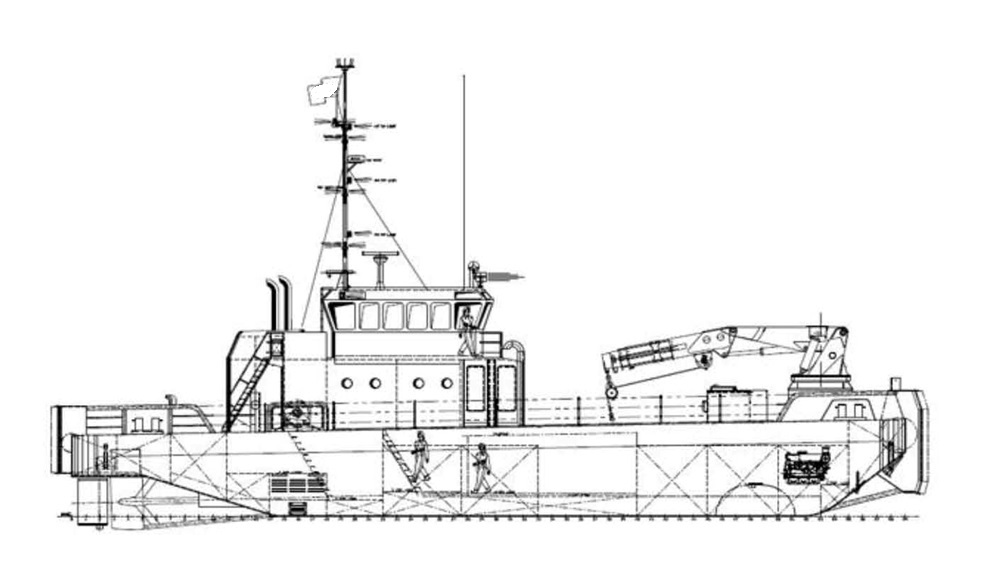

26 x 11 Multi-purpose Utility Vessel
Versatile workboat, Dredging support, Diving support, Cable repair, Supply, Anchor handling
2013, BV class. l x w x d (m): 26.00 x 11.00 x 3.25, deadweight 250 ton, propulsion 3 x Cat C32, bollard pull 35 tons. 2x Knuckle boom crane, AH/Towing winch, bow & stern roller. Accommodation for 6 crew. Location: ME. For charter only: Inquire
| GENERAL | |
| Basic functions | Anchor Handling, Dredger Service, Supply, |
| Towing, Hose Handling & Survey | |
| Classification | Bureau Veritas, I + Tug Unrestricted Navigation • MACH , AUT-UMS |
| Length overall | 26.00 m |
| Beam overall | 11.50 m |
| Depth at sides | 3.50 m |
| Draught | 2.50 m |
| GT | 255 |
| Displacement | 542 ton |
| PROPULSION SYSTEM | |
| Main engines | 3 x Cat. C32 TTA |
| Total power | 1,902 bkW (2,551 BHP) @ 1,800 rpm |
| Gear boxes | 3x Reintjes WAF 464 / Ratio 5.591 : 1 |
| Propulsion | 3x fixed pitch propellers in Optima nozzles, 1,700 mm |
| Bowthruster | Hydraulically driven 270HP Water Jet 360° |
| Performance speed | 10.3 knots |
| Bollard pull | 35.3 ton |
| Tank capacities fuel oil | 109.0 m3 |
| Black/gray water | 9.2 m3 |
| Fresh water | 49.0 m3 |
| Dirty oil | 2.0 m3 |
| Hydraulic oil | 1.2 m3 |
| Lub oil | 1.8 m3 |
| Bilge water | 1.8 m3 |
| Fresh water tanks | 25.5 m3 |
| AUXILIARY EQUIPMENT | |
| Generator sets | 2x Caterpillar C-04.4, 107.5 kVA each |
| Hydraulic power | Caterpillar C18 TA, 357 kW 1,800 rpm |
| Caterpillar C-09, 162 kW 1500rpm | |
| Fuel oil separator | GEA Westfalia Separator OTC 2-02-137 |
| Deck lay-out anchor | 270 kg Pool TW ( HHP) |
| Anchor winch | Hydraulically driven CAW-H-136 |
| Deck cranes | 2x Heila, HLRM 230-4SLK 9.8T @ 16.5m |
| Anchor handling/ | |
| Towing winch model | Ridderinkhof R-AHW-H-1000/500 |
| Towing drum pull force (1st layer) | |
| 50 ton @ 10m/min | |
| Brake holding (1st layer) 96 ton | |
| Anchor handling | Anchor handling drum pull force (1st layer) |
| 96 ton @ 5m/min | |
| Brake holding (1st layer) 150 ton | |
| Towing pins | Hydraulic type forward & aft with stop pin |
| Tugger winch | 8 ton @ 15 m/min |
| Capstan | 5 ton @ 30 m/min |
| ACCOMMODATION | |
| Comfortable heated and air-conditioned accommodation for 7 persons in 5 cabins, galley, sanitary facilities, etc. | |
| NAUTICAL AND COMMUNICATION EQUIPMENT | |
| According to GMDSS Area 2 | |
| Search lights | 2x Pesch 2000 W |
| Radar system | 1x Furuno FAR 2117 |
| Magnetic compass | 1x Cassens & Plat, Reflecta 1 |
| Gyro compass | 1x Anschutz, Standard 22 |
| Auto pilot | 1x Sea pilot 75 |
| GPS | 1x Furuno, GP-150 D |
| Echosounder | 1x Furuno FE-700 |
| Speedlog | 1x Furuno DS-80 |
| AIS | 1x Furuno, FA-150 |
| Intercom | 1x Radio Zeeland Sigma-700 |
| VHF | 2x Sailor, RT6222, with DSC |
| Handheld VHF | 2x Jotron Tron TR-20 |
| SSB | 1x Furuno FS 1570 |
| Inmarsat – C | 2x TT-3000E |
| Navtex | 1x Furuno, NX-700 |
| Watch alarm | 1x Marble, 421 |

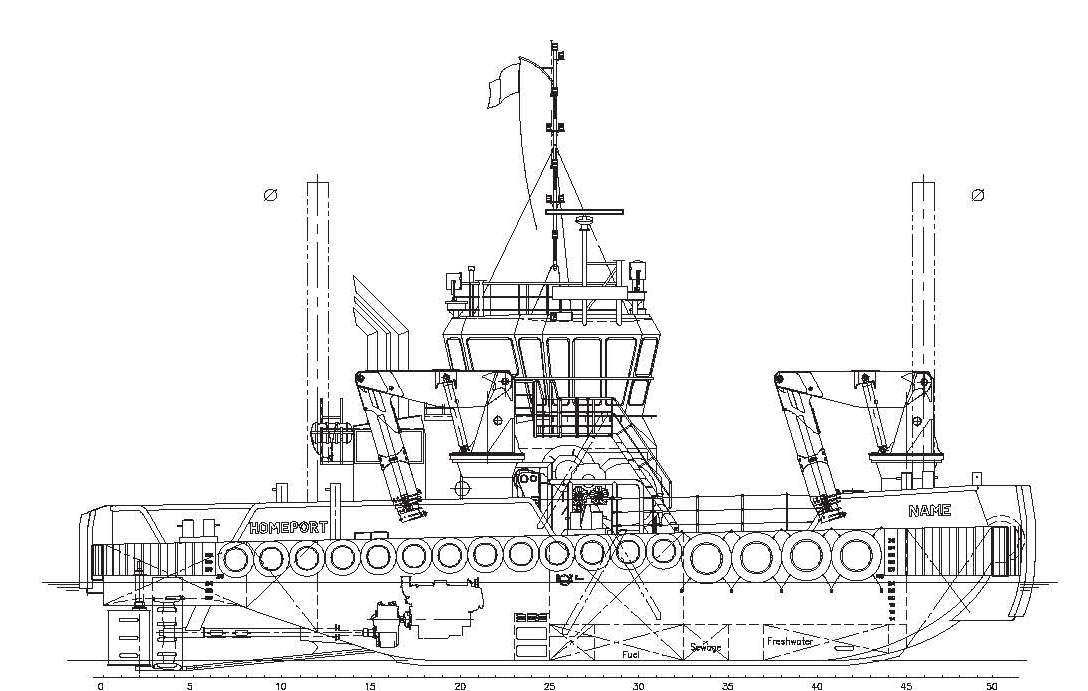

32 x 11 Multi-purpose Utility Vessel / Multicat (2 sisters)
Versatile workboats, Dredging support, Diving support, Cable repair, Supply, Anchor handling
2005, BV. l x b x d(m): 32.00 x 11.00 x 3.5. Deadweight 300 ton, propulsion 2 x 880 kW, bollard pull 31 tons. Knuckle boom crane, AHT winch, bow & stern roller. Accommodation for 8 crew. Location: North Sea. Inquire
| GENERAL | |
| Built | 2005 |
| Class | I • Hull • Mach, Special service /Multi purpose ship |
| Unrestricted navigation, • AUT-UMS (SS), • MACH | |
| DIMENSIONS | |
| Length | 32.0 m |
| Beam | 11.0 m |
| Draft max | 3.5 m |
| Operational draft | 2.3 m |
| GRT | 290 |
| MACHINERY | |
| Main engines | 2 x 880 kW |
| Propulsion | 2 x FPP, 5-blade ø1650 mm |
| Generator | 2 x 180 kVA |
| Bow thruster | 358 kW, 360 degrees |
| PERFORMANCE | |
| Bollard Pull | 31 ton |
| Free running speed | 12 knots |
| DECK EQUIPMENT | |
| AH / Towing winch | 1x 80 ton pull (constant tension), 110 ton hold |
| 1x 45 ton pull (constant tension), 65 ton hold | |
| Aux. winch | 1x 10 ton pull |
| Towing pins | WKH 1500 |
| Crane | 200 tm |
| TANK / TRANSFER CAPACITIES | |
| Fuel | 154 m3 / 80 m3/hr at 2 bar |
| Water | 48 m3 / 40 m3/hr at 2 bar |
| Sewage | 3.0 m3 |
| ACCOMMODATION | |
| Cabins | 2 x 1-berth, 3 x 2-berth |
| Mess room/galley, sanitary, central heated, air conditioning | |
26 x 11 Multi-purpose Utility Vessel
Versatile workboats, Dredging support, Diving support, Cable repair, Supply, Anchor handling
2003, GL. l x w x d (m): 26.00 x 11.00 x 3.25, deadweight 250 ton, propulsion 2 x Cat 3412, bollard pull 14 tons. Knuckle boom crane, anchor winch, bow & stern roller. Accommodation for 4 crew. Location: Netherlands. Price: Inquire
| GENERAL | |
| Year Built | 2003 |
| Classification | DNV-GL, + 100 A5 + MC |
| DIMENSIONS | |
| Length oa | 26.00 m |
| Length bpp | 24.96 m |
| Beam | 11.00 m |
| Depth Mld | 3.25 m |
| Draft | 2.50 m |
| GRT | 220 |
| Deadweight | 250 t |
| PERFORMANCE | |
| Bollard Pull | 14 t |
| Speed, free running | ≈ 9.0 Knots |
| TANK & PUMP CAPACITY | |
| Fuel oil, transfer pump | 158 m3, 1 x 20m³ / hr at 15 m head |
| Fresh Water | 83 m3 |
| MACHINERY | |
| Main Engine | 2 x Caterpillar 3412TA, 537 kW |
| Generator | 2 x Perkins 80 kW each |
| Gear Box | 2 x Reintjes 363 Reverse / Reduction ratio 4.92:1 |
| Propeller | 2 x Fixed Pitch, 4 -Blade, dia. 1400mm |
| DECK EQUIPMENT | |
| AH / Towing Winch | 1 x 100 ton, 5 m/min. Brake holding 80 tons, 500 m x 70 mm |
| Towing Hook | 20 tons SWL |
| Roller | 2 x at Bow and Stern, dia 600mm |
| Anchor Windlass | 1 x 3 t x 10 m/min. pull |
| Capstan | 2 x 3 tons, 15 m/min. |
| Deck Crane | 1 x Heila HLRM 140-3s, 120 tm, max. reach 12.25 m |
| OTHER EQUIPMENT | |
| Navigation | Magnetic Compass, Echo Sounder. Radar, GPS, EPIRB , etc. |
| Communication | VHF, SSB |
| Life Saving | 2 x 10 Men Inflatable Life Raft. 8 Life Buoy, 14 Life-Jackets |
| ACCOMMODATION | 4 berth, fully air-conditioned |
32 x 12 DP-2 Multi-purpose Utility Vessel
Versatile workboat, Dredging support, Diving support, Cable repair, Supply, Anchor handling
2014, BV. DP-2, l x b (m): 32 x 12. Propulsion 2 x Cat 3512, bollard pull 40 tons. 2 x Knuckle boom crane, 125/50t pull , 190/60t hold Towing AH winch, bow & stern roller. Accommodation for 12 crew. Inquire
| GENERAL | |
| Built | 2014 |
| Class | BV, I + Hull • Mach, Special service /Multi purpose ship |
| Unrestricted navigation • AUT-UMS (SS) , | |
| • DYNAPOS AM/AT R • MACH | |
| DIMENSIONS | |
| Length | 32,00 m |
| Beam | 12,00 m |
| Draft | 3,40/4,00 m |
| Operational draft | Approx. 3,0 m |
| GRT | 360 |
| MACHINERY | |
| Main engines | 2 x Cat 3512, 1140 kW each |
| Propulsion | 2 x Azimuth thruster |
| Generator | 2 x 383 kW each |
| Harbour generator | 1 x 100 kW |
| Bow thruster | 2 x 250 kW |
| PERFORMANCE | |
| Dynamic portioning | DP-2 |
| Bollard Pull | 40 ton |
| Free running speed | 10 knots |
| DECK EQUIPMENT | |
| AH / Towing winch | 1 x 125 ton pull, 190 ton hold |
| 1 x 50 ton pull, 60 ton hold | |
| Towing pins | Bow: hydraulic triplex shark jaws |
| Aft: hydraulic 2 pins | |
| Crane | Bow: 1x Heila HLRM 340-2S |
| Aft: 1x Heila HLRM 230-4SLK | |
| TANK CAPACITIES | |
| Fuel | 138 m3 |
| Water | 51 m3 |
| Sewage | 12 m3 |
| ACCOMMODATION | |
| Cabins | 4 x 2-berth, 4 x 1-berth |
| Mess room/galley, sanitary, central heated, air conditioning | |
34 x 13 DP-2 FiFi-1 4-PM Multi-purpose Utility Vessel (2 sisters)
Versatile workboat, Dredging support, Diving support, Cable repair, Supply, Anchor handling
2015, BV. DP-2, l x b (m): 34 x 13. Propulsion 2 x Cat 3512, bollard pull 40 tons. 2 x Knuckle boom crane, AH/Towing winch 125/50t pull , 190/60t hold, bow & stern roller. Accommodation for 19 crew. Location 1 x North Sea / 1 x WAF Inquire
| GENERAL | |
| Built | 2015 |
| Class | BV, I + Hull • Mach, Fire fighting ship 1 -water spraying- |
| Special service /Multi purpose ship Unrestricted Navigation, | |
| • AUT-UMS (SS) , • Dynapos AM/AT R • Mach | |
| DIMENSIONS | |
| Length o.a | 34.0 m |
| Beam o.a. | 13.0 m |
| Draft max. | 3.0 m |
| Depth moulded | 4,10 / 4,70 m |
| GRT | 498 |
| PERFORMANCE | |
| Cruising Speed | 10 knots |
| Bollard pull | 40 t approx. |
| Deck load | 8,5 t/m2 |
| Max. Deck load | 260 t |
| Free deck space | 235 m2 |
| TANK CAPACITIES | |
| Fuel | 220 m3 |
| Fresh water | 87 m3 |
| Dirty oil tank | 3,5 m3 |
| MACHINERY / PROPULSION | |
| Main engine | 2 x Cat. 3512, 1140 kw each |
| Propulsion | 2 x ASD |
| Bow thruster | 2 x Shallow draught thrusters (L-drive) – type ZF SDT 4010 |
| Generator | 2 x Cat. C18, 350 kVA each |
| Harbour generator | 1 x Cat. C6, 150 kVA |
| Air compressor | 5.0 m3/h – 10 bar |
| DECK MACHINERY | |
| Crane fwd | Heila HLRM 340-2s (340 tm) max reach 14.0 m, 15 ton winch |
| Crane aft | Heila HLRM 230-4s (230 tm) max reach, 16,5 m, 8 ton winch |
| Anchor handling winch | 125 t |
| Towing winch | 50 t |
| Tugger winch | 2 x 15 t |
| Bow / Stern roller | Fitted |
| Mooring winch | 2 x 7 t, suitable for 4 point mooring |
| Anchor handling pins | Shark jaw h-200 swl 200 t / max. 3’’ chain |
| Moonpool | Ø 600 mm ready for USBL multibeam |
| Boat landing | Removable |
| Fire fighting | FiFi-1 certified, 2 x 1,200 m3/h |
| Spuds | 2 x spuds (optional) |
| CONTROL AND NAVIGATION | |
| Autopilot | Integrated DP |
| DP system | Sirehna easy DP v3 |
| Radar | Furuno FAR-2117 |
| GPS | Furuno GP-150D |
| Wind sensor | x 2 |
| Gyrocompass | x 3 |
| Sounder | Furuno FE-700 |
| COMMUNICATION | |
| GMDSS | A3 Station |
| VSAT | Sailor 900 VSAT |
| FBB | Sailor 250 |
| ACCOMODATION | |
| Cabins | 3 x 1-berth, 8 x 2-berth |
| Total | 19 |
28 x 11 Multi-purpose Utility Vessel
Versatile workboats, Dredging support, Diving support, Cable repair, Supply, Anchor handling
2010, BV. l x w x d (m): 28.00 x 11.00 x 3.25, Draft 2.50 m. Propulsion 2 x Cat 3412, bollard pull 14 tons. Knuckle boom crane, anchor winch, bow & stern roller. Accommodation for 10 crew. Location: Far East Inquire
| GENERAL | |
| Built: | 2010 |
| Classification: | BV, I + Hull + Mach, Special service / Work Boat |
| Unrestricted navigation, + MACH | |
| DIMENSIONS | |
| Length: | 28.0 m |
| Breath: | 11.0 m |
| Depth / Draft: | 3.25 m / 2.50 m |
| GRT: | 270 |
| PERFORMANCE | |
| Bollard Pull: | 14 tons |
| Deck Strength: | 5 t/m² |
| MAIN ENGINE / GENERATOR | |
| Main Engine: | 2 x Caterpillar 3412C DITA, 720 bhp each |
| Generator: | 2 x Cummins, 83 kW each |
| Gear Box: | Twin Disc MGX 5222 |
| Propulsion: | 2 x FPP in Kort nozzles |
| DECK EQUIPMENT | |
| Towing Winch: | 1 x 25 tons pull, 60 tons brake holding |
| Wire Rope: | 32 mm x 400 m |
| Stern / Forward Roller: | Fitted |
| Crane: | knuckle boom SWL 7 tons @ 8.4 m |
| SAFETY EQUIPMENT | |
| Fire Detection: | Smoke / Heat Detectors – Fitted |
| Engine Room: | CO2 flooding system |
| Life Raft: | 2 units – 10 men |
| NAVIGATION / COMMUNICATION EQUIPMENT | |
| Radar: | JRC JMA 2343 |
| Echo Sounder: | JRC FF60 |
| GPS: | JRC NWZ 4551 |
| Compass: | Daiko Magnetic Compass |
| Anemometer: | Wizard III |
| SSB: | JRC JSB 196 |
| VHF: | GX 600 |
| Navtex: | JRC NCR 333 |
| EPIRB: | McMurdo E3 |
| PA System: | Seamate PA50 |
| TANK CAPACITY | |
| Fuel Oil: | 168 m³ |
| Fresh Water: | 62 m³ |
| ACCOMMODATION | |
| Cabin: | 3 x 2-berth cabin, 1 x 4-berth cabin |
| Total: | 10 berth |
37 x 11 DP-1 Multi-purpose Utility Vessel
Versatile workboats, Dredging support, Diving support, Cable repair, Supply, Anchor handling
2014, BV. l x b (m): 37.00 x 11.00. Free deck space 235 m². Propulsion 2 x 635 kW, bollard pull 21 tons. 2 x Knuckle boom crane, AHT winch, bow & stern roller. Accommodation for 18 crew. Location: WAF Inquire
| GENERAL | |
| Built | 2014 |
| Class | BV, 1 ✠ Hull • Mach AUT-UMS • Dynapos AM / AT |
| Multi-Purpose vessel, Unrestricted | |
| DIMENSIONS | |
| Length o.a | 37.0 m |
| Beam o.a. | 10.5 m |
| Depth moulded | 3.70 m |
| Draft | 3.50 m |
| GRT | 310 |
| PERFORMANCE | |
| Speed | 9.5 Knts |
| Bollard pull | 21 tons |
| Deck load | 6 t/m² |
| Total deck load | 175 tons |
| Free deck area | 235 m² |
| TANK CAPACITIES | |
| Fuel | 206 m3 |
| Freshwater | 15 m3 |
| Dirty oil | 1,5 m3 |
| Sewage | 1,5 m3 |
| MACHINERY / PROPULSION | |
| Main engine | 2 x Mitsubishi S12A2, 635 kW each |
| Gearbox | WAF 364 L |
| Bow / stern thruster | 1 x bow, 200 kW, 1 x stern, 200 kW |
| Generator | 1 x Cat. C18, 400 kW |
| 2 x Cat. C66, 200 kW | |
| Air compressor | 10 Bar, 15.7 ltr/sec |
| DECK EQUIPMENTS | |
| Crane fwd | HS ACK 210HE3, 170 tm, max reach 13.8 m |
| Crane aft | HLRM 65-4S, 65 tm, max reach 12.5 m |
| Anchor handling winch | KA-20-H-TR – 70 TONS |
| Tugger winch | 10 tons |
| Anchor handling pins | Hydraulic |
| Boat landing | Removable |
| CONTROL AND NAVIGATION | |
| DP-1 | Sirhena Easy DP V3 |
| DGPS | Furuno Navigator |
| Radar (X Band) | Furuno FAR 2117 |
| Colour video sounder, autopilot, watchkeeping , alarm, magnetic compass, satellite compass | |
| COMMUNICATION | |
| GMDSS | A3 |
| DSC VHF | 2 x JotronTR 20 |
| AIS | Furuno FA 150 |
| DSC MF/HF | Furuno FS 5070 |
| IMMARSAT C | 2 x Furuno Felcom 18 |
| DSC VHF | 2 x Sailor RT 6222 |
| Navtex | Furuno NX 700 |
| SART | Jotron Tron Sart 20 |
| EPIRB | Jotron Tron – 40 GPS MK II |
| VSAT | Sailor 900 VSAT |
| Fleet Broad Band | Sailor 250 |
| GSM Telephone | |
| ACCOMODATION | |
| Cabins | 2 x 1-berth, 8 x 2-berth, Total 18 pax |
| Lifesaving equipment | for 20 pax |
| Heat and air-conditioning system, Galley, Messroom, Loungelet, WiFi & TV and Gym with sauna | |
30 x 10 Multi-purpose Utility Vessel
Versatile workboats, Dredging support, Diving support, Cable repair, Supply, Anchor handling
2008, Netherlands built multicat, BV unrestricted. l x w x d (m): 30.10 x 10.00 x 2.60, Propulsion 2 x Cat C32, bowthruster 254 kW, total power installed 1.716 kW, Bollard pull 25 tons. Knuckle boom crane 11 tons @ 14 meter (150 tm) with hoisting winch, deck winch 50 ton line pull. Accommodation for 6 crew, location: ME Gulf. Price: Inquire
| General | ||
| Class | BV, 1 +Hull, +Machinery, Special Service, Multi Purpose Vessel, Unrestricted Navigation | |
| Built | 2008 | |
| Dimensions | ||
| Length over all | 30,10 | m |
| Width | 10,00 | m |
| Draft (max.) | 2,60 | m |
| GT | 255 | |
| Machinery & propulsion | ||
| Main engine | 2 | Caterpillar C32 ACERT |
| Total power | 1.716 | kW |
| Propulsion | 2 | fixed pitch |
| Bow thruster | 256 | kW |
| Performance | ||
| Speed ahead (max.) | 9 | knots |
| Speed (eco.) | 7 | knots |
| Bollard pull (ahead) | 25 | ton |
| Tank capacity | ||
| Fuel oil | 132 | m3 |
| Potable water | 43 | m3 |
| Life-saving equipment | ||
| Life bouys | ||
| Life jackets | ||
| Life rafts | ||
| Capacity per life raft | persons | |
| Accommodation | ||
| Crew | 6 | persons |
| Surveyors/Passengers | persons | |
| Navigation & communication | ||
| Magnetic compass | C&P Reflecta 1 | |
| Echo sounder | Furuno FCV 585 | |
| VHF | Furuno FM 8800 | |
| Radar | Furuno FAR-2117 | |
| GPS | Furuno GP-150D | |
| Deck equipment | ||
| Towing hook | ||
| Aft winch | Hydraulic, split drum | |
| Brake load | 65 | ton |
| Line pull | 50 | ton |
| Line speed | 7 | m / min (3rd layer) |
| Other equipment | ||
| Crane load | 11,2 | ton |
| Crane outreach | 14 | m |
25 x 11 Multi-purpose Utility Vessel (2 sisters)
Versatile, Anchor handling, Dredging support, Diving support, Cable repair, Supply.
2008, Spain, GL unrestricted. l x w x d (m): 25,00 x 11,60 x 3,50, Draft 2,50 m. Propulsion 3 x 612 kW, 3 x fixed props, bowthruster 100 kW, Bollard pull 28 tons. 2 knuckle boom cranes 10 tons @ 14 m & 6,5 ton @ 12,5 m with hoisting winches, deck winch 50 ton line pull. Stern roller & bow roller and many other features, accommodation for 5 crew, location: SE Asia. Price: Inquire
| GENERAL | |
| Year Built | 2008 |
| Classification | GLC + Tug – Unrestricted Navigation |
| PERFORMANCE | |
| Speed | 11.5 knots Maximum |
| 8 knots Economical | |
| Bollard Pull | 30T |
| DIMENSIONS | |
| Length Overall | 25.0 m |
| Breadth | 11.5 m |
| Depth | 3.50 m |
| Maximum Draft | 2.50 m |
| Gross Tonnage | 248.6T |
| DECK EQUIPMENT | |
| Deck Crane 1 | Heila HLRM 170T/4s, 10T at 14m |
| Deck Crane 2 | Heila HLRM 90T/4s, 6.4T at 12.62m |
| Towing Winch | 500m x Ø35mm, 30T pull |
| Anchor Handling Winch | 100m x Ø50mm, 80T pull |
| Capstan | 2 x 15T |
| Tugger Winch | 15T Hydraulic |
| Shark Jaws | For 3” Chain Max |
| Bow Roller | For a work load of 80T, 5.40m x Ø1.20m (160T S.W.L.) |
| Stern Roller | For a work load of 30T, 1.50m x Ø0.70m (60T S.W.L.) |
| Spud Fittings | 2 x 0550mm |
| *Pre-installation for 4 point mooring | |
| *Deck floor fully covered with interchangeable wooden inserts | |
| PROPULSION (3 x FPP) | |
| Main Engines | 3 x Vector 750 / 816 BHP |
| Total Output | 2,448 BHP |
| Gearboxes | Hydraulically Driven |
| Bowthrusters | Hydraulically Driven, 250 BHP, 360º Water Jet Propulsion |
| TANK CAPACITIES | |
| Fuel Oil | 121 m³ |
| Fresh Water | 68 m³ |
| Lube Oil | 3.4 m³ |
| Hydraulic Oil | 6.0 m³ |
| Dirty Oil | 2.3 m³ |
| Slop Tank | 2.3 m³ |
| Black Water | 10.8 m³ |
| Ballast Water | 80.0m³ |
| NAVIGATIONAL EQUIPMENT | |
| 2 x Radar Systems | 1 x 12KW Furuno – range 72m |
| 1 x 6KW Furuno – range 48m | |
| Compass | Furuno triple-reciever system |
| Echo Sounder | Furuno FE-700, IMO std – range 800m |
| Reciever DGPS | Furuno-37, WAAS incorporated |
| Reciever DGPS | Furuno-90, IMO std |
| Autopilot | Robertson AP-50 |
| Navtex | Furuno NX-700A |
| VHF Radio Phones | 2 x Sailor RT-5022, DSC, A Class |
| GMDSS Portable VHF Radio Phones | 2 x Sailor SO-3520 |
| Chart Plotter | Furuno Nav Net |
| Inmarsat Mini C GMDSS | TT-3000E Navigation area A1/A2 |
| Navigation Software | Navigator Plus. MEXSEA |
| Anemometer | Walker, wind speed and direction |
| AIS | Transmitter & Reciever |
| AUXILIARIES | |
| Diesel Generator | 1 x Iveco 520 BHP at 2000rpm for hydraulics, |
| 1 x emergency electro hydraulic group 70hp | |
| Generators | 2 x Iveco 100kW, 50 Hz 230/400V, 1500rpm |
| Port Generator | 1 x Iveco 20kVa |
| Transfer Pumps | 1 x 60m³/h MDO/ 1 x 60m³/h FW |
| ACCOMMODATION | |
| Cabins | 3 cabins |
| Type | Double |
| Maximum Crew | 6 persons |
| *Galley, sanitary facilities, air conditioning (heat & cold) | |
| MISCELLANEOUS | |
| Moonpool | Ø1,000 mm |
| Deck container fittings for 20’ container | |
Line Handling Boats
12m Line Handler
Line handling, barge handling, general assistance boat
New, versatile, solid built. 1 x Isuzu marine diesel engine. l x w x d (m):12.00 x 3.50 x 1.20. Price: Inquire
| PRINCIPLE DATA | |
| Length (Loa) | 12.00 m (39’ 4”) |
| Beam | 3.50 m (11’ 8”) |
| Depth | 1.90 m |
| Draft empty | Approx. 1.20 m |
| Empty weight | Approx. 7,500 kg |
| Propulsion engine | 1 x Isuzu marine diesel engine, 281 hp @2700rpm |
| Propeller | 4 bladed Nibral (subject to change) |
| Fuel tank capacity | Built-in 500 ltr |
| Hull material | Marine grade aluminium alloy (5083H321) |
| Hull plate thickness | 6 mm |
| Side plate thickness | 8 mm |
| Deck plate | Aluminium checker plate 5 mm |
| Speed | Approx. 13 knots |
| Details re outfitting available on request | |
8m Mooring Boat
Line handling, barge handling, general assistance boat
New, versatile, solid built. 1 x Isuzu marine diesel engine. l x w x d (m):7.88 x 2.95 x 0.60. Price: Inquire
| PRINCIPLE DIMENSIONS | |
| Length (Loa) | 7.88 m (25 ft) |
| Beam | 2.95 m (9 ft 8 ins) |
| Depth | 1.20 m |
| Draft empty | Approx. 0.60 m |
| Empty weight | Approx. 4,500 kg |
| Propulsion engine | 1 x Isuzu marine diesel engine, 281 hp @2700rpm |
| Propeller | 4 bladed Nibral (subject to change) |
| Fuel tank capacity | Built-in 400 ltr |
| Hull material | Marine grade aluminium alloy (5083H321) |
| Hull plate thickness | 8 mm |
| Side plate thickness | 8 mm |
| Deck plate | Aluminium checker plate 4 mm |
| Bollard pull | Approx. 2 tonnes |
| Details re outfitting available on request | |
The Workboats shown on this page are a selection of vessels available to us.
We have direct access to more workboats, whether such would be new or second hand. Whether for sale or for BB/TC charter. Or being conventional (shallow draft) tugs, with or without anchor handling capability. And we have access as well to other modern, well designed and efficiently to operate multi-purpose utility vessels.
For more information, please inquire
