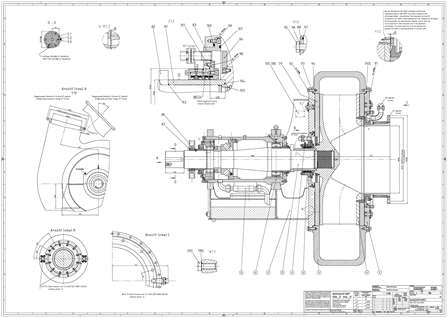

IHC Boost Pump 175-37.5-75, Liquidyne seal + Gearbox
6 September 2016
3,955/2,868 DWT Sea/River Bunker/Oil Tanker (2 sisters)
6 September 2016
(Vosta) LMG Dredge Pump (2x)
2 x never used (Vosta) LMG Dredge pumps type 900-1725-450, complete including bearings and inlet/inspection piece
| Qn | m3/h | 12.300 | 10.150 |
| Nn | rpm | 215 | 250 |
| Hn | meter | 19 | 30 |
| Pn | kW | 740 | 1.000 |
| Pmax | kW | 1.250 | |
| Weight pump impellor | kg | 3.040 | |
| Weight of pump casing | kg | 7.200 | |
| Total weight | kg | 20.500 | |
| inlet | mm | 900 | |
| outlet | mm | 800 |
Contact us for more details such as Q/h curves.
