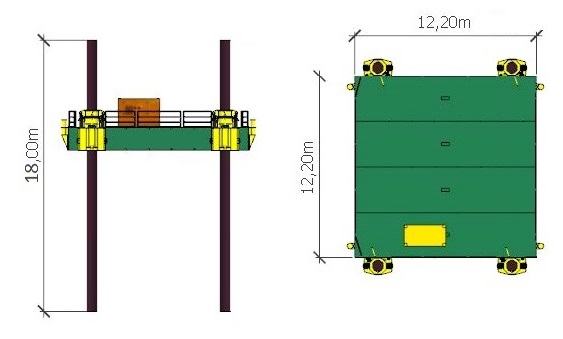

12m x 12m Self-elevation platform

For Sale: 12.2 m x 12.2 m Modular Self-elevating platform / Jack-up barge. Legs: 18 meter. Deck load: 40 tons. Location NW Europe. Optional: Expanding pontoon to 12 m x 15 m or 12 m x 18 m and lengthening legs to max 27 meters. Enquire

General
Built 2010
Class GL
Dimensions
Length 12.2 m
Beam 12.2 m
Depth 1.5 m
Deck load 15 t/m2
Moon pool 2 x 330 mm
Deck load 80 t
Jacking
Jacking speed 14 m/h
Load 80 t/leg
Spud legs 18 m x 762 mm x 25 mm
Spud leg weight 4 x 9 t
Jacking unit weight 4 x 5 t
Power pack Deutz F6L912 Air-cooled
Hydraulic tank 280 ltr
Installation conditions
Hmax 0.7 m
Operational conditions
Water depth 12.5 m
Hmax 2.0 m
Wind speed 50 km/h
Air gap 3.5 m
Survival conditions
Water depth 12.5 m
Hmax 3.0 m
Wind speed 120 km/h
Air gap 3.5 m
Transport
Trucks 3 x 12 m & 2 x 18 m
Crane 80 t mobile
Personnel 3 persons
