12 October 20171300 dwt (55×15) Flattop barge

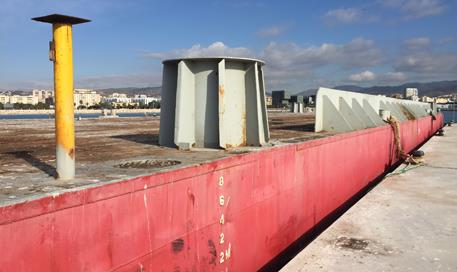

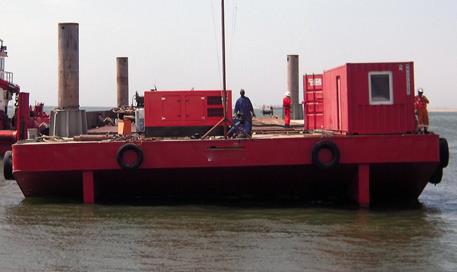

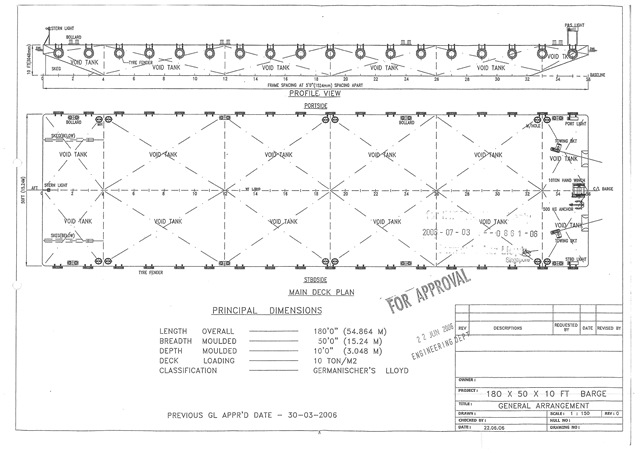

2006, 1300 dwt flattop barge. Length x Beam x Depth(m): 55 x 15.25 x 3.0. Deck strength 10 t/m², c/w 4 x spud wells. Present location: Spain. Enquire
General | ||
Built | 2006, Singapore | |
Class | Built under GL | |
Dimensions | ||
Length | 55 m | 180 ft |
Beam | 15 m | 50 ft |
Depth | 3.0 m | 10 ft |
Deck capacity | ||
Deadweight | 1,300 tons | |
Deck strength | 10 t/m2 | |
Features | ||
Spud wells | 4 x | |
Spud length | 30 m total, stored in container |
