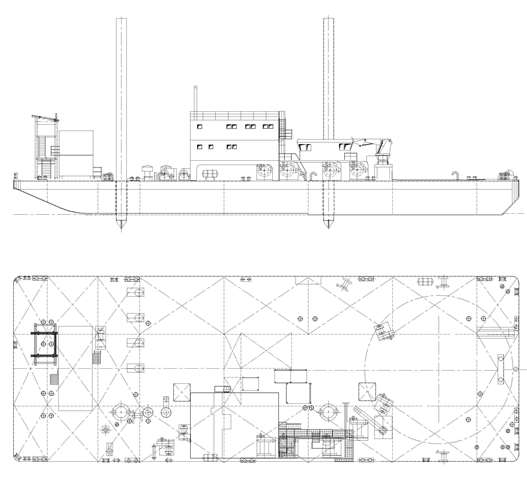

60 x 22 m work barge
1998 solid built workbarge with accommodation and 8 winch mooring facilities. Ideally suited for installing a lifting crane of up to 350 tons. Location: North Sea port. Enquire
| General | |
| Built | 1998 |
| Class | BV, I ✠ Hull, Pontoon-crane, |
| Unrestricted Navigation | |
| Dimensions | |
| Length | 60 m |
| Beam | 22 m |
| Depth | 4,0 m |
| Draft | 2.4 m |
| GT | 1,540 |
| Deck capacity | |
| Deck load | 10 t/m2 |
| Dead cargo | 1,150 t |
| Machinery | |
| Generators | 2 x 250 kVA |
| 1 x 125 kVA | |
| Ballast pumps | 2 x 500 m3/h |
| Deck equipment | |
| Winches | 4 x 25 t pull, 40 t hold, |
| Drum capacity | 900 m ø 38 mm |
| Winches | 4 x 15 t pull, 25 t hold, |
| Drum capacity | 720 m ø 30 mm |
| Spuds | 2 x 30 m x ø 1220 mm |
| Tugger winch | 2 x 3 t CT |
| Wire spud | 4 x 4 m below waterline (optional) |
| Tank / transfer capacities | |
| Fuel | 100 m3, 100 m3/h |
| Fresh water | 78 m3, 100 m3/h |
| Accommodation | |
| Control cabin | For winches, spuds and ballast system |
| Cabins | 11 for 12 crew |
| Other | Mess, galley, sanitary |
| Below deck | Work shop, stores |
