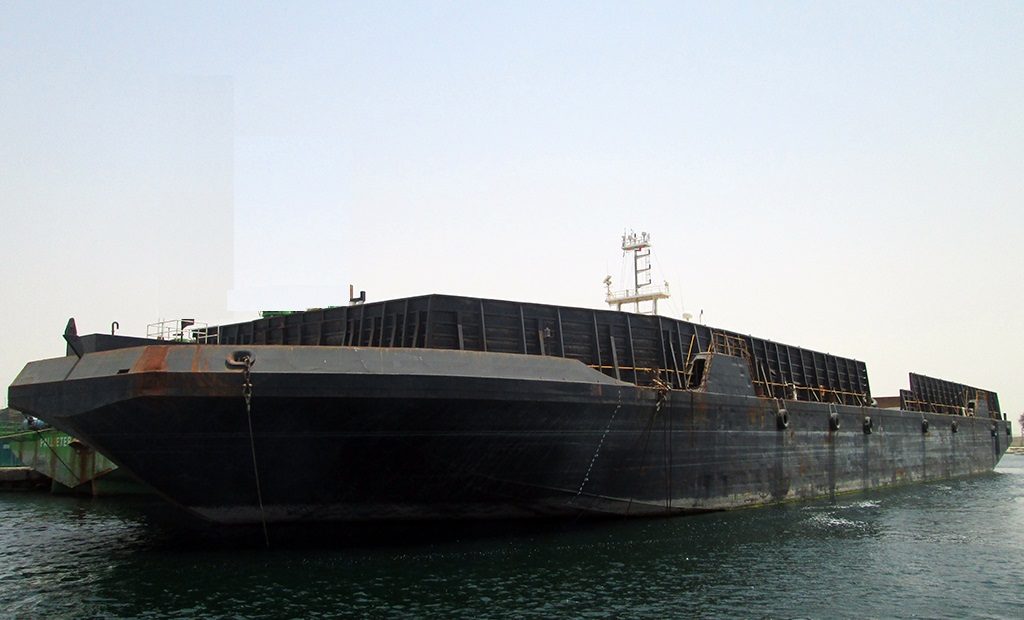

365 ft Deck Cargo Barge
2009, built in China, ABS class, unrestricted navigation, l x b x d(m): 111.25 x 28.00 x 6.95, Deadweight: approx. 12,000 tons, deckstrength: 15 tons/m2. 3.60 m high coaming all around, including standard accessories. ME. Availability & Rates: Inquire
| GENERAL | |
| Year Built | 2009 |
| Where Built | Nanjing, China |
| Classification | ABS |
| Navigational Area | Unrestricted |
| DIMENSIONS | |
| Length Overall | 111.25 m / 365 ft |
| Breadth (moulded) | 28.04 m / 92 ft |
| Depth (moulded) | 6.93 m / 22 ft |
| Max Draft | 5.42 m |
| GRT / NT | 5,289 / 1,586 |
| Deadweight | Approx. 12,040 ton |
| Lightship Weight | Approx. 2,330 ton |
| Displacement | Approx. 14,370 ton |
| Deck Strength | 15 ton/m2 |
| FEATURES | |
| Deck’s Fitting | 1 x Winch house inclusive 1 x 10 ton Anchor Winch |
| 1 x 2,850kg Stockless Bow Anchor | |
| 2 x Smit Towing Bracket | |
| Eighteen (18) Single Post Mooring Bollards of 12’ | |
| Sufficient 15kg Alum. Anode for two (2) years Protection | |
| Three (3) Navigation Light Stand with Battery Box | |
| Rubber Tyre Fenders, | |
| Coaming | 12ft High All Around |
