1700 DWT Flattop barge

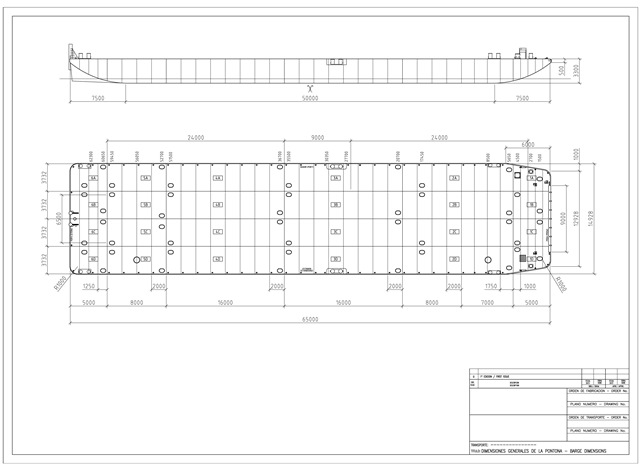

65 m x 15 m, 1700 ton deadweight flattop barge suitable for project cargo, equipped with Ro-Ro ramps. Location: Iberian peninsula. Keen sellers. Enquire
| GENERAL | |
| Built | 2004, Russia |
| Class | GL, ✠ 100 A5 Deep sea |
| DIMENSIONS | |
| Length | 65 m |
| Beam | 15 m |
| Depth mld | 3.3 m |
| Draft loaded | 2.5 m |
| GT | 796 |
| CAPACITIES | |
| Deadweight | 1,700 ton |
| Deck load | 8 t/m², uniform loading |
| Wheel load | 12 ton |
| Point loads | 60 ton at web frames |
| 80 to at bulkheads | |
| 200 ton at bulkhead cross | |
| Ro Ro ramps | 4 x 12 m x 1.5 m |
| Lashing eyes | 68 |
| BL | 50 tons |
| DECK ARRANGEMENT | |
| Deck completely flush | |
| Bow | Raked, Ro Ro connection |
| Bulkheads | 3 longitudinal, 5 transverse |
| Compartments | 24 |
| Chain locker | Starboard side |
| Storage compartment | Port side |
| Railing around | Removable |
| Signal mast | Removable |
| Anchor winch | Removable |
| Position & stern lights | Gas |
| MOORING & TOWING | |
| Anchor | SHHP 237 kg |
| Anchor Chain | 150 m, Ø 20,5 mm |
| Anchor winch | Manual / with warping head |
| Towing arr. | 2 x Smit-brackets & fairleads |
| Bridle | 2 x 12 m steel wire |
| Bollards | Double bollards fore & aft. |
| Double bollards flush at fr. 19 | |
