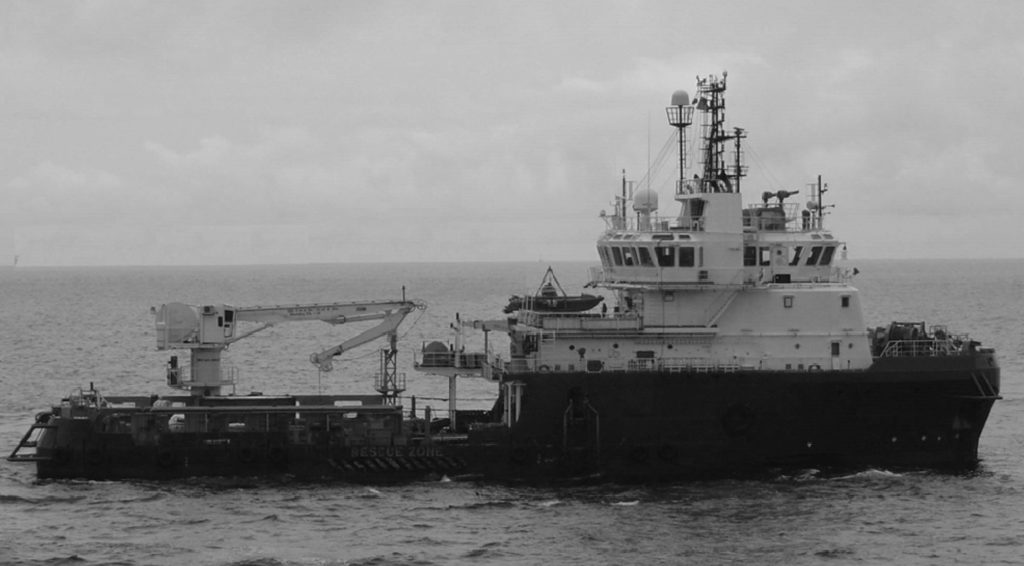

DP-2 FiFi-1 4-PM MPSV (2 sisters)

2008, BV class, DP-2, FiFi-1 4-Point Mooring MPSV suitable for rescue and stand by duties. Two of three sisters equipped with an offshore rated AHC knuckle boom crane. L x B x D x Draft(m): 60 x 15.6 x 6.0 x 5.0. Accommodation for 46 persons. Location: WAF. Enquire

SKU: B0133 Categories: , Tags: ,
General
Built 2008
Class BV I ✠ Hull ✠ Mach, Supply Vessel;
Fire fighting ship 1, Waterspray, Stand by rescue
✠ AUT-UMS, ✠ ALM, ✠ Dynapos-AM/AT-R
Dimensions
Length bpp 58.7 m
Beam 15.6 m
Depth 6.0 m
Draft (Min / Max) 3.5 m / 5.0 m
GRT 1,970
Performance
Speed 100% MCR 13 knots – 15 t/day (light ship)
Speed 80% MCR 10 knots – 12 t/day (50% load)
Stand-by in port 3 t/day
Stand-by on DP 5 t/day
Cargo capacity
Deadweight 1,400 t
Deck area 377 m², 5 t/m²
Deck cargo 300 t, CoG 0.9 m above deck
Tank / transfer capacity
Fuel oil 600 m³, 60 m3/h @ 70 m head
Drill water / Ballast 150 m³, 150 m3/h @ 70 m head
Fresh water 425 m³, 150 m3/h @ 70 m head
Anti-heeling 225 m³, 150 m3/h
Dispersant 17 m³
Foam 20 m³
Deck Crane
Type SMST knuckle boom
Harbour DAF 1.2 – 24 t @ 10.5 m – 8 t @ 19 m
Offshore DAF 1.6 – 12 t @ 13.5 m – 6 t @ 19 m
Main winch 12 t / 7 t – 2,300 m – AHC – Man Riding
Deck Equipment
4-point mooring 4 x 1200m x 38mm, 30 t anchors
Tugger winch 1 x 15 t
Capstan 2 x 10 t
Air supply 7.5 bars
Power supply 2 x 400 kW – 440 V
Provisions crane 1.5 t @ 15 m
Machinery
Main propulsion 2 x 1,200 kW CP Azimuth thrusters
Bow thrusters 3 x 400 kW CP Tunnel
Main generator 4 x 320 kW
Shaft generator 2 x 625 kW
Harbour generator: 1 x 60 kW
Dynamic positioning
Class DP-2
System ADP21 Duplex System
Reference 2 x DGPS, Thales Aquarius
Cyscan Laser
USBL, Sonardyne Fusion
FiFi & Safety equipment
Class FiFi-1
Pumps 2 x 1,500 m3/h
Monitors 2 x 1,200 m3/h
FRC 1 x Norsafe
Rescue capacity 150 persons in tropical area
Communication equipment
Inmarsat 2 x Sat C
VSAT 1 x Ku band 128 Kbit
Video network
Accommodation
Cabins 6 x 1-berth, 16 x 2-berth, 2 x 4-berth
Other Hospital, 2 x office, 1 x messroom, 2 x dayroom,
1 x laundrey, 1 x galley, 2 x workshop
