Self-propelled 132 pax AWB (2 sisters)
Autonomous operation. Location: WAF.(not Nigeria) For Charter only. Inquire
| GENERAL | |
| Built | 2006 |
| Class | BV, I ✠ Hull ✠ Mach, Offshore service ship |
| Accommodation, Coastal area | |
| DIMENSIONS | |
| Length | 70 m |
| Beam | 20 m |
| Depth | 4.30 m |
| Draft max. | 2.30 m |
| GT | 3,000 |
| DECK CAPACITIES | |
| Clear deck area | Abt 300 m2 |
| Deck Cargo | 150 t |
| Deck Strength | 220 m² @ 5 t/m² |
| Deck Strength fwd | 80 m2 @ 10 t/m² (option crawler crane) |
| Deadweight | 914 t |
| MACHINERY | |
| Main Engines | 4 x Baudouin M26SR V-type, 571 kW each |
| Propulsion | 2 x 525 kW Azimuth |
| Bow thruster | 270 kW |
| Generators | 4 x 571 kW, 1 x 175 kW |
| SPEED / CONSUMPTION | |
| Speed | Abt 6 knots @ 6 m³/day |
| At anchor | Abt 1.3 m³/day |
| TANK / TRANSFER CAPACITIES | |
| Fuel (MGO) | 277 m³, 65 m³/h |
| Ballast (FW) | 810 m³ |
| Fresh water | 500 m³, 50 m³/h |
| Fresh water production | max 22 m³/day |
| Dirty oil | 7 m³ |
| ACCOMMODATION | |
| Cabins | 8 x single, 7 x double, 20 x 4 & 6 x 6 |
| Capacity | Total: 138 persons |
| DECK EQUIPMENT | |
| 8-point mooring | 8 x 90 t, 1600 m x 38 mm wires |
| Anchors | 8 x 5 tons Flipper-Delta |
| Bow ramp | Open – manual operated N/A |
| Deck Crane | 9.3 tons outreach 13.3 m (stb side) |
| Rescue boats | 2 x 10 knots, 6 persons each |
| Boat landings | 2 x Surfer landings |
Related products
-
Propelled Sheerleg
Versatile propelled Sheerleg for heavy lift marine construction, bridge construction, piling and salvage operations worldwide.
Sheerleg can be configured to clients’ specifications and lifts up to 1,600 tons at a height of 25 meters. With a jib up to 500 tons at a height of 55 meters.
Presently on charter. Expected to be available early 2023: Enquire -

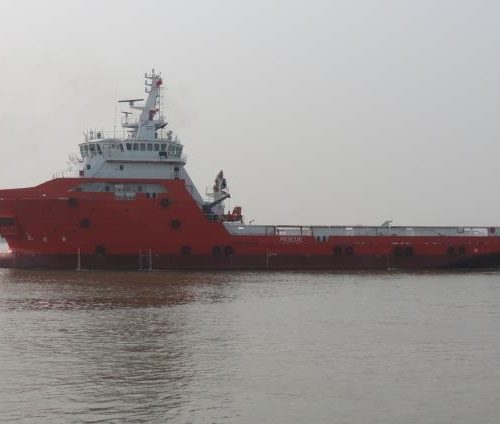

PSV DP2 FiFi1 Oil Rec. SPS Resale
2016, BV, Loa 78.00 m, width 18.60 m, depth 7.80 m, scantling draft 6.40 m. Deadweight +/- 4,000 tons. deck cargo: +/- 1,500 tons. Deck area 800 m2, accommodation 60 persons. Price: Inquire
-

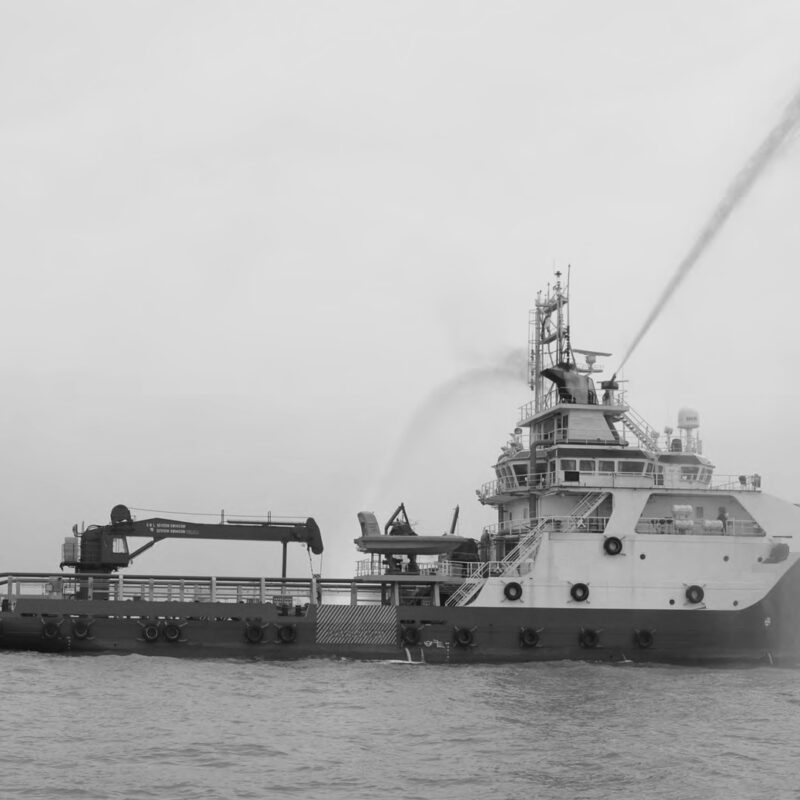

DP-2, 4-Point Mooring MPSV
