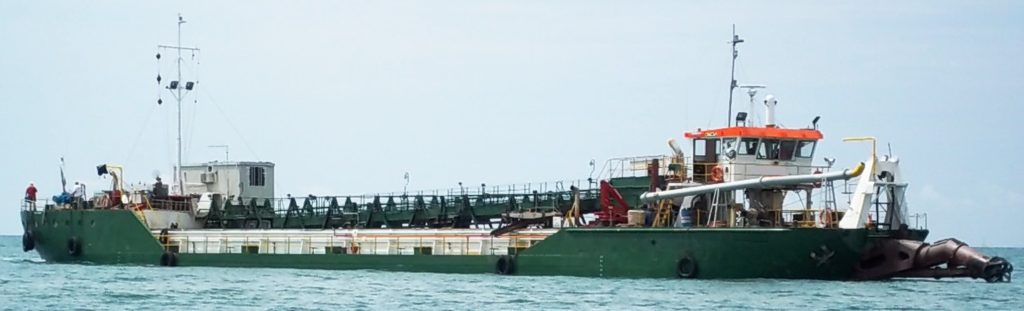

500 m3 Cutter Suction Hopper Dredger
Unique dredger to operate in shallow coastal waters or to dredge fluvial deposits, equpped with rainbow and pump ashore facilities. Includes 500 m pipeline and 250 m floating line
| General | |
| Built / rebuilt | 1978 / 2017 |
| Class | RINa |
| Dimensions | |
| Length | 62 m |
| Beam | 9.2 m |
| Draft (loaded/ballast) | 4.0 m / 2.5 m |
| GT | 390 |
| Other particulars | |
| Speed | 10 knots |
| Hopper volume | 490 m3 |
| Deadweight | 1,000 t |
| Dredging method | Cutter suction |
| Pipe diameter | 350 mm |
| Rainbow | 30 m throw |
| Max pumping distance | 1,400 m |
| Max production | 1,800 m3/h |
| Machinery | |
| Main engine | 2 x Cummins, 435 kW each |
| Dredge pump | Lario PD 350 |
| Deck equipment | |
| Mooring system | 3 x anchor |
| Spuds | 2 x |
| Optional | |
| pipeline | 500 m x 350 mm |
| Floating pipe | 250 m |
| Steel pipe | 2 x 12 m |
| Goose neck | 1 x |
