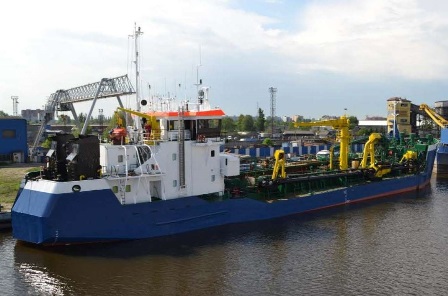

1.580 m³ Split Hopper Dredger
Direct from owners: Modified and well maintained. annual survey recently passed, 1 x 500 mm dredgepipe mounted with a underwater pump for improved dredging efficiency, l x w x d (m): 75.00 x 14.3 x 4.75, Draft dredging load line: 4.35 m. Location Baltic Sea. Available for world wide projects. For charter only: Inquire
| General | |
| Class | Bureau Veritas |
| Unrestricted, dredging 8 miles offshore | |
| Dimensions | |
| Hopper volume | 1.580 m3 |
| Length | 75,00 m |
| Width | 14,30 m |
| Depth – moulded | 4,75 m |
| Draft – dredging load line | 4,35 m |
| Maximum depth of dredging | 25,00 m |
| Diameter of the suction pipe | 0,52 m |
| Number of dredging pumps | 1 |
| Performance | |
| Productivity (sand) | 1.200 m3 / h |
| Maximum speed (loaded) | 10,5 knots |
| Maximum speed (empty) | 11,0 knots |
| Machinery power | |
| Dredging pump power | 480 kW |
| Power of discharging pump | 954 kW |
| Total power | 2.252 kW |
| Crew & Accommodation | |
| Crew members | 14 |
| Bunks | 14 |
| Fuel & Consumption | |
| Fuel type | Low Sulphur MGO |
| Lub oil type | Total Disola M 4015 |
| Fuel consumption (passage) | 130 m3 / month |
| Oil consumption (passage) | 1.500 kg / month |
| Water consumption (passage) | 60 m3 / month |
| Features | |
| Pump ashore facility | Yes |
| Rainbow | Yes |
| Under Water Pump | Yes |
