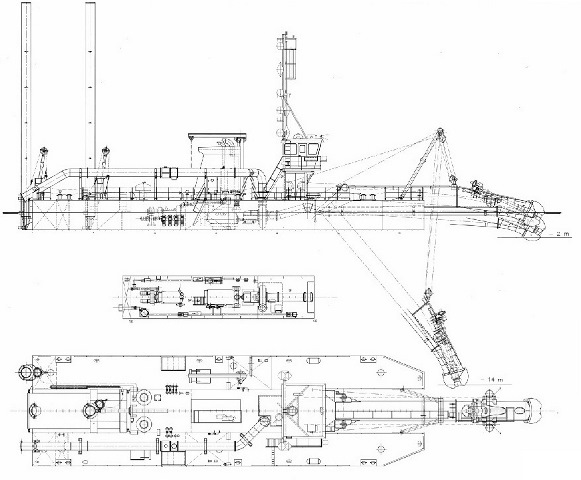

600 mm (24″) Modular Cutter Suction Dredger
Well maintained modular CSD available including spares, floating hoses, steel sandfill pipes and sandfill equipment. Location: Middle East. Enquire
| General | |
| Built | 1990 |
| Dimensions | |
| Length o.a. | 54 m |
| Length pontoon | 32 m |
| Beam | 9.80 m |
| Draft (max/min) | 1.60 m / 1.10 m |
| Dredging particulars | |
| Suction/discharge line | 600 mm / 500 mm |
| Dredging pumps | 1 x inboard |
| Cutter power | 255 kW |
| Dredging depth (min/max) | 2.0 m / 14.0 m |
| Spud carrier | Yes, 4.4 m |
| Spuds | 2 x 18.5 m x 760 mm |
| Flow & density meter | Yes |
| Dredge monitoring | Yes |
| Machinery | |
| Inboard pump engine | 2,950 kW |
| Features | |
| Floating pipeline | +/- 900 m floating hoses |
| Sandfill pipes | +/- 900 m steel pipe |
| Sandfill equipment | Yes |
