Split Hopper Barge

Split Hopper Barge for Sale & for Charter

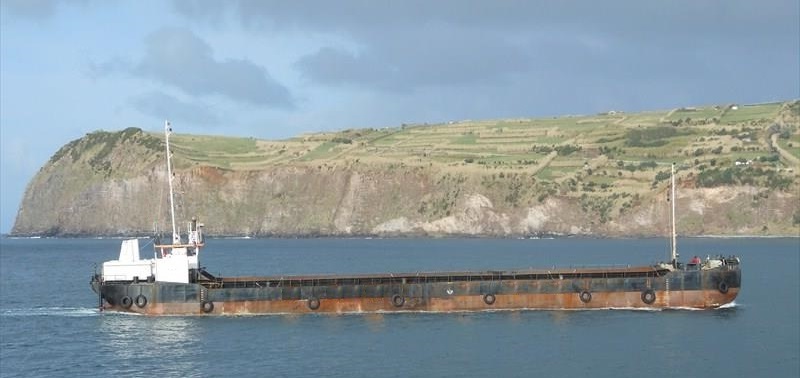

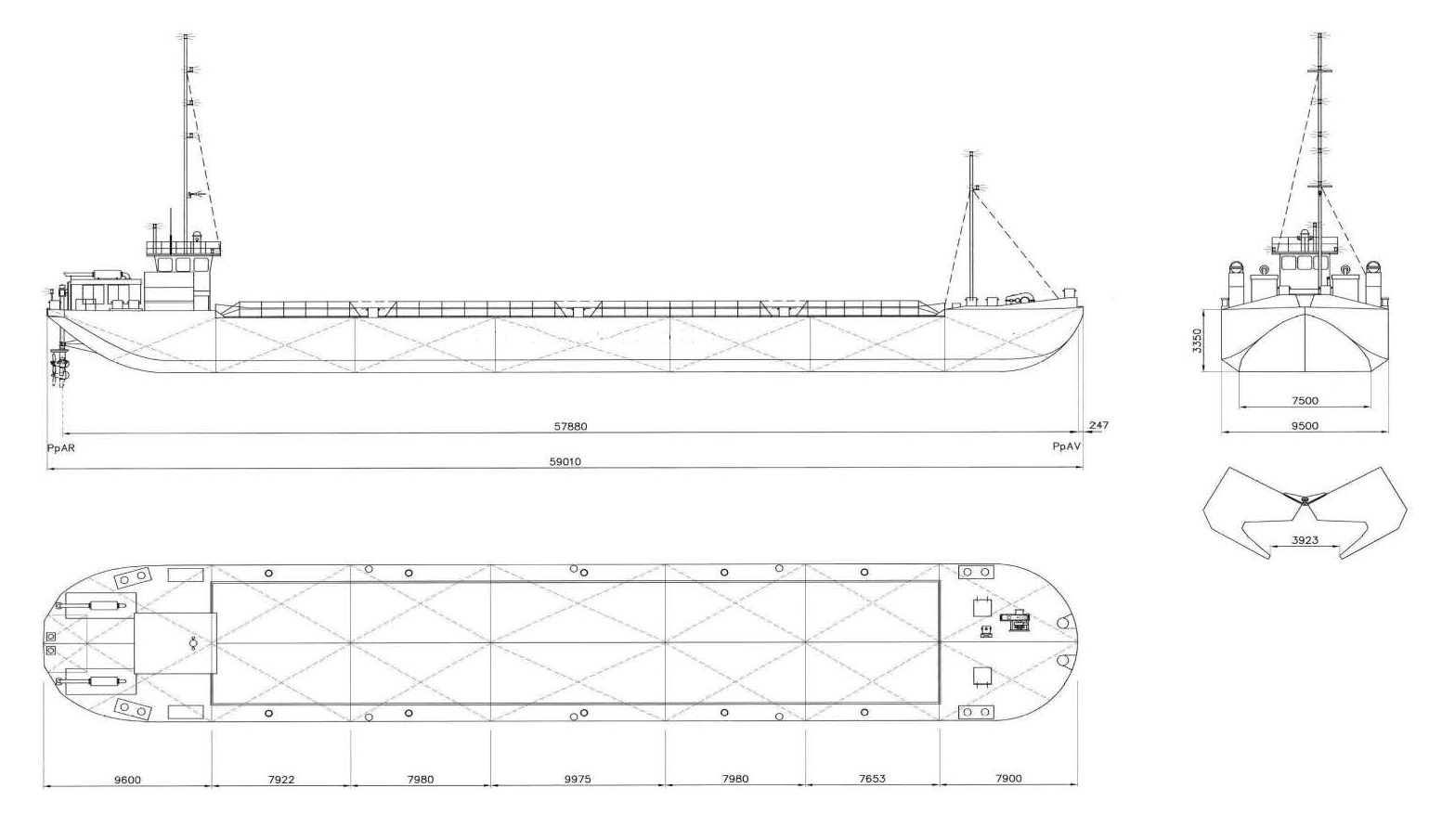

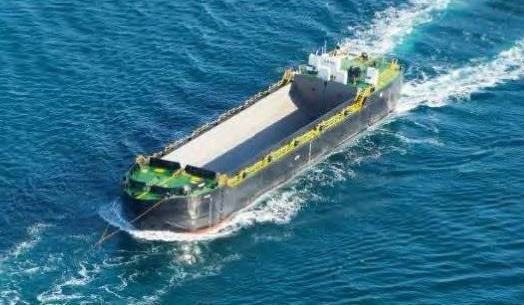

660 m³ Self-propelled Split Hopper Barge (2 sisters)

Location: Med, For Charter only. Conditions: Inquire

General
Length Overall 57,88 m
Breadth 9,50 m
Hopper volume 660 m³
Propulsion 2 X 260 hp

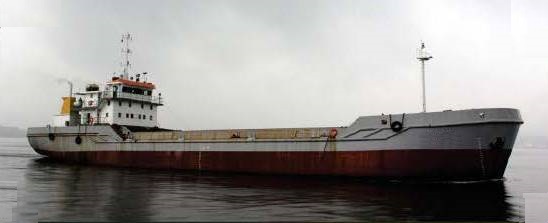

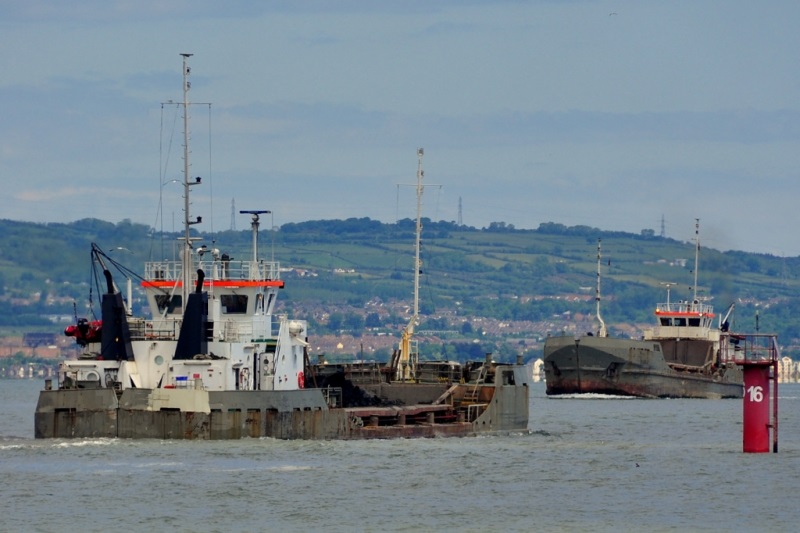

750 m³ Self-propelled Split Hopper Barge (2 sisters)

Class: BV. Length: 60.0 m Beam: 9.45 m, Dwt: 1,250 t. Location: Med, For Charter only. Inquire

GENERAL
Classification B.V. Hopper dredger – Unrestricted navigation, Dredging within 15 miles from shore, or 20 miles from port.

DIMENSIONS
Length overall 60,00 m
Moulded breadth 11,45 m
Moulded depth 4,50 m
Draught empty 2,20 m
Draught loaded 3,80 m
Deadweight 1,250 tonnes (approx.)
Hopper capacity 750 m3

PROPULSION & POWER
Propulsion 2 x Aquamaster
Propulsion power 900 kW
Total installed power 1.025 kW

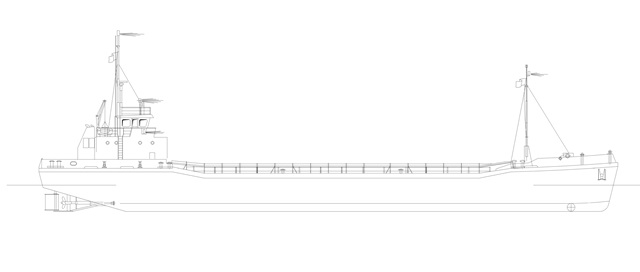

415 m³ Self-propelled Split Hopper Barge

Class: BV. Length 50.0 m Beam: 9.0 m. Dwt: 845 t. Location: Med Inquire

General
Built 1985
Class BV, Coastal I + Hull + Mach, Split hopper unit,
Coastal area

Dimensions
Length 50.0 m
Width 9.0 m
Depth 4.0 m
Draft 3.0 m
GRT 560

Hopper volume 415 m3
Deadweight 845 tons

Machinery
Prop engines 2 x Deutz F12L413, 270 bhp each
Prop/rudder 2 x 360° Aquamaster
Aux engines 2 x 56 kW

Tank capacities / Consumption
Fuel 20 m3
Fuel consumption 170-180 litres / hour
Endurance ≈ 1,000 nm (5 days)
Fresh water 2.0 m3

Accommodation
Cabins 2 x 2-berth
Other Galley, messroom, toilet, shower

1,000 m³ Self-propelled Split Hopper Barge (2 sisters)

BV Class, Well maintained. Length 62.5 m, Beam: 12.0 m, Caribbean. Inquire

General
Built 1988
Classification BV, I + Hull •Mach, Split hopper barge – Coastal area,
  dredging within 15 miles from shore, or within 20 miles
  from port + AUT-UMS (SS), • Mach

Dimensions
Length overall 62.5 m
Beam 12.0 m
Depth 4.3 m
Draft loaded 3.7 m
GRT 950
Performance
Hopper capacity 1,000 m3
Deadweight 1,850 t
Speed empty 10 kn
Speed loaded 8 kn
Machinery
Main engine 2 x Cat. 3412, 375 kW each
Bow thruster 149 kW
Aux engine 2 x 50 kW
Fuel capacity 37 m3



1.200 m³ Self-propelled Split Hopper Barge (2 sisters)

Location: South America, For Charter only. Conditions: Inquire

GENERAL
Built 2005
DIMENSIONS
Length over all 65,50 m
Width 13,80 m
Depth 4,80 m
Draft 3,90 m
CAPACITIES
Hopper volume 1.200 m3
Deadweight 1.875 tons
GT 1.214
Fuel oil 40 m3
PROPULSION
Main engines 2 x Cummins, 500 hp each
Props Conventional, fixed pitch
Speed (empty) 12.4 knots

660 m³ Non-propelled Split Hopper Barge (2 sisters)

IHC design. Class: expired. Location: Black Sea. Inquire

GENERAL
Built 1977

DIMENSIONS
Length over all 60.0 m
Width 9.5 m
Depth 3.4 m

CAPACITIES
Hopper volume 660 m3


660 m³ Non-propelled Split Hopper Barge

IHC design. Class. Location: Med. Inquire

GENERAL
Built 1970

DIMENSIONS
Length over all 60.0 m
Width 9.5 m
Depth 3.4 m

CAPACITIES
Hopper volume 660 m3

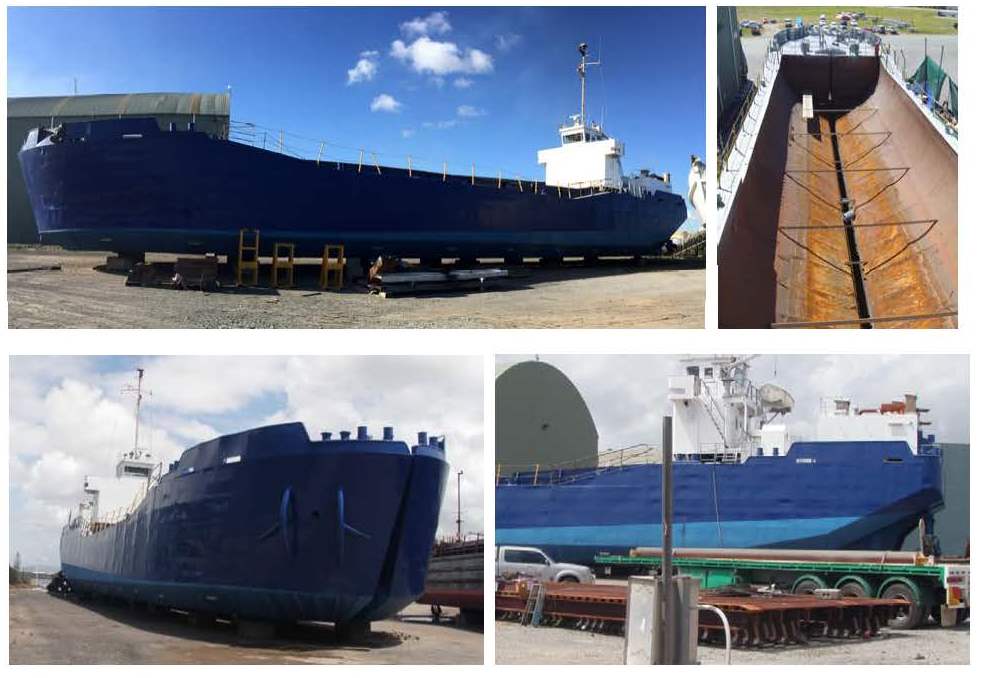

500 m³ Self-propelled Split Hopper Barge (2 sisters)

En-bloc sale only. According to owners the vessels require about EUR 150.000 each to re-instate class. Location: Australasia. Price: Inquire

Built 1978, IHC design
Class AMSA –
Built under Lloyds Class 2C 100 A1 Hopper Barge
for extended protected water service
Length 50.00 m
Width 9.50 m
Draft loaded 3.40 m
GT / NT 650 / 516
Lightweight 380 t
Deadweight 900 t
Hopper volume 506 m3
Propulsion Schottel rudder propeller.
Prop engine 2 x cat 8-cyl. 365 hp each
Speed 8 knots
Accommodation 1 x 1 & 1 x 6., total: 7 persons

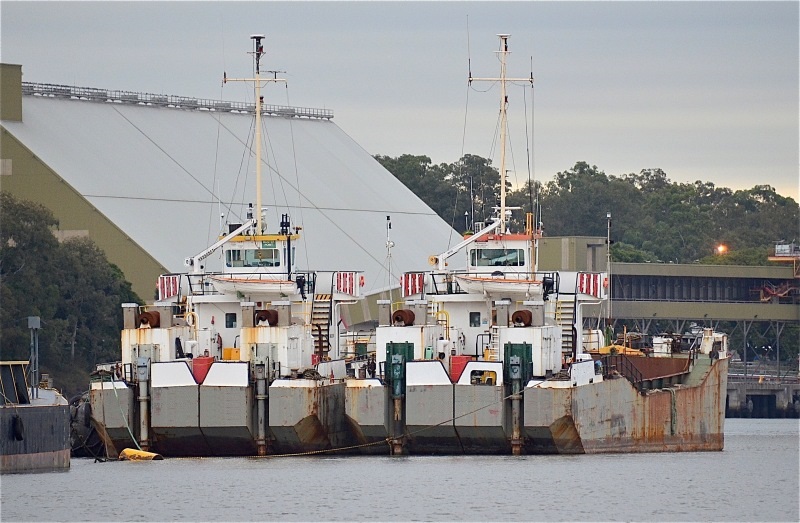

1.200 m³ Non-propelled Split Hopper Barge (2 sisters)

Class: BV. Location: Australasia, For charter only: Inquire

Built 2015
Hopper capacity 1.200 m3
Length overall 66.2 m
Width 12.0 m
Draft loaded 4.25 m
Draft lightship 1.50 m
Lightship 750 tonne
Deadweight (approx.) 1.800 tonne
Hopper bottom opening 3.6m (max.)

920 m³ Non-propelled Split Hopper Barge

Class: Location: Med Inquire

GENERAL
Built 1987

DIMENSIONS
Length over all 60.0 m
Width 11.0 m
Depth 3.90 m

CAPACITIES
Hopper volume 920 m3


640 m³ Non-propelled Split Hopper Barge

Class: SUK. Location: North Sea, Price: Inquire

GENERAL
Built 1977

DIMENSIONS
Length over all 55,00 m
Width 10,00 m
Depth 3,50 m

CAPACITIES
Hopper volume 640 m3


700 m³ Non-propelled Split Hopper Barge (2 sisters)

BV class, l x b x d (m): 59.0 x 9.5 x 3.4 Location: the Netherlands. Inquire

Built 2012, Netherlands
Class BV, I + HULL, Split hopper unit, Coastal area
Length 59.0 m
Beam 9.5 m
Depth 3.4 m
Draft 2.9 m
GRT 540

Hopper volume 700 m3
Deadweight 1,040 tonnes

1000 m³ Self-propelled Split Hopper Barge NB

IACS class, l x b x d (m): 65.0 x 11.5 x 4.40 Deadweight 1,800 t. Propulsion: 2 x 450 kW rudder propeller. Location: EU. Inquire

General
Built 10-12 month after date of order
IACS Class e.g.: GL, +100 A 5 RSA(20) Split Hopper Barge

Dimensions
Length oa 65.0 m
Beam 11.5 m
Depth mld 4.40 m
Draft (LL exem.) 3.95 m
Hopper volume 1,000 m3
Deadweight (LL exem.) 1,800 t

Machinery
Propulsion 2 x 450 kW rudder propeller
Bow thruster 1 x
Split cylinders 2 x, operated by hydraulic power pack
Overflow Manually adjustable

Safety and firefighting equipment
As per flag state requirements

Accommodation
Cabins 3 x 1-berth ( optional 1 x 1-berth, 2 x 2-berth)
Other Galley/mess room, toilet & shower
Air conditioning Split unit

600 m³ Self-propelled Split Hopper Barge NB

IACS class, l x b x d (m): 54.0 x 9.3 x 3.6 Deadweight 1,000 t. Propulsion: 2 x 250 kW rudder propeller. Location: EU. Inquire

General
Built  10-12 months from date of order
Class e.g. GL, +100 A 5 RSA(20) Split Hopper Barge

Dimensions
Length oa 54.0 m
Beam 9.3 m
Depth mld 3.6 m
Draft (LL exem.) 3.2 m
Hopper volume 600 m3
Deadweight (LL exem.) 1,000 t

Machinery
Propulsion 2 x 250 kW rudder propeller
Split cylinders 2 x, operated by hydraulic power pack
Overflow Manually adjustable

Safety and firefighting equipment
As per flag state requirements

450 m³ Self-propelled Split Hopper Barge NB

IACS class, l x b x d (m): 48.0 x 9.0 x 3.4 Deadweight 760 t. Propulsion: 2 x 220 kW rudder propeller. Location: EU. Inquire

General
Built  10-12 months after date of order
IACS Class e.g. GL, +100 A 5 RSA(20) Split Hopper Barge

Dimensions
Length oa 48.0 m
Beam 9.0 m
Depth mld 3.4 m
Draft (LL exem.) 2.9 m
Hopper volume 450 m3
Deadweight (LL exem.) 760 t

Machinery
Propulsion 2 x 220 kW rudder propeller
Split cylinders 2 x, operated by hydraulic power pack
Overflow Manually adjustable

Safety and firefighting equipment
As per flag state requirements

1500 m³ Self-propelled Split Hopper Barge (2 sisters)

Built: 2015/2016. Class: BV. Location: Far East: Inquire

General
Built 2016
Class BV, C, + HULL + MACH, Split Hopper Unit – Self Propulsion

Dimensions
Length o.a. 68.45 m
Breadth Mld. 13.80 m
Depth 5.20 m
Draft 4.30 m

Capacity
Deadweight 2,550 t
Hopper volume 1,500 m3
Speed 10.0 knots

Machinery
Main engines 2 x Cummins K38-M, 596 kW each
Generator 2 x 80 kW
Harbour Generator 1 x 30 kW

Accommodation
Cabins 7 x 1-berth and 2 x 2-berth cabins
1 x hospital

1500 m³ Non-propelled Split Hopper Barge (2 sisters)

Built: 2016. Class: BV. Location: Far East: Inquire

General
Built 2016
Class BV

Dimensions
Length over all 59.00 m
Breadth Mld. 15.00 m
Depth Mld 5.00 m
Draught Designed 3.82 m

Capacity
Deadweight 2,550 t
Hopper volume 1,500 m3

Other
Engine 36 kW
Hydraulic pump 320 bar, 285 l/min
Split cylinders Stroke: 3,000mm, capacity 5,900 kN
Anchor 1 x 570 kg
Сплит Шаланд

Propelled and non-propelled Split Hopper Barges

Various other Propelled and Non-propelled Split Hopper Barges 350 m³ – 1000 m³ available for Sale or Charter. Inquire

Please contact us for details

A Self-propelled Split Hopper Barge is a vessel with a large open hold, used to load and transport dredged material. The barge is usually loaded by any type of dredger, usually a Cutter Suction -, a Backhoe -, Grab – or Bucket Dredger. When loaded, the vessel sails independently to the deposit area, where it unloads the materials. The hull of vessel consists of two halves, and unloading is done by opening, or ‘splitting’, the two halves by means of two or more hydraulic cilinders, and depositing the soil on the seabed. Due to the fact no bottom doors are being used, this depositing can take place in relative shallow water.
