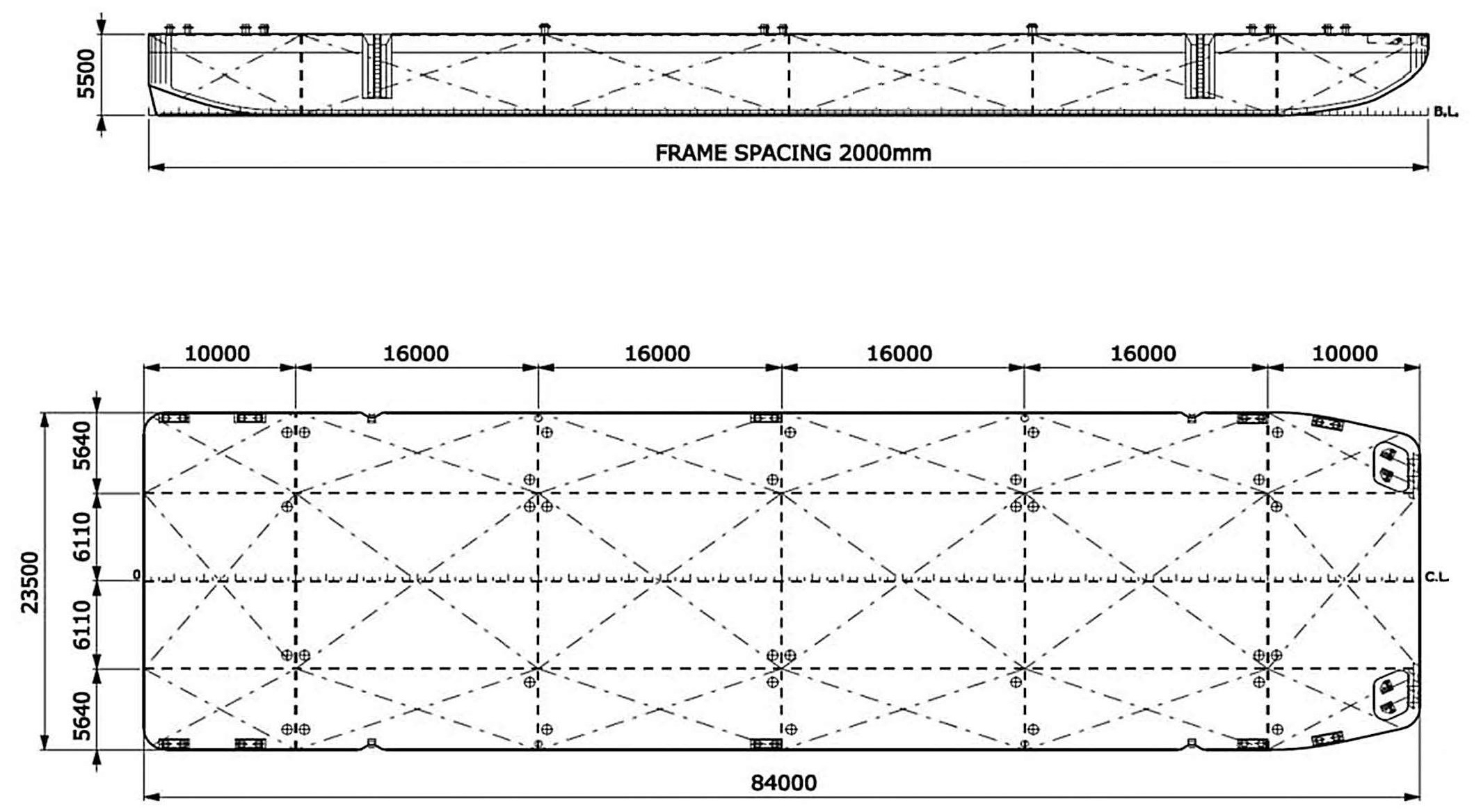

5,000 DWT Semi-submersible Heavy Lift Barge
2008 Solid built semi-submersible barge. 5,000 ton deadweight, Narrow beam. Point loads up to 220 t/m². For charter. Location: Europe. Enquire
| General | |
| Built | 2008 |
| Class | LR 100 AN, Unmanned |
| Pontoon, Semi-submersible | |
| Dimensions | |
| Length | 84.0 m |
| Beam | 23.50 m |
| Depth | 5.50 m |
| Draft (empty / loaded) | 0.90 m / 4.67 m |
| Draft (submerged) | aft 12 m max |
| GT | 2,950 |
| Cargo & Deck capacity | |
| Deck load | 15 t/m2 (uniform loading) |
| Point loads (max) | 220 t/m2 |
| Deadweight (max) | 4,920 t |
| Lightweight | 1,580 t |
| Displacement (max) | 6,500 t |
