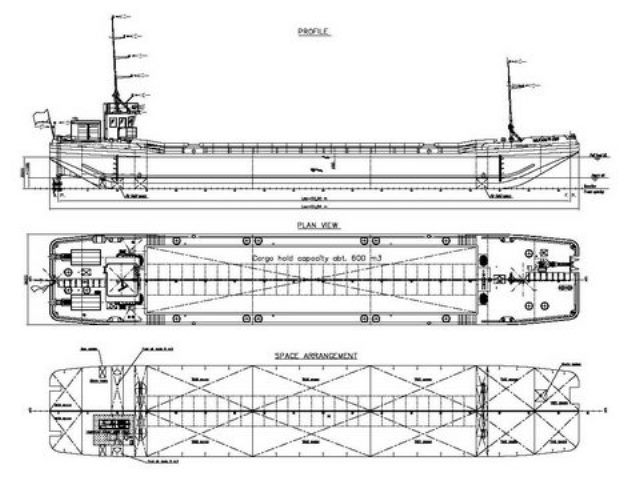

600 m³ Self-propelled Split Hopper Barge NB
IACS class, l x b x d (m): 54.0 x 9.3 x 3.6 Deadweight 1,000 t. Propulsion: 2 x 250 kW rudder propeller. Location: EU. Inquire
| General | |
| Built | 10-12 months from date of order |
| Class | e.g. GL, +100 A 5 RSA(20) Split Hopper Barge |
| Dimensions | |
| Length oa | 54.0 m |
| Beam | 9.3 m |
| Depth mld | 3.6 m |
| Draft (LL exem.) | 3.2 m |
| Hopper volume | 600 m3 |
| Deadweight (LL exem.) | 1,000 t |
| Machinery | |
| Propulsion | 2 x 250 kW rudder propeller |
| Split cylinders | 2 x, operated by hydraulic power pack |
| Overflow | Manually adjustable |
| Safety and firefighting equipment | |
| As per flag state requirements | |
Related products
-
4.500 m³ Hopper Dredger
Direct from owners: Continuously modified, BV Special Survey passed May 2016, 2 x 900 mm dredgepipes, l x w x d (m): 100 x 18 x 7.2, bottom doors en pump ashore facility. Location South America: Enquire
-

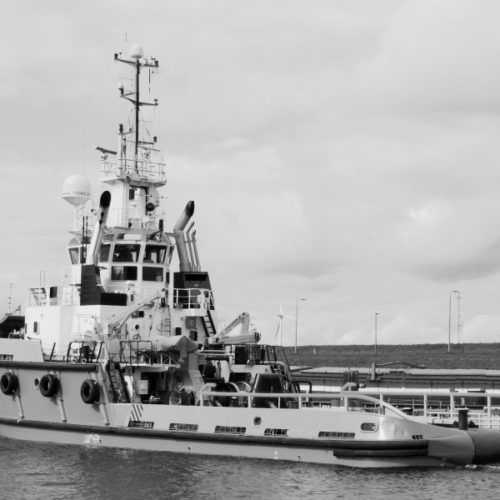

113 tbp ASD Tug Escort, FiFi-1, Ice Class
