48 pax DP-2 FiFi-1 Fast Crew Supply Vessel (FSIV)
2014, BV class, DP-2, FiFi-1, 48 pax, Fast Support Intervention Vessel. Speed max 26 knots. Location Caribbean. Enquire
| General | |
| Built | 2014 |
| Class | BV, I ✠ Hull ✠ Mach, Crew Boat, Unrestricted |
| navigation ✠ Dynapos AM/AT R (DP2), FiFi-1 | |
| Dimensions | |
| Length oa | 55.0 m |
| Beam | 10.0 m |
| Depth mld | 4.40 m |
| Draft | 2.25 m |
| Air draft | 13.6 m |
| GRT | 475 |
| Cargo capacity | |
| Clear deck area | 240 m2 |
| Deck cargo | 225 t |
| Deck strength | 2.5 t/m2 |
| Deadweight | 300 t |
| Machinery | |
| Main engines | 4 x Cummins KTA 50, 1342 kW each |
| Propulsion | 4 x Hamjet 811 |
| Bow thruster | 2 x Diesel electric, 150 kW each |
| Generators | 2 x Cummins, 200 kW each |
| Load | Speed, consumption |
| 100% MCR | Pax only: 26 knots, Cargo: 21 knots, 32 m3/day |
| 80% MCR | Pax only: 21 knots, Cargo: 17 knots, 19 m3/day |
| 50% MCR | Pax only: 13 knots, Cargo: 10 knots, 10 m3/day |
| Deck equipment | |
| Anchors | 1x fitted anchor HHP 225 kg |
| FiFi-1 | 2 x 1200 m3/h, facing aft + waterspray |
| DP-2 | NAVIS ICVS DP 4000 / |
| Reference | CyScan + 2 DGPS |
| Rescue boat | 6 pax, 25 hp / FBB 500 |
| Tank & pump capacity | |
| Fuel oil | 135 m3, 1 x 50 m3/h @ 5 bar |
| Fresh water | 105 m3 , 1 x 50 m3/h @ 5 bar |
| FW Ballast | 63 m3 |
| Accommodation | |
| Cabins | 4 x 1-berth + 4 x 2-berth |
| Seating | 48 x inclinable, with TV & Video |
| Fully air conditioned | |

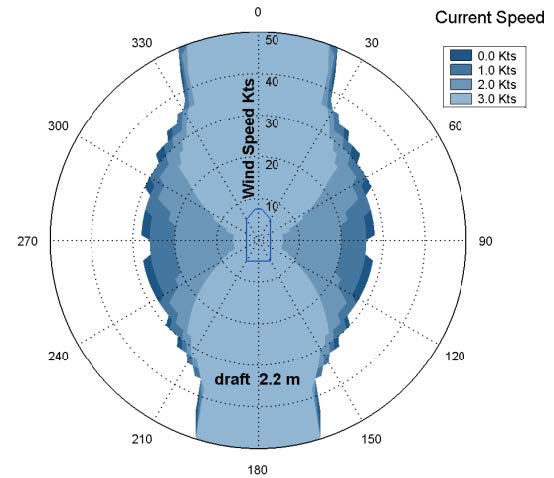

| Capability Plot all 100% thrust | |
