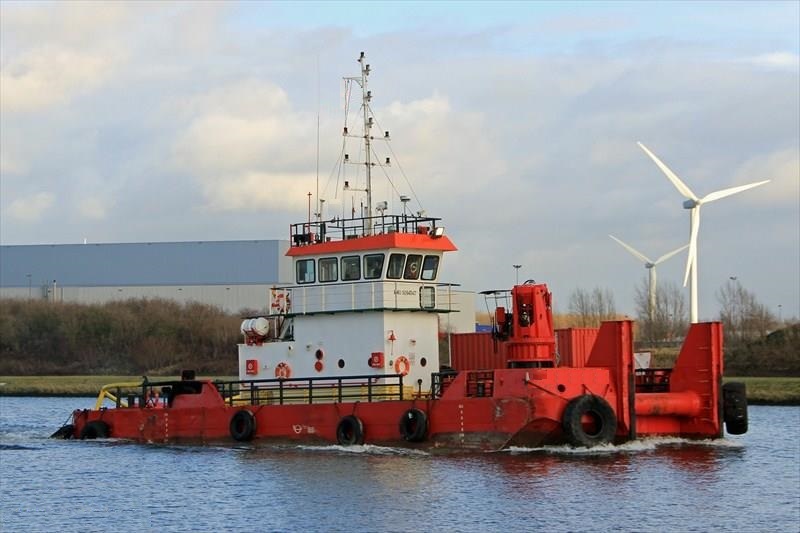

26 x 11 Multi-purpose Utility Vessel

Versatile workboats, Dredging support, Diving support, Cable repair, Supply, Anchor handling

2003, GL. l x w x d (m): 26.00 x 11.00 x 3.25, deadweight 250 ton, propulsion 2 x Cat 3412, bollard pull 14 tons. Knuckle boom crane, anchor winch, bow & stern roller. Accommodation for 4 crew. Location: Netherlands. Price: Inquire

GENERAL
Year Built 2003
Classification DNV-GL, + 100 A5 + MC

DIMENSIONS
Length oa 26.00 m
Length bpp 24.96 m
Beam 11.00 m
Depth Mld 3.25 m
Draft 2.50 m
GRT 220
Deadweight 250 t

PERFORMANCE
Bollard Pull 14 t
Speed, free running ≈ 9.0 Knots

TANK & PUMP CAPACITY
Fuel oil, transfer pump 158 m3, 1 x 20m³ / hr at 15 m head
Fresh Water 83 m3

MACHINERY
Main Engine 2 x Caterpillar 3412TA, 537 kW
Generator 2 x Perkins 80 kW each
Gear Box 2 x Reintjes 363 Reverse / Reduction ratio 4.92:1
Propeller 2 x Fixed Pitch, 4 -Blade, dia. 1400mm

DECK EQUIPMENT
AH / Towing Winch 1 x 100 ton, 5 m/min. Brake holding 80 tons, 500 m x 70 mm
Towing Hook 20 tons SWL
Roller 2 x at Bow and Stern, dia 600mm
Anchor Windlass 1 x 3 t x 10 m/min. pull
Capstan 2 x 3 tons, 15 m/min.
Deck Crane 1 x Heila HLRM 140-3s, 120 tm, max. reach 12.25 m

OTHER EQUIPMENT
Navigation Magnetic Compass, Echo Sounder. Radar, GPS, EPIRB , etc.
Communication VHF, SSB
Life Saving 2 x 10 Men Inflatable Life Raft. 8 Life Buoy, 14 Life-Jackets

ACCOMMODATION 4 berth, fully air-conditioned
