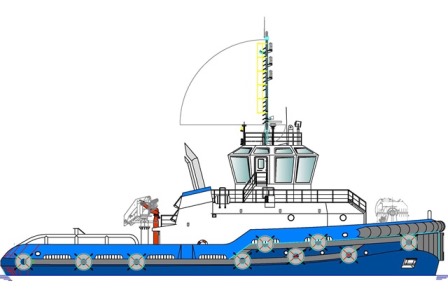

60 tbp ASD FiFi-1
Coastal Towage, Port & Terminal ops, Escort & FiFi-1
Direct from Shipyard: Length: 33 m. Beam: 12 m, Depth: 5.2 m, Draft 4.3 m Location: Shanghai region, China. Keen seller. Price: Inquire
| GENERAL | |
| Built | 2015 |
| Class | ABS, ✠ A1, towing vessel, |
| ✠ AMS, Ⓔ, FiFi-1, UWILD | |
| DIMENSIONS | |
| Length oa | 32.7 m |
| Width | 12.0 m |
| Depth | 5.2 m |
| Draft | 4.3 m |
| G.T | 498 |
| PERFORMANCE | |
| Speed | 12 kn |
| Bollard pull | 60 t |
| Accommodation | Cabins for 12 crew |
| TANK CAPACITIES | |
| Fuel Oil | 218 m3 |
| Potable water | 50 m3 |
| Ballast water | 41 m3 |
| Foam | 9.0 m3 |
| Detergent | 10.0 m3 |
| MAIN MACHINERY | |
| Main engine | 2 x Niigata 6L28HX 1654 kW @750 rpm |
| ME Consumption | 191 gr/kWh @ Max Power |
| Z-Peller & Gearbox | 2 x Niigata ZP-31B, FPP |
| Generators | 2 x Cummins QSM111, 240kW each, 415V/3/50Hz |
| Gen. Consumption | 209gr/[email protected] Power |
| Bow thruster | 3 ton, electric |
| DECK MACHINERY | |
| Anchor windlass | 60 t, Jebsen & Jessen |
| Towing winch | 60 t, Jebsen & Jessen |
| Towing hook | 100 t, Jebsen & Jessen |
| Capstan | 5 t, Jebsen & Jessen |
| FIRE FIGHTING | |
| Pumps | 2,800 m3/h @ 1800 rpm, make Mas |
| Monitors | 2 x 1,200 m3/h @ 10 bar, make Mas |
| Radio & Navigation | Furuno |
| Sewage system | Taiko, for 20 persons |
