113 tbp ASD Tug Escort, FiFi-1, Ice Class
Escort (F,B,V,C), Offshore Terminal, FiFi-1, Oil Rec

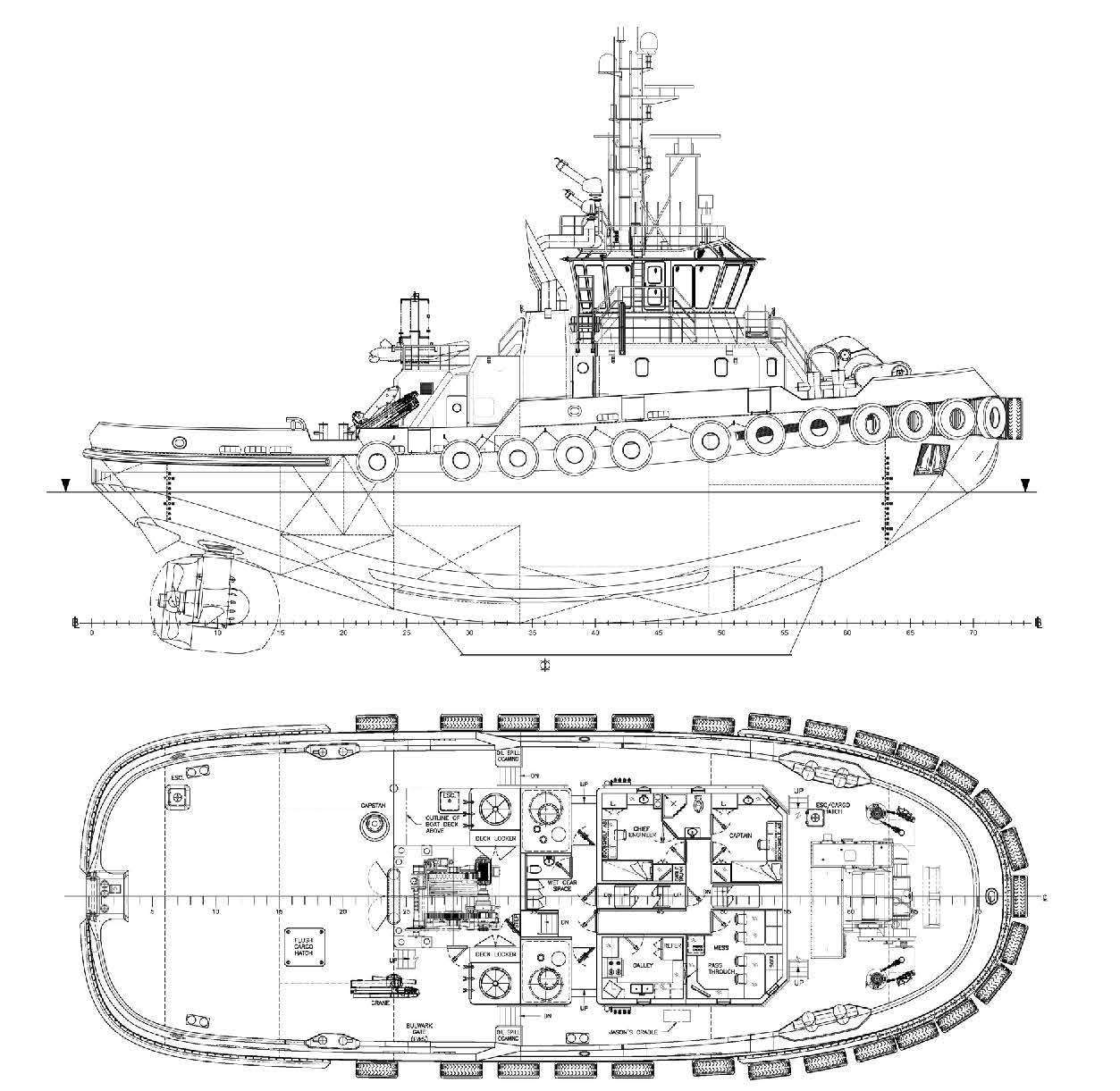

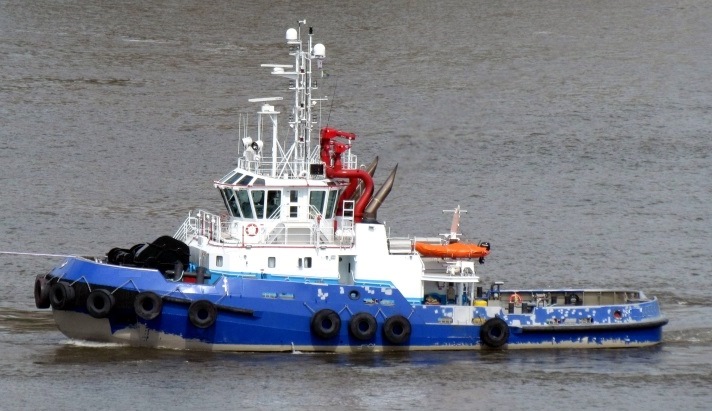

Direct from Owners: Robert Allan Design. Built 2014. Steering Force 120 ton @ 10 knots. Availability: Prompt. Owners open to BB or BBHP. Rates: Inquire
| GENERAL | |
| Class | Lloyd’s Register X100 A1 LMC-UMS 1AS FS FiFi I, ISO 9001:2008 / ISM / ISPS |
| Year | 2014 |
| DIMENSIONS | |
| Overall length | 36.0 m |
| Moulded breadth | 13.0 m |
| Depth | 6.9 m |
| Draft (max.) | 6.5 m |
| Gross / net tonnage | 710 / 213 metric tons |
| CAPACITIES | |
| Fuel oil | 294.4 m3 + 45.9 m3 |
| Cargo (lube / fuel oil) | 45.9 m3 |
| Lube oil – Dirty oil | 6 m3 – 5.1 m3 |
| Fresh water – Oily water | 18 m3 – 5.4 m3 |
| Ballast | 180 m3 |
| Sewage / Grey water | 7.6 m3 – DVZ-SKA-10 Biomaster Plus |
| (Holding tank – Treatment plan) | |
| Deck area | 76.4 m2 |
| PERFORMANCE | |
| Max. speed – Fuel consumption | 15.1 knots – 24.9 metric tons/day |
| Econ. speed – Fuel Consumption | 9.0 knots – 6.9 metric tons/day |
| Super Econ. speed – | 7.5 knots – 5.6 metric tons/day |
| Fuel Consumption | |
| EXTERNAL FIRE FIGHTING (Double FiFi – I) | |
| Classification | Class 1 |
| Pumps | 2 x 3,010 m3/h |
| Monitors | 2 x 1,200 m3/h – 300 m3/h (water – foam) |
| 1 x 2,400 m3/h (water) | |
| Hose connection (8) | 76.2 mm diameter – 4 port and 4 starbord |
| Deluge system | 505 m3 |
| PROPULSION / MACHINERY | |
| Propulsion | Double Z-Drive, |
| Rolls-Royce Aquamaster US 305 CP | |
| Main engines | 2 x MAK 9M25C |
| Total power output | 2 x 3,000 kW (8,160 bhp) @ 750 rpm |
| Generator | 3 x Caterpillar C9, 250 kW, 60 Hz |
| Emergency generator | PRAMAC, S5500, 5.5 kW |
| Engine-room classification | Unmanned machinery space (UMS) |
| TOWING | |
| Maximum static bollard pull | 113 metric tons |
| Towing winch | Markey TES-40UL-125HP |
| Brake capacity : 276 metric tons | |
| Pulling capacity : 66.7 metric tons @ 7 m/min | |
| Stall pull capacity :100 metric tons | |
| Galv. steel wire, 64 mm, 1.8 x 10 x 762 m | |
| Tow pins | 76.2 x 304.8 mm rise tow pins |
| max. load 300 tons at 15o | |
| Stern roller | 508 mm diameter |
| ESCORT AND SHIP HANDLING | |
| Escort steering force | 122 tons at 18.5 km/h (10 knots) |
| Bow winch | Full escort certified rendering recovering |
| line handling winch (split drum) | |
| Markey DESDF-48-200HP | |
| Brake capacity : 307 metric tons | |
| Pulling capacity : 202 metric tons | |
| Escort drum | Plasma 12 x 12 |
| Strand : 82.5 mm diameter x 213.4 m | |
| Tensile strength : 426 metric tons | |
| Plasma 12 x 12 | |
| Strand : 63.5 mm diameter x 182.9 m | |
| Tensile strength : 240 metric tons | |
| DECK EQUIPMENT | |
| Capstan (fwd) | 2 x Markey VEP-16-40, 6 metric tons |
| Capstan (aft) | Markey CEP 60, 10 metric tons |
| Deck crane | Palfinger 15500 M max. lift. capacity 6,200 kg |
| Forward dual shock | Stainless steel |
| SAFETY | |
| Man overboard recovery system | Jason’s Cradle |
| Search lights (2) | CARLISLE & FINCH, 482.6 mm, 1,000 W Xenon, XE9666-RF |
| Life rafts | 2 x 16 persons |
| Rescue boat | Zodiac RIBO 450 / Mercury 25hp |
| NAVIGATION / COMMUNICATION | |
| Magnetic compass | CASSENS & PLATH, Reflecta/11-180mm |
| Gyro compass | SPERRY MARINE, NAVIGAT X MK2 |
| DGPS / AIS | SAAB, R4-Combined AIS & Navigation System |
| Radars (2), X & S Band | SPERRY MARINE, VisionMaster FT |
| (including ECDIS & Auto Pilot) | |
| Echo sounder | ELAC, LAZ5100/ES5100 |
| SART | JOTRON, Tron Sart20 |
| Radio Communication Station | SAILOR, 6300MF/HF Radio |
| (including Inmarsat, RadioTelex & GMDSS functions) | |
| Portable VHF | JOTRON, Tron TR20 GMDSS |
| Navtex Receiver | FURUNO, NX-700 A/B |
| Wind Monitor | YOUNG METEOROGICAL INSTRUMENTS, 05106 |
| SSAS | SAILOR, 6120/30 System |
| CCTV System | PELCO, CM6700 Matrix (10 zones) |
| Intercom | JOTRON, Phontech CIS3130 |
| Batteryless Telephone System | JOTRON, Phontech BTS4000 |
| Fog Horn & Public Address | KALENBERG, KB-30A |
| SAT-TV | INTELLIAN, I6 |
| OTHER EQUIPMENT | |
| Pilot transfer ramp | Yes |
| ACCOMODATIONS | |
| Capacity | 10 persons |
| Cabins | 2 singles / 4 doubles |
| Mess / Dayroom | Yes |
| All cabins and control room are fully air-conditioned | |
