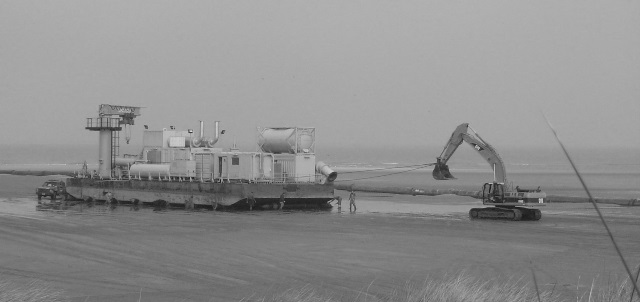

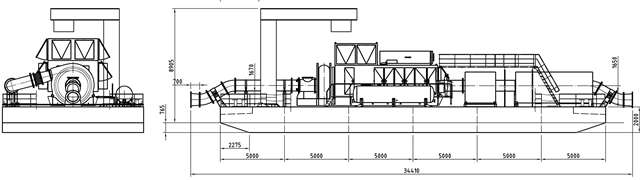

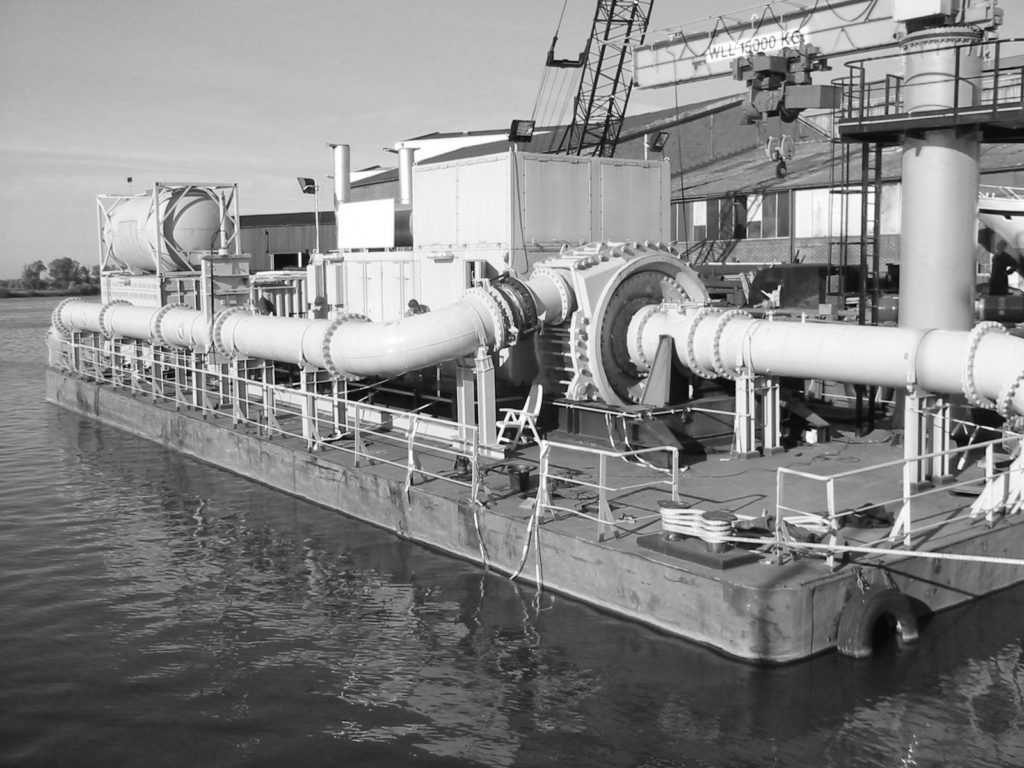

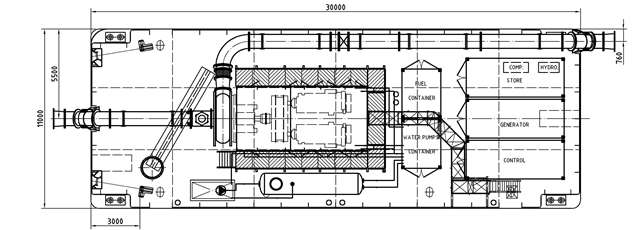

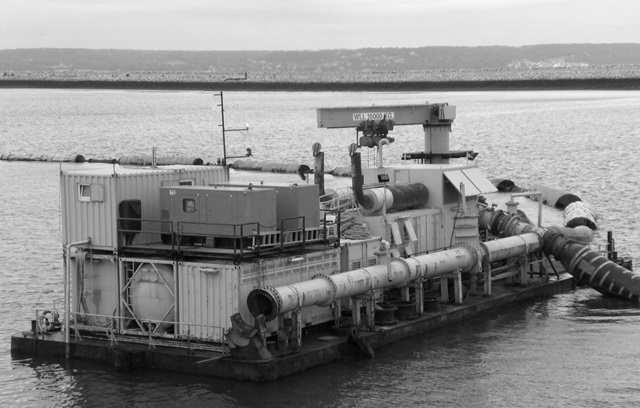

3.000 kW Floating Dredge Booster Unit
Floating Dredge Booster Unit: 3.000 kW. Inlet/discharge (mm): 800/800
| Floating Dredge Booster Unit name | |
| Engine pump | 2 x CAT 3516 |
| Generator 3 | Olympian |
| Generator 2 | Olympian |
| Generator harbor 1 | Deutz |
| Gland water pump | Nijhuis |
| CW pump engine 1 | Nijhuis |
| CW pump engine 2 | Nijhuis |
| Fuel seperator / sludge tank | Westfalia |
| Seperator control wall mounted | |
| Fuel transfer pump | Azcue |
| Fuel settling tank | |
| Fuel daytank | |
| in WS container | |
| Hydr Powerpack | |
| Hydrophore pump | Speck |
| Compressor | Atlas Copco |
| Dryer | Atlas Copco |
| Glandpump freq drive | |
| PLC | |
| Starters | |
| Operating desk | |
Contact us for more details
