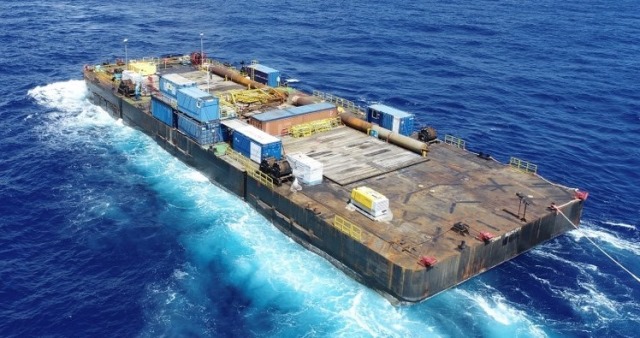

6-PM Heavy Lift Work Barge (keen sellers)
Recent EU built (2014), solid design, recently dry-docked, well maintained and well equipped 6-point mooring Work Barge with 650 m2 hard wood deck protection, prepared for installation ballast system. Available for sale only. Earliest available Q4 2024. Location: South East Africa region. Enquire
| General | |
| Built | 2014 |
| Class | I ✠ Hull, pontoon, no propulsion |
| Unrestricted navigation | |
| Next SS due | March 2024 |
| Dimensions | |
| Length | 80 m |
| Beam | 26 m |
| Depth | 6.0 m |
| Draft (max) | 4.80 m |
| GT | 3,420 |
| Deck & Cargo capacity | |
| Deadweight | 7,900 t |
| Deck load | 15 t/m2 |
| Ballast system | Prepared |
| Deck equipment | |
| 6 point mooring | 6 x 90 t, 35 t pull |
| Anchors | 6 x 5 t Flipper Delta |
| Spuds | 2 x 24 m x 1.3 m |
| Smit brackets | 2 x fwd |
| Containers (20 ft) | 1 x office, 1 x control room |
| 1 x messroom, 1 x sanitary | |
| 1 x work shop | |
| Gas oil tank | 1 x 20 m3 |
| Protection | Crane mats |
| Boat landing | Optional |
| Machinery | |
| Generators | 2 x 90 kW |
| Power pack | 2 x diesel driven |
| Compressor | 1 x 20 m3/min, 7 bar, 1000 ltr vessel |
| Ballast pump | 1 x 150 m3/h, portable diesel driven |
| FiFi pump | 1 x 90 m3/h, diesel driven |
