950 m³ Grab dredger / Split Hopper Barge (2 sisters)
For Charter only: 950 m³. ASD propelled. Well maintained and efficient operation Grab dredger / Self-propelled Split Hopper Barge. Suitable for transporting dredging spoils, dredging, rock works and marine construction works. Availability prompt. Enquire
| Dimensions | |
| Length | 55.0 m |
| Beam | 12.0 m |
| Depth | 4.5 m |
| Draft | 4.0 m |
| GRT | 845 |
| Capacity | |
| Deadweight | 1,600 t |
| Hopper capacity | 950 m3 |
| Fuel tank capacity | 132 m3 |
| Ballast tanks capacity | 570 m3 |
| Performance | |
| Speed | 9 Knots |
| Machinery | |

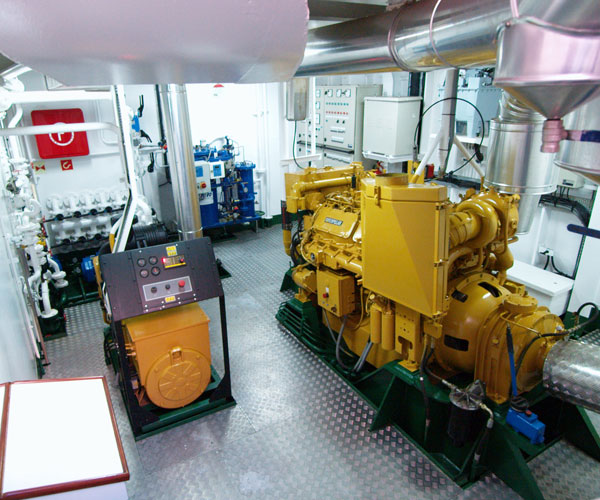

| Main Engines | 2 x Caterpillar 3412, 529 Kw each |
| Propulsion | 2 x Azimuth thruster |
| Bow thruster | 135 kW |

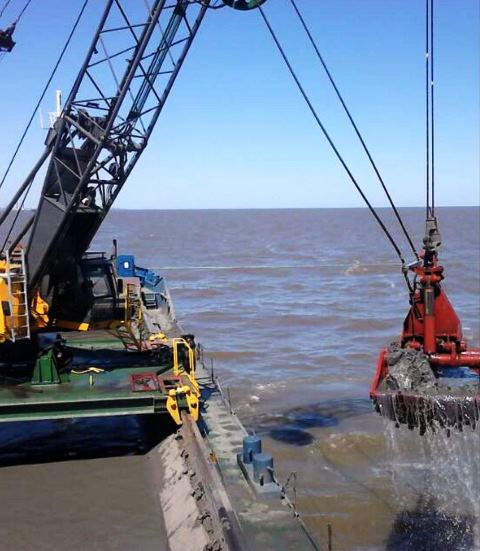

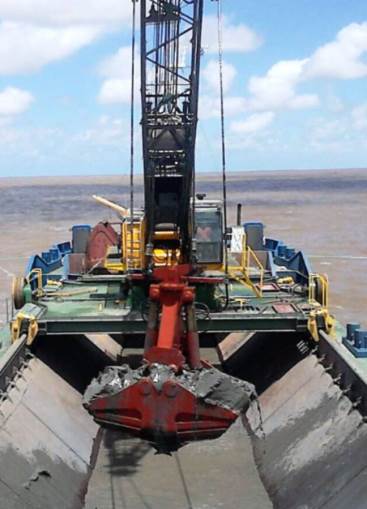

| Dredge crane | Sennenbogen 660 |
| Grabs | 4 m³, 6 m³ and orange peel |
| Accommodation | 8 Crew |
