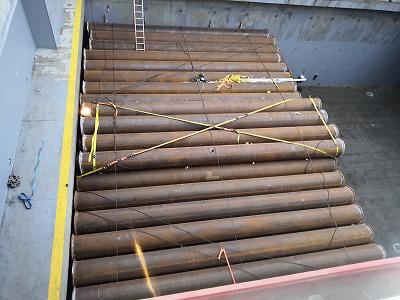

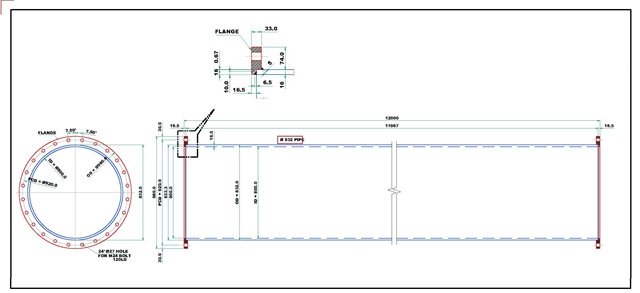

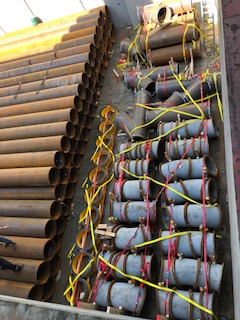

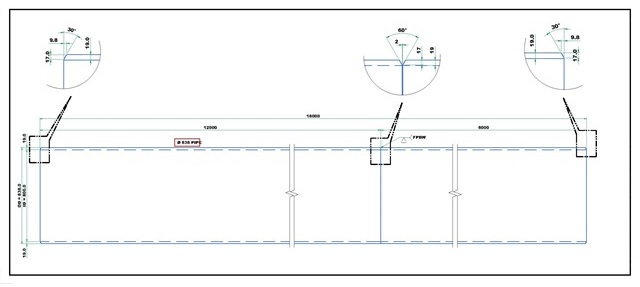

Supply of LSAW (Longitudinal Submerged Arc-Welding) steel pipes in various grades, diameters, thickness and length, manufactured in accordance with production standard EN 10219 e.g. for tolerance, dimensional and sectional properties. Pipes suitable for dredging and reclamation / beach replenishment works as Sinker line, Floating line or as Shore – or Land line. Please check our competative prices diect from manufacturers. Pictures reflect a total of approx. 2,700 tons of 18m LSAW bevelled pipes (sinkerline), 12m LSAW flanged pipes (sandfill pipes), Y-pieces and bends of various angles, manufactured under ABS class supervision and delivered to our clients. Enquire
Min. | Max. | |
Interior Diameter (ID) | 400 mm (16″) | 1,400 mm (56″) |
Wall thickness | 8 mm (1/3″) | 50 mm (2″) |
Length each pipe | 2 m | 24 m |
Steel grades | Various, On request | |
Flanged | Optional | |
Bevelled | Optional | |
Coated | Optional | |
Bends | Any angle <= 90º, Radius 1.5 x ID | |
Y-pieces | Any configuration | |
Manufacturing | Short notice | |
Payment | 10% Adv., balance: LC at Sight | |
Delivery | FOB, CIF Worldwide; Optional | |
Standard | EN 10219 | |
Class supervision | Optional |
Length oa: 64 m, Beam: 11.4 m. Max Dredging depth 18 m. Cutting power: 540 kW. Pump power: 1,675 kW. Spud carrier & Anchorbooms. Floating lines and assisting multicat ot tugboat available. For Charter only.
2013, IHC Beaver 5020C, BV class. Modular. Loa x B x D (m): 32.5 x 7.9 x 2.45. Dredgeing depth: 20 m. Dredgepump power: 745 kW. Location: Central America Enquire
BV class, Length oa: 89 m, Beam: 18.5 m. max Dredging Depth: 27 m. Cutting power: 1,100 kW. Pump power: 5,800 kW. Floating lines and multicat or tugboat can be made available with the dredger. Enquire
