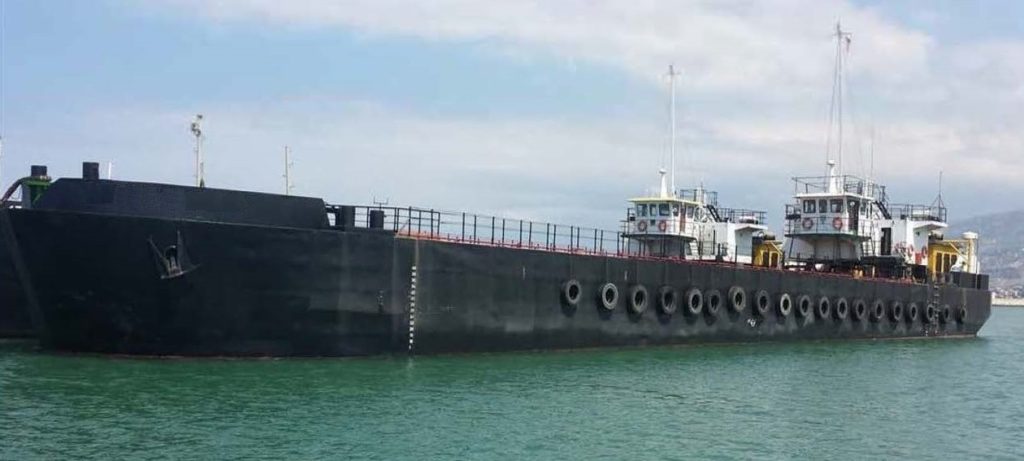

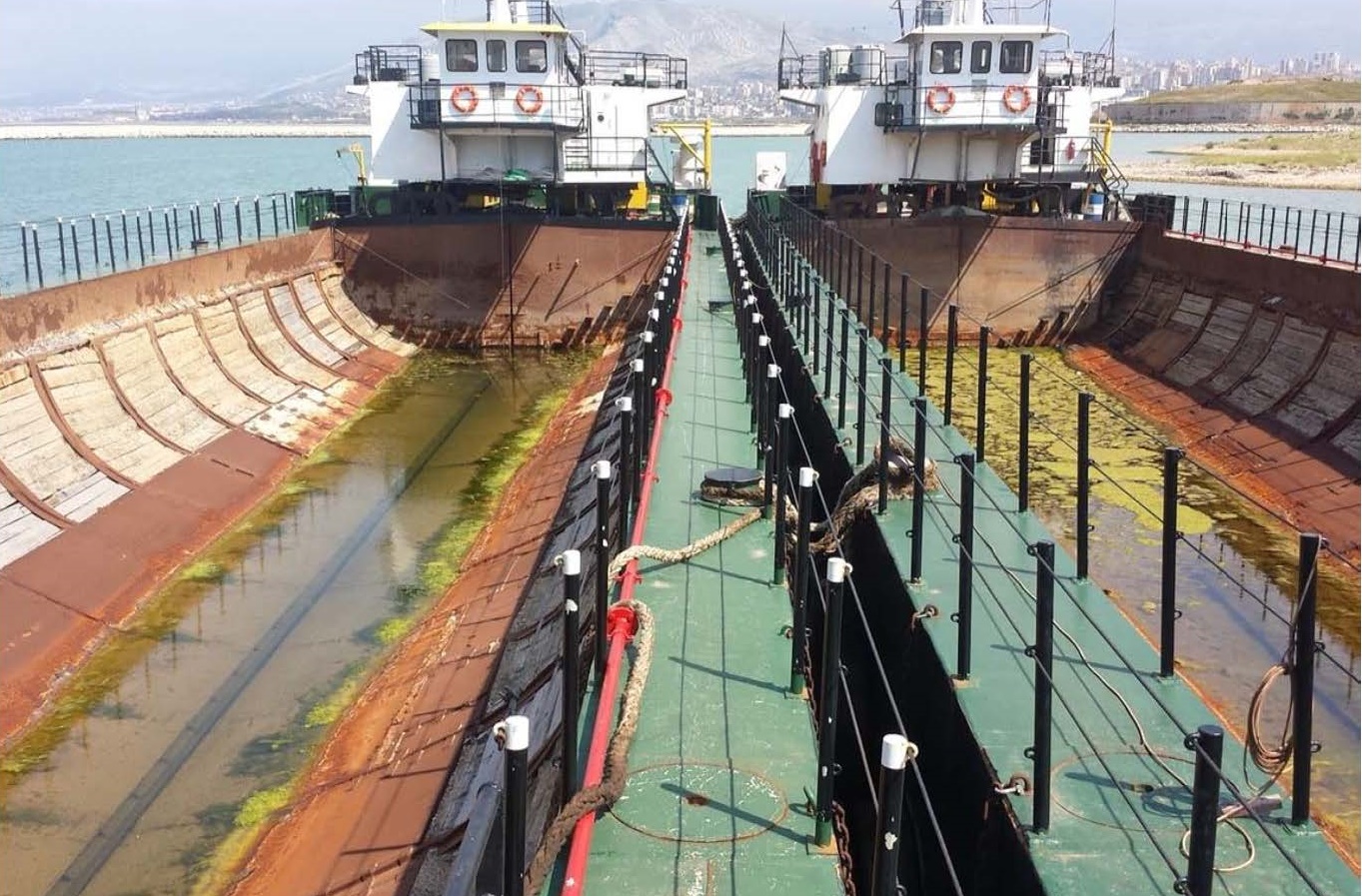

1,000 m³ Self-propelled Split Hopper Barges (2 sisters)
IHC omni split hopper barges, suitable for transporting rock. Location East Med. Enquire
| General | |
| Rebuilt | 2013 |
| Class | IRS, *ISE, Split Barge, R20, IM, SP |
| Coastal navigation | |
| Dimensions | |
| Length | 63.5 m |
| Beam | 12.0 m |
| Depth | 5.0 m |
| Draft | 3.2 m (summer load line) |
| GT | 1010 |
| Dredging particulars | |

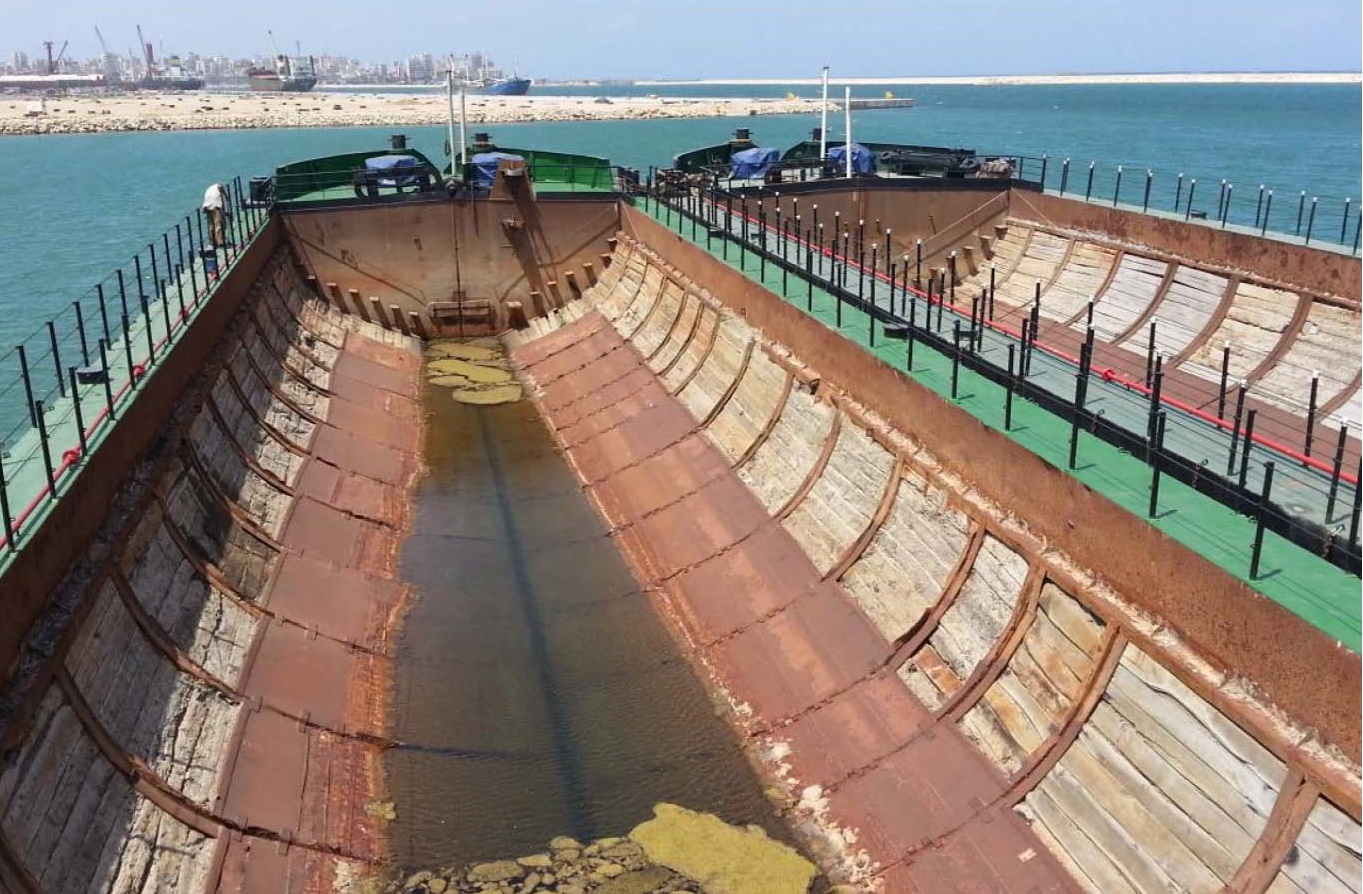

| Hopper volume | 1,000 m3 |
| Deadweight | 1,500 t (summer load line) |
| Hopper protection | Suitable to carry rock |
| Machinery | |
| Main engines | 2 x Cat. C18 Acert, 447 kW each |
| Propulsion | 2 x rudder propeller SRP 300 |
| Generators | 1 x 42 kW + 1 x 25 kW |
| Tank capacity | |
| Fuel | 100 m3 |
| Fresh water | 24 m3 |
| Accommodation | |
| Cabins | For 8 crew |
| Other | Galley, mess, sanitary facilities |
