Crew transfer, Survey

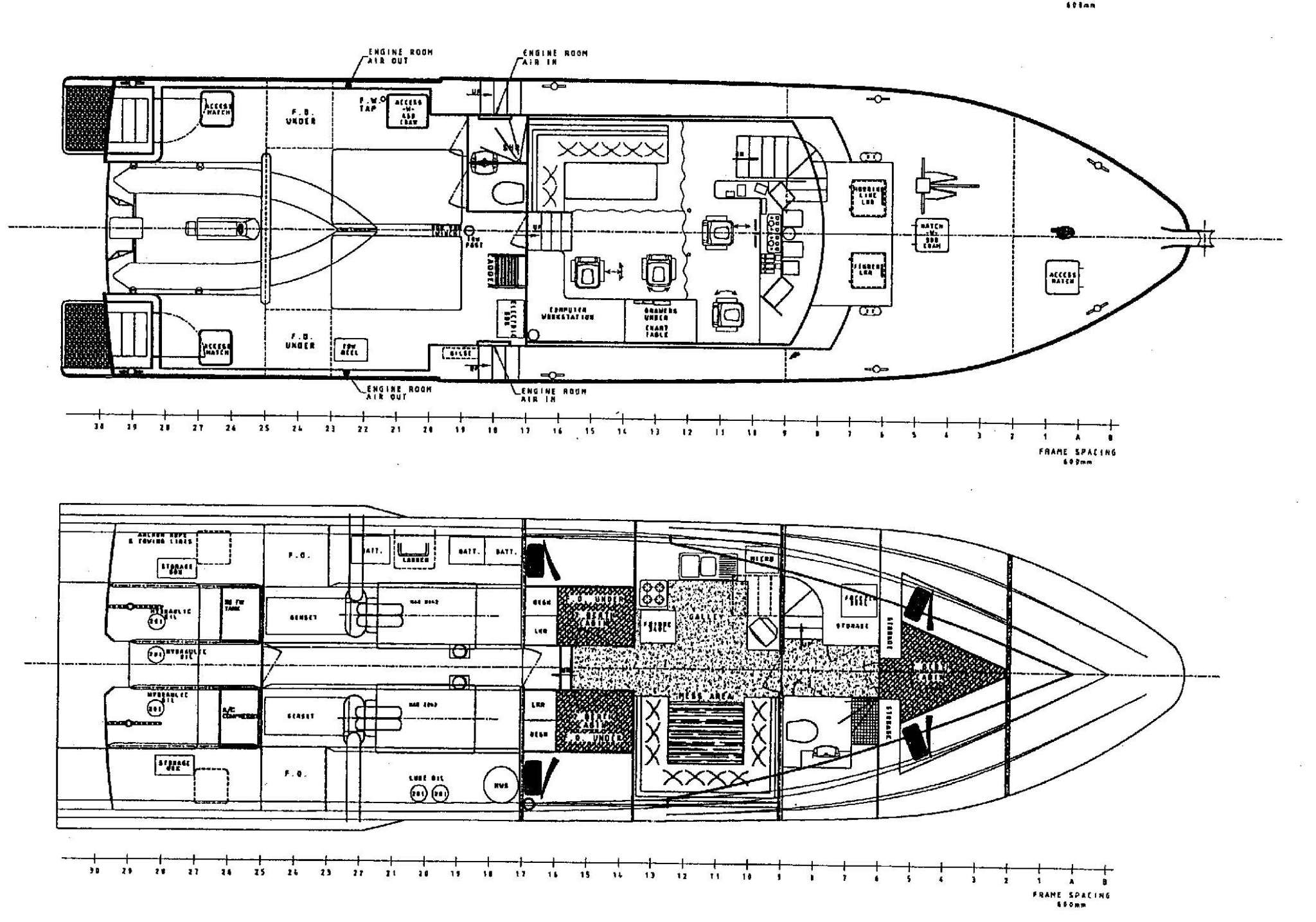

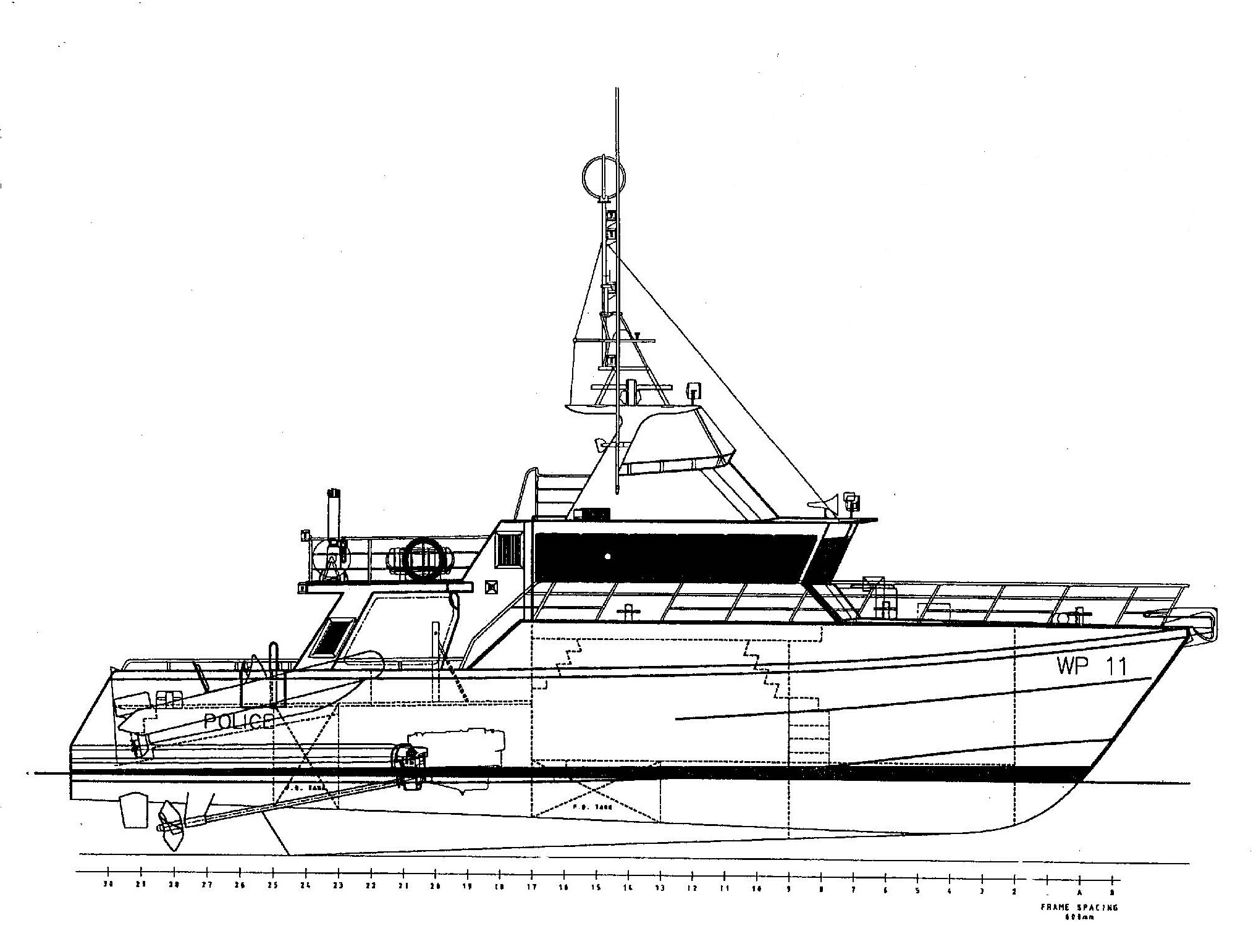

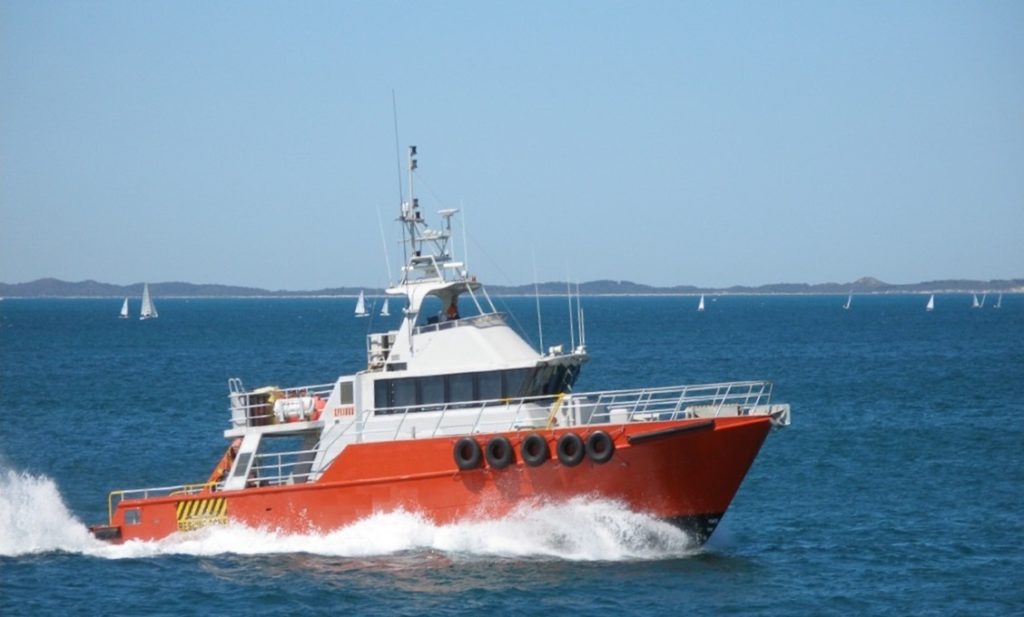

2000, mono hull, L x b x draft (m): 22,00 x 5,50 x 1,2, Speed: 24/20 knots, propulsion: 2 x 350 kW, fixed props. Endurance: 200 Nm, 12 pax + 4 crew, 1 ton crane, moonpool. Price: Inquire
GENERAL | |
Built | 2000 |
DIMENSIONS | |
Length oa | 21.8 m |
Beam | 5.5 m |
Draft [max] | 1.2 m |
PERFORMANCE | |
Cruise Speed | 20 knots |
Max Speed | 24 knots |
Main Engines | 2 x Man D 2842 |
Fuel Capacity | 8,000 litres |
Propulsion | Conventional props |
Auxiliary | 2 x 25 kVa |
DECK EQUIPMENT | |
Crane | Fazzi F40 980 kg SWL |
Anchor Winch | Hydraulic |
ACCOMMODATION | |
Full Live aboard capability | |
Sleeps 6 – all cabins have Air-Conditioning | |
MISCELLANEOUS | |
Moonpool | 750mm x 750mm |
NAUTICAL EQUIPMENT | |
Radar | Raytheon R12-10 |
Echosounder | Raytheon V850 |
Reciever | DGPS Raytheon 398 |
VHF Radio | Sailor 4822 |
HF Radio | Sailor 4000 |
Chartplotter | Raytheon 620 |
Computer | C-Plot |
COMMENTS | |
USL 2B Survey 12+4 to 200nm offshore. 240-415 volt power with built in | |
redundancy for uninterupted supply. Fast modern offshore multipurpose | |
vessel ideally suited to hydrographic/environmental survey operations. Full | |
live aboard capability. Designated work space for survey equipment and | |
personnel. |
Multi Purpose Shallow Draft Patrol, Intervention, Security Vessel
2003, mono hull, L x b x draft (m): 34.0 x 7.00 x 1,6, Speed: 18/20 knots, propulsion: 2 x 930 kW, fixed props, Slipway with hydraulic stern door, suitable for a 7 meters jet drive RIB. Deck Crane. Government vessel. Well maintained and fully kitted out. Price: Inquire
Offshore industry spec, mono hull, jet props
L x b x d(m): 19.0 x 5.1 x 0.95, Speed: 28 knots at full load (30t displacement) condition, 4 ton cargo capacity, deck area: 21m² @ 500kg/m², propulsion: 2 x 675 kW, Hamilton, jets. Endurance: 300 Nm, 25 pax + 2 crew or 30 pax + 2 crew. For Sale only: Inquire
Mono hull, fixed props
ABS. L x b x d (m): 40.00 x 7.50 x 3.25. Draft 2.30 m. Speed: 27.8 knots, 114 m2 deck area, propulsion: 3 x fixed props totalling 4,500 bhp. 60 pax + 10 crew. Price: Inquire
