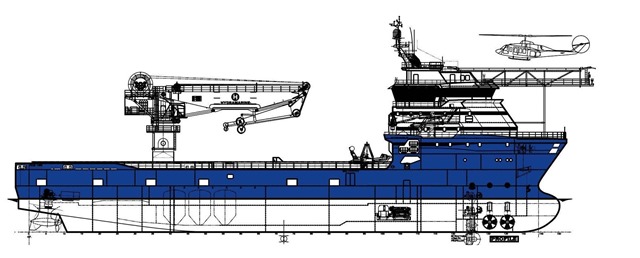

DP2, MPSV / IMR
2009, DNV. Loa 93.5 m, width 20.00 m, draft 6.3 m. Deck Area 1050 m2 (main + mezzanini) Deack load 1,600 tons. Deck crane 100 tons AHC knuckle boom. 74 berths. Location: ME. Inquire
| GENERAL | |
| Built | 2009 |
| Classification | DNV +1A1, E0, SF, Dynpos AUTR, Clean Class |
| Comf-V(3), dk(+), hl(2,5/2,8), LFL*, Oil Rec, | |
| Supply Vessel, NAUT OSV(A), HELDK-S | |
| DIMENSIONS | |
| Lenght oa | 93.5 m |
| Beam mld | 20.0 m |
| Depth mld | 7.85 m |
| Draft Summer | 6,30 m |
| Deadweight | 4,245 t |
| Gross tonnage | 4870 |
| MACHINERY | |
| Main engines | 4 x Caterpillar 3516, 2100 ekw each |
| Aux engines | 2 x Caterpillar CAT C18, 500 ekw |
| Emer. Generator | 1 x Caterpillar CAT C9, 160 ekw |
| Fuel type | MGO |
| SPEED | |
| Max speed | 15.5 kts |
| Economic speed | 11 kts |
| PROPULSION | |
| Main Thrusters | Rolls Royce AZP 100 2 x 2200 eKW |
| Bow thruster | Rolls Royce TT 2200CP 2 x 1050 ekw |
| Azimuth thruster fwd | Rolls-Royce UL 1201 1 x 883 ekw |
| CONSUMPTION | |
| Max speed | 28 m3 |
| At 12 kts | 20 m3 |
| DP operation | 8 m3 |
| Port consumption | 3 m3 |

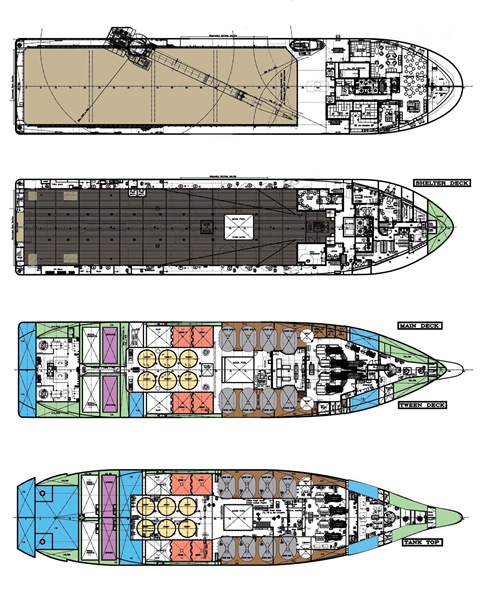

| DECK EQUIPMENT | |
| Deck Area | 1050 m2, 883 m² behind mezzanine deck |
| Max Deck Cargo | 1600 t @ VCG 1.1m |
| Mezzanine Deck Max load | 165 mt |
| Deck Dimension | 55,7 m x 15,85 m |
| Deck Strength | 10 t/m² Stern to frame 84 |
| 5 t/m2 frames 84 – 105 | |
| Deck Cranes | 2 x Hydramarine 5 t @15 m, PS certified for man riding |
| Wing wall height | 2,80 m |
| Windlass | 2 x RR-Electrician mooring winches 12 t |
| Capstan | 2 x Adria Winch 10 t |
| Gangway system | Manually operated |
| Liferafts | 3 x 35 + 1 x 25 Persons each side |
| Lifeboats | N/A |
| FRC | 1 x Weedo 700. |
| Moonpool | 5.9 m x 5.9 m, removable hatch on maindeck |
| Wave damping zones | Yes |
| Bulwarks on loading area | Removable p side forward as well as stern. |
| Machinery spaces | Water mist system. |
| 1 off complete integrated fire detection system | |
| HELICOPTER DECK | |
| Helicopter Deck Dia. 21 m – 12.8 t | |
| Helicopter reception / sky lobby. | |
| MRU for Helideck SMC IMU Motion Sensors. | |
| Firefighting. Pop-up system. | |
| OFFSHORE CRANE | |
| Type | Hydramarine/MacGregor |
| Main winch AHC | 100 t at 15 m, 25 t at 32 m |
| Wire length | 2000 m |
| Aux winch | 15 t at 33 m CT |
| Man riding | 1,5 t at 36 m. |
| wire length | 240 m |
| Tuggers | 2 x 5T |
| MRU for cr ane | Kongsberg MRU |
| Anti-Heel Sys | 1 x 1400 m3/h |
| DYNAMIC POSITION | |
| Class | DP II, Kongsberg K – Pos DP-21 |
| Reference systyms | 2 x Veripos LD6 |
| 1 x Kongsberg Radius 1000T / 750 | |
| 1 x HiPap Kongsberg 501 | |
| 1 x Bandak Taut wire 500 m | |
| 1 x Fanbeam | |
| Sensors | 1 x MRU-2 and 1 x MRU-5, |
| 3 x gyros and 2 x wind sensors | |
| ERN figures | 99, 99, 98 |
| NAVIGATION EQUIPMENT | |
| Radars | SAM Electronics |
| Pilot Radar | 1 x 1000/1100 |
| Chart Radar | 1 x 1000/1100 |
| Multi Plot | 1 x 1000/1100 |
| Chart Plot | 9330/1100 |
| Track plot | 9401/1100 |
| Gyro | 3 x Anschutz |
| Navtex | 1 x Furuno NX-700 |
| DGPS | 2 x SAAB R4 |
| AIS | Kongsberg |
| Echo sounder | SAM 4620 |
| Speed Log | SAM 4112/4124 |
| ECDIS | SAM Electronics |
| VDR | VDR 4300 |
| Loading computer | Kongsberg / Lodic |
| Helideck monitoring | SeaRec HMS |
| COMMUNICATION EQUIPMENT | |
| GMDSS | According to area A3 |
| MF/HF Sailor | 1 x CU-5100 |
| VHF/DSC | 2 x Sailor RT 5022 |
| SAT_C | 2 x Sailor TT-3606E |
| Broadband | Marlink |
| UHF | 11 x Motorola GP 150 + 740 (portable) |
| 2 x Motorola GM 360 | |
| Intercom | Vingtor/Zenitel |
| EPIRB’s | Jotron, Tron 45SX |
| SART’s | 2 x Jotron, Tron radar transponder. |
| Mobile phone | GSM 2 off. |
| TV system | SeaTel type 6004. |
| V- sat system | Marlink Dual (360 degree) KU band |
| CCTV system | 14 fixed cameras |
| CAPACITIES / DISCHARGE RATES | |
| Fresh water | 1000 m³, 2 x Allweiler 150 m³/h |
| WB Anti-Heel | 1 x 1,400 m³/h |
| Fuel | 2 x 250 m³/h |
| Chain lockers | 2 x 25 m³ |
| Roll reduction tanks 2 off. | Total cap 354 m³ |
| Fresh water maker | 1 x 20m3 per day |
| Ballast Water | 2,100 m³ |
| Drill Water | 1,800 m³ |
| Fuel Oil (90%) | 1,017 m³ |
| Brine (90%) | 456 m³ |
| Liquid Mud (90%) | 1,045 m³ |
| Methanol (90%) | 193 m³ |
| Special Products (90%) | 193 m³ |
| Dry Bulk | 200 m³ |

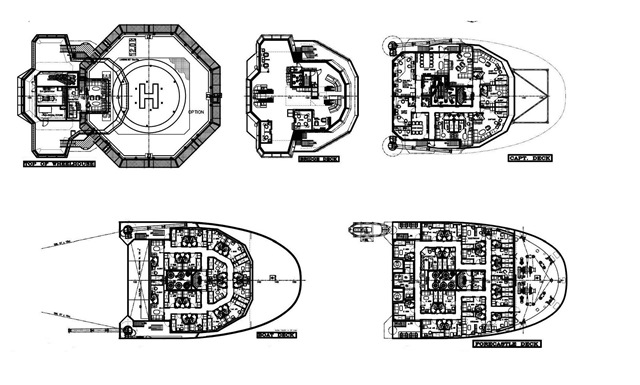

| ACCOMMODATION | |
| Number of cabins | Single cabins 16 pcs |
| Double cabins 26 pcs | |
| 3 man cabins 2 pcs | |
| Total | 74 persons |
| Hospital | 1 pcs |
| Ward | 2 x beds |
| Reception | 1 x SB-side |
| Mess room | 35 seats |
| Dayrooms | 1 x smoking + 1 xnon-smoking |
| Cool store | 28.3 m³ |
| Freezers | 29.6 m³ |
| Dry provision | 44.0 m³ |
| Offices | 1 x ships office |
| Helideck reception | 1 pcs |
| Conference room | 2 pcs |
| Coffee shop | 1 pcs |
| Gymnasium | 1 pcs |
| Wardrobe | Male and female main deck. |
| OFFICE SPACE AVAILABLE TO CLIENT | |
| Conference room | 1 pcs |
| Project office | 1 pcs |
| ROV office | 1 pcs |
| ROV control/online room | 1 pcs |
| Client office | 1 pcs |
| Server room for client | 1 pcs |
| Deck office | 1 pcs |
| ROV Hangar | N/A |
| MISCELLANEOUS | |
| Incinerator | 1 x Saniterm SH20-SM |
| TV system | all cabins and day rooms. |
