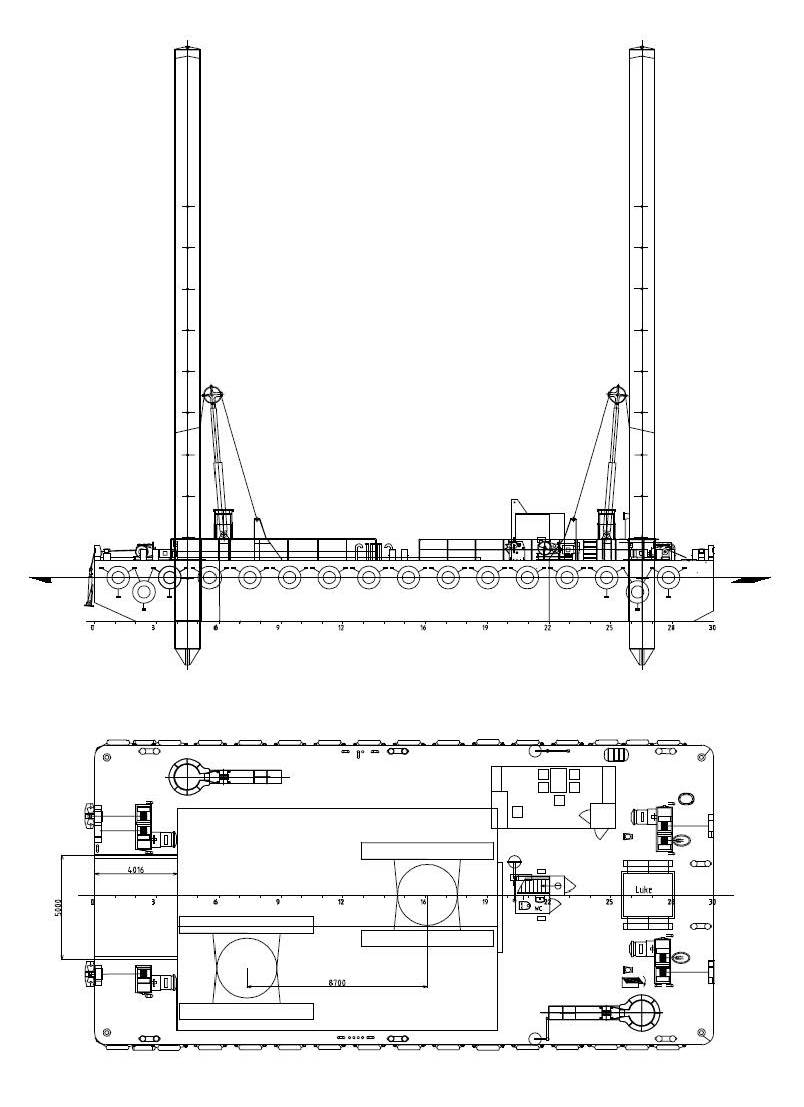

31 m x 15 m Spud Pontoon
2012 built, well maintained spud pontoon for marine construction works in sheltered & estuary waters. Location: North Sea port. Enquire
| General | |
| Built | 2012 |
| Class | DNV-GL, ✠ 100 A5 RSA(20) Ponton |
| Dimensions | |
| Length | 30,5 m |
| Beam | 15.0 m |
| Depth | 2,90 m |
| Draft max | 2.1 m |
| GT | 335 |
| Deck equipment | |
| Suitable for | 90 t crane + 50 t load |
| Spuds | 2 x 27 m x 1,200 mm, 22 t each |
| Spud cylinder | 2 x 2,5 m |
| Mooring winches | 3 x double drum, 6 t pull, |
| 1 x single drum, 6 t pull | |
| Machinery | |
| Generators | 165 kVA + 34 kVA |
| Accommodation | 6 m office container + WC |
