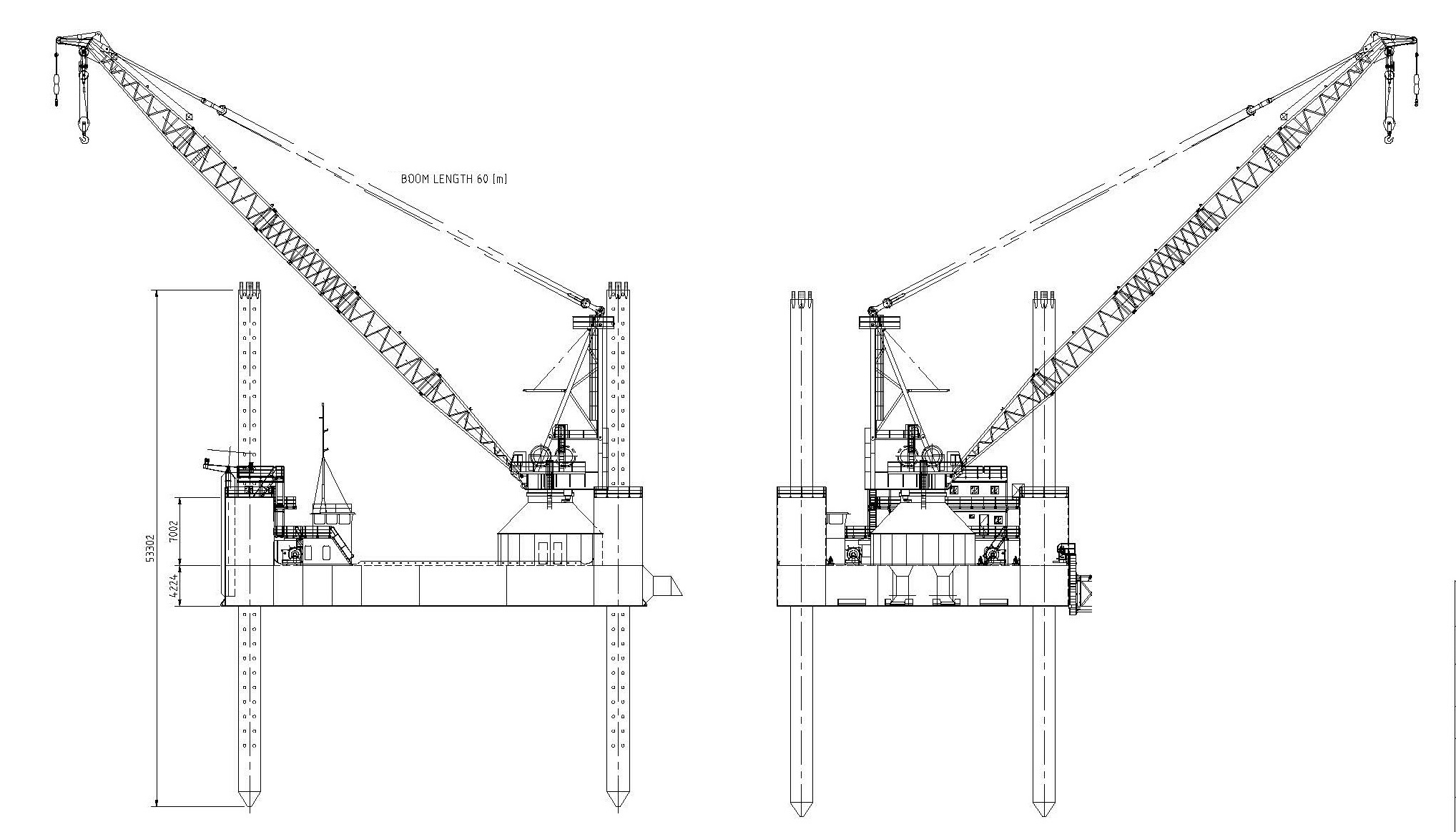

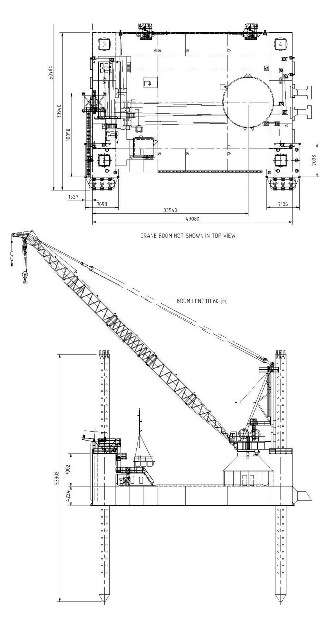

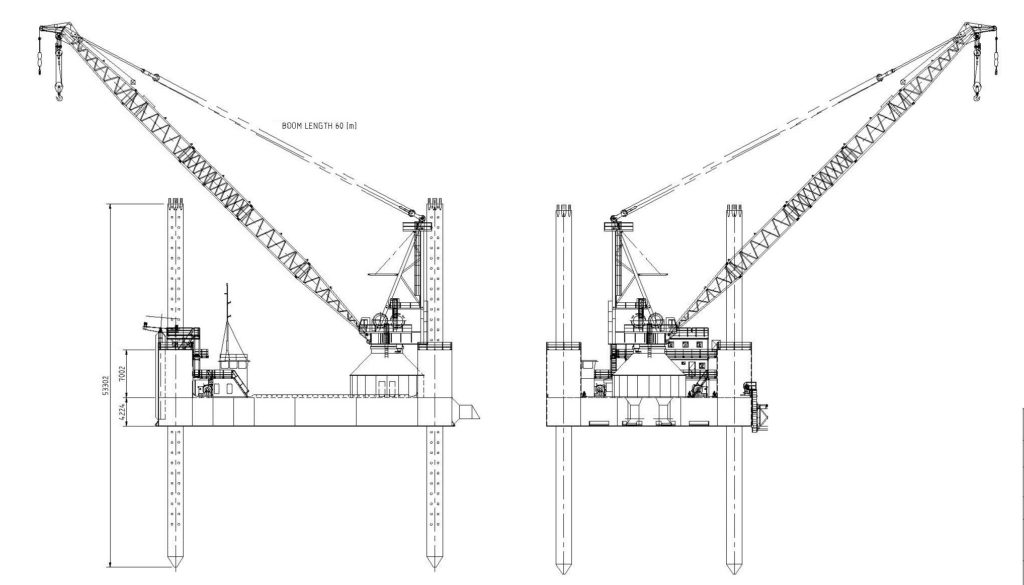

1 noviembre 2016Jack-up Barge, 250 ton pedestal crane
ABS. L x W x Depth (m): 43.0 x 30.0 x 4.20. Max. operating depth 50 meter. 250 ton pedestal crane. 575 dwt. ME. For Charter only. Inquire
General | |
Class | ABS, ✠ A1 Self-elevating unit |
Pontoon | |
Length | 43.0 m |
Beam | 30.0 m |
Depth | 4.20 m |
Draft | 2.60 m |
Tank Capacities | |
Capacity fuel tank | 52 m³ |
Capacity fresh water tank | 63 m³ |
Jacking system | |
Make, System | MSC, Positive engagement |
Leg type | Square |
Capacity (preload) | 1,250 ton/leg |
Jacking speed (ave) | 8 m/hr |
Leg length (min/max) | 52 m / 69 m |
Water depth (max) | 50 m |
Crane | |
Main hoist | 250 ton @ 20 meter |
Auxiliary hoist | 10 ton |
Mooring system | |
Winches | 6 x 50 t hold, 17.5 t pull |
Wires | 6 x 500 m x 32 mm |
Anchors | 6 x Delta Flipper; 3 ton |
Machinery | |
Main generator | 3 x 260 kVA |
Aux. generator | 1 x 110 kVA |
Pile testing facilities | |
Pile diameter (max) | 3.0 m |
Compression test (max) | 1,250 ton |
Tension test (max) | 900 ton |
Optional equipment | |
Impact hammers, Vibration hammers, Drill rigs | |
Accommodation | |
First-aid unit | 20 ft |
Office unit | 2 x 40 ft |
Kitchen / canteen unit | 40 ft |
Sanitary unit | 40 ft |
