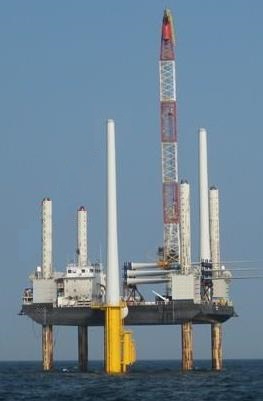

Jack-up Barge, 300 ton pedestal crane

2009, ABS. L x W x Depth (m): 55.0 x 32.0 x 5.00. 72 meter legs. 300 ton pedestal crane. Max variable load: 1250 tons. ME. Inquire

GENERAL
Built	2009
Class	ABS, ✠ A1 self-elevating unit

DIMENSIONS
Length	55.0 m
Breadth	32.0 m
Depth	5.0 m
Draft (max)	3.6 m
Deck area	1,000 m²
Leg length	73 m
Leg diameter	3.0 m
Spudcan surface	24 m² each (removable)

JACKING SYSTEM
Capacity	2,000 tons pre-load per leg
Jacking speed up (max)	0.4 m/min (synchro)
Jacking speed down (max)	0.6 m/min (synchro)
Maximum pay load	1,250 tons

MOORING SYSTEM
Winches	4 x 30 tons line pull (500 meter) electric driven
Anchors	4 x Delta Flipper, 5 tons

CRANE
Capacity	300 tons at 22 meter radius
	52 tons at 62 meter radius
Boom length	60 – 90 meter

HELI DECK
Size	19.5 meter diameter
Capacity	Super Puma / 9.3 tons

JACKING CONDITIONS
Wave height / period (max)	Hs. 1.5 m, 5 seconds
Wind speed (max)	8 m/s

SURVIVAL CONDITIONS
Wave height / period (max)	14.7 meter / 12.5 seconds (air gap 13.5 meter)
Wind speed (max)	39.0 m/s

ACCOMMODATION
Fixed accommodation	64 POB
Optional	Up to 160 POB total
