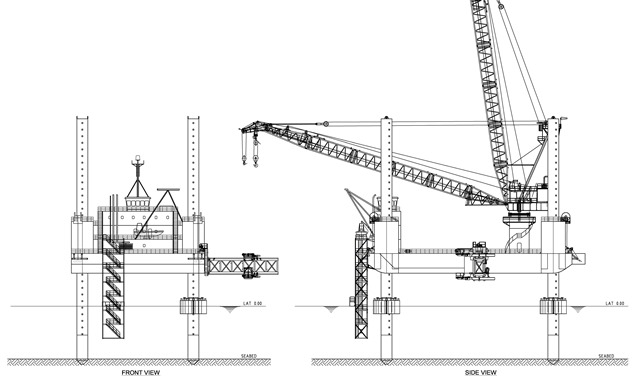

Jack-up Barge, 300 ton pedestal crane

ABS. L x W x Depth (m): 46.0 x 30.5 x 4.50. Max. operating depth 30 meter. 300 ton pedestal crane. 732 dwt. Asia-Pacific. For Charter only. Inquire

General
Built2013
ClassABS, ✠ A1 Construction and
Maintenance Service,
 Self-Elevating Unit

Pontoon
Length46.0 m
Beam30.5 m
Depth4.50 m
Draft2.40 m
Tank capacity
Fuel60 m³
Fresh water60 m³

Jacking system
SystemPositive engagement
Capacity (preload)1,300 ton/leg
Jacking speed (ave.)10 m/hr
Leg length (max / opt.)55 m / 65 m
Water depth (max / opt.)30 m / 40 m

Crane
Main hoist300 ton @ 18 meter
Aux. hoist32 ton

Mooring system
Winches4 x 60 t hold, 25 t pull
Wires4 x 500 m x 32 mm
Anchors4 x Delta Flipper; 3 ton

Machinery
Main generators2 x 450 kVA
Auxiliary generator1 x 120 kVA

Pile testing facilities
Pile diameter (max)3.0 m
Compression test (max)1,250 ton
Tension test (max)900 ton

Optional equipment
Impact hammers, Vibration hammers, Drill rigs
Accommodation
Main deckdeck store, first aid room, tea room,
deck toilet, tween deck, mess room (24)
c/w kitchenette, wash/change room, toilet
Upper deckdouble cabin, 3 x offices, meeting room, toilet
