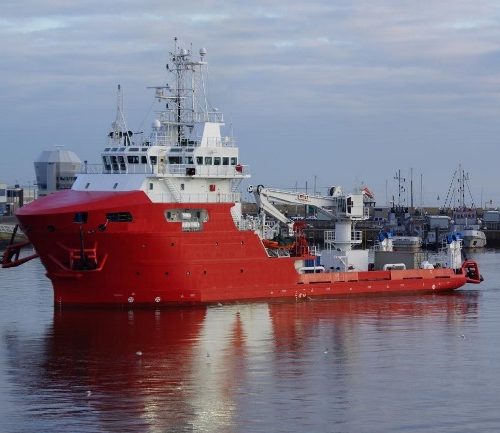

DP2 MPSV 70t/110t AHC crane Helideck (2 sisters)
2004, BV, Loa 79.0 m, Width 18.8 m. DWT: +/-3650 ton. Deck cargo: 2500 ton, AHC deckcrane 110t/70t, 70t at 1.600 m, 75 pax accommodation. WAF. Inquire
| General | |
| Built | 2004 |
| Class | DNV-GL, + 1A1 Fire Fighter I SF LFL* COMF-V(3) |
| HELDK-S E0 Dynpos – Autr Clean DK (+) HL(2,8) | |
| Dimensions | |
| Length bpp | 78.8 m |
| Beam | 18.8 m |
| Depth | 7.60 m |
| Draft (Min/Max) | 4.8 m / 6.2 m |
| GRT | 3,970 |
| Deck & Cargo capacities | |
| Deck area | 850 m² @ 10t/m² |
| Mezzanine deck area | 160 m² @ 10t/m² |
| Deck cargo | 2,500 t @ 1 m above deck |
| Deadweight at max. draft | 3,650 t |
| Tank & Transfer capacities | |
| Fuel oil | 1,288 m³ – 2 x 250 m3/h @ 9 bars |
| Drill or Water ballast | 2,658 m³ – 2 x 250 m3/h @ 9 bars |
| Anti-heeling | 540 m³ – 1,400 m3/h |
| Fresh water | 744 m³ – 2 x 250 m3/h @ 9 bars |
| Mud / Brine | 600 m³ / 750 m3 – 4 x 100 m³/h @ 24 bars |
| Methanol | 160 m³ – 2 x 100 m3/h @ 9 bars |
| Dry bulk | 380 m3 – 80 t/h @ 8 bars |
| Foam | 4.5 m3 |
| Machinery | |
| Main generator | 4 x 1,655 kW – 690 V |
| Main propulsion | 2 x 2,500 kW, CP Azimuth thrusters |
| Bow thruster | 1 x 883 kW, CP Tunnel |
| Bow thruster retractable | 1 x 883 kW, CP Azimuth |
| Emergency generator | 1 x 370 kW – 440 V, 60 Hz |
| Water maker | 1 x RO – 12 m³/day |
| Speed & Consumption | |
| Max. speed (100%) | 14 knots – 25 t/day |
| Service speed (80%) | 11 knots – 14 t/day |
| Stand-by in port | 2 t/day |
| Stand-by on DP | 7 t/day |
| Deck Equipment | |
| Offshore crane | NOV knuckle boom |
| Harbour capacity | DAF 1.2 – 110 t @ 12 m – 40 t @ 30 m |
| Offshore capacity | DAF 1.6 – 70 t @ 17 m – 30 t @ 30 m |
| Main winch | 70 t / 61 t – 1,600 m – AHC |
| Auxiliary winch | 10 t / 10 t – 2,000 m – AHC |
| Deck provision crane | 2 x 3 t @ 12 m |
| Tugger winch | 2 x 12 t |
| Capstan | 2 x 10 t |
| Deck service air supply | 7 bar |
| Deck power supply | 4 x 200 kW – 690 V & 1 x 450 kW – 440 V |
| Fast Rescue Craft | 1 x Norsafe |
| Helideck | 18 m / 9.3 t (Super Puma AS332) |
| Dynamic Positioning | |
| Class | DP2 – Kongsberg SDP-21 |
| Reference systems | DGPS 1 Seastar 3100LRS |
| DGPS 2 Seastar 3100LRS | |
| MDL Fan Beam | |
| Kongsberg HIPAP 500 | |
| DGPS Thales NR203 | |
| Fire Fighting (external) | |
| Class | Fi-Fi 1 |
| Pumps | 2 x 1,500 m³/h |
| Monitors | 2 x 1,200 m³/h |
| Communication | |
| Inmarsat | 2 x Satcom |
| VSAT | 1 x C band 256 Kbit |
| Accommodation | |
| Cabins | 1 man cabins 13 |
| 2 men cabins 27 | |
| 4 men cabins 2 | |
| Accommodations for | 75 persons |
| 1 x Hospital | |
| 3 x Office, 1 x Conference room | |
| 1 x Mess, 2 x Day rooms, 1 x Laundry, 1 x Galley, 1 x Workshop, 1 x Gym | |
| Air conditioning | Throughout accommodation |
