70 m x 18 m Spud Barge

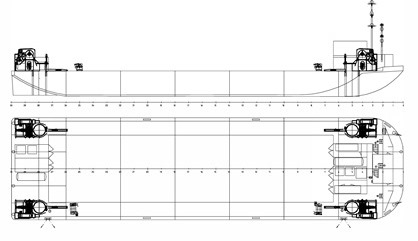

2008 rebuilt and solid 70 x 18 meter Spud barge with 30 meter spuds for near shore marine construction works. Location: North Sea port. Enquire
| General | |
| Built / rebuilt | 1978 / 2008 |
| Class | DNV-GL, ✠ 100 A5 Pontoon |
| Dimensions | |
| Length | 70 m |
| Beam | 18.3 m |
| Depth | 4.6 m |
| Draft | 3.7 m |
| GT | 1,450 |
| Machinery | |
| Generator | 1 x 360 kW + 1 x 120 kW |
| Deck equipment | |
| Spuds | 4 pc x 30 m x 2.0 m |
