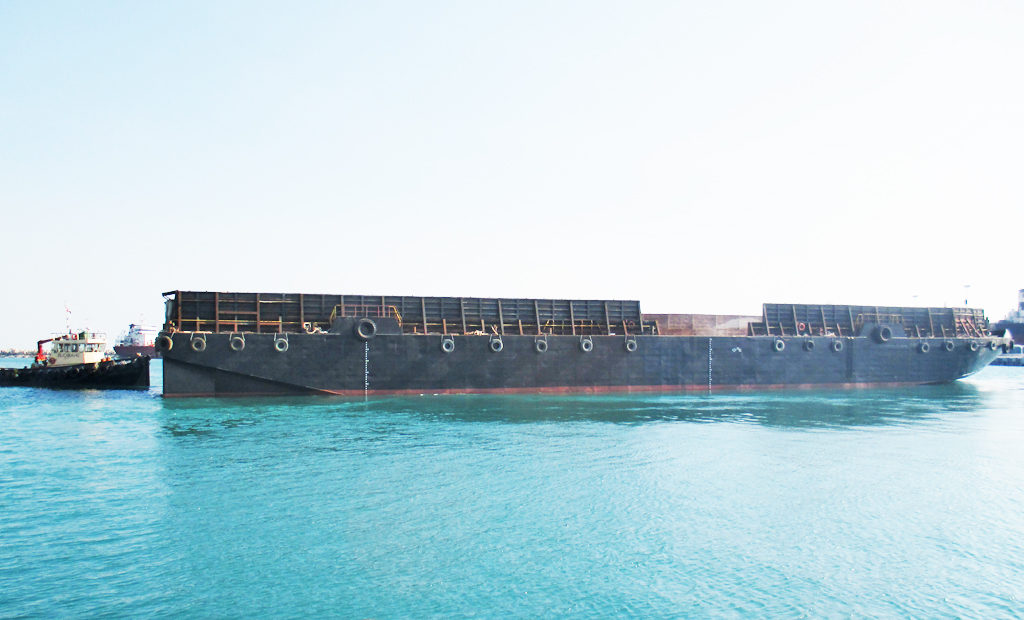

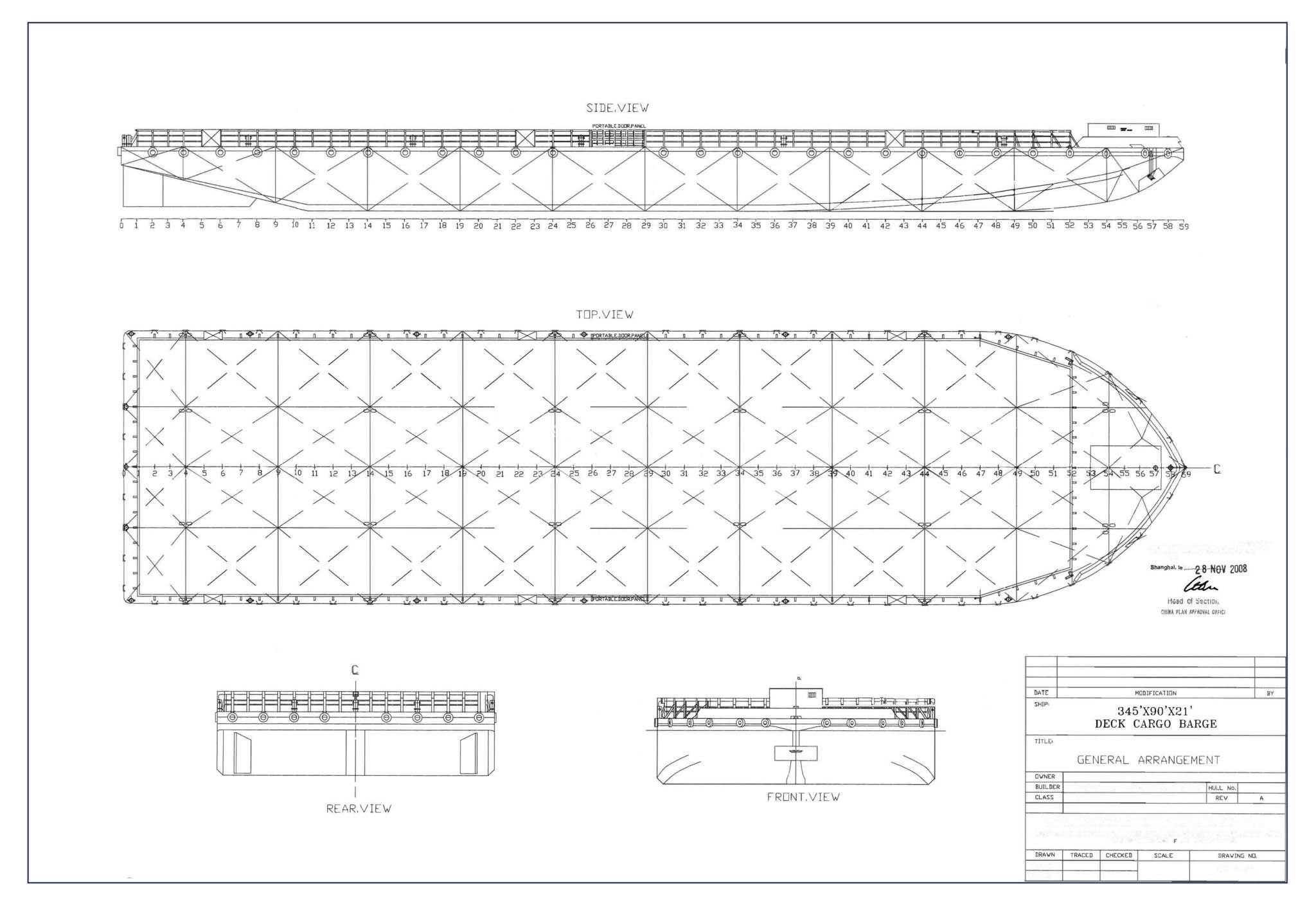

345 ft Deck Cargo Barge
2008, built in China, BV class, unrestricted navigation, l x b x d(m): 105 x 27.50 x 6.40, Deadweight: approx. 10,000 tons, deckstrength: 15 tons/m2. 3.60 m high coaming all around, including standard accessories.
| GENERAL | |
| Year Built | 2008 |
| Where Built | Nanjing, China |
| Class | Bureau Veritas, BV |
| Navigational Area | Unrestricted |
| DIMENSIONS | |
| Length Overall | 105.16 m / 345 ft |
| Breadth (moulded) | 27.43 m / 90 ft |
| Depth (moulded) | 6.40 m / 21 ft |
| Max Draft | 5.02m |
| GRT / NT | 4,361 / 1,308 |
| Deadweight | Approx. 10,165 ton |
| Lightship Weight | Approx. 1,780 ton |
| Displacement | Approx. 11,945 ton |
| Deck Strength | 15 ton/m2 |
| FEATURES | |
| Deck’s Fitting | 1 Winch house inclusive 1 x 10 ton Anchor Winch |
| 1 x 2,900kg Stockless Bow Anchor | |
| 2 x Smit Towing Bracket | |
| Sixteen (16) Twin Mooring Bollards at Main Deck | |
| Sufficient 15kg Alum. Anode for two (2) years Protection | |
| Three (3) Navigation Light Stand with Battery Box | |
| Sufficient Rubber Tyre Fenders for Barge Protection | |
| Coaming | 12ft High All Around |
