Buques Alta Mar

Buques en Alta Mar en Venta  y para Fletamento

Buques de Buceo / Salvamento

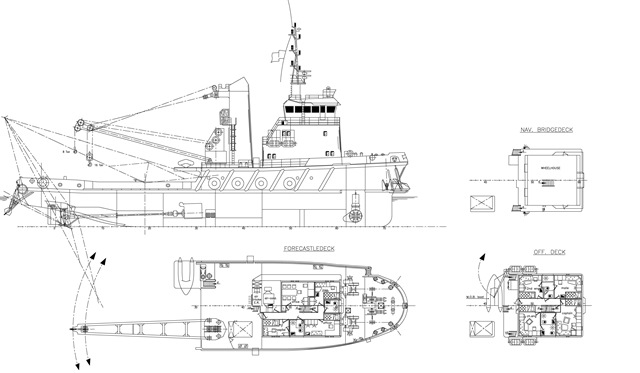

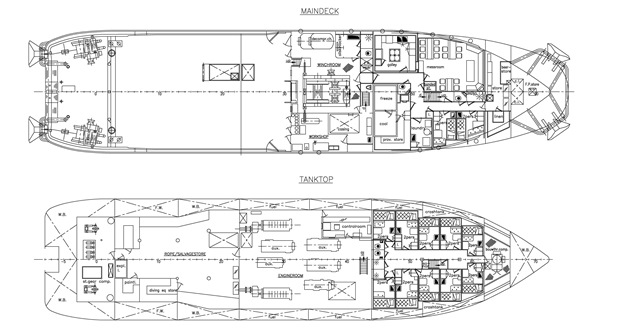

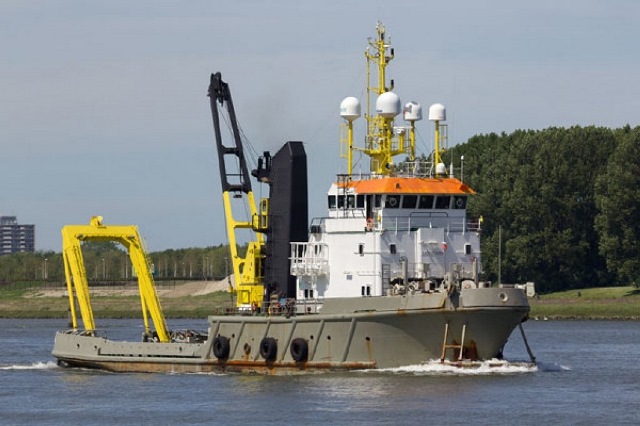

4PM Diving Support - / Salvage Vessel (priced to sell)

1983, BV class, Diving Support / Salvage Vessel. Loa 50.0 m, Width 11.4 m, Depth 4.8 m. 4-point mooring. Stern roller 140 ton. Deckcrane 16 tm, A-frame 60 ton. Decompression chamber, Diving equipment store, Rope/Salvage equipment hold. 30 pax accommodation. Presently operational, North Sea. Inquire

General
Built 1983
Class BV, I  Hull + Mach, Special service/Salvage boat
  Unrestricted navigation, + MACH

Dimensions
Length overall 50.0 m
Width 11.0 m
Depth 4.80 m
Draft (max.) 3.80 m
Air draft 25.0 m
Gross tonnage 840

Deck area 162 m2
Deck capacity 250 ton
Deck load 5 ton/m2
Deadweight 700 ton

Machinery & propulsion
Propulsion 2 x MAN 20L2027, 700 kW each
Bow thruster 1 x Lips CT06-1, 350 kW, FPP
Generator 3 x 3406 DI, 250 kW each, 1 x 3306 DI, 135 kW
Harbour gen. 1 x 3304 DI, 55 kW

Performance
Bollard pull 30 ton
Speed, cons. 11 knts, 5 m3/day

Deck equipment
4-point mooring 4 x Delta Flipper anchors each 2,5 t,
  4 x winches 1.000 m wire forward, 650 m wire aft

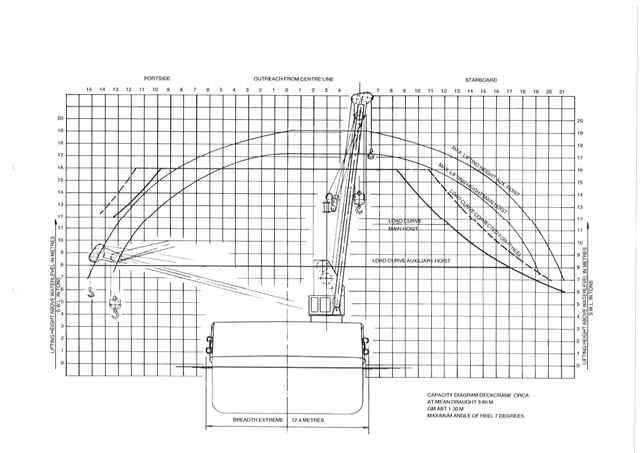

Crane 16 tm
A-frame 60 t SWL, 10 meters above deck, 3,6 m outreach
Stern roller 140 t
Tugger winch 10 t
Towing winch 60 ton pull, 100 ton brake. Wire. 500 m x 50 mm

Tank capacity
Fuel oil 270 m3
Potable water 120 m3
Ballast 250 m3

Pump capacity
Fuel 10 m³/ hour at 3 bar
Various SW pumps and air-compressors

Navigation and communication
VHF (3x)
Electronic chart system
Echo sounder
Sonar
Radar (2x)
Automatic pilot
Satcom & wireless telephone

Life Saving Equipment
As per SOLAS requirements

Accommodation
Cabins 6 x 1-berth & 12 x 2-berth
Total 30 berth
Other spaces Conference room
Hospital
Features
Decompression chamber (space)
Diving equipment store
Rope – / Salvage equipment hold

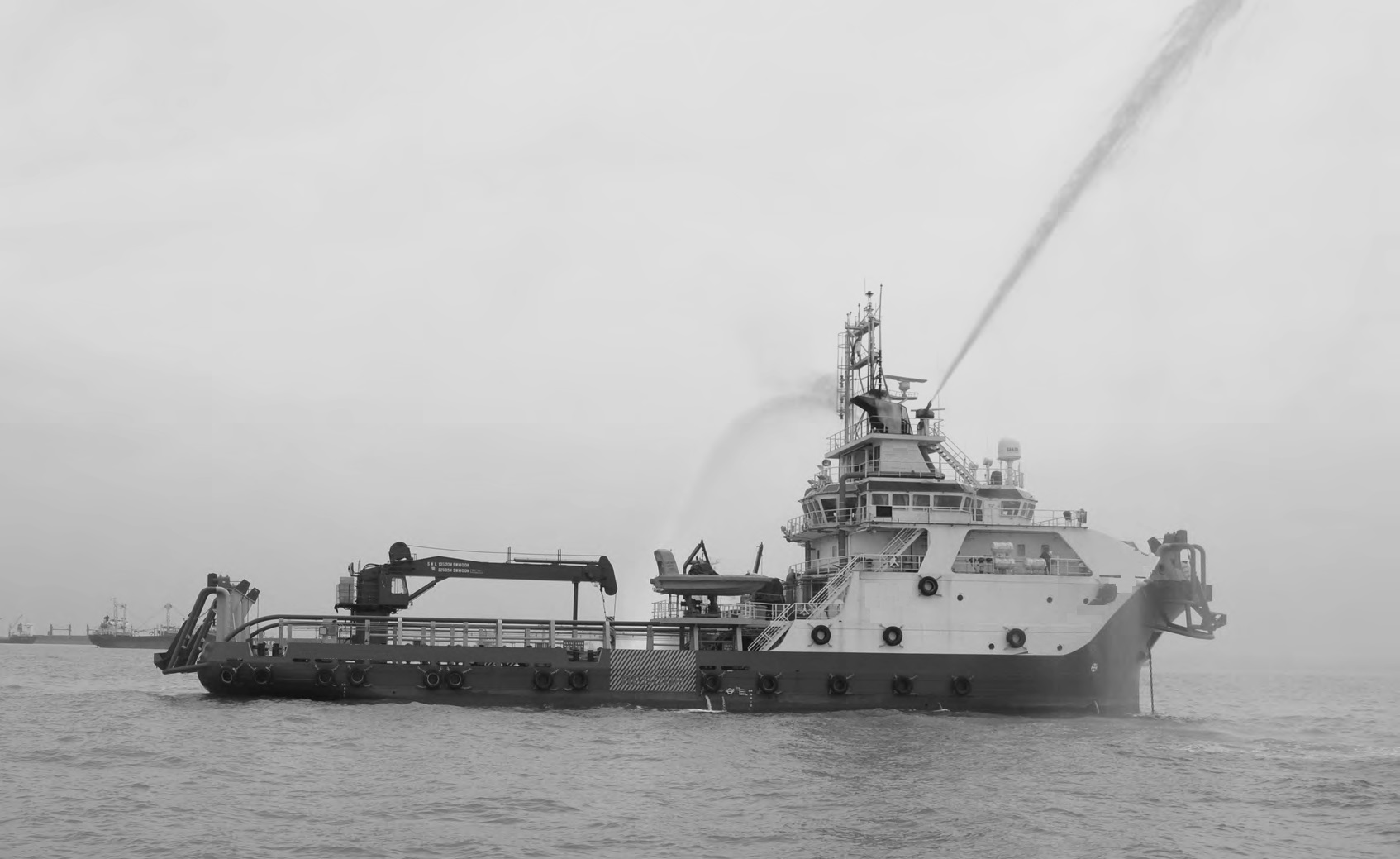

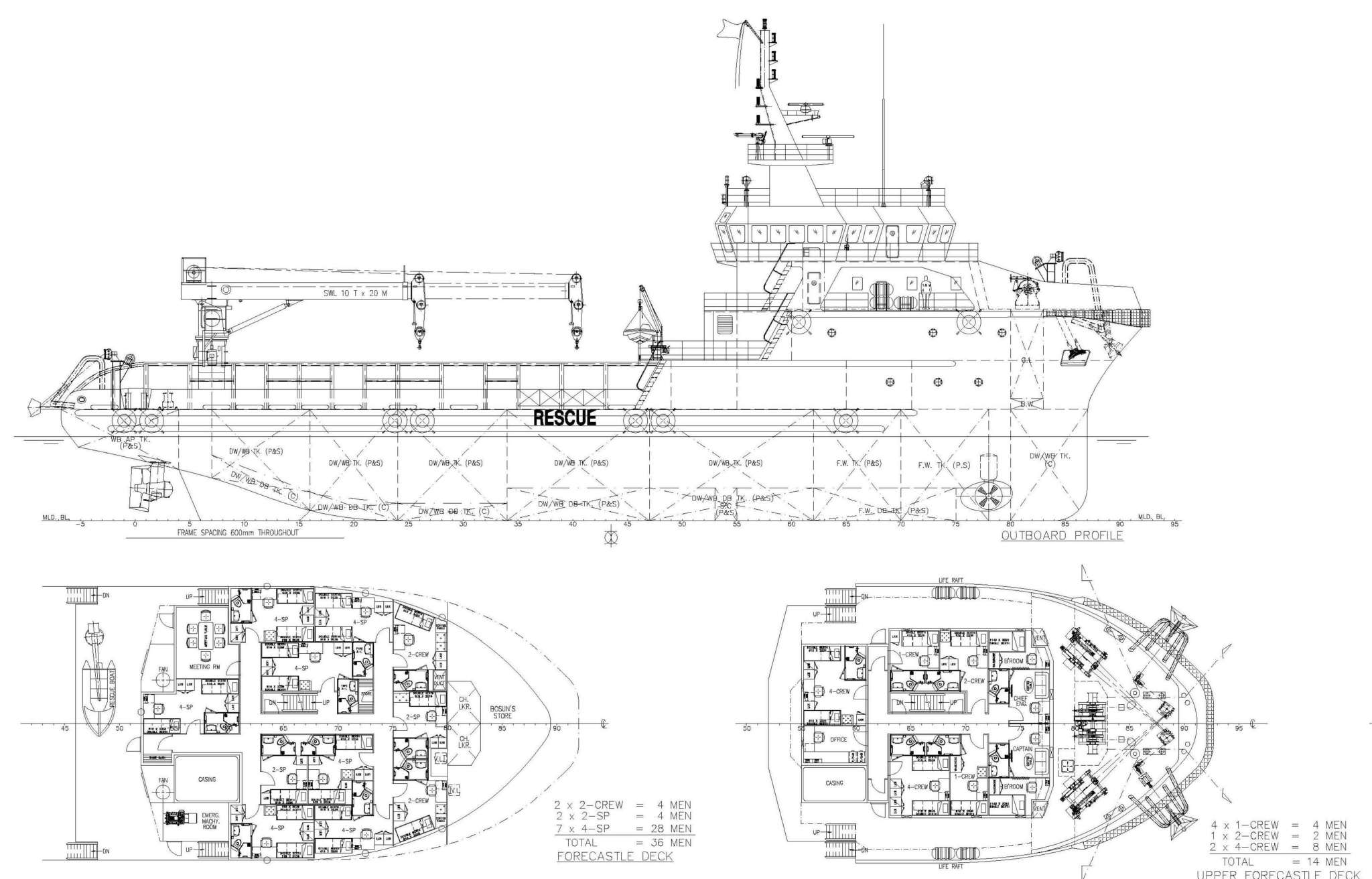

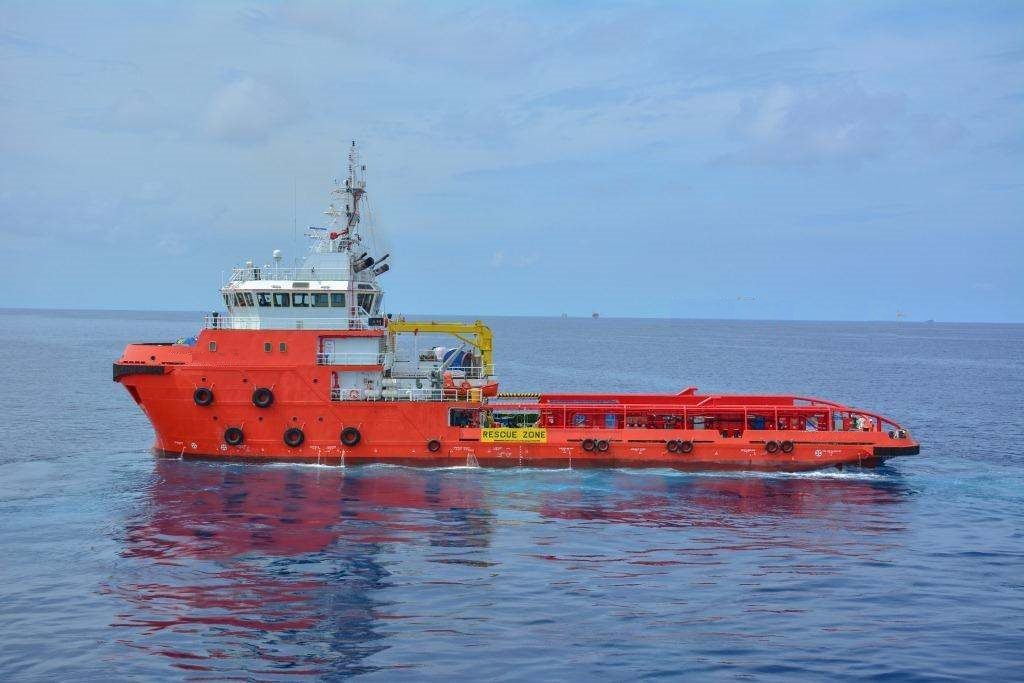

Buque de Adentro (SSV)

DP-1 Buque de Adentro (OSV)

Versátil y Multifuncional

2013, Clase ABS, DP-1, FiFi-1, Propulsión azimutal, Eslora 59,0 m, Manga 15,0 m, Puntal 6,1 m. DW: +/-1.450 ton, Carga de cubierta: 500 ton, 2 x 1.550 kW, hélice de proa, 4-point mooring, deckcrane, Alojamiento de 50 personas. Golfo del Oriente Medio. Precio: Consulta

PRINCIPAL PARTICULARS
Year Built 2013, China
Class ABS
Notation +A1 E «Offshore Support Vessel, Fi Fi Class 1 + AMS + DPS 1
GT / NT 1,671 / 501

DIMENSIONS
Length Overall 59.25 m
Length Waterline 56.00 m
Breadth Moulded 15.00 m
Depth Moulded 6.10 m
Draft 4.60 m

CARGO CAPACITIES
Deadweight 1,450 mt
Deck Cargo 500 mt
Deck Area 350 m2
Deck Strength 7t/m2
Fuel Oil 880 m3
Fresh Water 400 m3
Water Ballast/Drill Water 1,000 m3
Dispersant 13 m3
Foam 13 m3
Freezer 10 m3
Cooler 10 m3
DISCHARGE CAPACITIES
Fuel Oil 1 x 150 m3/hr @ 60m head
Fresh Water 1 x 100 m3/hr @ 75m head
Drill Water 1 x 100 m3/hr @ 75m head
Bilge/Ballast 2 x 75 m3/hr @ 40m head

MACHINERY
Main Engines 2 x 2,200 BHP Wartsila 8L20
Main Generators 3 x 350 kW Diesel Driven, 415V/3Ph/50Hz
Emergency Generator 1 x 80 kW
Propellers 2 x Azimuth Thruster Controllable Propeller Wartsila LIPS CS 225-S/WN – K
Rudders Z Propeller
Bow Thruster 1 x 350 kW , 5 mt Thrust
Steering Gear Wartsila Z – Peller

SPEED
Max. Speed 12.0 knots
Economical Speed 10.0 knots
Type of Fuel Marine Gas Oil
Consumption Economy: approx. 8 mt / 24 hrs @ 85% MCR
Maximum : approx. 14 mt / 24 hrs @ 100% MCR

ACCOMMODATION
1 men Cabins 4
2 men Cabins 5
4 men Cabins 9
Total: 50
Hospital 1 bed
All cabins fully air-conditioned with en suite wash rooms.

RADIO & NAVIGATION EQUIPMENT
GMDSS: Area 3
1 x SSB
2 x Inmarsat C
2 x VHF
1 x Navtex Receiver
2 x SART
1 x EPIRB
3 x VHF Portable radios
2 x Radar
1 x Echosounder
1 x DGPS
1 x Gyrocompass
1 x Autopilot
1 x Magnetic Compass
1 x Weather Fax Receiver
1 x Speedlog
1 x Wind Indicator
1 x AIS
1 x PA/Talkback System
1 x Kongsberg Joystick Control
1 x Self Powered Telephone
 DP-1 – Konsberg

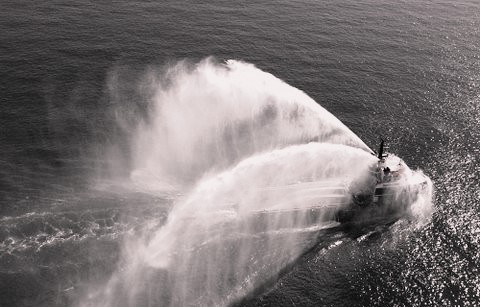

FIRE FIGHTING & ANTI POLLUTION EQUIPMENT
FIFI System Class 1
Pump 2 x 1,500 cbm/hr @ 14 bar
Monitors 2 x 1,200 cbm/hr @ 12 bar (with remote control)
One monitor fitted with double barrel for foam discharge
1 x Water Spray Curtain round the Hull & Deckhouse
Engine room water spray system: Seaplus, South Korea
Fire Extinguishing System
Engine Room CO2 system
12 x fire hydrants and fire extinguishers as Class requirements
2 x fireman outfits
4 x fire blankets for engine room and galley
1 x BA recharging compressor of 75 ltr/min @ 200 bar
Life Saving
6 x 25 men Inflatable Life rafts
8 x Lifebuoys
60 x Lifejackets
1 x Rigid Inflatable Rescue Boat for 6 persons (with outboard motor)

AUXILIARY EQUIPMENT
1 x Sewage Treatment Plant suitable for 50 men
1 x 10T/day Reverse Osmosis Fresh Water Maker
1 x Oily Bilge Water Separator
1 x FRC 15 man with diesel inboard engine c\w launch recovery davit

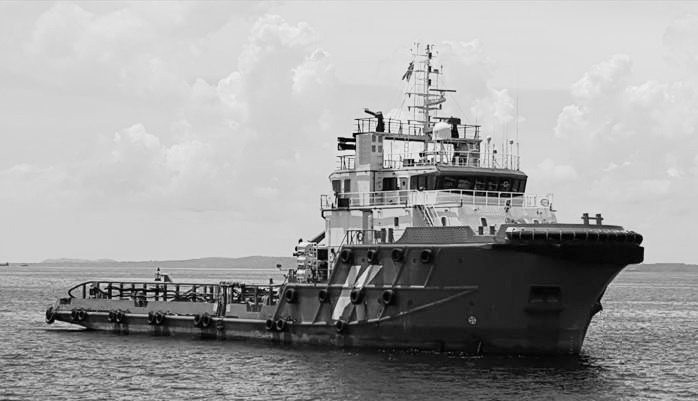

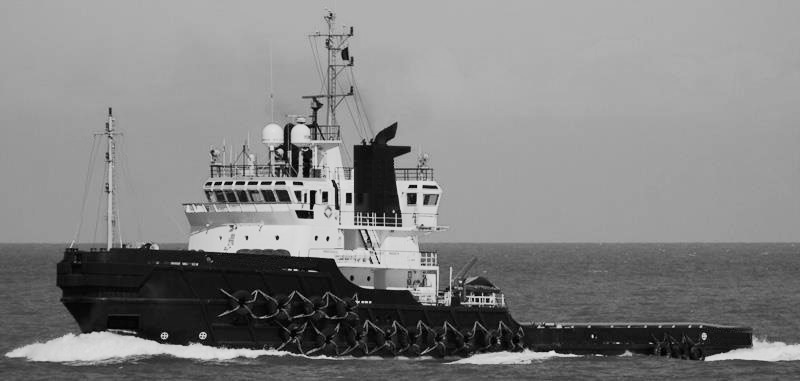

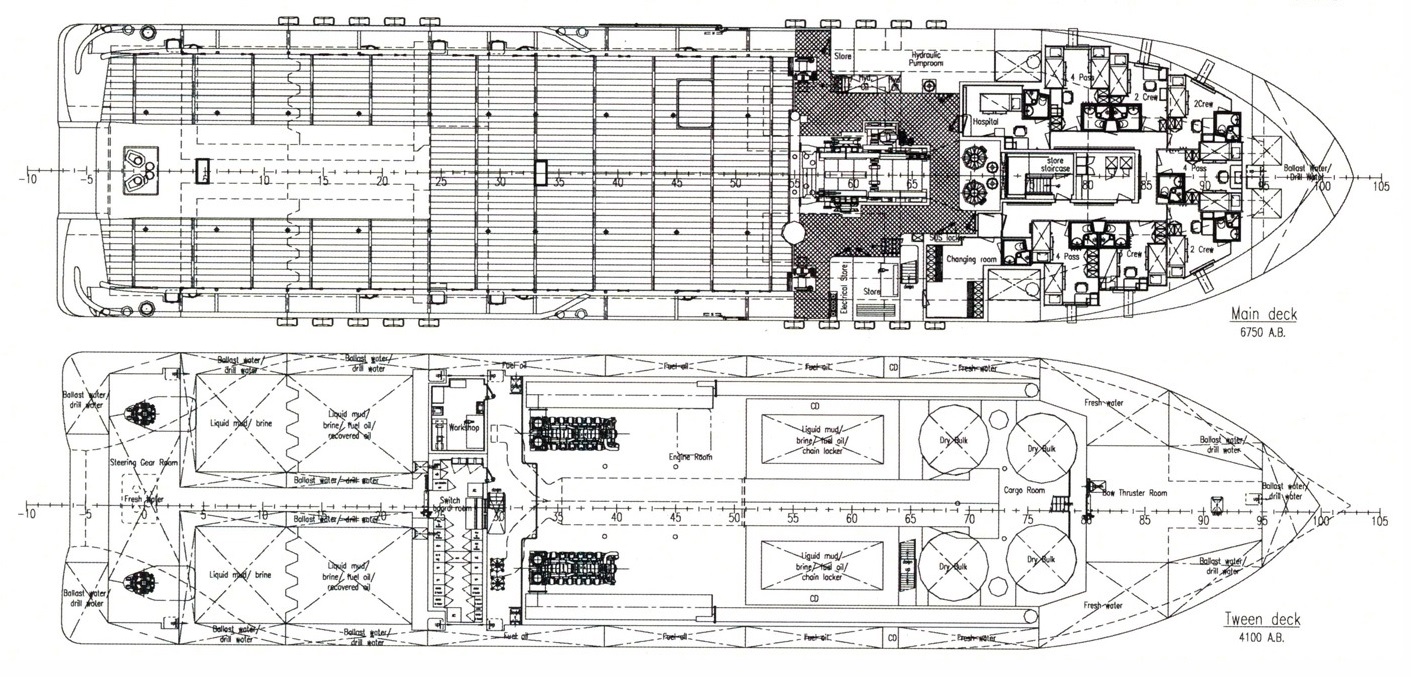

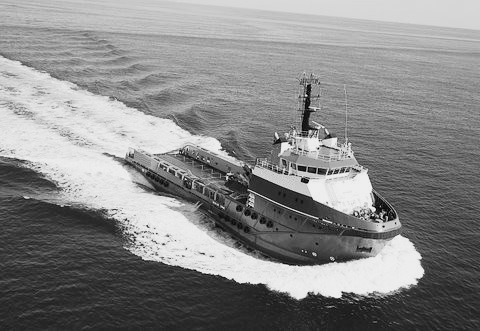

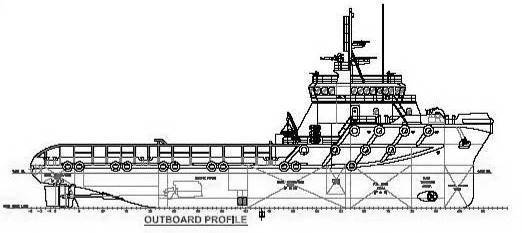

 Buque Anclero (AHTS)

85 tbp, SPS, DP-2, FiFi-1

2016, ABS, Resale, Loa 65.00 m, width 16.00 m, depth 6.20 m, max draft 5.00 m, DW 1,800 tons, Deck Cargo 800 tons, Deck Area 435 m2. Location: Far East. Price: Inquire

GENERAL
Class ABS
Notation +A1(E) OFFSHORE SUPPORT VESSEL (AH, SUPPLY-HNLS, TOW) OSR-C1 +AMS + DPS-2 FFV 1, SPS CODE UWILD UNRESTRICTED SERVICE
Built 2016

DIMENSIONS
Loa 65.00 m
Lbpp 58.50 m
Breadth moulded 16.00 m
Depth 6.20 m
Draft designed 5.00 m
Accommodation 8 x 1 berth cabins: 8 men
5 x 2 berth cabins: 10 men
8 x 4-berth cabins: 32 men
Total: 50 men

PERFORMANCE
Speed 12.5 knots at trial condition, 100% MCR, design draft.
Bollard Pull 88 ton

CARGO CAPACITY
Deadweight Deadweight about 1,800 t at scantling draft.
Deck Loading 7 t/m2
Deck Cargo Capacity about 600 t
Deck Cargo Space about. 435 m2

TANK CAPACITY
Potable water 440 m3
Fuel oil 580 m3
WB/Drill water 690 m3
Dry bulk cargo tanks 150 m3
Mud / Brine/R.O 460 m3 (SG 2.5)
Lub oil 10 m3
Dirty oil 10m3
Foam 10 m3
Dispersant 10 m3

MACHINERY
Main Engine 2 x 3,300 HP. Medium speed
Propulsion System Two (2) four or five bladed controllable pitch propellers to be supplied.
Main Gensets Three (3) 450 KW diesel driven alternators (415V/3/50Hz).
Shaft Generator Two (2) 1000 KW shaft generator driven by gear box
Bow Thruster Two (2) transverse tunnel CPP bow thrusters. Each giving a thrust of approx. 10T, to be driven by continue electrical motor.
Stern Thruster One (1) transverse tunnel CPP stern thruster, giving a thrust of approx. 8T, to be driven by continue electrical motor.

DECK MACHINERY
AH/Towing Winch One (1) set, high pressure electro-hydraulic driven, double drum, waterfall type. Braking capacity: 250 ton
Tugger Winches Two (2) electro-hydraulic tugger winches of 10 tonnes at 15 m/min
Capstan Two (2) electro-hydraulic capstans shall be installed at main deck aft (P & S), with pulling force of 10 tonnes at 15m/min.
Deck Crane One (1) electro-hydraulic telescopic crane to be installed. SWL 2t at outreach 15m.

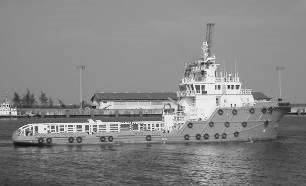

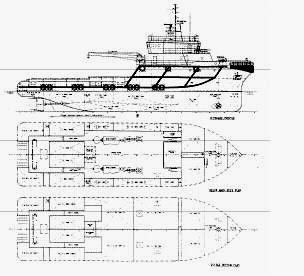

85 tbp, SPS, DP-2, FiFi-1, Oil Rec

2013, ABS, Sinapore Flag, Loa 65.00 m, width 16.00 m, depth 6.20 m, max draft 5.00 m, DW 1,800 tons, Deck Cargo 800 tons, Deck Area 435 m2. Location: ME Gulf region. Price: Inquire

PRINCIPAL PARTICULARS
Length BP 58.50m
Breadth Moulded 16.00m
Depth Moulded 6.20m
Draft (designed) 5.00m
Built 2013
GRT/NRT 2,950/ 885 (approx)

CLASS NOTATION
ABS + A1 (E) Offshore Support Vessel, AH, Towing Vessel, Fire Fighting Ship Class 1, Oil Recovery Capability Class 1, + AMS, DPS Comply to SPS Code

PERFORMANCE
Maximum Speed 13.8 Knots @ 100% MCR
Economical Speed 12.8 Knots @ 85% MCR
Type of Fuel Marine Gas Oil
Fuel Consumption 21 m3/24 hours @ 100% MCR
16 m3/24 hours @ 85% MCR
Bollard Pull 85 Tons (max)

ACCOMMODATION
Berths 8 x 1 berth cabin – 8
3 x 2 berth cabin – 6
9 x 4 berth cabin – 36
Total 50
Hospital 1 x 1 berth cabin – 1
All cabins fully air-conditioned & c/w attached wash

CARGO CAPACITIES
Deadweight 1,800 Ton (approx)
Deck Cargo 600 mt (approx)
Deck Strength 7 Ton/m2 uniform loa 435 m2 (approx)
Clear Deck Area 550 m3 (approx)
Fuel Oil 350 m3 (approx)
Fresh Water 550 m3 (approx)
Ballast/Drill Water 400 m3 (approx)
Mud/Brine/R.O. Cement 150 m3 (approx)
Freezer / Chiller 10 m3 / 10 m3
Foam / Detergent 10 m3 / 10 m3
Rig Chain Locker Nil

PUMPS
Fuel Oil 1 x 150 m3/hr @ 70
Fresh Water 1 x 100 m3/hr @ 70
SWB/Drill Water 1 x 100 m3/hr @ 70
Liquid Mud/Brine/R.0. 2 x 100 m3/hr @ 70
Bilge/Ballast/GS/Fire 2 x 100 m3/hr @ 70
Bilge 2 x   45 m3/hr @ 30
Bulk Cement Compressor 2 x   13 m3/min @ 80 PSI

PROPULSION SYSTEM
Main Engines 2 x 3,300 PS (Niigata 8L28H)@ 750RPM
Main Generator 3 x 450 kW diesel driven, 415V/3Ph/50Hz (CAT)
Shaft Generator 2 x 900 kW
Emergency Generator 1 x 99 kW, (CAT)
Bow Thruster 2 x 10 Ton Thruster, approx 600kw, CPP (Kawasaki Wuhan)
Stern Thruster 1 x 8 Ton Thruster (Kawasaki Wuhan)
CPP Berg

MISCELLANEOUS
Liferafts 6 x 25, SOLAS standard
Rescue boat 1 x 6 c/w inboard diesel engine
Oily Water Separator 1 x 1.0 m3/hr, Ocean clean/ Boss
Water Maker 1 x 10 T/day, Sea recovery/Peter Taboada
Sewage Treatment Plant 1 x 50 men/day, Taixing/Taiko

DECK EQUIPMENT
Anchor Windlass 2 x 1 OT @ 9m/min, electro hydraulic
Drum Nil
Gypsies suitable for 32mm dia U2 chain
Bow Anchors 2 x 1,4400kg HHP Stockless Anchor
Chains 2 x 440 m (L) x 32 mm (Dia), Grade U3
Capstan 2 x [email protected] 15 m/min electro hydraulic
Tugger Winch• 2 x 10 [email protected] 15 m/min electro hydraulic
Drum Capacity 250 m x 22 mm Dia
Deck Crane 1 x 2 [email protected] 15m (China Make)
Towing /AH Winch• 1 x Elec. Hyd., double drum waterfall
Upper Drum (Tow) 60 mm dia x 1200m
Lower Drum Cap (AH) 60 mm dia x 1200m
Line Pull 150 [email protected]/min (1st layer)
Static Brake 250 Ton
Stern Roller 4.40 m (L) x 1.70 m (dia); SWL 250 mt
Lock Jaws 1 x Hydraulic 250 SWL
Tow Pin 2 x Hydraulic 250 SWL
Storage Reel 1 x 6 [email protected] m/min

RADIO & NAVIGATION EQUIPMENT
GMDSS Area A1 + A2 + A3, consist of:
lnmarsat C 1 x Furuno Felcom-15
VHF Radio 2 x Furuno FM-8800S
Navtex Receiver 1 x Furuno NX-700B
SART 2 x McMurdo S4
EPIRB 1 x McMurdo E5
Portable VHF Radios 3 x McMurdo R2
Radar 2 x Furuno FAR2117
Echo Sounder 1 x Furuno FE-700
DGPS 1 x Furuno GP-150
Gyrocompass 1 x Anschutz Standard 22
Autopilot 1 x Anschutz PilotStar D
Magnetic Compass 1 x Liliey-Gillie MK2000
Weather Fax 1 x Furuno FAX-408
Speed Log 1 x Furuno DS-80
Wind Indicator 1 x Gill Ultrasonic
AIS 1 x Furuno FA-150
BNWAS 1 x Furuno
Fleet Broadband 1 x Furuno
DP DP 2 System Kongsberg
Joystick 1 x Kongsberg Portable Control Station
Vessel also fitted with PA Talkback System & Self-powered Telephone.

FIRE-FIGHTING EQUIPMENT & ANTI-POLLUTION EQUIPMENT
EXTERNAL
FiFi System Class 1 with water curtain all round
Fire Pump 2 x 1,650 m3/hr @ 140m head
Monitors driven by front PTO ME
water/foam 2 x fire monitors
Oil Dispersant System 2 x Cluster nozzles or overhang boom
INTERNAL
Emergency Fire Pump 1 x 45 m3/hr x 60m head
BA Recharging Comp 1 x 75 ltr/min @ 200 bar

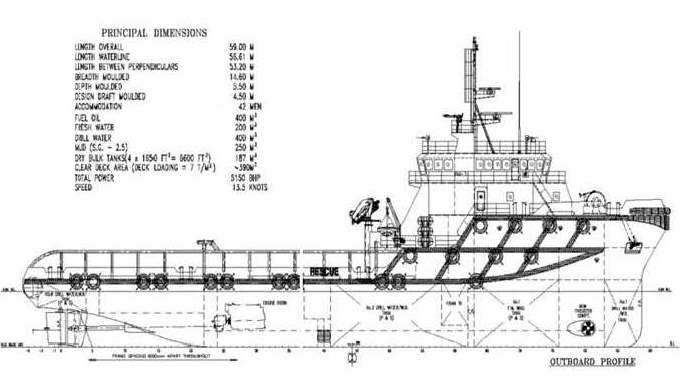

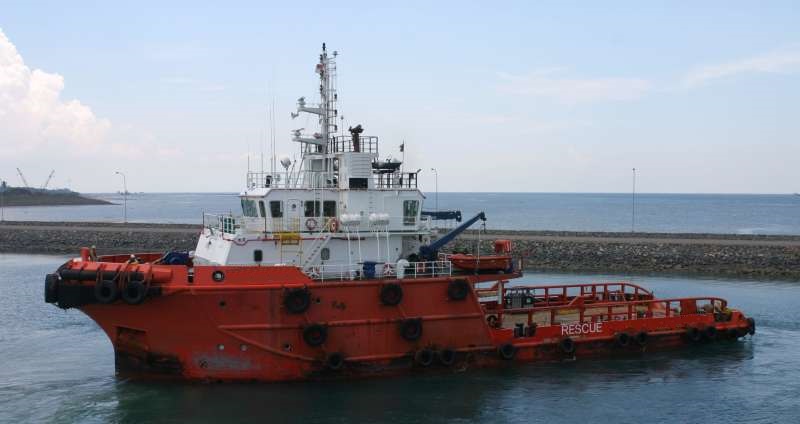

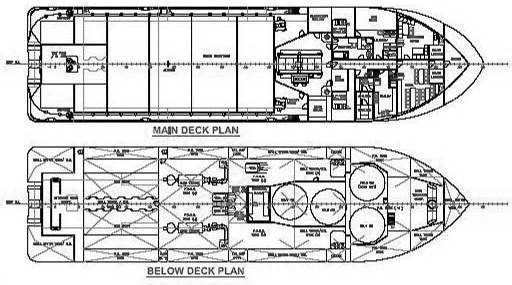

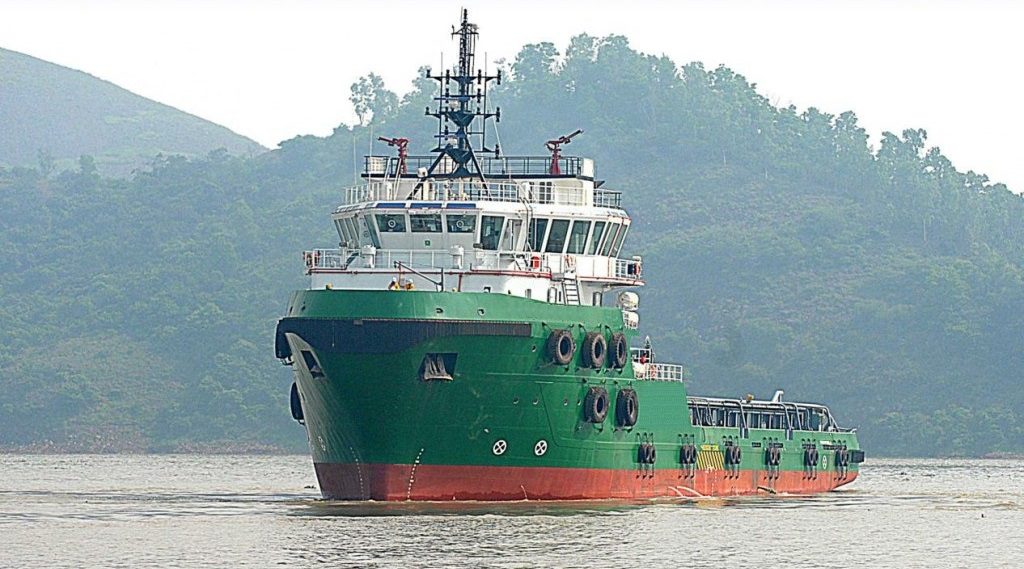

64 tbp, DP-1, FiFi-1 waterspray, Oil Rec

2008, BV, Loa 59.00 m, width 14.60 m, depth 5.50 m, draft 4.50 m. deadweight +/- 1,275 tons. deck cargo: +/- 500 tons. Deack area 360 m2, accommodation 42 persons. ME Gulf region Price: Inquire

PRINCIPAL PARTICULARS
Length Overall 59.00 m
Length Waterline 56.61 m
Breadth Moulded 14.60 m
Depth Moulded 5.50 m
Draft (max) 4.50 m
Draft (design) 4.50 m
Built China
GRT / NRT 1494 / 448
Year of delivery 2008
Class Bureau Veritas Notation Class 1 + Hull + MACH “Supply Vessel & Fire Fighting Ship” 1-Water spraying; Special service – Anchor Handling Vessel Unrestricted Navigation DYNAPOS- AM/AT
Flag (Port of Registry) Singapore

PERFORMANCE
Maximum Speed / Consumption 12.5 knots / 16 m3 (24 hrs)
Service Speed / Consumption 10 knots / 13.5 m3 (24 hrs)
Economical Speed / Consumption 9 knots / 12 m3 (24 hrs)
Fuel consumption in port 0.98 m3 (24 hrs)
Type of Fuel Marine Gas Oil
Bollard Pull 64 MT

CARGO CAPACITIES
Deadweight 1275 mt
Deck Cargo 500 mt
Deck Strength 7.0 mt/m2 uniform loading
Clear Deck Area 360 m2
Deck Length 30.0 m
Deck Width 12.0 m
Fuel Oil 440 m3
Fresh Water 240 m3
Ballast/Drill Water 460 m3
Liquid Mud 250 m3
Cement Tank 187 m3 (4 x 1,650 ft3) ; Unislip
Freezer / Chiller 10 m3 / 10 m3
Foam / Detergent 10 m3 / 10 m3
Rig Chain Locker Nil

PUMPS
Fuel Oil 1 x 150 m3/hr @ 75m head; Azcue
Fresh Water 1 x 100 m3/hr @ 75m head; Azcue
SWB/Drill Water 1 x 100 m3/hr @ 75m head; Azcue
Liquid Mud * 2 x 70 m3/hr @ 85m head; (SG 2.5) Mission Circulation system
Bilge/Ballast 2 x 75 m3/hr @ 50m head; Azcue
GS / Fire Pump 1 x 75 m3/hr @ 50m head; Azcue
Bulk Cement 2 x 13 m3/min @ 80 psi air compressors; Airman system fitted with dryers
* Liquid Mud tanks are strengthened for products up to 2.5 SG and can be nominated to carry Brine

PROPULSION SYSTEM
Main Engines 2 x 1,920 kW (2575 bhp) @ 1,600 rpm Caterpillar 3516B
Main Generators 3 x 340 kW @ 1,500 rpm Caterpillar 3408 c/w Leroy Somer LSAM47.1L9 alternators rated at 320 kW/415 V/3 Ph/50 Hz
Emergency Generator 1 x 52 kW @ 1500 rpm Caterpillar C4.4 rated at 52 kW/415 V/3 Ph/50 Hz
Shaft Alternator Nil
Bow Thruster 1 x 440 kw electric-driven HRP 4000; tunnel type (CPP); 6T thrust
Stern Thruster Nil
Steering Gear 2 x Kobelt; 4T; 35 deg
Propulsion 2 x CPP Type with Kort Nozzle; Berg 690 BCP/4
Rudders 2 x high performance streamline type

DECK EQUIPMENT
Anchor Windlass 1 x electro-hydraulic Mentrade HAW-10T
Drum Nil
Gypsies suit’ for 40 mm (Ø) chains rated pull 10 mt @ 9 m/min
Warping drum 400 mm (dia) x 450 mm (L) rated pull 2 mt @ 10 m/min
Bow Anchors 2 x 1305 kg HHP anchors
Chains 440 m (L) x 36 mm (Ø) Grade U2 (each side)
Capstan 2 x 5 mt @ 15m/min electro-hydraulic; Mentrade HVC-5T
Tugger Winch 2 x 10 mt @ 15m/min electro-hydraulic; Mentrade HUW-10T Drum Capacity : 200 m (L) x 22 mm (Ø) SWR
Deck Crane 1 x 2T @ 12m electro-hydraulic Palfinger PK32080(M)C
Towing/AH Winch 1 x electro-hydraulic double drum Mentrade AHTW-150T
Upper Drum Cap (Tow) 1000 m (L) x 56 mm (Ø) SWR
Lower Drum Cap (AH) 1000 m (L) x 56 mm (Ø) SWR
Line Pull 150 mt @ 6 m/min at 1st layer
71 mt @ 12 m/min at 1st layer
50 mt @ 18 m/min at 1st layer
23 mt @ 36 m/min @ 1st layer
165 mt @ 1st layer
200 mt static @ 1st layer
Remote control from aft control stand in wheelhouse
Gypsies Nil
Warping Drums Nil
Stern Roller 5.00 m (L) x 1.60 m (Ø); SWL 200 mt
Shark Jaws 1 set electro-hydraulic Karmfork; SWL 300 mt
Tow Pins 2 x electro-hydraulic with turntable top flaps
Rope Reel 1 x electro-hydraulic Mentrade HSR-5T
Drum Capacity: 1000 m (L) x 56 mm (Ø) SWR
Reefer Points 6 x 4pin x 32A

ACCOMMODATION
Berths 2 x 1 berth cabins =   2
4 x 2 berth cabins =   8
8 x 4 berth cabins = 32
Total 42
Hospital 1 x 1 berth cabin =   1
All cabins fully air-conditioned & c/w attached washroom
GMDSS Furuno RC-1800T (Area 3) comprising:
SSB 1x Furuno FS-2570 with built in DSC
Inmarsat C 2 x Furuno Felcom 15; 1 x Furuno Felcom 15SSAS
VHF Radio 2 x Furuno FM 8800 with built-in DSC
Navtex Receiver 1 x Furuno NX 700 (518 KHz)
SART 2 x McMurdo S4 (9 GHz)
EPIRB 1 x McMurdo E3A
Portable VHF Radios 3 x McMurdo R2 (25KHz)
Radar 1 x Furuno FR 2115
1 x Furuno FR 1510 MK3
Echo Sounder 1 x Furuno FE 700
GPS 1 x Furuno GP 150
Gyrocompass 1 x Anschutz Standard 22
Autopilot 1 x Anschutz Nautopilot NP60
Magnetic Compass 1 x Cassens & Plath Reflecta 3
Weather Fax 1 x Furuno FAX 207
Speed Log 1 x Furuno DS-80
Wind Indicator 1 x RM Young 05103
AIS 1 x Furuno FA-150
DP Marine Technology Bridge Mate DP1
2 x DGPS Veripos LD2S
Joystick Marine Technology
Vessel also fitted with Vingtor Talkbalk System & Self-Powered Telephones

DP CAPABILITY PLOT
Capability Plot: All thrusters online. 0 knot Current Stepped

Wind speed in Knots

FIRE FIGHTING & ANTI-POLLUTION EQUIPMENT
EXTERNAL
FiFi System Class 1 with water curtain all round
Fire Pump 2 x 1540 m3/hr @ 13 bar FFS SFP250x350 driven by front PTO of M/E
Monitors – (water/foam) 1 x 300-1200 m3/hr; FFS1200LB
  1 x 1200 m3/hr; FFS1200LB
Oil Dispersant System 2 x 6m (6 nozzles) spray booms; Unitor
INTERNAL
Emergency Fire Pump 1 x 35 m3/hr @ 50m head; Azcue
BA Recharging Comp 1 x 260 ltrs/min @ 300bar Coltri MCH16/E-TS
CO2 system in engine room
Fire Detection & Alarm System in living spaces & engine room

SAFETY AND ENVIRONMENT
Liferafts 4 x 20 men SOLAS Approved type
2 x 25 men SOLAS Approved type
Rescue boat 1 x 6 men semi-rigid inflatable c/w outboard motor
Oily Water separator 1 x 1 m3/hr c/w 15 ppm alarm
Water Maker 1 x 5 m3/day Reverse Osmosis, Seanly SW-5T
Sewage Treatment Plant 1 x 48 men/day

TANK CAPACITY PLAN
UNITS = m3
TANK Fuel Oil Fresh Water Drill Water Oil Based Mud Base
Fuel (8) 49.13
49.13
55.43
55.43
58.78
58.78
61.08
61.08
Fresh water (3) 74.22
74.22
95.38
Drill water (10) 57.58 57.58
28.62 28.62
28.62 28.62
78.77 78.77
78.77 78.77
43.69 43.69
43.69 43.69
66.39 66.39
20.90 20.90
20.90 20.90
OBM (2) 127.16 127.16 127.16
127.16 127.16 127.16
703.12 711.75 * 467.93 254.32 254.32
* Only dedicated Fresh water tanks can carry potable water; Capacity of 243.82m3



60 tbp, DP-1, FiFi-1 waterspray

2005, BV, Loa 58.70 m, width 14.60 m, depth 5.50 m, draft 4.80 m. deadweight +/- 1,500 tons. deck cargo: +/- 700 tons. Deack area 370 m2, accommodation 42 persons. ME Gulf Region Price: Inquire

PRINCIPAL PARTICULARS
Year Built: 2005
Class: Bureau Veritas
Notation: Class 1 + Hull + MACH, Supply Vessel Unrestricted Navigation FiFi

DIMENSION
Length Overall: 58.70 m
Length Waterline: 56.50 m
Length BPP 53.20 m
Breadth Moulded: 14.60 m
Depth Moulded: 5.50 m
Draft Moulded: 4.80 m
GRT: 1470
NRT: 441
Deadweight: 1500 tonnes @ 4.8m draft

PROPULSION SYSTEM
Main Engine: 2 x 2,375 bhp/1600rpm
Main Generator: 3 x 315 kW 1500 rpm
Emergency Genset: 1 x 52 kw/1500 rpm
Bow Thruster: 1 x 315kw tunnel unit producing 5T thrust
Steering Gear: 2 x 35 degree – 6 tonnes – m
Propulsion: 2 x CPP Type with Kort Nozzle
Rudders: Conventional

PERFORMANCE
Maximum speed: 13.0 knots
Economical speed: 13 MT/24 Hrs @ 100% MCR
Type of fuel: Marine Gas Oil

FIRE FIGHITING EQUIPMENT
External
FiFi: FiFi 1
Fire pump: 2 x 1500m3/hr at 12bar
Fire monitor: 2 x 1200m3/hr at 11bar with remote control
Emergency Fire Pump
Internal
Fixed System in E/R: CO2 system in engine room
Fire Detection Sys. : Fire Detection & Alarm System in Accommodation
Electrical BA Recharging Compressor 75 ltr/min @ 200bar

OTHERS
Rescue Zone: Port & Stb side
Oily Water Separator: 1 x 1 m³/hr MARPOL standard
Water Maker: 1 x 5T/day Reverse Osmosis
Sewerage Treatment Plant: 1 x 42 men per day

CARGO CAPACITIES
Deck Cargo: 700 m.s
Deck Strength: 7.0 tonnes / m² uniform loading
Clear Deck Area: 370 m²
Fuel Oil: 470 m³
Fresh Water: 225 m³
Ballast/Drill Water: 460 m³
Freezer/Chiller: 10 m³
Foam: 12 m³
Detergent: 12 m³
Mud: 250 m³
Cement Tank: 4 x 1650 ft³
Wooden Sheating: 75 mm in thickness

DECK EQUIPMENT
Windlass: 10T @ 9m/min for 38 mm dia Chain. With 2 cable lifter & 2 warping drums
Bow Anchors: High-holding type anchors 1,305kg
Chains: 440m x 38 mm diameter grade U2 stud link chain
Capstan: 2 x 10 t @ 15m/mins
Tugger Winch: 2 x 10 t @ 15m/mins

DISCHARGE RATES
Fuel Oil: 1 x 150m³/hr @ 75m head
Fresh Water: 1 x 100m³/hr @ 75m head
Mud Pump: 2 x 70m³/hr @ 85m head
Drill Water Pump: 1 x 100m³/hr @ 75m head

TOWING & ANCHOR HANDLING EQUIPMENT
Bollard Pull: 60 metrics tones
Tow Drum: 1000m x 56mm wire rope, upper drum
Anchor Handling: 1000m x 56mm of wire rope, lower drum
Braking Capacity: 200 tones
First Layer: Low speed 150 tonnes @ 6m/min
Mid speed 71 tonnes @ 12m/min
High speed 23 tonnes @ 36m/min
Stern Roller: 1.6m Ø and 5m lgth w/ SWL 200 tones
Shark Jaws: 1 set hydraulic operated type SWL 200T
Tow Pins: 1 set hydraulic operated type SWL 200T

NAVIGATIONAL /COMMUNICATION
GMDSS: A1 + A2 + A3
SSB: 1 X FS – 1570 (150 W)
1 X FS – 2570 (250 W)
FELCOM 15
Rack Console Sys: a) 1 set MF/HF Radio – FS2570 DSC
b) 2 X Semi Duplex Marine VHF
c) 2 x Inmarsat C Felcom E3A
CCTV: AVC 704 R(Processor) Monitor – LG
GPS Navigator: 1 x Furuno GP90
Sart: 2 x McMurdo – 3
Inmarsat C: FELCOM 15
Satellite EPRIB: 1 x McMurdo
VHF Radio: 2 X FURUNO FM 8500,25W
Portable VHF Radio: 3 x McMurdo R2
SAT – OFI: 2 x McMurdo MK3
Navtec Receiver: 1 x Furuno NX 500
X-Band Radar: 1 X FR 2105
Sat Com: 1 X FR 1500 MARK-3 SERIES
Echo Sounder: 1 x Furuno FR2115
GPS Plotter: 1 x Furuno GP90
Gyrocompass: 1 x Anschuetz Gyrostar II
Autopilot: 1 X ANSCHUETZ MP60
Weather Fax: 1 x Furuno FX207
Speed Log: 1 x Furuno DS80
Magnetic Compass: C & PLATH
Joystick : KAWASAKI KICS
AIS FURUNO FA – 100

ACCOMMODATIONS
Berths : 2 x 1 berth cabins = 2
4 x 2 berth cabins = 8
8 x 4 berth cabins = 32
Total : 42
Hospital : 1 x 1 berth cabin
All cabins are fully air-conditioned

LIFE SAVING APPLIANCE
Search Lights : 3 x 2000 W
Floodlights : 5 x 1000W
Liferafts : 4 x 20 men & 2 x 25 men
Lifebuoys : 8 pcs with buoy lights
Life jackets : 53 pcs
Rescue boat : 1 x 6 c/w outboards
Air Breathing : 4 sets apparatus



60 tbp, DP-1, FiFi-1 waterspray

2004, BV, Loa 48.00 m, width 13.20 m, depth 5.20 m, draft 4.20 m. deadweight +/- 860 tons. deck cargo: +/- 300 tons. Deck area 250 m2, accommodation 24 persons. ME Gulf Region Price: Inquire



PRINCIPAL PARTICULARS
Year Built: 2004
Class: Bureau Veritas
Notation: + Hull + Machinery Supply Vessel; Fire Fighting Ship 1 Water Spraying Unrestricted Navigation

DIMENSIONS
Length Overall: 48.00 m
Length Waterline: 45.56 m
Breadth Moulded: 13.20 m
Depth Moulded: 5.20 m
Draft Moulded: 4.20 m
GRT: 964 MT
NRT: 289 MT
Deadweight: 860 MT

PERFORMANCE
Maximum speed: 12 knots
Economical speed: 9 knots
Type of fuel: Marine Gas Oil

CARGO CAPACITIES
Deck Cargo: 300 MT
Deck Strength: 7.5 MT / m²
Clear Deck Area: 250 m²
Fuel Oil: 520 m³
Fresh Water: 280 m³
Ballast/Drill Water: 110 m³
Freezer: 12 m³
Chiller: 12 m³
Foam: 18 m³
Detergent: 18 m³

PROPULSION SYSTEM
Main Engine: 2 x Caterpillar [email protected] 2,375 BHP
Main Generator: 3 x Caterpillar 3408C @ 315 kW
Emergency Genset: 1 x Perkins @ 50 kW
Bow Thruster: 1 x 5 MT Tunnel Thruster
Steering Gear: 2 x 35 degree – 5 MT
Propulsion: 2 x 4 Bladed CPP in kort nozzles BERG
Rudders: 2 x Conventional Rudder

DECK EQUIPMENT
Windlass: 8 MT at 9 m/min for 36 mm diameter chain
Bow Anchors: 2 x 1080 kg HHPA
Chains: 2 x 412.5 m x 34 mm
Capstan: 2 x 5 MT @ 15 m/ min
Tugger Winch: 2 x 10 MT @ 15 m/ min
Deck Crane: 1 x Electro Hydraulic Crane SWL 5 MT @ 10 m

DISCHARGE RATES
Fuel Oil: 60 m3 / hr @ 50 m/head
Fresh Water: 60 m3 / hr @ 50 m/head

AUXILLIARY SYSTEM
Oily Water Separator: 1 x 1 m3 /hr
Water Maker: 1 x 4.9 m3/ day Reverse osmosis
Sewage Treatment Plant: 1 x 25 men per day

ACCOMMODATIONS
Berths: 24
All cabins are fully air-conditioned

FIRE FIGHITING EQUIPMENT
External
FiFi: FiFi 1
Fire pump: 2 x 1400 m3/hr at 12 bar
Fire monitor: 2 x 1400 m3/hr at 12 bar
Internal
Fixed System in E/R: CO2 system in engine room
Fire Detection System: All living spaces and engine room

TOWING & ANCHOR HANDLING EQUIPMENT
Bollard Pull: 60 MT
Tow/AH Winch: Double Drum Waterfall Type
1000 m x 56 mm wire rope (Towing)
1000 m x 56 mm of wire rope (Anchor Handling)
Braking Capacity: 200 MT
Stern Roller: 6 m & 3.5 m length, 150 MT
Shark Jaws: 300 MT hydraulic retractable
Tow Pins: 2 x 100 MT

NAVIGATIONAL /COMMUNICATION
GMDSS: A1 + A2 + A3
SSB: 1 x FURUNO FS-2570C
GPS Navigator: 1 x FURUNO GP-80
SART: 2 x MCMURDO RT9-3
Inmarsat C: 1 x FURUNO FELCOM 15
VHF Radio: 2 x FURUNO FM-8500
Navtec Receiver: 1 x Furuno NX-500
X-Band Radar: 1 x FURUNO FR-2115
1 x FURUNO FR-1510 MARK 3
Echo Sounder: 1 x FURUNO FE-700
Gyrocompass: 1 x ANSCHUTZ
Autopilot: 1 x ANSCHUTZ NP-60
Weather Fax: 1 x FURUNO FAX-207
Speed Log: 1 x FURUNO DS-80
Magnetic Compass: 1 x CASSENS & PLATH
AIS: 1 x FURUNO FA-100
Satellite EPRIB: 1 x MCMURDO E3

LIFE SAVING APPLIANCE
Liferafts: 4 x 15 persons
Lifebuoys: 8 pcs with buoy lights
Life jackets: 40 pcs
Immersion suit: 3 (exemption JLM)
Rescue boat: 1 x 6 men (rigid) c/w 15 hp
1 x 6 men (inflatable) c/w 25 hp
Air Breathing App.: 4 Nos.
EEBD: 6 Nos.

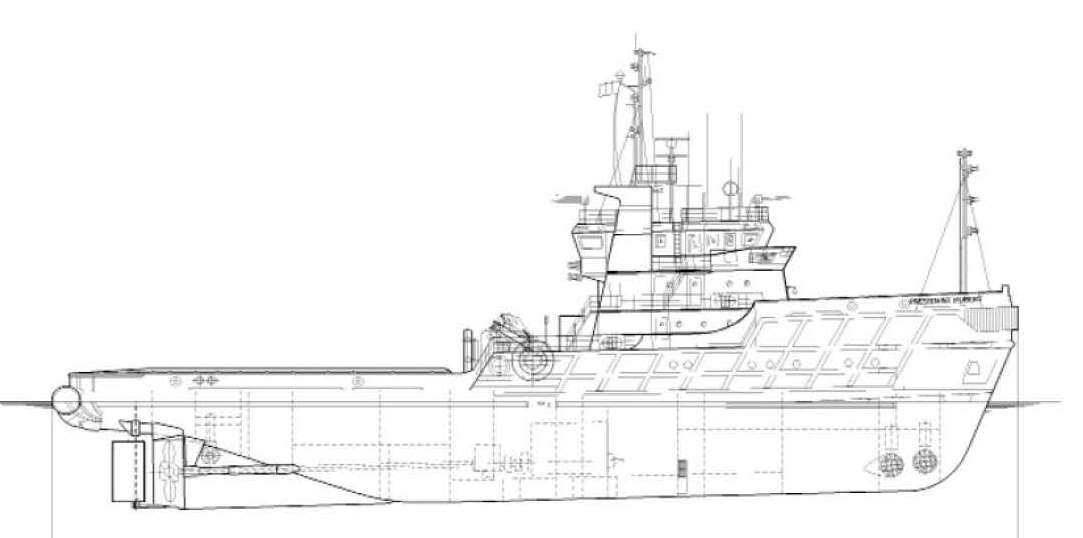

165 tbp Buque Anclero (AHST)

1982, clase LR, bandera de la UE, 165 TBP, Eslora: 60.00 m, Manga: 15.00 m, Puntal: 6.50 m, 2 x CPP con boquillas. 2 x hélice de proa y 1 x de popa, Combustible: gasóleo. Trabajando en el Mar Báltico, el espacio de cubierta 185m2. Precio: Consulta

General
Year of construction 1982
Classification Lloyd’s Register of Shipping, 100A1, ice class 3, +LMC, UMS
Trading area Unrestricted service
Machinery & propulsion
Main engines 2 x MAK 16M453, 2 x CPP in KORT nozzles
Propulsion 2 x 4.500 kW
Steering gear 2 x Balance rudder,
Bow thruster 2 x tunnel, CP propellers, 400 BHP each, electrically driven
Stern thruster 1 x tunnel, CP propellers, 362 BHP each, diesel engine driven
Dimensions
Length overall 60,50 m
Breadth moulded 15,00 m
Depth moulded 7,00m
Draft (max.) 6,50 m
Design draft 6,20 m
Gross tonnage 1738 t
Bollard pull ahead Max 167 t
Speed max 16 kn
Speed economic 11 kn
Deck area 180 m2
Max deck cargo 625 t
Deck equipment
Towing / Anchor handling winches BRUSSELLE 2 independent drums, power 200 t, brake holding load, 300 t (1st layer), (2#) drum with capacity 1500 m x dia 76 mm
Rope reels (2#) storage reels under deck
Forward winch Windless / mooring winch
Capstan Winches 1 x 10 t hydraulic capstan aft
Tugger winches 2 x 20 t hydraulic tugger aft,
Stern roller (#1) 5,3 m x dia 1,5 m
Crane 1x PROMAC, SWL 5 t @ 5m 1 x HS Marine Crane AK 48 (5T @ 5 m & 2 t @ 10,25 m)
Towing pins KARMOY 1 set of KARM towing pins, 160 t
Stopper pins KARMOY 2 KARM forks for wire / chain with MBL 270 t
Gypsy wheels #2
Tank capacity
Fuel 1.750 m3 MGO
Fresh water 48 m3
Accommodation
Accommodation 26 berths; 4 single cabins & 11 double cabins, 1 hospital

Buques en Alta Mar solo para Fletamento

Anchor Handling Tug Supply (AHTS) vessels

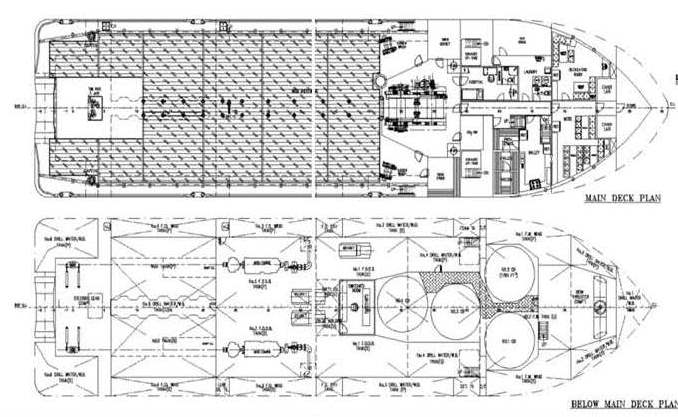

130 tbp AHTS DP-2, FiFI-1 , Oil Rec

2009, Well equipped, solid built. Adriatic. For Charter only. For availability: Inquire

GENERAL
Built 2009
Yard «Damen» shipyard – Galati
Basic Role Offshore supply, towing, anchor handling operations, fire fighting and oil recovery operations
Classification Bureau Veritas, I  HULL  MACH, Tug; Supply vessel/Special service – Anchor handling; Fire fighting ship 1; Oil Recovery Ship – water spraying Unrestricted navigation,  AUT-UMS;  DYNAPOS -AM/AT -R

DIMENSIONS
Length over all 67.10 m
Width 15.00 m
Depth 6.75 m
Draft 5.50 m
Deadweight 1913 t
GT 2485
NT 745
Deck Area 410 m2
Deck Load (CoG 1 m above deck) 900 t
Deck Load 5 t/m2

TANK CAPACITIES
Ballast / Drill Water 775 m3
Fuel Oil (service) 435 m3
Portable Water 297 m3
Dry Bulk 172 m3
Fuel Oil – Cargo 480 m3
Cargo Liquid Mud/ Brine / Fuel 455 m3
Recovered Oil (Part of L.M.) 209 m3
Chain Lockers 138 m3

PERFORMANCES (approx.)
Speed 15.0 kn
Bollard Pull 130 t
Max Speed / Consumption 15 knots / 46 m3/dan
Eco Speed / Consumption 12 knots / 26 m3/dan
Eco Speed / Consumption (one M/E) 10 knots / 15 m3/dan

PROPULSION SYSTEM
Main Enigines 2x CAT C280-12
Propulsion Power 2x 4060 kW at 1000 rpm
Propellers, R.R. 2x 3400 mm, CPP, in optima nozzles
Bow Thrusters, R.R. 2X 450 ekW, 1300 mm, CPP
Stern Thruster, R.R. 1X 450 ekW, 1300 mm, CPP

AUXILIARY EQUIPMENT
Shaft Generators 2x 1000 ekW at 1800 rpm, 440 V, 60 HZ
Generator Sets 2x CAT C18-TA, each 408 ekW at 1800 rpm, 440 V, 60 Hz
Emerg. / Harbour Gen. Set. 1x CAT C9-TA, 163 ekW at 1800 rpm, 440 V, 60 Hz
Spray Booms
Dispersant System  13,8 m3
Firefighting
Total Capacity of Main Fire Pumps 2400 m3/h

DECK LAY-OUT
Anchor Mooring Winch 1x Hydraulic, with two warping heads
Capstans 2x Hydraulic, each 5 t to pull
Deck Cranes 1x knuckle boom 2.8 t at 10.82 m (harbour with winch)
Towing Winch 1x LP Hydraulic, double drum, 150 t pull, 250 t brake
Main Towing Wire 1.100m / 64mm
Towing Pins 1x SWL 180 t
Chain Fork 1x SWL 250 t
Tugger Winch 2x Hydraulic, each 10 t pull
Fast Craft / Working Boat 1x 6.7 m, 230 HP diesel engine
Fast Rescue Boat 1x 29,4 KW

CARGO HANDLING SYSTEM
Ballast / Drill Water Pump 2x 120 m3/h at 8.0 bar
Fuel Oil Pump 2x 120 m3/h at 9.0 bar
Fresh Water Pump 1x 120 m3/h at 9.5 bar
Dry Bulk Compressor 2x 23.5 m3/min at 6.0 bar
Liquid Mud / Brine Pump 2x 75 m3/hr at 20.0 bar

ACCOMMODATION
Crew 17
Super Numeraries 12
Total 29

NAUTICAL AND COMMUNICATION EQUIPMENT
Radar 1x X-band + S-band / ARPA
DP- System DP-2
GMDSS Area A3
SATCOM fleet broad band

Grúa Flotante autopropulsada

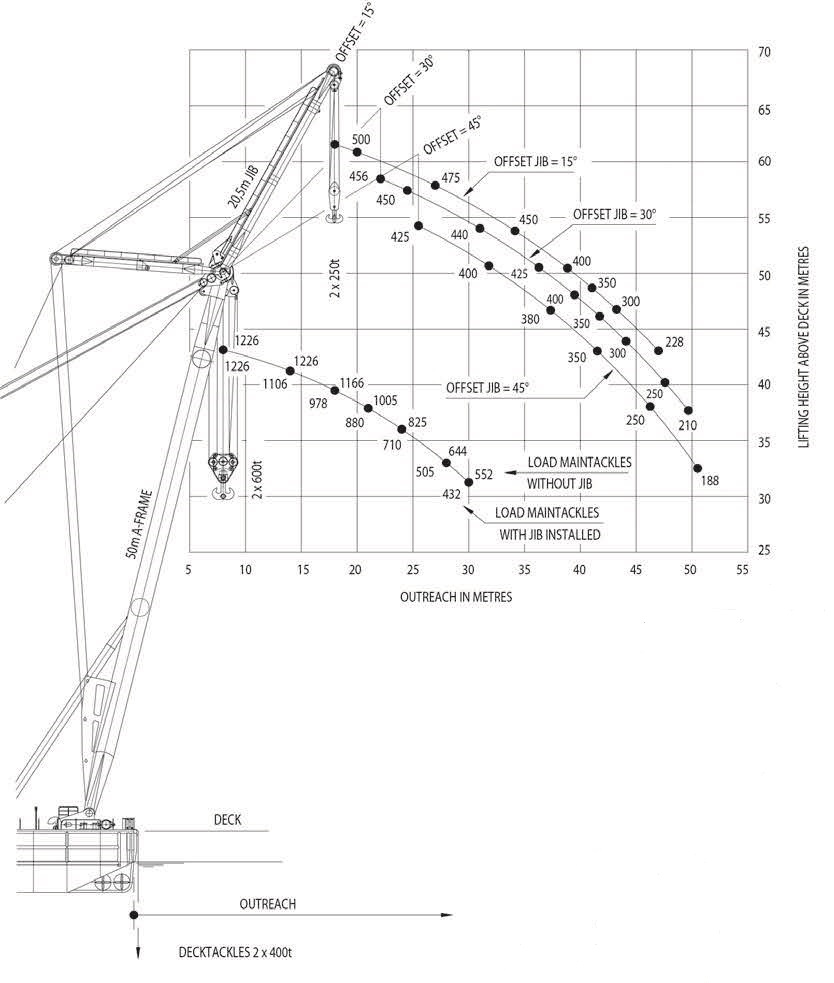

1.200 ton Grúa Flotante autopropulsada

Grúa Flotante versátil y autopropulsada, para la construcción de carga pesada marina, construcción de puentes y de las operaciones de salvamento en todo el mundo.

Sheerleg se puede configurar según las especificaciones de los clientes y eleva hasta 1.200 toneladas a una altura de 25 metros. Con un plumín de hasta 500 toneladas a una altura de 45 metros.

Disponibilidad: Consulta

Por favor, contacto con nosotros para más detalles

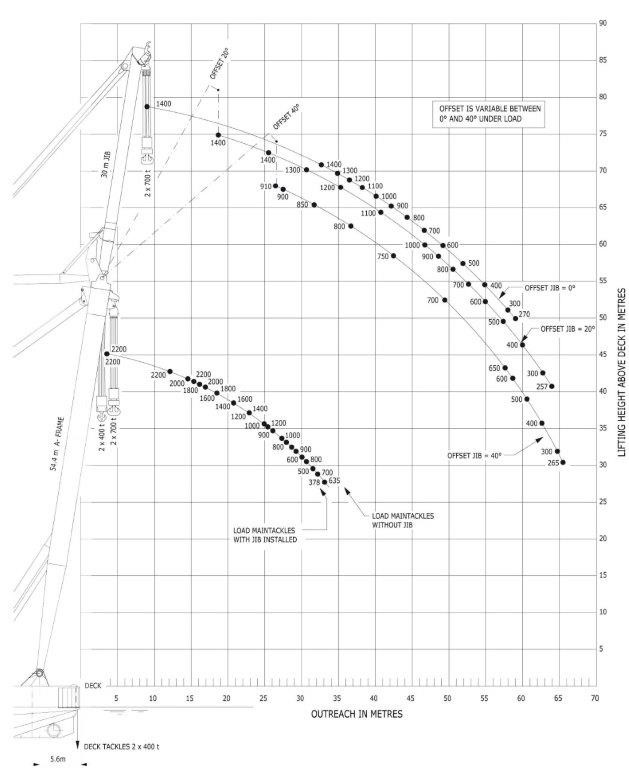

2.200 ton Grúa Flotante autopropulsada

Grúa Flotante versátil y autopropulsada, para la construcción de carga pesada marina, construcción de puentes y de las operaciones de salvamento en todo el mundo.

Sheerleg se puede configurar según las especificaciones de los clientes y eleva hasta 2.200 toneladas a una altura de 25 metros. Con un plumín de hasta 1.400 toneladas a una altura de 60 metros.

Disponibilidad: Consulta

Por favor, contacto con nosotros para más detalles

Buque de Acomodación

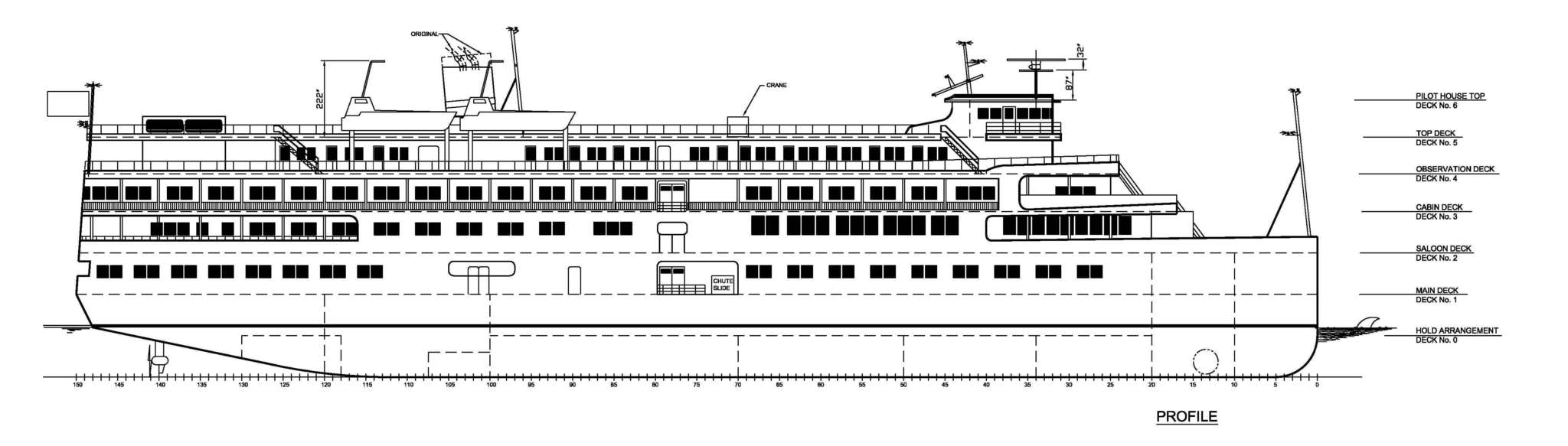

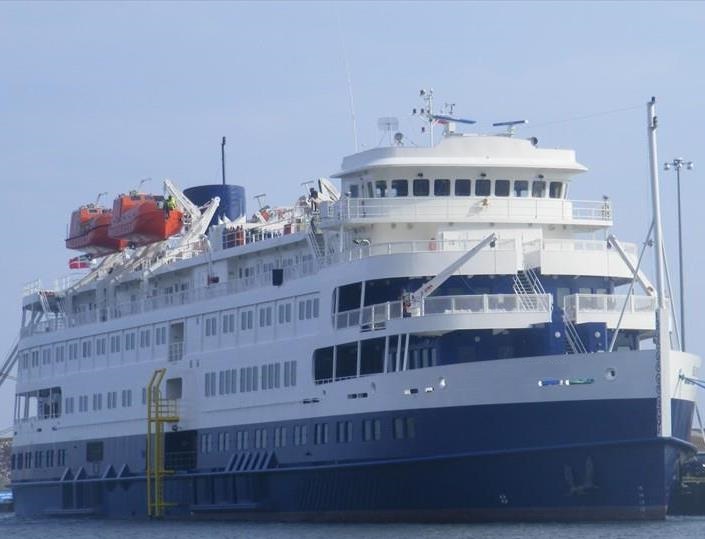

220 pax Self-propelled Accommodation / Passenger Vessel

1999, Lloyds Register, SOLAS 2000 compliant. 220 Passengers in double rooms. Equipped for offshore operation. Safe water access on both sides. Propelled by azimuth thrusters

Availability: Inquire

Please contact us for more details

Barcazas de Trabajo y Acomodación autopropulsado

62 pax Self-propelled Accommodation Barge (2 sisters)

Autonomous operation. Location: WAF. For Charter only. Inquire

GENERAL
Built 2006
Class BV
Notation I x Hull x Mach, Offshore service ship Accommodation, Costal area

DIMENSIONS
Loa 70 m
Width 20 m
Depth 4.30 m
Draft max. 2.30 m
Clear deck area Abt 300 m2

CAPACITIES
GT 2,956
NT 886
Deck Cargo 150 mT
Deck Strength 220 m2 @ 5 mT / m2
Deck Strength fwd 80 m2 @ 10 mT / m2 (option crawler crane)
Deadweight 914 mT
Lightweight 1,834 mT

MACHINERY
Service speed / Abt 6 knots at 6m3/day gasoil at sea.
Consumption Abt 1.3 m3/day at anchor
Nominal power 2 x 525 kW Azimuth propellers
Bow thruster 270 kW
Generators 4 x 571 kW, 1 x Em. Gen 175 kW
Electrical power A.C. 3-ph, 400 V, 50 hz
Main Engines 4 x Baudouin M26SR V-type, 571 kW each
Propellers 2 x HRP Azimuth
Cargo Fuel pump 65 m3 / hr
Cargo FW pump 50 m3 / hr

TANK CAPACITIES
Fuel (MGO) 277 m3
Ballast (FW) 810 mT
Fresh water 500 m3
Fresh water production max 22 tons/day
Dirty oil 7 m3

ACCOMMODATION
Passengers 112
Crew 14
Catering staff (max) 12
Cabins 8 x single, 7 x double, 20 x 4 bunks, 6 x 6 bunks = 41 bunks
Capacity Total: 138 persons

DECK EQUIPMENT
Anchors 8 x 5 tons Flipper-Delta
Mooring gear 8-point mooring: 8 X 1600 m, 38 mm ø, 90 tons, 1st layer
Bow ramp Open – manual operated N/A
Deck Crane 9.3 tons outreach 13.3 m (stb side)
Rescue boats 2 x 10 knots, 6 persons each
Boat landings 2 x Surfer landings

Barcazas de Trabajo y Acomodación

300 pax Accommodation Barge (2 sisters)

Autonomous / Unrestricted operation. 8-point mooring. S-92 Helideck, 68 ton, 70m elevation, 12m reach service crane. Location: WAF. For Charter only. Inquire

GENERAL
Built 2007
Class Bureau Veritas
Notation I x HULL x MACH Offshore service ship/ Accommodation/ Unrestricted navigation

DIMENSIONS
Loa 100 m
Width 30.50 m
Depth 7.62 m
Draft max 5.50 m
Clear deck space 1,600 m2

CAPACITY
GT 10,413
NT 3,124
Deck cargo 1,197 mT
Deck strength 15 T/m2
Deadweight 11,120 mT
Lightweight 5,655 mT

PUMP CAPACITIES
Ballast pump 2 x 500 @ 30 m head
Fire service pump 1 x 160 m3 /hr @ 100 m head
FW pressure set 3 x 30 m3 /hr @ 43 m head
SW pressure set 3 x 30 m3 /hr @ 43 m head
Main fire monitor pump 2 x 180 m3 /hr @ 100 m head
Gen. service fire pump 2 x 130 m3 /hr @ 80 m head
FO transfer pump 2 x 45 m3 /hr @ 45 m head
Emerg. Fire pump 1 x 60 m3 /hr @ 65 m head
Foam monitor 2 units
Fire hose / station 8 x 40 mm D=15m hoses w/nozzle, 23 x 65 mm D=15m hoses w/nozzle
Desalination plant 2 x 50 m3/day Reverse Osmosis

TANK CAPACITIES
Fuel (MGO) 1715 m3
Fresh water 2,700 m3
Ballast 9,000 m3
Ballast pumps 2 x 500 m3 / h @ 30 m head
Anti heave tanks Fitted

ACCOMMODATION
Fully air conditioned, comply with ILO 92 All cabins with en-suite toilet
D deck 4 x 1 Man cabin (suite) 192
C deck 48 x 4 men cabin 4
B deck 8 x 1 men cabin 8
12 x 2 men cabin 24
18 x 4 men cabin 72
Total 300

FIRE FIGHTING / SAFETY EQUIPMENT
Portable fire extinguisher 80 x 6 kg dry powder;
3 x 50 kg dry powder; 2 x 9 CO2 ;
2 x 10 ltrs liquid chemical
FiFi-1 2 x 1450 m3 / h
Fire Alarm Central 1 central panel w/42 manual points
CO2 System Eng. room, winch, power pack rooms & paint locker room
Water mist system Diesel Generators
Life rafts rescue boats 26 x 25 men liferafts / 1 x 6 persons rigid rescue boat c/w davit
Stretcher 2 units, capable of helicopter evacuation

NAVIGATION / COMMUNICATION
GMDSS / 1 x Furuno 8800S VHF Semi Duplex
1 x Furuno FS-2570 MF/HF Radio / 1 x Furuno DMC 5 Watch Receivers
2 x Icom VX-800D Walkie Talkies / 1 x Furuno NX-700(B) Navtex
1 x Nera Worldphone Mini-M / 1 x GP-150 GPS
1 x RM Young 05103-58 Anemometer / 1 x Furuno VX2 1934C Navnet
1 x Furuno FE 700 Echo Sounder 200m working depth / 1 x Satellite compass 5c-502

FACILITIES
Main deck 1 office; Hospital 3-beds w/lockers & toilets; Paramedic room; video room w/sofa & armchair
Office deck 4 offices; Crew recreation room; radio/control room; Internet room w/corner table & chairs; waiting room w/TV, tables & chairs; video room 1w/sofa & armchair on main deck gymnasium all equiped
B deck 1 office; Messroom up to 150 pers. w/tables & chairs; galley all equiped; TV/video room w/1 smoker & 1 non-smoker area; conference room w/chairs/tables & whiteboard.
Sewage treatment 2 x 150 men capacity
Helideck Dia: 23 m, 9.3 mT loading / strength suitable for Sikorsky S92 helicopter

DECK EQUIPMENT
Mooring system 8 x point mooring winches 70 [email protected]/min pull; 2 x tugger winches 10 T each Fwd & Aft
Anchors / wires 8 x 7.0 T each (1 spare) Flipper Delta type / L=1500m, D=46mm
Main diesel generators 5 x Caterpillar 3412, 500 kW each, 1500 rpm AC, 3-phase, 415/230 V, 50Hz
Emergency generator 1 x Caterpillar 3056 DIT 86 kW, 415 V/3 Ph / 60Hz
Air compressors 2 x 80 m3/m @ 10 bar
Main crane 1 x API 2C rated crane 68.0 T @ 12m radius x 360° slewing, 70 m elevation
Provision crane 3.0 T @ 10m, 5.0 T @ 5m, hosting height 32 m
Workshop 1 complete w/lathe, 200mm Ø grinder, electric jig saw, oxy/acetylene cutting torch w/regulator & hoses & bench drill

Barcazas de Acomodación

290 pax Accommodation Barge (2 sisters)

290 man Accommodation Barge. Autonomous operation, Sheltered waters. Suitable for arctic operations. location: Marmara Sea. For sale or Charter. Inquire

Type Accommodation barge – 290 Man
Year Built 2009 – Refit
Class/Classification RMRS Hostel
GRT 3,500
Length Overall 76.16 meters
Breadth 17.76 meters
Depth 4.57 meters
Max Draft 3.00 meters (approx.)
Deadweight 1341 Metric Tons (approx.)
Equipment: Two (2) x 800 kW CAT generators
Two (2) x R.O. Watermakers
One (1) x Atlas Incinerator
One (1) x KenBay Trash Compactor,
One (1) x 5 Ton Tech Hydraulic Crane,
One (1) x Headhunter Waste Treatment System
Tank Capacities Fresh Water: 170m3
Fuel Oil: 80m3
Sewage Waste: 580m3
Waste Oil: 2.2m3
Main Deck: Galley, Dry Food Storage, Three (3) Walk-In
Freezers, 150 Person Dining Area, Control
Room, Infirmary, Laundry Facility

Buques de Alta Mar disponibles para la carta vendrán pronto. Por favor revise esta página periódicamente.

Los Buques Alta Mar son vasos mantienen a un alto nivel de equipamiento y mantenimiento. Ellos sirven para muchos propósitos operativos específicos dentro de la industria Maritimos. Del indistria petróleo y gas, obras marítimas, de colocación de tubos plataforma de desmontaje o están involucrados en el sector de la energía renovable en alta mar. Hay una gran variedad de buques alta mar hoy en día, cada uno con su propia capacidad y la tarea específica para adaptarse a cualquier aspecto de los requisitos para dichos fines.

How can we help?

Mail:  [email protected]

or

Call: +31 65 119 4835
