Offshore Vessels for Sale/Charter

Multi Purpose Diving Support & Maintenance (MPSV) vessels

DP-2, 4-PM, FiFi-1 IMR/Accom. Vessel

2016, ABS. SPS, Helideck, Moonpool: 8.0 m x 8.0 m. Loa 85.0 m, width 22.00 m, depth 8.00 m, max draft 6.30 m. Deck Area 730 m2. DW 3,100 tons. Deck crane 100 ton AHC Knuckle Boom. 200 berths. Location: Far East. Inquire

GENERAL
Built 2016
Class Notation ABS + A1 (E), Offshore Support Vessel (Supply-HNLS,
FFV1), + AMS, ACCU, DPS-2, SPS, RW, HELIDK.

MAIN PARTICULARS
Length Overall 85.00 m
Breath Moulded 22.00 m
Depth Moulded 8.00 m
Draft 6.30 m
Deadweight ~3,100 t
Gross Tonnage ~4,670
Trial Speed ~12.5 knots

FEATURES
Moon Pool 8.00 m x 8.00 m
Heli-Deck Capable of the reception of a Sikorsky S61

CARGO CAPACITIES
Clear Deck Area 730 m2
Deck Cargo 800 T
Deck Loading 7.5 T/ m2
Fuel Oil 1168.4 m3
Fresh Water 744 m3
Drill Water 1757.9 m3
Water Ballast 282.3 m3
Mud/Brine 418 m3
Heeling 449.9 m3
Dry Bulk Cement 226 m3 (4 x 2000 ft3)

DECK / AHT EQUIPMENT
Windlass 1 x 16T @ 12 m/min for 58mm dia. Chain, elec./hydr.
Capstan 2 x electro hydraulic type of 10T @ 15 m/min
Anchor 2 x high-hold type, stowed in anchor-pockets each of 3240kg
Tugger Winch 2 x electro-hydraulic type of 10T @ 15 m/min
Cargo Rail 300 mm  on main deck (P&S) Approx. 2500 mm to top of pipes
Main Crane 1 x, AHC 100T @ 15 m, elec/hydr.
Deck Crane 1 x marine crane of 3T SWL @ 14.0 m
Gangway 1 x aluminium gangway about 6.0 m
Mooring System 4 point mooring
Mooring Winches 4 x 1200 m x 40 mm with CCTV monitoring system

PROPULSION /MACHINERY
Main Engine 2 X Niigata 6L28AH, 3000 bhp each
Propulsion system 2 x Azimuth thruster
Bow Thruster 2 x Kawasaki, 800 kW each, CPP, 12t thrust
Main Generator 3 x Caterpillar, 830 kW each
Shaft Generator 2 x Leroy Somer, 1500 kW each
Emergency Generator 1 x Cummins, 192 kW, 415V/50Hz

CARGO DELIVERY RATES
Fuel Oil 2 x 150 m3 /hr @ 75 m head
Fresh Water 1 x 150 m3 /hr @ 75 m head
Drill Water 1 x 150 m3 /hr @ 75 m head
Mud 2 x 70 m3 /hr @ 85 m head
Bilge 2 x 75 m3 /hr @ 60 m head
GS/Fire 1 x 100 m3 /hr @ 75 m head
Sludge 1 x 5 m3 /hr @ 29 m head
Ballast 1 x 200 m3 /hr @ 40 m head

ACCOMMODATION
4 x 1 man cabin 4 men
10 x 2 men cabin 20 men
44 x 4 men cabin 176 men
Total 200 men
1 x hospital 2 men
Chiller / Freezer ~35 m3 / ~35 m3 (approx.)
Offices • Mess Rooms • Gymnasium • Galley •Smoking Room

LIFE SAVING EQUIPMENT
Life Raft 8 x 25 men
Life Buoy-ring 12 sets
Lifejackets 250 sets
Fireman Outfit 8 sets
EEBD 9 sets
MOB-Light Smoke Signal 4 sets
First Aid Kit 1 set
Lifeboat c/w davit 2 sets (SOLAS approved)
Immersion Suits 204 sets
Air Breathing Apparatus 4 sets
DYNAMIC POSITIONING SYSTEM
Meets the DPS-2 class notation of ABS
1 x DGPS
1 x Laser Reference System
1 x HIPAP 500 Position Reference System
3 x wind sensor
3 x vertical reference units
3 x gyro sensors
2 x UPS
1 x lightweight taut wire (500 m)
2 x printer for alarm log
1 x FMEA consultant

EXTERNAL FIRE FIGHTING SYSTEM
External FiFi-1 c/w water spraying system
Fire Monitor 2 x 1200 m3/hr @ 50 m
Fire Pump 2 x 2000 m3/hr @ 14 bar
Sea Chests 2 x independent type
Foam tank capacity 20.5 m3
Dispersant Capacity 20.5 m3

INTERNAL FIRE FIGHTING SYSTEM
CO2-Fire Alarm System Provided in engine room
Fixed water mist Main Engine Room
Fire main 1 x Fire main, 12 x hydrants
Fire Blankets 2 off
Fire Axe 1 off

NAVIGATION EQUIPMENT
X-band radar range 96 nm 1 set
S-band radar range 96 nm 1 set
Echo Sounder 1 set
GPS Plotter 1 set
Gyro Compass 3 sets
Magnetic Compass 1 set
Autopilot & Steering Gear 1 set
Weather Facsimile Receiver 1 set
Doppler Speed Log 1 set
AIS 1 set
MF/HF Transceiver (GMDSS) 1 set
Satellite EPIRB (GMDSS) 1 unit
2-way Portable VHF (GMDSS) 3 units
SART 2 sets
Navtex Receiver (GMDSS) 1 unit
Anemometer 3 units
SUPPLY & DRAINAGE PLANT
FW Hydrophore Plant 1 x 15 m3/hr @ 60 m head
SW Hydrophore Plant 1 x 15 m3/hr @ 60 m head
Standby Hydrophore Plant 1 x 15 m3/hr @ 60 m head
Sewage System For 200 persons
Freshwater Maker 2 x reverse osmosis type of 30t/day
Oily Bilge Water Separator 1x 1.0 m3/hr with oil content <15ppm
Hot Water Calorifier 2 x 80 kW of 1000L c/w 2 circulating pumps

DP2, MPSV / IMR

2015, ABS. Loa 88.0 m, width 22.0 m, depth 7.80 m, max draft 5.50 m. Deck Area 1,000/100 m2. Dwt 3,000 tons. Deck crane: 100 ton AHC Knuckle boom crane. Moonpool. 100 berths. Location: Far East. Inquire

GENERAL
Built 2015
Class ABS
Notation +A1(E), +AMS Offshore Support Vessel
(Supply-HNLS),+DPS-2, SPS, MLC-Accom,
HAB(WB), HELIDK, UWILD, CRC, +ACCU, +SKP

DIMENSIONS
Length Overall 88.0 m
Breadth Moulded 22.0 m
Depth Moulded 7.80 m
Draft (design) 5.50 m
GRT 5100

PERFORMANCE
Speed 12.0 knots
Type of Fuel Marine gas oil

CARGO CAPACITIES
Deadweight 3,000 tonne  at 5.50 m draft
Deck Cargo 1,400 tonne
Deck Strength 10.0 t/m² uniform loading
Deck Area 100 m²  (Mezzanine)
1,000 m²  (Main)
Fuel Oil 867 m³  (Exc. Multi-purpose tanks)
Fresh Water 585 m³
Ballast / Drill Water 3,270 m³
Cement 110 m³
Mud 680 m³
Monoethylene Glycol 215 m³
Methanol 218 m³
Oil Dispersent 10 m³
Freezer / Chiller 50 m³/ 50 m³

CARGO PUMPS
Fuel Oil 2 x 150 m³/h at 10bar (VSD07-Roto)
Fresh Water 1 x 150 m³/h at 10bar (YPH100-280-Roto)
Methanol 2 x 75 m³/h at 90 mlc (PG50/250-AT)
Mono-ethylene Glycol 1 x 45 m³/h at 90 mlc (PG 50/250-A4)
Mud 2 x 75 m³/h at 24bar (PG BN70-12V)
Drill Water 2 x 150 m³/h at 9bar (YPH100-280-Roto)

ROV POWER
Power for ROV 2 x 500 KVA

PROPULSION SYSTEM
DIESEL ELECTRIC
Main Generators 4 x C25:33 L8A 2.CD, 2,560 kW each
Emergency Generator 1 x CAT. C18, 500 kW
Bow Thruster 3 x 1,000 kW Tunnel
Propulsion 2 x 2,050 kW Azimuth thruster
Drives Active Front End, Variable Frequency (AFE_2050)

DECK EQUIPMENT
Windlass 1 x Macgregor Electro-hydraulic
Bow Anchors 2 x 2,835 kg  high holding power type
Anchor Chains 522.5m length, Ø54 mm U2
Capstan 2 x Macgregor, 10 T at 15 m/min electro-hydraulic
Tugger Winch 2 x Macgregor, 10 T at 15 m/min
Main Deck Crane AHC Hydraulic knuckle boom, main boom Lifting capacity 100T at 15m (Macgregor)
SPECIFICATION UNIT SUBSEA LIFT
Dynamic Factor N.A 1.33
Lifting Capacity (SWL) Ton 100
Number of Falls Part 1
Max. Outreach m 32
Min. Outreach m 6
Hook Travel m 2000
Hook Speed
Normal Mode, single line 0-33t m/min 0-60
Normal Mode, single line 0- 66t m/min 0-30
Normal Mode, single line 0-100t m/min 0-20
Aux. Deck Crane Electro-hydraulic telescopic, 5T at 15m (TTS)
Helideck Aluminium, suitable for Sikorsky S92

ACCOMMODATION
Berths 12 x 1 berth
16 x 2 berth
4 x 3 berth
11 x 4 berth
1 x 2 berth cabin
Total 100
Sick Bay 2
All cabins are fully air-conditioned and come with attached washroom

FIRE FIGHTING EQUIPMENT & ANTI-POLLUTION EQUIPMENT
INTERNAL
Fixed CO2 System In Engine Room
Water Mist In Engine Room
Fire Detection & Alarm In Engine Room, Accommodation, Common Areas & Passageways
Sprinkler System Accommodation Areas
EXTERNAL
Foam System Deck area above methanol tank
Helideck Foam Fire Fighting System
POLLUTION CONTROL
Oil Dispersant
Boom 2 x 6m
Pump 1 x 45 m³/h at 50m

RADIO & NAVIGATION EQUIPMENT
GMDSS (Area 3) 1 x
Anemometer 1 x
SSB 1 x
Fleet Broadband 1 x
SSAS 1 x
VHF Radio 2 x
Navtex Receiver 1 x
SART 2 x
EPIRB 1 x
Portable VHF Radios 3 x
Radar 2 x with ARPA
ECDIS 1 x
Echo Sounder 1 x
DGPS 1 x
Autopilot 1 x
Magnetic Compass Exempted
Weather Fax 1 x
Speed Log 1 x
AIS 1 x
Bridge Nav Watch 1 x
VDR 1 x
Loading Computer 1 x

DYNAMIC POSITIONING SYSTEM
DP2 with Joystick Rolls-Royce Icon
– 2 x DGPS
– 3 x Wind sensors
– 3 x Gyro compass
– 1 x Laser reference
– 2 x Gate valve for hydro-acoustic sensors
– 1 x HiPAP 500 (2nd unit – optional extra)
– Taut wire system (500m) (Optional extra)
INTERCOMMUNICATION SYSTEM
PA Talkback System
Self-Powered Telephone
Integrated Telephone
VSAT 1
Clear Com System

MISCELLANEOUS
Search Lights 4 x 2,000 W
Floodlights 20
Liferafts 2 x 25 persons davit launched tyep (SOLAS)
Lifeboats 2 x 100 men totally enclosed lifeboat (SOLAS Approved) (Vanguard)
Fast Rescue Boat & Davit 1 x 6 men (Vanguard)
Rescue Boat & Davit 1 x 6 men (Vanguard)
Water Maker 2 x 40m³/day reverse osmosis type
Oily Water Separator 1 x 1m³/h (BOSS 5T/107-USA)
Sewage Treatment Plant 1 x 100 men with vacuum system (EVAC MBR120C)
Moonpool 5.4m x 5.4m with damping swash bulkheads & air vents
N2 Generation System 1 x Wilhemsen



DP2, MPSV / IMR

2009, DNV. Loa 93.5 m, width 20.00 m, draft 6.3 m. Deck Area 1050 m2  (main + mezzanini) Deack load 1,600 tons. Deck crane 100 tons AHC knuckle boom. 74 berths. Location: ME. Inquire

GENERAL
Built 2009
Classification DNV +1A1, E0, SF, Dynpos AUTR, Clean Class
Comf-V(3), dk(+), hl(2,5/2,8), LFL*, Oil Rec,
Supply Vessel, NAUT OSV(A), HELDK-S

DIMENSIONS
Lenght oa 93.5 m
Beam mld 20.0 m
Depth mld 7.85 m
Draft Summer 6,30 m
Deadweight 4,245 t
Gross tonnage 4870

MACHINERY
Main engines 4 x Caterpillar 3516, 2100 ekw each
Aux engines 2 x Caterpillar CAT C18, 500 ekw
Emer. Generator 1 x Caterpillar CAT C9, 160 ekw
Fuel type MGO

SPEED
Max speed 15.5 kts
Economic speed 11 kts

PROPULSION
Main Thrusters Rolls Royce AZP 100 2 x 2200 eKW
Bow thruster Rolls Royce TT 2200CP 2 x 1050 ekw
Azimuth thruster fwd Rolls-Royce UL 1201 1 x 883 ekw

CONSUMPTION
Max speed 28 m3
At 12 kts 20 m3
DP operation 8 m3
Port consumption 3 m3

DECK EQUIPMENT
Deck Area 1050 m2,  883 m² behind mezzanine deck
Max Deck Cargo 1600 t  @ VCG 1.1m
Mezzanine Deck Max load 165 mt
Deck Dimension 55,7 m x 15,85 m
Deck Strength 10 t/m² Stern to frame 84
5 t/m2 frames 84 – 105
Deck Cranes 2 x Hydramarine 5 t @15 m,  PS certified for man riding
Wing wall height 2,80 m
Windlass 2 x RR-Electrician mooring winches 12 t
Capstan 2 x Adria Winch 10 t
Gangway system Manually operated
Liferafts 3 x 35 + 1 x 25 Persons each side
Lifeboats N/A
FRC 1 x Weedo 700.
Moonpool 5.9 m x 5.9 m, removable hatch on maindeck
Wave damping zones Yes
Bulwarks on loading area Removable p side forward as well as stern.
Machinery spaces Water mist system.
1 off complete integrated fire detection system

HELICOPTER DECK
Helicopter Deck Dia. 21 m – 12.8 t
Helicopter reception / sky lobby.
MRU for Helideck SMC IMU Motion Sensors.
Firefighting. Pop-up system.

OFFSHORE CRANE
Type Hydramarine/MacGregor
Main winch AHC 100 t at 15 m, 25 t at 32 m
Wire length 2000 m
Aux winch 15 t at 33 m CT
Man riding 1,5 t at 36 m.
wire length 240 m
Tuggers 2 x 5T
MRU for cr ane Kongsberg MRU
Anti-Heel Sys 1 x 1400 m3/h

DYNAMIC POSITION
Class DP II, Kongsberg K – Pos DP-21
Reference systyms 2 x Veripos LD6
1 x Kongsberg Radius 1000T / 750
1 x HiPap Kongsberg 501
1 x Bandak Taut wire 500 m
1 x Fanbeam
Sensors 1 x MRU-2 and 1 x MRU-5,
3 x gyros and 2 x wind sensors
ERN figures 99, 99, 98

NAVIGATION EQUIPMENT
Radars SAM Electronics
Pilot Radar 1 x 1000/1100
Chart Radar 1 x 1000/1100
Multi Plot 1 x 1000/1100
Chart Plot 9330/1100
Track plot 9401/1100
Gyro 3 x Anschutz
Navtex 1 x Furuno NX-700
DGPS 2 x SAAB R4
AIS Kongsberg
Echo sounder SAM 4620
Speed Log SAM 4112/4124
ECDIS SAM Electronics
VDR VDR 4300
Loading computer Kongsberg / Lodic
Helideck monitoring SeaRec HMS

COMMUNICATION EQUIPMENT
GMDSS According to area A3
MF/HF Sailor 1 x CU-5100
VHF/DSC 2 x Sailor RT 5022
SAT_C 2 x Sailor TT-3606E
Broadband Marlink
UHF 11 x Motorola GP 150 + 740 (portable)
2 x Motorola GM 360
Intercom Vingtor/Zenitel
EPIRB’s Jotron, Tron 45SX
SART’s 2 x Jotron, Tron radar transponder.
Mobile phone GSM 2 off.
TV system SeaTel type 6004.
V- sat system Marlink Dual (360 degree) KU band
CCTV system 14 fixed cameras

CAPACITIES / DISCHARGE RATES
Fresh water 1000 m³, 2 x Allweiler 150 m³/h
WB Anti-Heel 1 x 1,400 m³/h
Fuel 2 x 250 m³/h
Chain lockers 2 x 25 m³
Roll reduction tanks 2 off. Total cap 354 m³
Fresh water maker 1 x 20m3 per day
Ballast Water 2,100 m³
Drill Water 1,800 m³
Fuel Oil (90%) 1,017 m³
Brine (90%) 456 m³
Liquid Mud (90%) 1,045 m³
Methanol (90%) 193 m³
Special Products (90%) 193 m³
Dry Bulk 200 m³

ACCOMMODATION
Number of cabins Single cabins 16 pcs
Double cabins 26 pcs
3 man cabins 2 pcs
Total 74 persons
Hospital 1 pcs
Ward 2 x beds
Reception 1 x SB-side
Mess room 35 seats
Dayrooms 1 x smoking + 1 xnon-smoking
Cool store 28.3 m³
Freezers 29.6 m³
Dry provision 44.0 m³
Offices 1 x ships office
Helideck reception 1 pcs
Conference room 2 pcs
Coffee shop 1 pcs
Gymnasium 1 pcs
Wardrobe Male and female main deck.

OFFICE SPACE AVAILABLE TO CLIENT
Conference room 1 pcs
Project office 1 pcs
ROV office 1 pcs
ROV control/online room 1 pcs
Client office 1 pcs
Server room for client 1 pcs
Deck office 1 pcs
ROV Hangar N/A

MISCELLANEOUS
Incinerator 1 x Saniterm SH20-SM
TV system all cabins and day rooms.

DP2, MPSV / IMR

2009, DNV. Loa 93.5 m, width 20.00 m, draft 6.3 m. Deck Area 1050 m2  (main + mezzanini) Deack load 1,600 tons. Deck crane 100 tons AHC knuckle boom. 74 berths. Location: ME. Inquire

GENERAL
Built 2009
Classification DNV +1A1, E0, SF, Dynpos AUTR, Clean Class
Comf-V(3), dk(+), hl(2,5/2,8), LFL*, Oil Rec,
Supply Vessel, NAUT OSV(A), HELDK-S

DIMENSIONS
Lenght oa 93.5 m
Beam mld 20.0 m
Depth mld 7.85 m
Draft Summer 6,30 m
Deadweight 4,245 t
Gross tonnage 4870

MACHINERY
Main engines 4 x Caterpillar 3516, 2100 ekw each
Aux engines 2 x Caterpillar CAT C18, 500 ekw
Emer. Generator 1 x Caterpillar CAT C9, 160 ekw
Fuel type MGO

SPEED
Max speed 15.5 kts
Economic speed 11 kts

PROPULSION
Main Thrusters Rolls Royce AZP 100 2 x 2200 eKW
Bow thruster Rolls Royce TT 2200CP 2 x 1050 ekw
Azimuth thruster fwd Rolls-Royce UL 1201 1 x 883 ekw

CONSUMPTION
Max speed 28 m3
At 12 kts 20 m3
DP operation 8 m3
Port consumption 3 m3

DECK EQUIPMENT
Deck Area 1050 m2,  883 m² behind mezzanine deck
Max Deck Cargo 1600 t  @ VCG 1.1m
Mezzanine Deck Max load 165 mt
Deck Dimension 55,7 m x 15,85 m
Deck Strength 10 t/m² Stern to frame 84
5 t/m2 frames 84 – 105
Deck Cranes 2 x Hydramarine 5 t @15 m,  PS certified for man riding
Wing wall height 2,80 m
Windlass 2 x RR-Electrician mooring winches 12 t
Capstan 2 x Adria Winch 10 t
Gangway system Manually operated
Liferafts 3 x 35 + 1 x 25 Persons each side
Lifeboats N/A
FRC 1 x Weedo 700.
Moonpool 5.9 m x 5.9 m, removable hatch on maindeck
Wave damping zones Yes
Bulwarks on loading area Removable p side forward as well as stern.
Machinery spaces Water mist system.
1 off complete integrated fire detection system

HELICOPTER DECK
Helicopter Deck Dia. 21 m – 12.8 t
Helicopter reception / sky lobby.
MRU for Helideck SMC IMU Motion Sensors.
Firefighting. Pop-up system.

OFFSHORE CRANE
Type Hydramarine/MacGregor
Main winch AHC 100 t at 15 m, 25 t at 32 m
Wire length 2000 m
Aux winch 15 t at 33 m CT
Man riding 1,5 t at 36 m.
wire length 240 m
Tuggers 2 x 5T
MRU for cr ane Kongsberg MRU
Anti-Heel Sys 1 x 1400 m3/h

DYNAMIC POSITION
Class DP II, Kongsberg K – Pos DP-21
Reference systyms 2 x Veripos LD6
1 x Kongsberg Radius 1000T / 750
1 x HiPap Kongsberg 501
1 x Bandak Taut wire 500 m
1 x Fanbeam
Sensors 1 x MRU-2 and 1 x MRU-5,
3 x gyros and 2 x wind sensors
ERN figures 99, 99, 98

NAVIGATION EQUIPMENT
Radars SAM Electronics
Pilot Radar 1 x 1000/1100
Chart Radar 1 x 1000/1100
Multi Plot 1 x 1000/1100
Chart Plot 9330/1100
Track plot 9401/1100
Gyro 3 x Anschutz
Navtex 1 x Furuno NX-700
DGPS 2 x SAAB R4
AIS Kongsberg
Echo sounder SAM 4620
Speed Log SAM 4112/4124
ECDIS SAM Electronics
VDR VDR 4300
Loading computer Kongsberg / Lodic
Helideck monitoring SeaRec HMS

COMMUNICATION EQUIPMENT
GMDSS According to area A3
MF/HF Sailor 1 x CU-5100
VHF/DSC 2 x Sailor RT 5022
SAT_C 2 x Sailor TT-3606E
Broadband Marlink
UHF 11 x Motorola GP 150 + 740 (portable)
2 x Motorola GM 360
Intercom Vingtor/Zenitel
EPIRB’s Jotron, Tron 45SX
SART’s 2 x Jotron, Tron radar transponder.
Mobile phone GSM 2 off.
TV system SeaTel type 6004.
V- sat system Marlink Dual (360 degree) KU band
CCTV system 14 fixed cameras

CAPACITIES / DISCHARGE RATES
Fresh water 1000 m³, 2 x Allweiler 150 m³/h
WB Anti-Heel 1 x 1,400 m³/h
Fuel 2 x 250 m³/h
Chain lockers 2 x 25 m³
Roll reduction tanks 2 off. Total cap 354 m³
Fresh water maker 1 x 20m3 per day
Ballast Water 2,100 m³
Drill Water 1,800 m³
Fuel Oil (90%) 1,017 m³
Brine (90%) 456 m³
Liquid Mud (90%) 1,045 m³
Methanol (90%) 193 m³
Special Products (90%) 193 m³
Dry Bulk 200 m³

ACCOMMODATION
Number of cabins Single cabins 16 pcs
Double cabins 26 pcs
3 man cabins 2 pcs
Total 74 persons
Hospital 1 pcs
Ward 2 x beds
Reception 1 x SB-side
Mess room 35 seats
Dayrooms 1 x smoking + 1 xnon-smoking
Cool store 28.3 m³
Freezers 29.6 m³
Dry provision 44.0 m³
Offices 1 x ships office
Helideck reception 1 pcs
Conference room 2 pcs
Coffee shop 1 pcs
Gymnasium 1 pcs
Wardrobe Male and female main deck.

OFFICE SPACE AVAILABLE TO CLIENT
Conference room 1 pcs
Project office 1 pcs
ROV office 1 pcs
ROV control/online room 1 pcs
Client office 1 pcs
Server room for client 1 pcs
Deck office 1 pcs
ROV Hangar N/A

MISCELLANEOUS
Incinerator 1 x Saniterm SH20-SM
TV system all cabins and day rooms.

DP-2, 4-Point Mooring, FiFi-1 MPSV

2008, BV. Loa 76.0 m, width 20.00 m, depth 6.10 m, max draft 4.50 m. Deck Area 350 m2. DW 2,200 tons. Deck crane 40 tons. 138 berths. Location: Far East. Inquire

PRINCIPAL PARTICULARS
Type DP2 ROV Support/ Maintenance Vessel
Year Built 2008, China
Class BV
Notation I + HULL + MACH / offshore  support vessel
DYNPOS – AM/AT – R Unrestricted navigation
Class No 7
IMO No 387

DIMENSIONS
Length Overall : 76.00 m
Length Waterline : 71.58 m
Length BP : 68.15 m
Breadth Moulded : 20.00 m
Depth Moulded : 6.10 m
Draft Moulded : 4.50 m
GT / NT 2997 / 899
Deadweight : 2,200 mt

PERFORMANCE
Maximum speed : 12.0 knots
Economical speed : 10.0 Knots
Type of fuel : Marine Gas Oil

CARGO CAPACITIES
Deck Strength : 7.5 mt/m2 Uniform loading
Clear Deck Area : 700 m2
Fuel Oil : 1053 m3
Fresh Water : 1510 m3
Ballast/Drill Water : 770 m3
Freezer : 17 m3 ( -18˚ C temperature )
Chiller : 18 m3 ( + 4˚ C temperature)
Mud : 213 m3

DP2 DYNAMIC POSITIONING SYSTEM
DP System : MT Bridgemate DP2 System
  Independent Joystick System,
  2 x Wind Sensors
  2 x DPS 116 DGPS POSREF
  1 x Fan Beam
1 x Taut wire
1 x HiPAP
3 x Gyro, 2 x VRU

PROPULSION SYSTEM
Main Engine : 2 x 2575 BHP (each coupled to 1 azimuth thruster)
Main Generator : 3 x 500 kW / 415V/ 3 Phase / 50 Hz Diesel Driven
2 x 1600 kW/ 415V/ 3 Phase / 50 Hz Shaft Driven
Emergency Genset : 1 x 99 kW
Bow Thruster : 2 x 10 mt controllable pitch
Propeller : 2 x Azimuth Thruster
DECK EQUIPMENT
Windlass : 1 x electro-hydraulic for Ø 48 mm chain rated 12 t @ 12m/min
Anchor : 2 x 2140kg high-holding type
Anchor Chain : 440m x Ø 48mm each, port & stbd
Capstan : 2 x 10 mt @ 15 m/min
Tugger Winch : 2 x 10 mt @ 15 m/min
Main Crane : 1 x 40 mt pedestal type, max radius 40m
Auxiliary Crane : 2 tns., max.
Working Radius 12.0 m
Towing Bollard : Smit towing bollard SWL 80 mt
Moon Pool : 4.5 m x 4.5 m

FIRE FIGHITING EQUIPMENT
Internal
Fire Pump : 1 x 100 m3/h @ 40 m head
Emer. Fire Pump : 1 x 35 m3/h @ 4.5 bar
Fixed System in E/R: CO2 Fixed in E/R
Firemain : 1 unit c/w 12 hydrants
Fire Detection Sys. : All living space and engine room
Fireman’s Outfit : 5 Sets
Fire Blankets : 2 units
Fire Axe : 1 unit
MOORING SYSTEM
Four (4) points mooring c/w mooring system winches below main deck
Anchors : 4 x 5 MT Delta Flipper Types
Mooring Winches : 4 x Skid Mounted single drum, Electro-hyd driven
(each fitted with CCTV).
Spooling Capacity : Ø 50mm x 1000m wire.
Tensioner/ Sheaves : 4 x off tension sensor and 4 x vertical sheaves

DISCHARGE RATES
Fuel Oil : 1 x 200 m3/hr @ 75 m/head
(equipped with Flowmeter c/w local read-out)
Fresh Water : 1 x 150 m3/hr @ 75 m/head
Mud : 2 x 70 m3/hr @ 85 m/head

NAVIGATIONAL /COMMUNICATION EQUIPMENT
GMDSS : Furuno RC-1500-1T for Area A1 + A2 + A3
SSB : 1 x Furuno FS-5000
DSC Terminal : 1 x DSC-6 MF/HF
SART : 2 x Alden
Inmarsat-C : 2 x Felcom-15
Satellite EPIRB : 1 x McMurdo MCM-406A
VHF Radio : 2 x Furuno
Portable VHF Radio: 5x Furuno
Navtex Receiver : 1 x JRC
X-Band Radar : 2 x Furuno
Echo Sounder : 1 x Furuno
GPS Plotter : 1 x Furuno
Gyrocompass : 3 x Anschutz
Autopilot : 1 x Anschutz
Weather Fax : 1 x Furuno
Speed Log : 1 x Furuno
Magnetic Compass : 1 x Saura
AIS : 1 Unit

ACCOMMODATIONS
Berths : 6x 1 berth cabin = 6
  4 x 2 berth cabin = 8
  31 x 4 berth cabin = 124
Total : 138 berths
Hospital : 1 x 2 berth
All cabins are fully air-conditioned

LIFE SAVING APPLIANCE
Search Lights : 3 x 2000 W
Floodlights : 5 x 1000 W
Liferafts : 6 x 25 men SOLAS Type (Port Side)
  6 x 25 men SOLAS Type (Stbd Side)
Lifebuoys : 12 pcs with buoy lights
Life jackets : 173 pcs
Immersion suit : 138 pcs
Lifeboat : 2 x 75 men SOLAS Type
Rescue boat : 1 x 6 men rigid c/w 30 hp motor and davit launching
Air Breathing App : 5 Units
EEBD : 8 units
Parachute Distress : 12 Units, SOLAS Type

DP-1, 4-P Mooring Subsea Support Vessel

Versatile & multi-functional

2013, ABS, DP-1, FiFi-1. Loa 59,0 m, Width 15,0 m, Depth 6,1 m. DW: +/-1.450 ton. Deck cargo: 500 ton, Z-peller drive, 2 x 1.550 kW, bow thruster, 4-point mooring. Deckcrane, 50 pax accommodation. ME Gulf. Inquire

PRINCIPAL PARTICULARS
Year Built 2013, China
Class ABS
Notation +A1 E “Offshore Support Vessel, Fi Fi Class 1 + AMS + DPS 1
GT / NT 1,671 / 501

DIMENSIONS
Length Overall 59.25 m
Length Waterline 56.00 m
Breadth Moulded 15.00 m
Depth Moulded 6.10 m
Draft 4.60 m

CARGO CAPACITIES
Deadweight 1,450 mt
Deck Cargo 500 mt
Deck Area 350 m2
Deck Strength 7t/m2
Fuel Oil 880 m3
Fresh Water 400 m3
Water Ballast/Drill Water 1,000 m3
Dispersant 13 m3
Foam 13 m3
Freezer 10 m3
Cooler 10 m3
DISCHARGE CAPACITIES
Fuel Oil 1 x 150 m3/hr @ 60m head
Fresh Water 1 x 100 m3/hr @ 75m head
Drill Water 1 x 100 m3/hr @ 75m head
Bilge/Ballast 2 x 75 m3/hr @ 40m head

MACHINERY
Main Engines 2 x 2,200 BHP Wartsila 8L20
Main Generators 3 x 350 kW Diesel Driven, 415V/3Ph/50Hz
Emergency Generator 1 x 80 kW
Propellers 2 x Azimuth Thruster Controllable Propeller Wartsila LIPS CS 225-S/WN – K
Rudders Z Propeller
Bow Thruster 1 x 350 kW , 5 T Thrust
Steering Gear Wartsila Z – Peller

SPEED
Max. Speed 12.0 knots
Economical Speed 10.0 knots
Type of Fuel Marine Gas Oil
Consumption Economy: approx. 8 mt / 24 hrs @ 85% MCR
Maximum : approx. 14 mt / 24 hrs @ 100% MCR

ACCOMMODATION
1 men Cabins 4
2 men Cabins 5
4 men Cabins 9
Total: 50
Hospital 1 bed
All cabins fully air-conditioned with en suite wash rooms.

RADIO & NAVIGATION EQUIPMENT
GMDSS: Area 3
1 x SSB
2 x Inmarsat C
2 x VHF
1 x Navtex Receiver
2 x SART
1 x EPIRB
3 x VHF Portable radios
2 x Radar
1 x Echosounder
1 x DGPS
1 x Gyrocompass
1 x Autopilot
1 x Magnetic Compass
1 x Weather Fax Receiver
1 x Speedlog
1 x Wind Indicator
1 x AIS
1 x PA/Talkback System
1 x Kongsberg Joystick Control
1 x Self Powered Telephone
 DP-1 – Konsberg

FIRE FIGHTING & ANTI POLLUTION EQUIPMENT
FIFI System Class 1
Pump 2 x 1,500 cbm/hr @ 14 bar
Monitors 2 x 1,200 cbm/hr @ 12 bar (with remote control)
One monitor fitted with double barrel for foam discharge
1 x Water Spray Curtain round the Hull & Deckhouse
Engine room water spray system: Seaplus, South Korea
Fire Extinguishing System
Engine Room CO2 system
12 x fire hydrants and fire extinguishers as Class requirements
2 x fireman outfits
4 x fire blankets for engine room and galley
1 x BA recharging compressor of 75 ltr/min @ 200 bar
Life Saving
6 x 25 men Inflatable Life rafts
8 x Lifebuoys
60 x Lifejackets
1 x Rigid Inflatable Rescue Boat for 6 persons (with outboard motor)

AUXILIARY EQUIPMENT
1 x Sewage Treatment Plant suitable for 50 men
1 x 10T/day Reverse Osmosis Fresh Water Maker
1 x Oily Bilge Water Separator
1 x FRC 15 man with diesel inboard engine c\w launch recovery davit

DP2 MPSV 90t/110t AHC crane

2007, BV, Loa 79.0 m, Width 18.0 m. DWT: +/-3200 ton. Deck cargo: 1240 ton, AHC deckcrane 110t/90t, 60t at 1.600 m, 70 pax accommodation. 150 persons rescue. WAF. Inquire

GENERAL
Built: 2007
Class: BV, I + HULL + MACH Special Service – Stand by
Rescue Vessel; Fire fighting ship / Fire fighting 1
Waterspray / Oil Recovery Unrestricted navigation
+ AUT-UMS; + ALM; + DYNAPOS-AM/AT-R; +SDS

DIMENSIONS
Length bpp: 79.0 m
Breadth moulded: 18.0 m
Depth: 7.4 m
Draft (Min / Max): 3.10 m / 5.75 m
Deadweight at max. draft: 3,200 t
Gross tonnage: 4,300

CAPACITIES & DELIVERY RATES
Deck area: 800 m² @ 10 t/m² (aft) & 5 t/m² (medium & fwd)
Mezzanine deck area: 260 m² @ 5 t/m²
Deck cargo: 1,240 t @ 1 m above deck
Fuel oil: 852 m³ – No transfer pump
Drill or Water ballast 1,840 m³ – No transfer pump
Anti-heeling: 2 x 228 m³ – 2 x 1,300 m3/h
Fresh water: 372 m³ – No transfer pump
Oil recovery: 280 m³
Foam: 25 m3

ACCOMMODATION
Cabins 1 man cabins: 10
2 men cabins: 24
3 men cabins: 4
Accommodations for: 70 persons
Other spaces 4 x offices, 1 x conference room
1 x Hospital
1 x Mess room, 2 x Day rooms,
1 x Laundry, 1 x Galley, 1 x gym
Air conditioning: Yes
Water maker: 1 boiler – 10 m3/day

PROPULSION – MACHINERY
Main propulsion: 2 x 1,800 kW FP Azimuth thrusters
Bow thrusters: 2 x 780 kW CP Tunnel
Bow thruster retractable: 1 x 600 kW FP Azimuth
Main generator: 4 x 1,360 kW – 480 V
Emergency generator: 1 x 320 kW – 480 V

SPEED & CONSUMPTION
Maximum speed (100%): 13 knots – 20 t/day
Service speed (80%): 10 knots – 15 t/day
Stand-by at port: 2 t/day
Stand-by on DP: 6 t/day

DECK EQUIPMENT
Tuggers: 2 x 5 t
Capstans: 2 x 5 t
Deck service air supply 1,200 m3/h @ 7 bars
Deck power supply: 3 x 280kW – 480 V
Offshore crane: NOV knuckle boom
Harbour capacity: DAF 1.2 – 110 t @ 14.5 m – 40 t @ 29.5 m
Offshore capacity: DAF 1.6 – 90 t @ 13 m – 31 t @ 30 m
Main Winch: 90 t / 61 t – 1,600 m – AHC
Auxiliary Winch: 10 t / 10 t – 1,500 m – AHC – Man Riding
Offshore crane 2: SMST knuckle boom
Harbour capacity: DAF 1.2 – 24 t @ 10.5 m – 8 t @ 18 m
Offshore capacity: DAF 1.6 – 12 t @ 10 m – 6 t @ 18 m
Main Winch: 12 t / 7 t – 2,300 m – Man Riding

COMMUNICATION
Inmarsat: 2 x Satcom
VSAT: 1 x C band 256 Kbit
Video network: YES

DYNAMIC POSITIONING
DP 2 Converteam ADP21 Duplex System
Reference 1: DGPS 1 Thales Aquarius
Reference 2: DGPS 2 Thales Aquarius
Reference 3: Cyscan Laser Reference System
Reference 4: Sonardyne Fusion USBL

SAFETY EQUIPMENT
Fi-Fi: Class 1
Pumps: 2 x 1,200 m3/h
Monitors: 2 x 1,200 m3/h
Fast Rescue Craft: 1 x Seabear 23 MKII
Rescue capacity: 150 persons in tropical area

Versatile SSV/PSV, FiFi-1, 4-point mooring (2 sisters)

Versatile & multi-functional

2008, BV, 4-point mooring, FiFi-1. Loa 48,0 m, Width 12,5 m. DW: +/-750 ton. Deck cargo: 725 ton, 2 x 1.600 kW, bow thruster. Deckcrane, 34 pax accommodation. WAF.  For charter only: Inquire

GENERAL
Built 2008
Class BV
Notation I x Hull x Mach, Supply/Utility Vessel, oil product FP>100°C, FiFi-1 water spraying, unrestricted navigation

DIMENSIONS
Loa 48 m
Width 12.60 m
Depth 5.20 m
Draft 4.20 m
Deck area 164 m2

MACHINERY & CONSUMPTION
Service speed / consumption 12.5 knots @ 12 mT MGO/day
11.5 knots @ 8.5 mT MGO/day
0.5 mT /day at 4-point mooring
Main engines 2 x Cummins, 4 stroke driving a red.gear & CPP shaft / Props on one
Power 2 x 1600 BHP @ 1800 r.p.m.
Generators 3 x aux. engine Volvo Penta, Each 250 kW + emergency DG 67 kW, A.C. 3-ph, 380 V, 50 hz
Bow thruster 200 kW electric driven
Cargo Fuel pump 70 m3/hr
Cargo FW pump 70 m3/hr

CAPACITIES
GT 1025
NT 308
Deck load 725 mT
Deck strength 5 mT/m2
Deadweight 756 mT
Lightweight 898 mT

TANK CAPACITIES
Fuel 240 m3
FW for ship 190 m3
FW for rig 330 m3
Desalination Max 8 tons/day
Sludge 6.3 m3

ACCOMMODATION
Cabins 5 x 1 Man
15 x 2 Men
Total 34

DECK EQUIPMENT
Anchors Port & stbd: 2 X AC – 14 HHP, 1000 kg each
4-point mooring 4 X 1,200 m, 28 mm ø, 35 tons, 1st layer
4 x 3,000 Kg Flipper Delta
Towing gear 40 tons Bollard Pull (tow line 42 mm / 800 m) + towing pin
Tugger winches 2 x tugger winches, 12 mT each
Zodiac Mark V with 36 BHP O/B engine
Deck crane SWL=10 mT @ 12 m outreach, 7 mT @ 14 m outreach
FiFi-1 2 x 1200 m3/hr monitors on top of the bridge
Oil Rec foam & dispersant booms

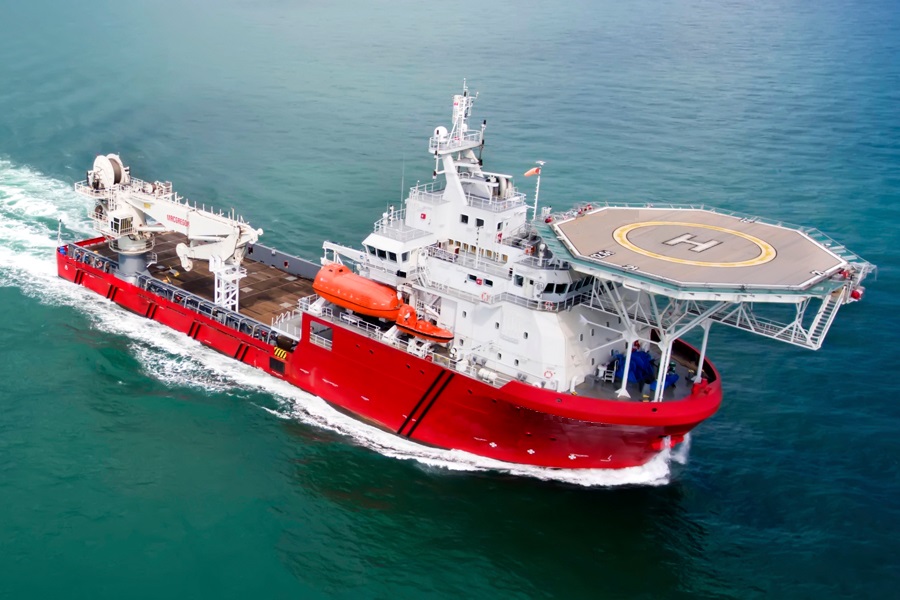

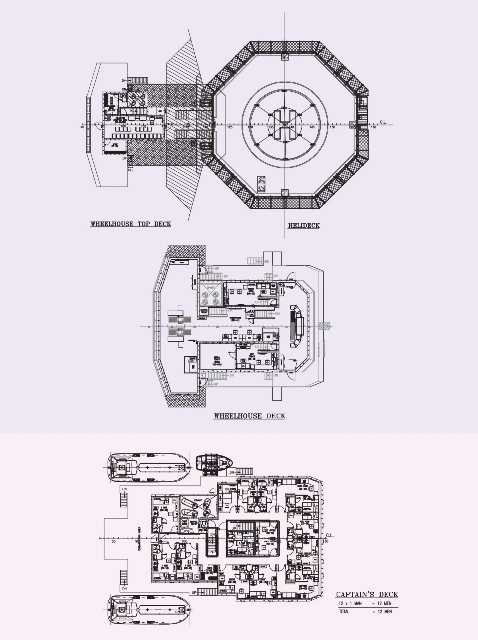

DP2 MPSV 70t/110t AHC crane Helideck (2 sisters)

2004, BV, Loa 79.0 m, Width 18.8 m. DWT: +/-3650 ton. Deck cargo: 2500 ton, AHC deckcrane 110t/70t, 70t at 1.600 m, 75 pax accommodation. WAF. Inquire

GENERAL
Built: 2004
Class: DNV + 1A1 Fire Fighter I SF LFL* COMF-V(3)
HELDK-S E0 Dynpos – Autr Clean DK (+) HL(2,8)

DIMENSIONS
Length bpp: 79.0 m
Breadth moulded: 18.80 m
Depth: 7.60 m
Draft (Min / Max): 4.80 m / 6.22 m
Deadweight at max. draft: 3,650 t
Gross tonnage: 3,963
Helideck: 18 m / 9.3 t (Super Puma AS332)

CAPACITIES & DELIVERY RATES
Deck area: 850 m² @ 10t/m²
Mezzanine deck area: 160 m² @ 10t/m²
Deck cargo: 2,500 t @ 1 m above deck
Fuel oil: 1,288 m³ – 2 x 250 m3/h @ 9 bars
Drill or Water ballast: 2,658 m³ – 2 x 250 m3/h @ 9 bars
Anti-heeling: 540 m³ – 1,400 m3/h
Fresh water: 744 m³ – 2 x 250 m3/h @ 9 bars
Mud / Brine: 600 m³ / 750 m3 – 4 x 100 m³/h @ 24 bars
Methanol: 161 m³ – 2 x 100 m³/h @ 9 bars
Dry bulk: 384 m³ – 80 t/h @ 8 bars
Foam: 4.5 m³

ACCOMMODATIONS
Cabins 1 man cabins: 13
2 men cabins: 27
4 men cabins: 2
Accommodations for: 75 persons
1 x Hospital
3 x Office, 1 x Conference room
1 x Mess, 2 x Day rooms, 1 x Laundry, 1 x Galley, 1 x Workshop, 1 x Gym
Air conditioning: YES
Water maker: 1 Osmose – 12 m³/day

MACHINERY
Main propulsion: 2 x 2,500 kW CP Azimuth thrusters
Bow thrusters: 1 x 883 kW CP Tunnel
Bow thruster retractable: 1 x 883 kW CP Azimuth
Main generator: 4 x 1,655 kW – 690 V
Emergency generator: 1 x 370 kW – 440 V

SPEED & CONSUMPTION
Max. speed (100%): 14 knots – 25 t/day
Service speed (80%): 11 knots – 14 t/day
Stand-by at port: 2 t/day
Stand-by on DP: 7 t/day

DECK EQUIPMENT
Tuggers: 2 x 12 t
Capstans: 2 x 10 t
Deck service air supply: 7 bar
Deck power supply: 4 x 200 kW – 690 V & 1 x 450 kW – 440V
Work boat: NA
Deck provision crane: 2 x 3 t @ 12 m
Mooring: NA
Offshore crane: NOV knuckle boom
Harbour capacity: DAF 1.2 – 110 t @ 12 m – 40 t @ 30 m
Offshore capacity: DAF 1.6 – 70 t @ 17 m – 30 t @ 30 m
Main winch: 70 t / 61 t – 1,600 m – AHC
Auxiliary winch: 10 t / 10 t – 2,000 m – AHC

COMMUNICATION
Inmarsat: 2 x Satcom
VSAT: 1 x C band 256 Kbit

DYNAMIC POSITIONING
Maker: Kongsberg SDP-21
Type: DP 2
Reference 1: DGPS 1 Seastar 3100LRS
Reference 2: DGPS 2 Seastar 3100LRS
Reference 3: MDL Fan Beam
Reference 4: Kongsberg HIPAP 500
Reference 5: DGPS Thales NR203

SAFETY EQUIPMENT
Fi-Fi: Class 1
Pumps: 2 x 1,500 m³/h
Monitors: 2 x 1,200 m³/h
Fast Rescue Craft: 1 x Norsafe
Rescue capacity: NA

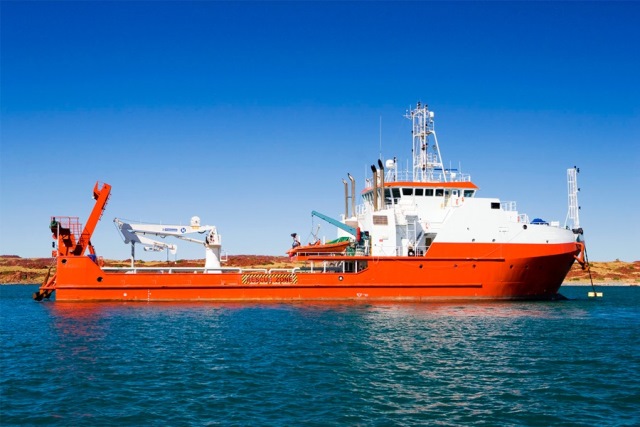

34 tbp, SPS, DP-0 Multi Purpose

2008, ABS, Singapore Flag. Loa 54.00 m, width 13.80 m, depth 4.50 m, max draft 3.80 m. DW 950 tons. Deck Area 240 m2. Towing/AH winch waterfall conf. Stern Roller, A-frame Seating. Dedicated ROV generator. Inquire

PARTICULARS
Vessel Type Multi Purpose ROV
Year Built 2008
Classification ABS, A1, ACCU, AMS, (E), Towing Vessel,
Offshore Support Vessel, Special Purpose Ship

DIMENSIONS & PERFORMANCE
Length Overall 54 m
Breadth 13.8 m
GT 1,080
Deadweight 950 t
Depth Moulded 4.5 m
Maximum draft 3.6 m
Clear deck Space 240 m²
Deck loading 5 t/m²
Max Speed 11 kts
Economical speed 9 kts
Bollard Pull tonnes 34
Sewage Plant MARPOL compliant  34 men, shore connection
Rudders Becker independent
Joystick Alstom

CAPACITY
Fuel Oil 900 m³
Potable Water 93.4 m³
Sewage 8.9 m³

PUMPING RATES
Fuel Oil 50 m³ @ 50 m head
Potable Water 50 m³ @ 50 m head

MACHINERY
Main Engines Cummins KTA50-M42 1600bhp
Generators 2 x Cat. 3406C 245 kW, ROV Generator
1 x Cat. 3406C 320 kW
Aux Generator 1 x Cat. C18 450 kW
Emergency Generators Caterpillar C4 38kW
Bow Thruster 1 x 5t
Stern Thruster 1 x 3.5t
Propulsion Fixed pitch with fixed nozzles

ACCOMMODATION
Berths 2×1, 6×2, 5×4
Total 34

FIRE FIGHTING
Class 1
Monitors 1 x 1,200m³/hr
Pumps 1 x 1,200m³/hr

DECK EQUIPMENT
Towing / AH Winch
Type Plimsol double drum waterfall
Pull 50 t
Brake Holding 50 t
Wire Capacity 1,000 m x 42mm
Tugger Winch
Number & Capacity 2 x Plimsol, 5t
Other Deck Equipment
Stern Roller 2.5 m x 1.0m, 50 t SWL
A Frame Seating Yes for 24t SWL
Water Maker 2 total 5t/day

LIFE SAVING EQUIPMENT
Liferafts 6 x 20 man
Lifejackets 38
FRC/Rescue Boat/Davit SOLAS FRC & Davit
Lifebuoys 8

SPECIALIST
Rescue Zone Fitted
Transducer Pole Yes
Transducer Flange 2
Twist Locks 20
Lashing Lugs 30 x 10 t SWL
Mezzanine Deck Removable
Deployment Davit 1 x 500 Kg SWL slewing davit
Survey Station Fitted with Ethernet

4PM Diving Support - / Salvage Vessel (priced to sell)

1983, BV class, Diving Support / Salvage Vessel. Loa 50.0 m, Width 11.4 m, Depth 4.8 m. 4-point mooring. Stern roller 140 ton. Deckcrane 16 tm, A-frame 60 ton. Decompression chamber, Diving equipment store, Rope/Salvage equipment hold. 30 pax accommodation. Presently operational, North Sea. Inquire

General
Built 1983
Class BV, I  Hull + Mach, Special service/Salvage boat
  Unrestricted navigation, + MACH

Dimensions
Length overall 50.0 m
Width 11.0 m
Depth 4.80 m
Draft (max.) 3.80 m
Air draft 25.0 m
Gross tonnage 840

Deck area 162 m2
Deck capacity 250 ton
Deck load 5 ton/m2
Deadweight 700 ton

Machinery & propulsion
Propulsion 2 x MAN 20L2027, 700 kW each
Bow thruster 1 x Lips CT06-1, 350 kW, FPP
Generator 3 x 3406 DI, 250 kW each, 1 x 3306 DI, 135 kW
Harbour gen. 1 x 3304 DI, 55 kW

Performance
Bollard pull 30 ton
Speed, cons. 11 knts, 5 m3/day

Deck equipment
4-point mooring 4 x Delta Flipper anchors each 2,5 t,
  4 x winches 1.000 m wire forward, 650 m wire aft
Crane 16 tm
A-frame 60 t SWL, 10 meters above deck, 3,6 m outreach
Stern roller 140 t
Tugger winch 10 t
Towing winch 60 ton pull, 100 ton brake. Wire. 500 m x 50 mm

Tank capacity
Fuel oil 270 m3
Potable water 120 m3
Ballast 250 m3

Pump capacity
Fuel 10 m³/ hour at 3 bar
Various SW pumps and air-compressors

Navigation and communication
VHF (3x)
Electronic chart system
Echo sounder
Sonar
Radar (2x)
Automatic pilot
Satcom & wireless telephone

Life Saving Equipment
As per SOLAS requirements

Accommodation
Cabins 6 x 1-berth & 12 x 2-berth
Total 30 berth
Other spaces Conference room
Hospital
Features
Decompression chamber (space)
Diving equipment store
Rope – / Salvage equipment hold

DP-1, 4-point Mooring, Diving Support vessel

2006. ABS (2021). SPS compliant, DP-1, 4-Point Mooring. 20-ton A-frame, 45 tm Deck crane. Moonpool. Loa 54 m, Width 14 m, Draft 3.8 m. Total complement 42. Location: Singapore region Inquire

GENERAL
Year Built 2006
Classification A1, Offshore Support Vessel, AMS, ACCU, DPS-1
 add. notation SPS

DIMENSIONS & PERFORMANCE
Length Overall 54.0 m
Breadth 14.0 m
Depth Moulded 4.80 m
Maximum draft 3.80 m
GT 1,275
Clear deck Space 235 m²
Max Speed 12 knots @ 85% MCR
Economical speed 9 knots
Sewage Plant MARPOL compliant
Rudders Twin Becker
Joystick Yes
Bollard Pull 30 t

CAPACITY
Fuel Oil 320 m³
Potable Water 210 m³
Sewage 8.30 m³
Grey Water 18.3 m³

MACHINERY
Main Engines 2 x Caterpillar 3512B, 1,350 kW each
Generators 2 x Caterpillar 3406 260 kW each
Generator survey/ROV 1 x Caterpillar 3406C 320 kW (440/3/60Hz)
Emergency Generators 2 x LSA 49.1 M7 Shaft Alternator @ 600kW
Bow Thruster Rolls-Royce T9212 1 x 450kW 6.6t, Transverse tunnel
Stern Thruster Rolls-Royce T9213 300 kW, 4.5 t
Propulsion 2 x CPP fixed nozzles
2 x Berg CPP 580 Hx/4 with Kort Nozzles

ACCOMMODATION
Berths 2 x 1-berth cabin, 6 x 2-berth cabin, 7 x 4-berth cabin
Total 42 berth
Hospital 1 berth

DECK EQUIPMENT
Towing Winch
Type Plimsol SWL electro hydraulic
Pull 40 t, 35 m/ton @ 5 m/min
Brake Holding 80 m/tons
Wire Capacity 500 m x 32 mm
Tugger Winch
Number & Capacity 2 x 5 t
Wire Capacity 15 m/minute, holding power 7t
Other Deck Equipment
Stern Roller 1000 mm dia x 2200 mm, 50 t SWL
A Frame Available
A Frame Seating Fitted
Crane Hydra marine knuckle boom crane, SWL 15 t @ 3 m,
360 degree rotation, variable speed winch 7.5 t
Deck Voltage & Sockets 10 x 415 V x 32 AMP
Water Maker N/A

LIFESAVING
Liferafts 6 x 25 man SOLAS
Lifejackets 84
FRC/Rescue Boat/Davit 1 x 7 m, 15 persons, Weedo 700 FRB 220 hp,
FRC/Davit Macgregor 3.8 t davit
Lifebuoys 8
Immersion Suits 6

SPECIAL EQUIPMENT
DP Class DP Class 1, Taut Wire
HPR Gate valve fitted
DGPS 2 x DGPS Trimble
Transducer Pole Gate valve fitted
Transducer Flange 2
Mooring 4-point mooring, 4 x 1.5 t Delta flipper
Moonpool Fitted
A Frame 20 t SWL, Articulated A Frame, fitted on request

DP-2, 4-PM Offshore Maintenance / MPSV

2009. BV class. DP-2, 4-Point Mooring. Deck area/load: 600 m2/3,000 tons. 40 ton Lattice boom crane. Moonpool. Loa 75 m, Width 20 m, Draft 5.0 m.

Total complement 197. Inquire

GENERAL
Built 2009
Class BV
Notation I + Hull + Mach, Special service Well Service Support /
Offshore Maintenance Vessel, Unrestricted navigation
+ DYNAPOS -AM/AT -R, + MACH

MAIN PARTICULARS
Length oa 75.00 m
Breath mld 20.00 m
Depth mld 6.50 m
Draft (max) 5.00 m
Deck area 600 m2
Deck cargo 3.000 tons
Main deck Strength 10 ton/m2
Displacement (max) 4.500 mt
Deadweight 3.100 tons
Complement 197 men
Speed 11 knots
Endurance 28 days

MACHINERY
Engine 2 x Caterpillar 3516B, 1,930 kW each
Gearboxes 2 x Twin Disc marine reduction, 5.04:1
Azimuth thruster 2 x 1,930 kW, Kawasaki 2.6m diameter
Transverse thrusters 2 x 12 tons bow thruster. CPP
Main generators 2 x 500 kw. Cummins VTAD(m)
Emergency generators 1 x 150 kw. Cummins 6CTA 8.3D (M)
Air compressors 2 x 17 m3/hr 30bar

DECK EQUIPMENT
Anchors 2 x Stockless Bow Anchor (2640 kg)
Chain cable 2 x 495 m x 46nun (Grade 3)
Mooring lines 2 X 220m. 44 Ions
Anchor winch 1 x 10 t, 10 m/min
Mooring winch 4 sets (Single Drum)
Vertical capstan 2 sets (Hydraulic)
Tugger winch 2 x 10 t, 10 m/min
4-point mooring system 4 x Delta Flipper Anchor (4000 kg)
Offshore pedestal crane 1 x 7.5/10 K lattice boom type marine crane
40 t @ 13.7 m
27 t @ 20.0 m
9 t @ 38.4 m

ADDITIONAL EQUIPMENT
Stabilisation system flume tanks
Moon pool 3.6m x 3.6m
Option available for diving Operations
Dynamic positioning system DP-2
Referencing system 2 x DGPS, Cyscan Laser and Radarscan
Sonardyne (optional)
Communications VSAT C Band 128/128 kbps
Mini gymnasium Weight lifting and treadmill equipment

CARGO CAPACITIES & PUMPS
Fresh water 240 m3
Drill water 738 m3
Fuel oil tank 450 m3
Grey water tank 20 m3
Lub. Oil storage 16 m3
Bilge holding 16 m3
Sewage holding tank 20 m3
Dirty oil 16 m3
Hydraulic oil tank 20 m3
Anti-rolling (flume) tank 1.100 m3
Water maker 2 x 34.0 m3/day
Sewage treatment plant 200 men
Drill water pump 2 x 200 m3/hr @ 57m head
Bilge/ ballast pumps 2 x 75 m3/hr@ 45m head
General service/fire pump 2 x 170 m3/hr@ 105m head
Inflatable life raft 24 x 25 man

FIRE FIGHTING
Fire-fighting pump 1 x 1.200 m3/hr
ME front pto with C128a 10-14 h911aan
Deck delivery head 2 x 4 way delivery head
Fire main 19 x 65 A bronze hydrants
Foam system 600 m3/hr @ 90 m head
Carbon dioxide system fixed

DP-2, 8-PM Offshore Maintenance / MPSV (2 sisters)

2010. BV class. DP-2, 8-Point Mooring. Loa 75 m, Width 20 m, Draft 5.0 m. Deck area/deck load: 720 m2/1,175 tons. 40 ton AHC knuckle boom crane. Total complement 100+. Inquire

GENERAL
Year Built: 2010

Class:



BV I + HULL + MACH Special Service / Offshore Support; Fire fighting ship / Fire fighting 1 Waterspray Unrestricted navigation + AUT-UMS; + ALM; +DYNAPOS-AM/AT-R; COMF – NOISE 3

DIMENSIONS
Length oa 75.0 m
Breadth mld 19.5 m
Depth 5.50 m
Draft (Min / Max) 3.85 m / 5.50 m
DWT 1,860 t
GT 3050

PROPULSION – MACHINERY
Main propulsion 2 x 1,300 kW FP Azimuth thrusters
Bow thruster 2 x 700 kW CP Tunnel
Main generator 5 x 910 kW – 460 V
Harbour generator 1 x 80 kW – 460 V

DECK CRANE
Offshore crane SMST knuckle boom
Harbour capacity DAF 1.3 – 40 t @ 9 m – 15 t @ 21.5 m
Offshore capacity DAF 1.6 – 30 t @ 9 m – 11 t @ 21.5 m
Main winch 40 t / 17 t – 1,500 m – AHC – Man Riding
Auxiliary winch NA

DECK EQUIPMENT
Tuggers 1 x 10 t
Capstans 2 x 5 t
Deck service air supply 1,200 m3/h @ 8 bars
Deck power supply 2 x 300 kW – 460 V
Work boat 1 MSI Marine
Deck provision crane 10 t @ 10 m
Mooring 4 x 40 t

CAPACITIES & DELIVERY RATES
Deck area 720 m² 10 t/m² (aft) & 5 t/m²(fwd)
Deck cargo 1,175 t 1 m above deck
Fuel oil 600 m³ 80 m3/h @ 9 bars
Drill or Water ballast 1,290 m³ 150 m3/h @ 10 bars
Fresh water 779 m³ 30 m3/h @ 9 bars
Mud / Brine 200 m³ / 400 m³ 2 x 80 m3/h @ 9 bars
Foam: 8.6 m³

SPEED & CONSUMPTION
Maximum speed (100%) 11 knots – 14 t/day
Service speed (80%) 10 knots – 11 t/day
Stand-by at port 2 t/day
Stand-by on DP 4 t/day

DYNAMIC POSITIONING
Dynanic Positioning DP-2, Sirehna Easy DP200
Reference 1 DGPS 1 SAAB R4
Reference 2 DGPS 2 SAAB R4
Reference 3 Cyscan Laser Reference system
Reference 4 Sonardyne Ranger Pro USBL

COMMUNICATION
Inmarsat 2 x Sat C
VSAT 1 x Ku band 128 Kbit
Video network YES

ACCOMMODATION
Single cabins 9
2 man cabins 35
4 men cabins 6
Total 103
Other 2 Mess / 2 Day rooms, 1 Conference room, 1 Gym
Air conditioning Yes

EXTERNAL FIRE FIGHTING
Class FiFi-1
Pumps 2 x 1,800 m3/h
Monitors 1 x 1,200 m3/h

DP-2, 4-PM Offshore Maintenance / MPSV

2008. BV class. DP-2, 4-Point Mooring. Deck area/load: 600 m2/3,000 tons. 40 ton Lattice boom crane. Moonpool. Loa 75 m, Width 20 m, Draft 5.0 m. 22m Helideck.

Total complement 194. Inquire

GENERAL
Built 2008
Class BV
Notation I + Hull + Mach, Special service Well Service Support /
Offshore Maintenance Vessel, Unrestricted navigation
+ DYNAPOS -AM/AT -R, + MACH

MAIN PARTICULARS
Length oa 75.00 m
Breath mld 20.00 m
Depth mld 6.50 m
Draft (max) 5.00 m
Deck area 600 m2
Deck cargo 3.000 tons
Main deck Strength 10 ton/m2
Displacement (max) 4.500 mt
Deadweight 3.100 tons
Complement 197 men
Speed 11 knots
Endurance 28 days

MACHINERY
Engine 2 x Caterpillar 3516B, 1,930 kW each
Gearboxes 2 x Twin Disc marine reduction, 5.04:1
Azimuth thruster 2 x 1,930 kW, Kawasaki 2.6m diameter
Transverse thrusters 2 x 12 tons bow thruster. CPP
Main generators 2 x 500 kw. Cummins VTAD(m)
Emergency generators 1 x 150 kw. Cummins 6CTA 8.3D (M)
Air compressors 2 x 17 m3/hr 30bar

DECK EQUIPMENT
Anchors 2 x Stockless Bow Anchor (2640 kg)
Chain cable 2 x 495 m x 46nun (Grade 3)
Mooring lines 2 X 220m. 44 Ions
Anchor winch 1 x 10 t, 10 m/min
Mooring winch 4 sets (Single Drum)
Vertical capstan 2 sets (Hydraulic)
Tugger winch 2 x 10 t, 10 m/min
4-point mooring system 4 x Delta Flipper Anchor (4000 kg)
Offshore pedestal crane 1 x 7.5/10 K lattice boom type marine crane
40 t @ 13.7 m
27 t @ 20.0 m
9 t @ 38.4 m

ADDITIONAL EQUIPMENT
Stabilisation system flume tanks
Moon pool 3.6m x 3.6m
Option available for diving Operations
Helideck 22m Diameter (Suitable for Sikorsky S-92B/S-61N)
Dynamic positioning system DP-2
Referencing system 2 x DGPSand Ultra Short Base Line Transceiver
Sonardyne (optional)
Communications VSAT C Band 128/128 kbps
Mini gymnasium Weight lifting and treadmill equipment

CARGO CAPACITIES & PUMPS
Fresh water 240 m3
Drill water 738 m3
Fuel oil tank 450 m3
Grey water tank 20 m3
Lub. Oil storage 16 m3
Bilge holding 16 m3
Sewage holding tank 20 m3
Dirty oil 16 m3
Hydraulic oil tank 20 m3
Anti-rolling (flume) tank 1.100 m3
Water maker 2 x 34.0 m3/day
Sewage treatment plant 200 men
Drill water pump 2 x 200 m3/hr @ 57m head
Bilge/ ballast pumps 2 x 75 m3/hr@ 45m head
General service/fire pump 2 x 170 m3/hr@ 105m head
Inflatable life raft 24 x 25 man

FIRE FIGHTING
Fire-fighting pump 1 x 1.200 m3/hr
ME front pto with C128a 10-14 h911aan
Deck delivery head 2 x 4 way delivery head
Fire main 19 x 65 A bronze hydrants
Foam system 600 m3/hr @ 90 m head
Carbon dioxide system fixed

DP-2 4PM SSV

Versatile, DP-2, 4-Point Mooring, light IMR, ROV, Survey

2015, ABS. Loa 60.0 m, width 15.00 m, depth 6.0 m, max draft 5.0 m. DW 1.270 tons. Deck Area: 375 m2. 24 ton Knuckle Boom, Moonpool. 49-berth accommodation. Location: Europe. Inquire

GENERAL
Year built 2015
Class ABS, +A1, Offshore Support Vessel, (E), +AMS, +DPS-2
ERN Number 97.97.76.76

DIMENSIONS
Length Overall 60.0 m
Length bpp 52.0 m
Beam Moulded 15.0 m
Depth 6.0 m
Draft Summer 5.0 m
GRT: ITC / Suez 1800 / 2000
Deadweight 1270 t

MACHINERY & PROPULSION
Main Propulsion 2 x Caterpillar 3516C HD, 1920 kW each
Shaft generators 2 x 1000 kW
Generators 3 x Cat. total 1980 kW
Forward Thruster(s) 2 x CPP 530 kW Tunnel
Aft Thruster 2 x FPP 400 kW Tunnel
Rudders Becker rudders
Propellers CPP

PERFORMANCE / FUEL CONSUMPTION
Speed max 13.2 knots, 15.0 mt/day
Speed 11.5 knots, 11.2 mt/day
DP mode 7.0 mt/day
DP- ROV work 3.5-5 mt/day depending external factors
Idle in port 1.0 mt/day

ACCOMMODATION / OFFICES / FACILITIES
Charterers cabins 1 x 1-berth & 13 x 2-berth
Crew cabins 22 berth
Total 49
Other common spaces Offices, Gym, Recreation Rooms, Smoke Room
Hospital

COMMUNICATION FACILITIES
Satcom 2 x KVH Satellite system S6 (2048 / 512)
GMDSS A1, A2 & A3

DYNAMIC POSITIONING SYSTEM
DP Class Class 2, ABS
DP computer system K-POS DP 21
VRU 2 x
DGPS 1 x DPS 110, 1 x DPS 112
Hipap Kongsberg 500
Fanbeam 1x
Taut wire LTW Bandak MK15
Gyro Compass 3 x
Environmental Ref. 2 x Wind Sensor
Power supplies UPS
DP Auto Position Follow sub mode

4 POINT MOORING SYSTEM
Winches 4 x Hydraulic, 35 t pull, 60 t holding power
Wire 4 x 1200 m x 38 mm
Special Features Wire Length & pull force indicators
Anchors 4 x 3-ton Delta Flippers

TANK CAPACITIES
Fuel 481 m3
Potable Water 455 m3
Water ballast 901 m3
Heeling tanks 2 x 37 m3

DECK AREA AND SERVICES
Clear Deck Space 375 m2
Deck strength 7 t/ m2
Moon Pool 4.8 x 3.0 m
Bulwark Dismount. PS & SB along work deck

CRANE LIFTING EQUIPMENT
Main Crane SMST knuckle boom, max reach 19 m
SWL Single hoist 6 t @ 19 m, double hoist 24 t @ 8 m
Main hoist wire length 190 m / 30 mm diam.
Service Crane 3 t @ 9 m SWL

PUMP CAPACITIES
Fuel hose and reel 100 m x 2″ dia
Pumping rate 6.0 m3/hr @30m height

ADDITIONAL EQUIPMENT
Boat landing for crew and personnel transfer CTV/workboat
Crane jib extension : Capacity 2 t @30 m height, 10m outreach

DP-2 DSV ROV Survey

2013, ABS. Loa 65.5 m, width 16.00 m, depth 6.0 m, max draft 4.5 m. DW 1.200 tons. Deck Area: 308m2 at main deck and 95m2 at mezzanine deck. Location: Far East. Inquire

GENERAL
Built 2013
Classification +A1, Offshore Support Vessel, (E), +AMS, DPS-2

DIMENSIONS
Length 65.5 m
Beam 16.0 m
Hull Depth / Draft 6.0 m/4.5 m
Deadweight 1,210 T
GRT 2,500

PERFORMANCE
Max Speed 12.5 knots
Economical Speed 10.5 knots

MACHINERY
Main Engines 2 x  Niigata 6L28HX, 1838 kW each
Shaft Alternators 2 x 900 kW Stamford PMT36F2, Front M/E PTO
Main Generators 4 x Cat C3412 DITA, 500 kW each
Harbour generator 1 x 150 kW Cat C9 w/ Leroy Somer
Bow Thrusters 2 x 10 T, Berg BTT 418 Electric Motor Driven
Propulsion 2 x Niigata ZP-41CP Z-Peller 4-bladed CPP in Kort Nozzle

CRANE CAPACITY
Deck Crane Electro-Hydraulic Haean Knuckle Boom Crane
20T @ 10m radius Hoist speed @ 18m/min
Max Hoist height @ 300m Luffing Speed @ 135sec
Provision Crane General Cargo 3T @ 7m outreach

DECK EQUIPMENT
Deck Strength 5 t/m2
Total Open Deck Area 403m2 (308m2 at main deck and 95m2 at mezzanine deck)
Moonpool 4.5m x 4.5m
Anchor Windlass 1 x Electro Hydraulic 44mm U2 Chain 12T x 10m/min.
Anchors 2 x HY-14 HHP Anchors
Tugger Winch 5T x 15m/min
Capstan 2 units 5T x 15m/min
Others ROV parking on both decks

DP NAVIGATION
DPS-2 System Kongsberg K-Pos DP
2 x K-Pos OS Operator Station
c-Joy Independent Joystick
Position Reference Sensors 1 x HiPAP 500 System
2 x DGPS Trimble DSM 232
3 x MRU’s
3 x Gill Wind Sensors

FIRE FIGHTING EQUIPMENT  (internal)
Emergency Fire Pump 1 x 55m3/hr
CO2 Protection System Fitted in Engine room, Bow Thruster Room
Fire Detection & Alarm Fitted as per Class

SAFETY EQUIPMENT
Liferaft 8 x 25men self-inflatable
Rescue Boat 1 x 6men 25hp outboard motor with launching Davit
Life Buoys 10 units
Life Jackets 75 units

ACCOMMODATION
1 men cabin 6 units
2 men cabin 27 units
Total Capacity 60 men
Hospital 2 men
Recreation Room 1 unit
Meeting Room 1 x 10 men
Mess Room 1 x 30 men
Offices 4 units

TANK CAPACITIES / CARGO PUMP
Fuel Oil 541.9 m3
Fresh Water 319.4 m3
Ballast Water 463.8 m3
Potable Water 276 m3
Cement 168 m3
Freezer/Chiller 10 m3
FO Pump 100 m3/hr @ 75m head
Bilge/Ballast/Fire Pump 65 m3/hr @ 60m head
GS/Fire/Bilge Pump 75 m3/hr @ 50m head
FW/DW Pump 100 m3/hr @ 70m head
Potable Water Pump 100 m3/hr @ 70m head
Fresh Water Maker 1 x 15 m3/day Reverse Osmosis
Sewage Treatment Plant 1 unit for 100men
Oily Water Separator 1 x 1.0 m3/hr with 15ppm alarm

Multi Purpose / Safety – Stand-By Vessels

40m MP Safety - Stand-By Vessel (100 survivors)

2011, BV. 480 GRT.  Loa 40.0 m, width 10.0 m, depth 3.7 m, max draft 3.1 m. Deck Area 104 m2. Location: Far East. Inquire

GENERAL
Built: 2011
Classification: BV, 1 + Hull + Mach, Special Services/Standby
Rescue, 100 Survivors, Unrestricted
            navigation, + Mach

DIMENSIONS
Length: 40.0 m
Breath: 10.0 m
Depth / Draft: 3.70 m / 3.10 m
GRT: 480
Deck Space: 15.25 m x 6.8 m = 104 m² (approx.)
Deck Strength: 5 tons / m²

PERFORMANCE
Bollard Pull: 30 tons
Max Speed: 12 knots
Survivor Recovery: 100 pax

MAIN ENGINE / GENERATOR
Main Engine: 2 x Cummins KTA 38 M2, 1200 bhp each
Main Generator: 3 x Caterpillar 3406C, 215 kW each
Gear Box: Reintjes ratio 6:1
Bow Thruster: HRP 3001 TT (200kW / 3 tons)
Propulsion: 2 x FPP in Kort Nozzles

DECK EQUIPMENT
Towing Winch: 1 x 40 tons / 100 tons Brake
Wire Rope: 36 mm x 600 m
Capstan: 1 x 5 tons @ 15 m / min
Tugger: 1 x 5 tons @ 22 mm x 150 m wire
Crane: 14 tm knuckle boom crane with winch
max reach 8.6 m

SAFETY EQUIPMENT
Fire Fighting: 1 x 1200 m³ FFS pump with
Monitors: 2 x 600 m³ / hr
Engine Room: CO2 flooding system – Fitted
Fire Detection: Fitted
Oil Spray Fitted
Dispersant:
Rescue Boat: 2 x 20 men FRB with 25hp outboard & Davit
Seating: 17 seated

NAVIGATION / COMMUNICATION EQUIPMENT
Radar: JRC JMA 2254 – 48 nm
Echo Sounder: 2 x JRC JFE 380
GPS: JRC J NAV500
Auto Pilot: TMQ AP9
Compass: Magnetic – 2 x Saura
Inmarsat C: JRC JUE – 85C
SSB: JRC JSB 196 GM
VHF: 2 x JRC JHS – 32A
3 x ACR SR – 103 (portable)
Navtex: JRC NCR – 333
EPIRB: ACR RLB – 32
SART: 2 x ACR 9 GHz
PA System: Fitted

TANK CAPACITY
Fuel Oil: 244 m³
Fresh Water: 110 m³
Ballast: 110 m³
Lube Oil: 2 m³
Oil Dispersant: 2 m³
Foam: 1.7 m³

ACCOMMODATION
Cabin: 2 x 1-berth, 1 x 2-berth, 4 x 4-berth
Total: 20 men

Anchor Handling Tug Supply (AHTS) vessels

90 tbp DP-2 FiFi-1 ASD AHTS

2015, BV. Loa 60.8 m, width 16.0 m, depth 6.0 m, max draft 4.95 m. DW 1,440 tons. Deck cargo: 600 t. Deck Area 450 m2. Location: Far East. Price: Inquire

GENERAL
Built 2015
Class : BV, I +Hull +Mach, Tug Supply vessel, Firefighting ship 1
water spraying, Special service – Anchor Handling Vessel /
  Special Purpose Ship, Unrestricted navigation
  Dynapos AM/AT R, +MACH

DIMENSIONS
Length Overall : 60.80 m
Breadth: 16.00 m
Depth / Draft: 6.00 m / 4.95m
GRT: 1,900
Bollard Pull: 90 tons
Deadweight: 1,440 tonnes
Clear Deck Space: 33m x 13.6m = 450 m2
Deck Strength: 5 t/m2
Deck Cargo: 600 tonnes

MAIN ENGINE / GENERATOR
Main Engine: 2 x MaK 8M25C Tier II, 3600 bhp each
Main Generator: 3 x Caterpillar C18, 450 Kw each
Emer. Generator: Cummins 95 kW
Propulsion: 2 x Azimuth CPP
Bow Thruster: 2 x 11 tons
Speed: 13 knots (max.)

DECK EQUIPMENT
AH/Towing Winch: 1 x 150T Double Drums, Brake Holding 250T
Anchor: 2 x 1200kg with Grade U2 Stud-Link-Chain Cables
Anchor Windlass: Electro Hydraulic; 10T@12m/min
Tugger Winch: 2 x 10T @15m/min
Sharkjaw/Towpin: 300T SWL
Stern Roller: 1.5 x 4.8m; 300T SWL
Wire Rope: Tow wire: 2 x 760m x 58mm
Work wire: 1 x 100m x 58mm
Capstan: 2 x 5T @ 15m/min
Deck Crane: 5T @ 15m radius

SAFETY EQUIPMENT
Ext. Fire Fighting: 2 x 1,450m3/hr (FIFI 1)
Fire Monitor: 2 x 1200 m3/hr
Emer. Fire Pump: 35m3/hr x 45m head
Engine Room: CO2 Flooding System
Fast Rescue Craft 1 x 9 pax, inboard 144 HP, water jet propelled

NAVIGATION / COMMUNICATION EQUIPMENT
Radar: Furuno
DGPS: Furuno
AIS: Furuno
Auto Pilot: Robertson/Anschutz/Suaru
Magnetic Compass: Saura MR-150A
Gyro Compass: Furuno/Yokogawa
VHF: I-Com
MF/ HF: Furuno RC-1800T
Echo Sounder: Furuno
EPIRB: McMurdo E3
SART: McMurdo S4
Speed Log: Furuno
Navtex: JRC/Furuno
Immarsat C: Furuno Felcom-15
Search Lights: 3 units
PA System: Fitted
DP System: DP2

TANK CAPACITY
Fuel Oil: 580 m3
Fresh Water: 300 m3
Lube Oil: 12 m3
Sea Water Ballast: 500 m3
Mud/Brine: 250 m3
Dry Bulk Cement: 170 m3
Foam: 12 m3
Dirty Oil: 6 m3
Hydraulic Oil: 6 m3
Fuel Oil Cargo: 1 x 100 m3/hr @ 100m head
Fresh Water Cargo: 1 x 100 m3/hr @ 100m head
Bilge/Ballast: 60 m3/hr x 50m
Drill Water: 520 m3
Water Maker: 10 T/day

ACCOMMODATION
Single Cabin: 6 units
2 men Cabin: 1 unit
3 men Cabin: 8 units
Total: 32 men

80 tbp DP-1 FiFi-1 Azimuth AHTS

2014, ABS. Azimuth Drive. Loa 60.5 m, width 15.8 m, depth 6.5 m, max draft 5.0 m. Deck Area 370 m2. Location: Far East. Price: Inquire

GENERAL
Built: 2014
Classification: ABS, +A1, Towing Vessel, AH, Fire Fighting Vessel
Class 1, Offshore Support Vessel, (E), +AMS, +DPS-1

DIMENSIONS
Length Overall : 60.50m
Breadth: 15.80m
Depth / Draft: 6.50m/5.00m
GRT: 1,850
Clear Deck Space: 370 m2
Deck Strength: 7 tons/m2

PERFORMANCE
Bollard Pull: 80 tons
Speed: 12.50 knots @ 4.2 m draft

MAIN ENGINE / GENERATOR
Main Engine: 2 x 3200BHP, Niigata
Main Generator: 3 x Caterpillar, diesel driven
Harbour generator: 1 x 80kW, Perkins
Propulsion: 2 x Azimuth Stern Thruster,
Bow Thruster: 2 x 8 tons, CPP, Cat C18

DECK EQUIPMENT
Towing Winch: 1 x 150 t / 200 t Brake holding
Sharkjaw & Towing Pins: 200 tons, hydraulic operated, Karmoy
Tugger Winch: 2 x 10 tons @ 10m/min
Stern Roller: SWL 200 tons, 4.18m (L) x 1.6m (Dia)
Capstan: 2 x 5 tons @ 10m/min
Deck Crane: 1 ton SWL @ 6.5m radius

FiFi-1 & SAFETY EQUIPMENT
External Fire Fighting: 2 x 1400 m3/hr, FiFi 1, FFS
Fire Monitor (water/foam): 2 x 1200 m3/hr
Life Raft: 6 x 25 men
Fast Rescue Boat: 1 x 9 men, water jet prop. c/w davit.

NAVIGATION / COMMUNICATION EQUIPMENT
Radar: 2 x Furuno / JRC
DGPS: 1 x Furuno / JRC
Echo Sounder: 1 x Furuno / JRC
Auto Pilot: 1 x Anschutz or equivalent
Magnetic Compass: 1 x Reflecta 1
Gyro Compass: 1 x Anschutz
MF/ HF: 1 x Furuno RC -1800T
Navtex: 1 x Furuno NX-700A
EPIRB: 1 x McMurdo Smartfind E5
SART: 2 x McMurdo S4
AIS: 1 x Furuno FA-150
Speed Log: 1 x Furuno/JRC
Inmarsat C: 1 x Furuno Felcom 15
DP System: 1 x Kongsberg

TANK CAPACITY
Fuel Oil: 570 m3
Fresh Water: 300 m3
Drill/ Ballast Tank: 450 m3
Mud / Brine: 350 m3
Cement Tank: 4 x 42.5 m3
Foam/Detergent: 13 m3 / 13 m3

PUMP CAPACITY
FO Cargo Pump: 1 x 150 m3/hr @ 75m head
Fresh Water Cargo: 1 x 100 m3/hr @ 75m head
Drill/ Ballast Pump: 1 x 100 m3/hr @ 75m head
Mud Pump: 2 x 70 m3/hr @ 75m head
ACCOMMODATION
Cabin: 4 x 1-berth,  3 x 2-berth, 8 x 4-berth
Total: 42 men
Hospital: 1 man



65 tbp FiFi-1 AHTS

2012, BV. Loa 50.0 m, width 13.20 m, depth 5.20 m, max draft 4.50 m. DW 750 tons. Deck Area 234 m2. Location: Far East. Price: Inquire

GENERAL
Built: 2012
Class: BV, I + Hull + Mach Tug-Supply vessel-
Firefighting ship 1 -water spraying-
Special service – Anchor handling vessel
Unrestricted navigation + MACH

DIMENSIONS
Length Overall : 50.0 m
Breath: 13.20 m
Depth / Draft: 5.20 m / 4.50 m
GRT: 1095
Deadweight: 750 tons
Deck Space: 234 m2
Deck Strength: 7 t/m2 uniform loading

PERFORMANCE
Bollard Pull: 65 ton
Max Speed: 13 Knots

MACHINERY
Main Engine: 2 x CAT 3516B, 2575 bhp each
Main Generator: 3 x Cat 18/Leroy Somer, 350kW each
Harbour Generator: 1 x Cummins, 83kW
Gearbox: 2 x Reintjes LAF 873L,
Propulsion: 2 x CPP with kort nozzle
Bow Thruster: 1 x 5 ton Kawasaki KT- 43B1

DECK EQUIPMENT
AH/ Towing Winch: 1 x electro hydraulic double drum
Line Pull: 150 ton @ 0.6 m/min ( low )
Static Brake: 200 ton @ 1st layer
Wire Rope: 200 m x 52 mm(dia) for AH
700 m x 52 mm (dia) for towing
Tugger Winch: 2 x 10 mt
Stern Roller: SWL 200T, 5m (L) x 1.6m (Dia)
Capstan: 2 x 5 tonnes @ 15m/min electro
Sharkjaw/Towpin: SWL 200 tons
Reefer Points: 4 units
Deck Crane: 2 tons @ 6m

SAFETY EQUIPMENT
External Fire Fighting: 2 x 1,200 m3 hr ( FiFi 1 )
Oil Dispersant System: 2 x Cluster nozzles
Emergency Fire Pump: Diesel driven, 50m3 @ 40m
Engine Room: CO2 flooding system
Life Raft: 6 x 20, SOLAS standard
Rescue Boat: 1 x 6 men, 25hp
Fire Pump: 80 m3/hrs @ 70m head

TANK/PUMP CAPACITY
Fuel Oil: 595 m3
Fresh Water: 215 m3
Ballast/Bilge pump: 50 m3/hr @ 40m head
Foam / Detergent: 15 m3 / 15 m3
FO and FW Pump: 100 m3/hr @ 75m head

NAVIGATION / COMMUNICATION EQUIPMENT
Radar: 2 x Furuno, FAR-2117, 1942 MK2
DGPS: GP 150
Eco Sounder: Furuno FE-700
Auto Pilot: NP 60
Magnetic Compass: Saura M150
Gyro Compass: Simrad GC80
Inmarsat C: Furuno Felcom-15
GMDSS: Furuno RC 1800F
MF/ HF: Furuno FS 1570
Navtex: Furuno NX-700B
EPIRB: Jorton
SART: Jorton
Speed Log: Furuno DS-80
Weather Fax : Furuno Fax – 408
PA System: Phonetech SPA 1500

ACCOMMODATION
1 Men Cabin: 4 x 1-berth, 1 x 2-berth, 8 x 4-berth
Total: 38 men
Hospital: 1 man

40 tbp Azimuth FiFI AHTS

2007, BV. Loa 48.0 m, width 12.8 m, depth 5.1 m, max draft 4.2 m. Deck Area 227 m2. Location: Far East. Price: Inquire

GENERAL
Built: 2007
Classification: BV, I + Hull + Mach Special service Anchor
Handling Tug, Unrestricted navigation + MACH

DIMENSIONS
Length: 48.00 m
Breath: 12.80 m
Depth / Draft: 5.1 m / 4.2 m
GRT: 885
Deck Area: 21.4 m x 10.6 m = 227 m²
Deck Strength: 5 tons / m²

PERFORMANCE
Bollard Pull: 40 t
Max Speed: 12 knots

MAIN ENGINE / GENERATOR
Main Engine: 2 x Caterpillar 3516B , 2375 bhp each
Main Generator: 3 x Caterpillar 3406C, 245 kW each
Harbour Genset: 1 x MANS @ 50 kW
Propulsion: HRP steerable thrusters
Bow Thruster: HRP – 5 tons

DECK EQUIPMENT
AH / Towing Winch: Double Drum – 100 tons @ 1st layer
Wire Rope: Work wire: 52 mm x 150 m
Tow wire: 52 mm x 600 m
Tugger Winch: 2 x 5 tons @ 15m / min
Stern Roller: 3.5 m x 1.5 m, 200 tons SWL
Capstan: 2 x 5 tons @ 15 m / min
Sharkjaw / Towpin: 200 tons SWL
Crane: 2 tons SWL @ 6 m

SAFETY EQUIPMENT
Fire Fighting: 2 x 600m³ / hr monitors
Engine Room: CO2 flooding system
Life Raft: 4 x 25 men self-inflatable
Rescue Boat: 1 x 6 men

NAVIGATION / COMMUNICATION EQUIPMENT
Radar: 2 x JRC – 48 nm / 96 nm
Echo Sounder: JRC JFE 582
AIS: JRC, JHS – 182
GPS: JRC JNav 50
Auto Pilot: JRC, Comnav
Compass: JRC, Gyro Compass
Sat Phone/ Fax/ Fitted
Inmarsat C: JRC, JUE – 85
SSB: JRC JSB 196GM
VHF: 1 x JRC JHS – 328
3 x ACR 2729 A (Portable)
Navtex: JRC, NCR 333
EPIRB: JRC JQE – 3A
SART: 2 x JRC JQX– 30A
Search Light: 2 units – 2000W
PA System: 1 unit – Fitted
Speed Log: JRC, JLN – 205

TANK CAPACITY
Fuel Oil: 684 m³
Fresh Water: 255 m³
Lube Oil: 5.0 m³
Hydraulic Oil: 5.0 m³
Ballast: 123 m³
Foam: 9.2 m³
Detergent: 15.0 m³

ACCOMMODATION
Cabin: 2 x 1-berth, 3 x 2-berth, 4 x 4-berth
Total: 24 men

155 tbp AHTS ERRV FiFi-2 NOFO

1997, DNV. FiFi-2. NOFO 2009. Loa 74.9 m, width 18.0 m, draft 6.6 m. Deck Area 570 m2. Rated for 300 survivors. Location: North Sea. Inquire

GENERAL
Type UT 722
Built 1997
Class DnV, 1A1 Fire fighter(II) Supply vessel TUG DK(+)
DYNPOS(AUTR) E0 Ice(C) OILREC SF

DIMENSIONS
L.o.a. 74.90 m
Breadth 18.00 m
Summer draft 6.60 m
GT 2920 t
DWT 3037 t

DECK SPACE / STRENGTH
Deck areal 570 m²
Deck Cargo 1300 tons
Deck strength 10/5 t/m²

PERFORMANCE & CONSUMPTION
Max speed: 15 knots – approx. 21 t/Day (5m draft)
Eco Speed: 11 knots – approx. 10 t/day (5m draft)
DP operation: approx. 8 t/day
Stand by: approx. 5 t/day (outside 500m zone)
Stand by: approx. 8 t/day (close standby)
Towing approx. 12 t/day (40% load on propellers)
Bollard Pull 155 tonnes

DYNAMIC POSITION SYSTEM DP-2
Kongsberg K-Pos DP-2
1x Fanbeam MKIII
1x HPR (Hipap 350)
2 x DGNSS (Seatex DPS 132 and Seatex DPS 200)
ERN 99,99,85

TANK CAPACITIES
Ballast water 1430 m3
Drill water 725 m3
Pot water 713 m3
Dry bulk cargo tanks 284 m3
Fuel oil 980 m3
Urea 38 m3
Liquid Mud 416 m3
Liquid Brine 302 m3
Methanol 121 m3
Base oil 204 m3
Dispersant 120 m3
Recovered oil 1540 m3
Rig Chain Lockers 378 m3

CARGO DISCHARGING PUMPS
Fuel oil/ORO 1x 250 m³/h – 9 bar, 4” Avery Hardol
DW/Ball/ORO 1x 250 m³/h – 9 bar, 4” Weco female
Potable water 1x 250 m³/h – 9 bar, 4” Weco female
Liq. Mud 2x 75 m³/h – 18 bar, 4” Weco female
Brine 2x 100 m³/h – 18 bar, 4” Weco female
Methanol 2x 75 m³/h – 9 bar, 4“ Avery Hardol
Base oil 1x 125 m³/h – 9 bar, 3“ Avery Hardol
Dry bulk 100 tonnes/h, 5” Weco female

ENGINES AND PROPULSION
Main Engines 2 x Caterpillar 3616 DITA 5420 bkW c/w
Generators 2 x AVK – 2400 Kva, 440v/60Hz
Auxiliaries 2 x Caterpillar, 3406 DIT – 367 bkW
Generators 2 x Caterpillar, SR4-449 – 317 kVA, 440V/60
Gears 2 x Ulstein type 3000 AGC-KP560 Gears
Rudders 2 x Ulstein High Lift
Steering gear 2 x Tenfjord steering gear
Propellers 2 x Ulstein CPP, SLS600-1050
Azimuth bow thruster 1 x Ulstein VROS 180 Azimuth, Cat. 3612 BTA, 1096 kW
Tunnel bow thruster 1 x Ulstein el.driven each. 883 kW – 1200 rpm
Tunnel thruster aft 1 x Ulstein el.driven each. 883 kW – 1200 rpm

WINCH AND DECK MACHINERY/CAPACITIES
Towing / AH Winch 1 x 300 tons Brattvaag SL270WX/SBSL300WX
consisting of: 1 x Towing drum, 1560m of 76 mm wire
2 x AH drums, 1390m of 76 mm wire.
Brake holding load 400 tonnes on towing drum first layer
430 tonnes on anchor handling drums first layer
Windlass /towing winch 1 x Combined B8/SL12 Braatvaag
Towing drum 300 m 44 mm dia. wire + 25 m of
104 mm dia. synthetic rope.
1x Spare towing winch Braatvaag ALM 3012
1x Storage/pennant winch Braatvaag AM2215U
1x Spare wire reel Braatvaag AM2215U
Cable Lifters 2 x non-declutch able cable lifters being:
1 x ø92 mm
1 x ø76 mm rig chain on the lower shaft.
Tugger Winches Two tugger winches 12 tonnes, 100 m ø19 mm wire.
Capstans Two Capstans 50 tonnes
Towing Pins Four Towing Pins ø350 mm
Fork Units Two Karm Fork ø450 mm w/MBL 750 ton
Wire/chain up to 125 mm
Deck Crane 1x knuckle boom, KDE 150-EH-12000/5400 – 15 m – 10 t
1x knuckle boom, KDE 40-EH – 15 M – 3 T

NAVIGATION EQUIPMENT
Elec. chart system 1 x Max Sea
Radar 1 1 x 10 cm ARPA, Furuno FAR-2837
Radar 2 1 x 3 cm ARPA, Racal Decca C-251
GPS 1 x Garmin 120
GPS 1 x Furuno GP-150
AIS 1 x Furuno FA-100
Gyro 2 x Anschutz STD 22
Autopilot 1 x Anschutz Pilotstar-D
Echo-sounder 1 x Skipper GDS 101
Doppler log 1 x JRC J LN
Weather fax 1 x Furuno Fax A3
GPS 1 x Seatex DGPS DPS 102

COMMUNICATION SYSTEMS
The Radio installation are according to GMDSS-A3(World Wide)
MW/SW Transceiver Sailor RE-2100 Control unit
MW/SW SSB Sailor H-2098 Message terminal
MW/SW SSB Sailor H-1253 Monitor
MW/SW SSB Sailor T-2130 Transm. 250W
MW/SW Sailor RM-2151 Telex receiver
MW/SW Sailor RM-2150 DSC receiver
Watchkeeping Sailor R-501 (2182 KHz) receiver
MW/SW Sailor R-2120 Duplex receiver
1x VHF Simplex Sailor RT-2048
1x VHF Duplex Sailor RT-5022 inkl. DSC
1x VHF Simplex Sailor RT-4722
1x VHF Dupl. DSC Digital Sailor RT-2042
Immarsat B Furuno Felcom 81 ph./fax
Immarsat C Telex Sailor TT-3606E
Navtex JMC NT-900
VHF Radio Dir. Finder Skipper TD-L1520
Emerg. Beacon Jotron 40S Free-Float
Emerg. Beacon Jotron 45 SX Manuel
Helicom Radio type Jotron TR 960
Helibeacon type Telesupply TS1
Weather faximile Furuno Fax-208 MK II
SAR transponders 2 x
SSAS 1 x Furuno Felcom 16
UHF portable 5 x Motorola

ACCOMMODATION
2 x 1 men cabins W/dayroom and bedroom
7 x 1 men cabins
5 x 2 men cabins
4 x 4 men cabins
Total 33 bunks , all cabins are equipped with WC and Shower
The vessel has safety equipment acc. to Solas for 33 persons.

RESCUE AND LIFE SAVING EQUIPMENT
Hospital with treatment bench, stretchers, medicine and poison lockers, intercom and direct ship to shore communication
Medical equipment /Medicines in acc. to NMD.
Mob Boat type 1 x GTC 700
Mob Boat type 1 x 700 FRB
Rescue net 1 x Dacon
Survivors Rescue Certificate for 300 persons

ROV OPERATIONS
Vessel is a equipped with a small observations ROV which is launched by crew.
In addition vessels easily can be mobilized with larger ROV spreads on the ROV deck.

OIL RECOVERY SPECIFICATIONS
Arranged and approved according to NOFO 2009 requirements with dispersant. Has been used as a field support vessel with permanent NOFO 2009 equipment on board.

QSHE CERTIFICATION
ISM, ISPS, ISO-9001:2008, ISO-14001:2004

QA QUALIFICATIONS
FPAL, Achilles, Sellihca, OVID Registered & IMCA Member


135 tbp DP-2 FiFi-1 AHTS

2004, ABS. Loa 70.0 m, width 16.80 m, depth 7.50 m, max draft 6.10 m. DW 2,000 tons. Deck cargo: 800 t. Deck Area 500 m2. Location: Far East. Price: Inquire

GENERAL
Built 2004
Class ABS
Notation A1E Offshore Support Vessel Fire Fighting Vessel Class 1 + AMS + DPS 2

PRINCIPAL PARTICULARS
Length Overall 70.00 m
Length Waterline 66.80 m
Breadth Moulded 16.80 m
Depth Moulded 7.50 m
Draft (max) 6.10 m
GT / NT 2690 / 805

PERFORMANCE
Speed max. 14 knots
Speed eco. 12 knots
Type of Fuel Marine Gas Oil
Endurance 24 days/abt 6,900n/m @12 knots

CARGO CAPACITIES
Deadweight 2,000 m/tons
Deck Cargo 800 m/tons
Deck Strength 7.5 tons/m2
Clear Deck Area 500 m2 approx. ( 13m x 36m )

PROPULSION SYSTEM
Main Engines 2 x 5,440 BHP @ 750 rpm Wartsla 8L32
Generators 2 x CAT 3408 DITA,  370 kW
Shaft Alternator 2 x 2,300 kW
Bow Thruster 2 x 680 kW Kawasaki (CCP) 10 tonne thrust
Stern Thruster 1 x 680 kw Kawasaki (CCP) 10 tonne thrust
Propellers CPP, Wartsila Lips
Rudders 2 x Becker Rudder

TOWING / ANCHOR HANDLING EQUIPMENT
Bollard Pull 135 m/ton
Anchor Handling Winch 1 x Brattvaag SL 300W/2BSL300W Waterfall configuration
Tow Drum 1 x 900 mm Ø x 2,650mm Ø x 2,100mm
Drum capacity 1,700 m x 76 mm Ø SWR
Anchor Handling 2 x 900 mm Ø x 2,500 mm Ø x 1,800 mm
Drum capacity 1,200 m x 76 mm Ø SWR
Line Pull at 1st Layer 300 tons @ 4 m/min
150 tons @ 6 m/min
16 tons @ 45 m/min
Brake Capacity 450 tons for all drums

DECK EQUIPMENT
Capstan 2 x 10 tons x 0-25 m/min Brattvaag
Tugger Winch 2 x Brattvaag AKM 4110 @ 10 tons each
Rope Reel 3 x Brattvaag ALM 6307, 1,500 m x 76 mm Ø SWR
Stern Roller 5,000 mm Ø 2400mm (SWL 450 tons)
Anchor Windlass 1 x 13 tons @ 0-18 m/min for 46 mm Ø chains
Shark Jaw 2 x Karmfork ; SWL 500 tons
Tow Pins 4 x vertical hydraulic 500 tons/600 mm
Lashing Lugs 20 of 5 tons SWL
Deck Crane 1 x marine crane; 2.2 tons @ 12.2 m / 5.9 tons @ 6 m

FIRE FIGHTING EQUIPMENT
Fire Pump 2 x 1,500 m3/hr @ 14 bar, Unitor
Fire Monitor 2 x 1,200 m3/hr @ 12 bar, Unitor
Emergency Fire Pump 1 x 35 m3/hr @50 m head
Oil Dispersant System
Full Flooding CO2 system in engine room (Internal)

TANK CAPACITIES
Fuel Oil 1,260 m3
Lube Oil 35 m3
Fresh Water 360 m3
Drill Water/SWB 440 m3
Liquid Mud 409 m3
Brine 81 m3
Bulk Cement 4 x 200 m3
Foam/Detergent 21 m3

DISCHARGE RATES
Fuel Oil 200 m3 /hr @ 90 m
Potable Water 150 m3 /hr @ 90 m
Drill Water 200 m3 /hr @ 90 m
Liquid Mud 75 m3 /hr @ 90 m
Bulk Cement 20 m3 /min @ 80 m

OTHER EQUIPMENT
Water Maker 2 sets, cap 4.9 m3 /day each
Oily Water Separator 1 x 1 m3 /hr x 2 kg/cm3
Sewage Treat. Plant 1 x 40 men/day, 2.2 kW

ACCOMODATION (All cabins fully air-conditioned)
Cabins 12 x 1 berth cabins = 12 crew
14 x 2 berth cabins = 28 crew
Hospital 1 x 1 berth cabin = 1
Total complement 40

NAVIGATION & COMMUNICATION EQUIPMENT
SSB 1 x Furuno FS-1562-25 (250W, 1.6-27.5 MHz)
VHF 2 x Furono FM 8500 (25W) & repeater Furuno FB 700
Radar 1 x Furuno FR 2115 & 1 x Furuno FR 1510 MK3; 96 nm range
Echo Sounder 1 x Furuno FE 270 and repeater Furuno FE 702
Doppler Speed Log 1 x Furuno DS 80
Weather Fax 1 x Furuno Fax 207
Gyro Compass 1 unit
GMDSS Area 3
Magnetic Compass 1 x Saura MR 150
Navtex Receiver 1 x Furuno NX 500
SART 2 x McMurdo RT9
Portable VHF Radio 3 x Navico Axis 250
Inmarsat 1 x Inmarsat C Felcom 12
EPIRB 1 x McMurdo E3A
Autopilot 1 unit
DP System DPS 2 / Kongsberg

LIFE SAVING EQUIPMENT
Search Lights 2 x 2,000 W halogen tungsten lights
Floodlights 5 x 1,000 W orange lights
Liferafts 6 x 25 men
Scrambling Net 2 pcs
Rescue Boat 1 x 6 men inflatable c/w O/B motor w/single slewing Davit

100 tbp FiFi-1 AHTS

2010, ABS. Loa 51.0 m, width 15.0 m, depth 6.50 m, max draft 5.0 m. Deck Area 240 m2. Oil Rec. Location: Far East. Price: Inquire

GENERAL
Year Built 2010
Classification ABS+A1 (E), Towing Vessel, Offshore Support
                Vessel (AH), FiFi Class 1, +AMS

DIMENSIONS
Length Overall 51.0 m
Breadth Moulded 15.0 m
Depth Moulded 6.5 m
Design Draft 5.0 m
Working Deck Area 240m2 (20×12)
GRT 1,350

PERFORMANCE DATA
Bollard Pull 100 tons

TANK CAPACITIES
Fuel Oil 1,028 m3
Fresh Water 234 m3
Sewage Tank 3.6 m3
Dirty Oil 6.3 m3
Dispersant Tank 8 m3
Foam Tank 8 m3

PUMP CAPACITY
Fuel Oil 100 m3/hr x 50m head
Fresh Water 70 m3/hr x 50m head

MACHINERY
Main Engines 2 x MAK 9M25, 2970 kW each
Propellers 2 x 4 bladed ZF CPP in fixed kort nozzles
Bow Thruster 1 x CPP propeller, 6 tons, electric driven
Generators 3 x CAT C18, 425 kW each

DECK EQUIPMENT
Anchors 2 x 1440 kg HHP anchors
Towing / AH Winch Double drum, 200 tonnes brake holding,
150 tons pull at 1st layer
Main Towing Wires 58 mm dia x 1200 mtr
Spare towing Wires 58 mm dia x 1200 mtr
Anchor Handling Gears 58 mm x dia x 350 mtr x 1
58 mm x dia x 200 mtr x 1
58 mm x dia x 100 mtr x 1
Pelican Hook 1 x 60 T, 1 x 35 T
“J” Hook 1 x 130 T
Grapnel Hook 1 x 130 T
Stern Roller 6 m length x 1.5 m dia, 200 ton SWL
Stern opening 7.5 m
Capstan 2 x 5 t @15 /min, hydraulic
Tugger Winch 2 x 10 t @15 m/min, electro-hydraulic
Tow Pins 200 T SWL (Close type)
Sharkjaws 200 T SWL (Close type)
Deck Crane 1 x telescopic marine crane 2.2t @ 12 m

OTHER
Rescue Workboat 1 x 6 men semi-rigid dinghy c/w 25hp-outboard motor
Reefer Points 4 x AC 415 V, 3 Phase, 60Hz, 32 Amp  (Main deck – PS)

EXT. FIRE FIGHTING & OIL REC EQUIPMENT
FiFi-1 System 2 x fire pumps @ 1500 m3/hr each, PTO from main engines
Foam /water monitor Remote controlled
Oil Dispersant System 2 x 5 m spray boom with 5 nozzles
Oily Water Separator 1 m3/hr pump and 15 ppm alarm installed in bilge system

ACCOMMODATION
Cabins 2 x 1-man cabin, 3 x 2-man cabin, 3 x 4-man cabin
Total 20 men




129 tbp DP-2 FiFi-1 AHTS (2 sisters)

2009, ABS. Loa 72.5 m, width 17.50 m, depth 7.50 m, max draft 6.10 m. DW 2,475 tons. Deck cargo: 600 t. Deck Area 500 m2. Location: WAF. Price: Inquire

PARTICULARS
Vessel Type Anchor Handling Tug Supply
Year Built 2009
Classification ABS + A1E,Towing Vessel, Fi-Fi Vessel Class 1,
Offshore Support Vessel AH +AMS, DPS-2

DETAILS
Length Overall 72.5 m
Breadth 17.0 m
GT 2,893
Deadweight 2,475 t
Depth 7.50 m
Maximum draft 6.10 m
Clear deck Space 500 m² approx (L=36 m x W=14 m)
Deck loading 600 t
Max Speed 14.5 kts
Economical speed 11.0 kts
Bollard Pull 129 t
Sewage Plant 1 x 40 men/day
Rudders 2 x High lift
Joystick Kongsberg
Flow Meter Fitted

CAPACITY
Fuel Oil 1,390 m³
Potable Water 400 m³
Drill Water 400 m³
Oil Based Mud 670 m³
Dispersant 39.5 m³
Dry Bulk 200 m³
Foam 20m³

PUMPING RATES
Fuel Oil 1 x 200 m³/hr @ 90m head
Potable Water 1 x 120 m³/hr @ 75m head
Drill Water 1 x 120 m³/hr @ 75m head
Oil Based Mud 2 x 75 m³/h @ 90m head (SG 2.5) (24 bar); Netzsch
Dry Bulk 2 x 20 m³/hr

MACHINERY
Main Engines 2 x Caterpillar MaK 9 M 25 4,000 kW
Generators 2 x Caterpillar 3408 DITA 370 kW
Emergency Generators 1 x CAT C4.4 @ 1800 rpm, rated at 58 kW/440 V/60 Hz/3 Ph
Bow Thruster 2 x 680kW electric-driven Kawasaki KT-88B3 Tunnel Type
Propulsion 2 x CPP
ACCOMMODATION
Berths 8 x 1 berth cabin, 17 x 2 berth cabin
Total 42

FIRE FIGHTING
Class 1
Monitors 1 x 1,200 m³/h
Pumps 2 x 1,754 m³/h

DECK EQUIPMENT
Towing Winch Electro-hydraulic Double Drum AHTW; Brattvaag waterfall
Pull 300 mt @ 10.2 m/min at 1st layer
Brake Holding 450 mt static @ 1st layer (towing/anchor handling)
Wire Capacity 76mm x 1,500m
Anchor Handling Winch Electro-hydraulic Double Drum AHTW; Brattvaag waterfall
Brake Holding 450 mt static @ 1st layer (towing/anchor handling)
Wire Capacity 76mm x 1,500m
Tugger Winch 2 x 10 t Electro-hydraulic HUW, 22 mm x 250 m each
Storage Drum Electro-hydraulic, 76 mm x 2,000m
Towing Pins 2 x Electro-hydraulic with turntable top flapses
Shark Jaws 1 x 300t Karmfork
Stern Roller 1 x 500t 4.5m x 2.0m Electro-hydraulic
Crane 1 x 5 t, Hydraulic knuckle jib crane
Deck Voltage & Sockets 2 x 415V, 2 x 220V
Water Maker 1 x 5m³/day reverse osmosis

LIFESAVING
Liferafts 6 x 25 men
Lifejackets 56
FRC/Rescue Boat/Davit 1 x SC45KR
Lifebuoys 8
Immersion Suits 48

208 tbp AHTS ERRV DP-2 FiFi-1 NOFO (2 sisters)

2009, DNV. DP-2, FiFi-1, NOFO 2005. Loa 74.5 m, width 17.20 m, draft 6.20 m. DW 3,000 tons. Deck cargo: 1,300 t. Deck Area 530 m2. Rated for 280 survivors. Location: North Sea. Inquire

MAIN DETAILS
Type Havyard 842
Built 2009
Class DNV, +1A1 Fire fighter(I) Offshore service vessel(Towing)
  Clean Comf(V-3) Dynpos(AUTR) E0 Ice(E) OILREC

DIMENSIONS
Length .o.a. 74.50 m
Breadth 17.20 m
Summer draft 6.90 m
GT 2800 t
DWT 3000 t

DECK SPACE / STRENGTH
Deck areal 530 m²
Deck Cargo 1300 tons
Deck strength 10 t/m²

PERFORMANCE & CONSUMPTION
Max speed: 14 knots – approx. 20 t/Day (5m draft)
Eco Speed: 10 knots – approx. 10 t/day (5m draft)
DP operation: approx. 8 t/day
Stand by: approx. 4 t/day (outside 500m zone)
Anchor handling approx. 30 t/day (40% load on propellers)
Bollard Pull 208 tonnes

DYNAMIC POSITION SYSTEM DP-2
SDP Kongsberg k-pos/c-joy/c-wing
D-GPS 2 x Kongsberg Seatex DPS 200
Fanbeam laser 1 x

ENGINES AND PROPULSION
Main Engines 2 x MAK 12 M32 C, 6000 kW each
Auxiliaries 2x Caterpillar C18 DITA, rating each 601 kW each
Shaft generators 2 x Mirelli, rating each 3000 kVA 1200 rpm
Gearbox 2x RR type Singe Reduction 3000AGSC KS560
Propellers 2x RR, d=4.1 m, c.p. in nozzle
Thrusters bow 1x RR El driven azimuth type Swing-up, 883 kW
1x RR El driven tunnel thruster fwd, 883 kW
Thrusters aft 1x RR El driven tunnel thruster aft, 883 kW

WINCH AND DECK MACHINERY
AH winch 1 x 370t /Braking hold 500 tonnes, first layer.
Towing winch 1 x 370t / Braking hold 500 tonnes, first layer,
with dividing flange
Secondary winch 1 x 75t first layer, with dividing flange
Spare drum 1 x 1500m 77mm wire on tween deck
Tugger winch 2 x 20 tonnes.100 m x 24 mm wire
Capstans 2 x 10 tonnes
2 x Karm Fork ø500 mm
w/MBL 650 ton wire/chain up to 125 mm
Crane 1 Dreggen Hydr./Elec. Knuckle boom DKF40 – 3,5T@10m
Crane 2 Dreggen rail knuckle boom DKFR100 – 5T@15m
ANCHOR HANDLING CAPACITY
1 x declutch able drum, 370 t pull 500 t brake, with dividing flange:
  2 x 2480 m ø 77 mm wire,
  – or 1436 m of 150 mm rope
  – or 1111 m of 160 mm rope
  – or 1073 m of 180 mm rope
  – or 754 m of 203 mm rope
  – or 730 m of 210 mm rope
1 x AHT drum, 350 t pull 500 t brake:
  5500 m ø 77 mm wire,
  – or 1436 m of 150 mm rope
  – or 1111 m of 160 mm rope
  – or 1037 m of 180 mm rope
  – or 745 m of 230 mm rope
  – or 730 m of 210 mm rope
Secondary drum with dividing flanges, 75 t pull,:
  SB part: 1150 m ø 77 mm wire
  PS part: 4472 m ø 77 mm wire
  – or 1141 m of 150 mm rope
  – or 1105 m of 160 mm rope
  – or 851 m of 180 mm rope
  – or 634 m of 203 mm rope
  – or 624 m of 210 mm rope
4 off Rig chain lockers with total chain capacity 383 m³
-4 x 1290 m of 76 mm chain or
-4 x 1050 m of 84 mm chain
Stern Roller: 3000 x 6000 mm 500 t MWL
Karmøy (AH) 2 x 650 t SWL
Karmøy (Towing) 4 x 300 t SWL
Gypsies 2 x 76 mm Fitted on winch
Gypsies 2 x 84 mm Stored on board
Chain Roller RRM Brattvåg 70 – 165 mm
J – Hook 1 x 150 t SWL
Grapnel 1 x 150 t SWL

TANK CAPACITIES
Ballast water 1526 m3
Drill water 1362 m3
Pot water 707 m3
Dry bulk cargo tanks 215 m3
Fuel oil 1157 m3
Urea 38 m3
Liquid Mud 532 m3
Liquid Brine 503 m3
Recovered oil 1036 m3
Rig Chain Lockers 378 m3

CARGO DISCHARGING PUMPS
Fuel oil 2x 200 m³/h – 9 bar, 4” Avery Hardol male
DW/Ballast 2x 200 m³/h – 9 bar, 4” Weco female
Potable water 2x 200 m³/h – 9 bar, 4” Weco female
Liquid Mud 2x 75 m³/h – 24 bar, 4” Weco female
Brine 1x 75 m³/h – 18 bar, 4” Weco male
Dry bulk 2x 25.6 m³/h – 6 bar, 5” Weco female
ORO pumps 3x 100-60 m³/h – 3-7 bar

RESCUE AND LIFE SAVING EQUIPMENT
Hospital with treatment bench, stretchers, medicine and poison lockers, intercom and direct ship to shore communication
Medical equipment /Medicines in acc. to NMD.
1 off Mob Boat type GTC 700
1 off Mob Boat type GTC 700
1 off Dacon rescue net
Rescue Certificate for 280 persons

NAVIGATION EQUIPMENT
Electronic chart 1 x Telchart T-2026
radar 1 x 10 cm ARPA Furuno Far-2837 S BB
radar 1 x 3 cm ARPA Furuno FAR-2117 BB
D-GPS 1 x GP- 150
GYRO 3 x Navigat X Mk 2 Mod 10
Magnetic compass 1 x 8”
Autopilot 1 x Navipilot 4000
Echo-sounder 1 x Skipper GDS 102
Doppler log 1 x JRC JLN-205
Voyage data recorder 1 x Furuno VR-3000
AIS 1 x FA-150

COMMUNICATION SYSTEMS
GMDSS-A3 (WW)
VHF direction finder 1 x Taio TD-L1550
NAVTEX 1 x NAV 7
MF/HF SSB 1 x Furuno, FS-2570. Radio Station
Portable VHF 3 x Navico AXIS 30
EPIRB 1 x Mc Murdo E5, automatic release
EPIRB 1 x Mc Murdo E5, manual release
SART 2 x Mc Murdo Radar Transonder, S4
INMARSAT 2 x Furuno, Felcom 15
SSAS 1 x Furuno Mod kit, incl. 2 x Alert active pnt
Fleet broadband 1 x Sailor 250
Duplex 2 x SAILOR RT 5020-, Class A DSC
Simplex 2 x SAILOR RT 480+0 VHF
UHF 3 x Motorola GM 380, Fix mounted
UHF 4 x Motorola GP 380, Portable, waterproof.
GSM Cell phone 2 x.
GSM Cell phone 1 x for high speed data

ACCOMMODATION
Cabins 2 x Single Cabins
12 x Double Cabin
1x Deck Office
1x Hospital, incl. 1 bed
1x Conference Room
Total 26  Persons

OIL RECOVERY SPECIFICATIONS
Arranged and approved according to NOFO 2005 requirements

QSHE CERTIFICATION
ISM, ISPS, ISO-9001:2008, ISO-14001:2004

QA QUALIFICATIONS
FPAL, Achilles, Sellihca, OVID registered & IMCA Member



60 tbp AHTS FiFi-1

2004, BV. Loa 57.5 m, width 13.80 m, depth 5.50 m, max draft 4.80 m. DW 1340 tons. Deck cargo: 600 t. Deck Area 380 m2. Location: Sinapore area. Inquire

GENERAL
Year Built 2004
Classification BV, I + Hull + Mach Supply Vessel, Fire Fighting Ship/
Water Spraying Unrestricted navigation + Mach.

DETAILS
Length Overall 57.50 m
Breadth 13.80 m
GT 1,200
Deadweight 1,340 t
Depth Moulded 5.50 m
Maximum draft 4.80 m
Clear deck Space 380 m²
Deck loading 600 t
Max Speed 10.0 kts
Economical speed 8.0 kts
Bollard Pull tonnes 60 t
Sewage Plant 1 x WCB – 50
Rudders 2 x Type L, Steering Cylinder
Joystick Kawasaki
Flow Meter Maker Oval Corporation Model LB602.152-B114- 030

CAPACITY
Fuel Oil 370 m³
Potable Water 200 m³
Drill Water 360 m³
Oil Based Mud 250 m³
Dispersant 20 m³
Dry Bulk 46.72 m³ in four tanks
Foam 20 m³

PUMPING RATES
Fuel Oil 1 x 150 m³/hr @ 75m head
Potable Water 1 x 100 m³/hr @ 75m head
Drill Water 1 x 75 m³/hr @ 40m head
Oil Based Mud 1 x 70 m³/hr @ 85m head
Dry Bulk 1 x 40 m³/hr @ 56m head

MACHINERY
Main Engines 2 x Caterpillar 3516B DITA, 1,800 kW each
Generators 3 x CAT 3408C 315 kW
Emergency Generators 1 x 65 kW 415V/3ph/50Hz Perkins
Bow Thruster 2 x Kawasaki KT 43-B1CPP 315kW
Propulsion 2 x CPP Nicle Luminium Bronze

ACCOMMODATION
Berths 2 x 1 berth cabin, 4 x 2 berth cabin, 8 x 4 berth cabin
Total 42

FIRE FIGHTING
Class 1
Monitors 2 x 1,200 m³/hr
Pumps 2 x 1,541 m³/hr

DECK EQUIPMENT
Towing Winch
Type Electro-hydraulic waterfall
Pull 10T
Brake Holding 200mt
Wire Capacity 56 mm x 1,000 m
Anchor Handling Winch
Type 1 x Rolls Royce Electro-hydraulic waterfall
Pull 10 T
Brake Holding 200 mt
Wire Capacity 56 mm x 1,000 m
Tugger Winch
Number & Capacity 2 x 10t Electro-Hydraulic
Wire Capacity 22 mm x 150 m
Other Deck Equipment
Storage Drum Electro-hydraulic 56 mm x 100 m
Towing Pins 1 x 80 t Karmoy
Shark Jaws 1 x 80 t Karmfork
Stern Roller 1 x 200 t 4 m x 1.6 m
Deck Voltage & Sockets 2 x 415 V, 2 x 220 V

LIFESAVING
Lifejackets 58
FRC/Rescue Boat/Davit 1 x DNV-MED-B-5810
Lifebuoys 8
Immersion Suits 3
Liferafts 6 x 25 man

68 tbp AHTS FiFi-1

2010, ABS. Loa 50.0 m, width 13.20 m, depth 5.20 m, max draft 4.50 m. DW 800 tons. Deck cargo: 600 t. Deck Area 250 m2. Location: Australasia. Inquire

PARTICULARS
Year Built 2010
Classification ABS, A1, Towing Vessel, AH, Fire Fighting Vessel
            Class 1, Offshore Support Vessel, AMS

DETAILS
Length Overall 50.00 m
Breadth 13.20 m
Depth Moulded 5.20 m
Maximum draft 4.50 m
GT 1,090
Deadweight 800 mt
Clear deck Space 250 m²

PERFORMANCE
Max Speed 12.5 kts
Bollard Pull tonnes 68.5 t

CAPACITY
Fuel Oil 590 m³
Fresh Water 215 m³
Ballast Water 150 m³

MACHINERY
Main Engines 2 x Caterpillar 3516B, 1,920 kW each
Propeller BERG Propulsion 2 x CPP, KA-4 type
Generators 3 x Cummins 415V/3/50, 350 kW each
Bow Thruster 5 mt thrust, Kamewa thruster
DECK EQUIPMENT
Towing/AH Winch Double drum waterfall winch, each drum
SWL 150T t @ 6m/min, 1st layer.
Capacity 2 x 56 mm x 1250 m long
Wire Ropes 1 x 58 mm dia x 840 m (towing wire)
1 x 56 mm dia x 1250 m (working wire)
1 x 56 mm x 1000 m (spare tow wire)
Shackles and Bridles Assorted from SWL 50 mt to 200 mt
Tugger Winches 2 x 10 t @10m/min, brake holding 25 tons
Capstan 1 x 5 t @ 10 m/min
Towing Pins 200 t SWL 2 Off
Shark Jaw 200 t, triplex shark jaw
Stern Roller 4 m x 1.5 m
Deck crane 10 ton @ 2 m Electro-hydraulic telescopic

ACCOMMODATION
Berths 4 x 1, 3 x 2, 5 x 4
Total 30

FIRE FIGHTING
Class FiFi-1
Monitors 2
Capacity 2,400 m³/hr capacity
Foam 2,000 ltrs foam tank
Oil Dispersant Oil dispersant boom P&S

50 tbp FiFi AHTS

2013, BV. Loa 56.0 m, width 13.8 m, depth 5.50 m, max draft 4.30 m. DW 1,000 tons. Deck Area 290 m2. Location: Far East. Inquire

GENERAL
Built: 2013
Class: BV, I + Hull, + Mach, Tug-Supply vessel-Special service /
Anchor Handling Vessel, Unrestricted navigation
+ MACH

DIMENSIONS
Length: 56.00 m
Breath: 13.80 m
Depth / Draft: 5.50 m / 4.30 m
GRT: 1,180
Deadweight: 1,000 tons
Deck loading: 5 t/m2
Deck Area: 290 m2

PERFORMANCE
Max Speed: 12 knots
Bollard Pull: 50 ton
MACHINERY
Main Engine: 2 x Caterpillar 3516C, 2100 bhp each
Main Generator: 3 x Caterpillar C18, 275 kW each
Harbour Generator: Cummins 50kW
Bow Thruster: 5 tonnes
Propulsion: 2 x FPP

DECK EQUIPMENT
AH / Towing Winch: 150 tonnes line pull
Wire Rope: Tow wire: 50mm x 1000m
Tugger Winch: 2 x 10T @15m/min
Stern Roller: 1.6 m x 5m (SWL 200tonnes)
Capstans: 2 x 5 tonnes @15m/min
Sharkjaw / Towpin: 200 tonnes Hydraulic
Tow Wire: 1000 m x 50mm
Crane: 2 tonnes @ 6.5m

TANK CAPACITY
Fuel Oil: 600 m3
Fresh Water: 420 m3
Mud: 150 m3
Dry Bulk Cement: 113 m3
Foam tank: 8 m3
Dispersant tank: 12 m3

ACCOMMODATION
Cabin: 2 x 1-berth, 3 x 2-berth, 8 x 4-berth
Total: 40 men

SAFETY EQUIPMENT
Fire-fighting: 1 x 1500 m3/hr fire pump
Monitors: 2 x 600 m3/hr
Rescue Boat: 1 x 6 men, 25 HP
Life Raft: 6 x 20 men

NAVIGATION / COMMUNICATION EQUIPMENT
Radar: 2 x JRC / FURUNO
Echo Sounder: 1 x JRC / FURUNO – 200 kHz
AIS: 1 x JRC / FURUNO – FA150
GPS: 1 x JRC/ FURUNO
Auto Pilot: 1 x Robertson / Anschutz
Speed Log: 1 x JRC / FURUNO
Gyro Compass: 1 x JRC / FURUNO
Magnetic Compass: 1 x SAURA MR – 150A
Sat Phone/Fax/Email: Fixed
Inmarsat C: 1 x FURUNO
SSB: Fitted
VHF: 2 units Fitted
Navtex: 1 x JRC / FURUNO – 518 kHz
EPIRB: 1 x E3 McMurdo
SART: 2 x McMurdo – 9 Ghz
GMDSS: A3
PA System: Fitted
Speed Log: 1 x JRC / FURUNO



55 tbp FiFi AHTS

2008, BV. Loa 55.0 m, width 13.80 m, depth 5.5 m, max draft 4.3 m. Deck Area 330 m2. Location: Middle East. Inquire

GENERAL
Built: 2008
Class: BV, I + Hull + Mach, Supply vessel /Anchor Handling
Vessel, Unrestricted navigation, + MACH

DIMENSIONS
Length: 55.00 m
Breath: 13.80 m
Depth / Draft: 5.50 m / 4.30 m
GRT: 1125
Deck Space: 29 m x 11.4 m = 330 m²
Deck Strength: 5 tons / m²

PERFORMANCE
Max Speed: 12 knots
Bollard Pull: 55 tons

MACHINERY
Main Engine: 2 x Caterpillar 3516B, 2100 bhp each
Main Generator: 3 x Caterpillar 3406C, 245 kW each
Bow Thruster: 5 tons – Fixed Pitch type
Gear Box: 2 x Reintjes WAF 763
Propulsion: Fixed pitch Propeller
Emergency Genset: 1 x 84kW

DECK EQUIPMENT
AH / Towing Winch: Double Drum type – 75 tons
Wire Rope: Work wire: 150 m x 52 mm
Tow wire: 600 m x 52 mm
Tugger Winch: 2 x 5 tons
Stern Roller: 1.5 m x 4.5 m, SWL 200 tons
Capstan: 2 x 5 tons @ 15 m / min
Sharkjaw / Towpin: 200 tons SWL
Crane: 2 tons SWL @ 6 m

SAFETY EQUIPMENT
Fire Fighting: 2 x 600m³ / hr monitors with fire curtain
Engine Room: CO2 flooding system
Life Raft: 6 x 15 men self-inflatable

TANK CAPACITY
Fuel Oil: 428 m³
Fresh Water: 504 m³
Lube Oil: 3.4 m³
Hydraulic Oil: 11 m³
Sewage Tank: 8.4 m³
Mud Tank: 142 m³
Cement Tank: 113 m³
Ballast Tank: 180 m³

ACCOMMODATION
Cabin: 2 x 1-berth, 4 x 2-berth, 5 x 4-berth
Total: 30 men

NAVIGATION / COMMUNICATION EQUIPMENT
Radar: 2 x JRC – 48 nm / 96 nm
Echo Sounder: Furuno FE 700
AIS: JRC, JHS-182
GPS: JRC, JNAV 50
Auto Pilot: JRC, Comnav
Gyro compass: Yokogawa
Magnetic compass: Sakura
Inmarsat C: JRC, JUE – 85
SSB: JRC, JSB-196 GM
VHF: JRC, JHS-32B
Navtex: NCR333
EPIRB: 2 x McMurdo E3
SART: JQX-30A
Search Light: 2 units – 2000W
PA System: 1 unit – Fitted
Speed Log: JRC

64 tbp FiFi-1 AHTS

2007, ABS. Loa 59.3 m, width 14.90 m, depth 6.1 m, max draft 4.95 m. Deck Area 340 m2. Location: East Africa. Inquire

GENERAL
Vessel Type Anchor Handling Tug Supply DP0
Year Built 2007
Classification ABS, A1, AMS, AH, Towing Vessel, Offshore Support
Vessel, Fire fighting Class 1, Special Purpose Vessel.

DIMENSIONS
Length Overall 59.3 m
Breadth 14.9 m
Depth Moulded 6.1 m
Maximum draft 4.95 m
GT 1,680
Deadweight 1,385 tons
Clear deck Space 340 m²
Deck cargo 500 tons
Deck loading 7.5 t/m²

PERFORMANCE
Max Speed 13 kts
Bollard Pull 64 tons

CAPACITY
Fuel Oil 537 m³
Potable Water 360 m³
Drill Water 400 m³
Oil Based Mud 370 m³
Dispersant 12 m³
Dry Bulk 187 m³
Foam 12 m³

PUMPING RATES
Fuel Oil 1 x 150 m³/hr @ 75 m head
Potable Water 1 x 100 m³/hr @75 m head
Drill Water 1 x 100 m³/hr @75 m head
Oil Based Mud 2 x 75 m³/hr @ 75 m head
Dry Bulk 2 x 13 m³/min

MACHINERY
Main Engines 2 x Caterpillar 3516B 2525 kW
Generators 3 x Caterpillar  3408 340 kW
Harbour Generator 1 x Perkins 52 kW
Bow Thruster Kawasaki 5 t x 1.42 BHP/315 kW
Propulsion 2 x Berg CPP

ACCOMMODATION
Berths 4 x 1 berth cabin, 3 x 2 berth cabin , 8 x 4 berth cabin
Total 42

FIRE FIGHTING
Class FiFi-1
Monitors 2 x water monitors 1,200 m³/hr, 12 bar, 120 m throw
Pumps 2 x 1,400 m³/hr

DECK EQUIPMENT
Towing / AH Winch Karmoy hydralic double drum waterfall
Pull 150 t
Brake Holding 200 t
Wire Capacity 2 x 1,000 m x 52 mm
Storage Reel Capacity 1000m x 52mm wire, 14 tonne pull
Tugger Winch 2 x 10 t
Wire Capacity 15 m/min
Towing Pins Karmoy SWL 200 t
Shark Jaws Karmoy Fork SWL 200 t
Stern Roller 4 m x 1.6 dia SWL 200 t
Crane 3 t x 9 m reach
Water Maker 1 x 3 t per day
LIFE SAVING EQUIPMENT
Liferafts 6 x 25 man
Lifejackets 53
FRC/Rescue Boat/Davit Rescue boat & davit
Lifebuoys 8
Immersion Suits 3


110 tbp DP-2 FiFi-1 AHTS

2012, ABS. Loa 75.0 m, width 16.00 m, depth 7.50 m, max draft 6.10 m. DW 2,500 tons. Deck Area 500 m2. Location: Far East. Price: Inquire

PRINCIPAL PARTICULARS
Built 2012
Class ABS
Notation ABS XA1 (E) OFFSHORE SUPPORT VESSEL, AH,
TOWING VESSEL, FiFi 1, XAMS, XDPS-2

DIMENSIONS
Length Overall 75.00 m
Length BP 67.98 m
Breadth Moulded 16.00 m
Depth Moulded 7.50 m
Draft Max 6.10 m
GT 2,759
Deadweight 2,500 tonnes @ 6.10 m Draft

PERFORMANCE
Trial Speed 14.5 Knots
Bollard Pull 110 Tons

CAPACITIES
Deck Strength 7.5 tonnes/ m²
Clear Deck Area 500 m²
SWB/DW Tank 1370 m³
Fresh Water Tank 355 m³
Fuel Oil Tank 858 m³
Dry Bulk Cargo Tank 226 m³ (4 x 2000 ft3)
Brine Tank 210 m³
Mud Tank 395 m³
Rig Chain lockers 2 x 80 m³

MACHINERY
Main Engines 2 x 4,160 bhp Wartsila Engine 9L26
Shaft Alternator 2 x Leroy Somer 1500kW each
Main Genset 2 x Cummins Engine 380kW each
Bow Thruster 2 x Wartsila Lips CT175H-D @ 10Ton CPP
Stern Thruster 1 x Wartsila Lips CT175H-D @ 10Ton CPP
Propellers 2 x CPP ‘Berg’ model BCP 850
Steering Gear 2 x RIQ model K7096U30-12-45-l+DP2

OTHER EQUIPMENT
Water Maker 1 x 10 t / day, Reverse Osmosis Type
Sewage Treatment Plant 1 x 40 men type.
Bilge Water Separator 1 x 1.0 m3 /hr complied MARPOL Requirement
Service Air System 100 cbm/hr at 7 bar with 500ltr air bottle
DECK EQUIPMENT
Anchor Handling / Towing Winch Double drum, waterfall type c/w spooling device
Make ZICOM, 200 tons line pull (1st layer)
Anchor 2 x HHP 1850 Kg
Windlass Make ZICOM, 2 cable lifter, 2 warping head &
1 mooring drum, electro-hydraulic anchor windlass
Capacity 8.4 tonnes at 12 m/min for 44mm dia. chain
Tugger winch Make ZICOM, 2 x 10T @ 0 – 15m/min
Hydraulic Capstan Make ZICOM, 2 x 5T @ 0 – 30m/min
Hydraulic Storage Reel Make ZICOM, 1 x 5.5T @ 20m/min
Capacity 1500m x 64mm dia. wire rope
Towing Pin Karmoy, SWL 300T
Kam Fork Karm Fork, SWL 300T
Stern Roller 5m Length x 1.8m Dia, SWL 300T
Deck Crane HS Marine, SWL 5T @ 12.0m Outreach
Pneumatic BHS Make ALPH BV
Capacity 30 m3/min. @ 6 bar working pressure

DISCHARGE RATES
Fuel Oil 1 x 150 m³/hr @ 7.5 bar
Fresh Water 1 x 150 m³/hr @ 7.5 bar
Liquid Mud 2 x 100 m³/hr @ 7.5 bar
Ballast / Drill Water 1 x 150 m³/hr @ 7.5 bar

FIRE-FIGHTING EQUIPMENT
Fire Pump 2 x 1500 m3/hr @ 12 bar
Fire Monitor 2 x 1200 m3/hr @ 12 bar (Water), 300 m3/hr (Foam)
Throw 120 Metre
Fireman Outfit 4 sets
DPS – 2 SYSTEM
Make Kongsberg
Consist 2 x Gyro Compass
2 x Differential GPS
1 x Cyscan Fan Beam Laser System
2 x Anemometer
2 x Vertical Reference Unit (VRU)
2 x UPS

RADIO & NAVIGATION EQUIPMENT
DGPS with Plotter Furuno
Anemometer Gill Utrasonic
Gyro-compass Anschutz
GMDSS Furuno
Navtex Receiver Furuno
EPIRB McMurdo
SART McMurdo
Handheld VHF radio McMurdo
Weather Fax Furuno
S-Band Radar Furuno
X-Band Radar Furuno
Echo Sounder Furuno
Doppler Speed Log Furuno
AIS Furuno
Magnetic Compass Cassens & Plath
Auto-pilot Anschutz
VHF Furuno
S.S.A.S Furuno

ACCOMMODATION
Cabins 8 x 1-man cabin = 8 men
16 x 2-men cabin = 32 men
Total 40 men Cabins
Other spaces: Office, Hospital, Officer Mess, Crew Mess, Gym, Laundry
All spaces fully air-conditioned

105 tbp DP-2 FiFi-1 AHTS (2 sisters) (priced to sell)

2010/2011, ABS. Loa 70.50 m, width 16.60 m, depth 7.20 m, max draft 5.90 m. DW 2,500 tons. Deck Area 480 m2. Location: Middle East. Price: Inquire

GENERAL
Year Built 2010/2011
Classification ABS + A1(E) +AMS DPS-2 AH Towing Vessel
Fire Fighting Class 1, Offshore Support Vessel

DIMENSIONS
Length Overall 70.50 m
Breadth 16.60 m
Depth Moulded 7.20 m
Maximum draft 5.90 m
Deadweight 2,500 t
GRT 2,560

DECK & CAPACITY
Clear deck Space 480 m²
Deck cargo 900 tons
Deck loading 10 t/m²

PERFORMANCE
Max Speed 14.4 kts
Economical speed 10.0 kts
Bollard Pull tonnes 105 t

TANK CAPACITIES
Fuel Oil 988 m³
Potable Water 440 m³
Drill Water 600 m³
Oil Based Mud 497 m³
Dispersant 13.2 m³
Dry Bulk 220 m³
Foam 10.6 m³

PUMPING RATES
Fuel Oil 1 x 100 m³/hr @ 80m head
Potable Water 1 x 100 m³/hr @ 80m head
Drill Water 1 x 100 m³/hr @ 80m head
Oil Based Mud 2 x 75 m³/hr @ 80m head
Dry Bulk 2 x 20 m³/hr

MACHINERY
Main Engines 2 x Niigata 8MG28HLX 2,942 kW
Generators 2 x Volvo/D12D-EMG 1,110 kW
Emergency Generators 1 x Volvo D12 MG HE @ 1,800 rpm
Bow Thruster 2 x 680kW Tunnel Type
Propulsion 2 x CPP

ACCOMMODATION
Berths 4 x 8 berth cabin, 2 x 3 berth cabin, 1 x 4 berth cabin
Total 42

FIRE FIGHTING
Class 1
Monitors 2 x 1,200 m³/hr
Pumps 2 x 1,700 m³/hr

DECK EQUIPMENT
Towing /AH Winch  Mentrade Electro-hydraulic Double Drum waterfall
Pull 210 t
Brake Holding 280 t
Wire Capacity 64 mm x 1,200 m, each drum
Number & Capacity 2 x 12 t Mentrade Hydraulic, 24 mm x 200 m, each
Storage Drum Electro hydraulic, 64 mm x 1,200 m
Towing Pins 2 x 300 t Karmoy
Shark Jaws 1 x 300 t Karmfork
Stern Roller 1 x 300 t 6m x 2m
Crane 1 x 5.9 t Palfinger Telescopic
Deck Voltage & Sockets 2 x 440 V, 2 x 220 V
Water Maker 5 m³/Day

LIFESAVING
Liferafts 25 x 6 man
Lifejackets 158
FRC/Rescue Boat/Davit 1 x 4.5m Wuxi Wenjiao & Wuxi Huahai Marine
Lifebuoys 8
Immersion Suits 53

165 tbp DP-2 FiFi-1 AHTS (2 sisters)

2012, BV. Loa 76.0 m, width 18.50 m, depth 8.00 m, max draft 6.00 m. DW 2,900 tons. Deck Cargo 800 tons. Deck Area 580 m2. Location: Far East. Price: Inquire

GENERAL
Built 2012
Classification Bureau Veritas
Class Notation + I, + Hull, + MACH, Towing Offshore Support Vessel / AHT /
  FiFi 1 – Water Spraying, + AUT – UMS, + Dynafos – AM/AT-R,
  Unrestricted Navigation

MAIN DIMENSIONS & DETAILS
Length oa 76.00 m
Width 18.50 m
Depth 8.00 m
Max Draft 6.00 m
Deck Strength 7.5t/m2
Clear Deck space 580 m2
Deck Cargo 800 t
Deadweight 2,900 tonnes
GRT/NRT 3,510 / 1,050
Bollard Pull 165 tonnes
Cruising Speed 10.0 Knots

MACHINERY
Main Engines 2 x MAK of 6,030 bhp @ 600 rpm
Auxiliary Engines 2 x CAT 425 ekW each
Shaft Generators 2 x 2300 kW
Propulsion 2 x Berg CPP package – 4 Blades
Bow Thruster 2 x 10 tonnes BERG 650 kW e-motor driven
Stern Thruster 1 x 10 tonnes BERG 650 kW e-motor driven
Dynamic Positioning System DP-2, Kongsberg

FUEL CONSUMPTION
Max Speed 1,850 Lt/h
Generator 120 Lt/h

DECK EQUIPMENT
1 x electro-hydraulic low pressure double drum AHT winch in waterfall arrangement
Fork and Towing Pins 2 x KARM dia 450 mm with flaps for horizontal locking, 300 ton.
stern roller 4.50 m by Ø2,300/Ø2,500 mm SWL 450 tons
Deck crane 1 x
Tugger Winch 2 x
Storage Reel 2 x electro-hydraulic
Capstan 2 x electro-hydraulic

FIRE FIGHTING
Pumps 1,500 m3/h at 14 bar Jason/Aker
Monitor 1,200 m3/h at 12 bar & 120 m throw length

TANK CAPACITIES
Fuel Oil 1,000 m3
Fresh Water 700 m3
Drill Water 900 m3
Liquid Mud 800 m3
Dry Bulk 310 m3
Foam 10 m3
Detergent 10 m3
Base Oil / Brine 140 m3
Bilge Holding Tank 10 m3
Dirty Bilge Tank 11 m3

NAVIGATION & COMMUNICATION EQUIPMENT
GMDSS Area 3
Gyro Compass 1 x Gyrostar II
Radar 2 x Furuno FR 1510
Echo sounder 1 x Furuno FE 700
SART 2 x Mc Murdo RT-9
EPIRB 1 x Saracom EB-10
Navtax Receiver 1 x Furuno NX-500
Autopilot 1 x Raytheon NP-60
Weather Fax 1 x Furuno FAX-207
Speed Log 1 x Furuno DS-80
GPS Plotter 1 x Furuno GP-90

ACCOMMODATION
Cabins 6 x 1 berth cabin
20 x 2 berth cabins
1 x Sickbay
Total Fully air conditioning total 46 berth

LIFE SAVING EQUIPMENT
As per SOLAS, Registry and Classification’s requirements
Life Rafts 6 x 25 men
Rescue Boat 1 x 6 men rigid inflatable c/w davit & 40 HP outboard engine
Compressor 1 x BA recharging compressor
Gas Detector system 5 H2S & Hydocarbon sensors

155 tbp DP-2 FiFi-1 AHTS

2009, ABS. Loa 75.40 m, width 16.80 m, depth 7.50 m, max draft 6.10 m. DW 2,190 tons. Deck Cargo 1,000 tons. Deck Area 500 m2. Location: Far East. Price: Inquire

GENERAL
Built 2009
Classification ABS + A1, Towing Vessel, Fire Fighting Vessel Class 1,
  Offshore Support Vessel AH, (E), + AMS, + ACCU, + DPS-2

DIMENSIONS & DETAILS
Length Overall 75.40 m
Breadth 16.80 m
GRT / NRT 2,950/886
Deadweight 2,190 t
Depth Moulded 7.50 m
Maximum draft 6.10 m
Clear deck Space 500 m²
Deck loading 1,000 tons (7.5 mt/m2 uniform loading)
Max Speed 14.8 knts
Economical speed 12.0 knts
Bollard Pull tonnes 155 t
Rudders 2 x 2 Becker Rudder

MACHINERY
Main Engines 2 x 4,500 kW Wartsila 9L32
Generators 2 x 410 kW Caterpillar 3408 DITA
Shaft Alternator 2 x 2,300 kW Leroy Somer
Bow Thruster 2 x 600 kW, CPP 11.2t Thrust
Stern Thruster 1 x 600 kW, CPP 10.2t Thrust
Propulsion 2 x CPP

DECK EQUIPMENT
Towing Winch
Type I.P. Huse AS N6487 Haroy Norway
Pull Line 300 mt @ 1st. Layer (4 pumps) (2 drive unit)
Brake Holding 450 t
Wire Capacity 76mm x 2,000m
Anchor Handling Winch
Type Brattvaag SL300W / BSL300W
Pull Line 300 mt @ 1st. Layer (4 pumps) (2 drive unit)
Brake Holding 450 t
Wire Capacity 73mm x 2,000 m
Other Deck Equipment
Tugger Winch Number & Capacity 2 x 10t Hydraulic
Wire Capacity 22mm x 200m
Storage Drum Electro-hydraulic, 76mm x 2,000m
Towing Pins 2 x 300t Karmoy
Shark Jaws 2 x 300t Karmfork
Stern Roller 1 x 500t 4.5m x 2.3m
Crane 1 x 2.2t @ 12.2 m; 5.9t @ 6m
Water Maker 10 m³/Day

FIRE FIGHTING
Class FiFi-1
Monitors 2 x 1,200 m³/hr
Pumps 2 x 1,818m³/hr

TANK CAPACITY
Fuel Oil 1,263 m³
Fresh Water 430 m³
Drill Water 430 m³
Oil Based Mud 515m³
Dispersant 7.5m³
Dry Bulk 226m³ in 4 tanks
Foam 7.5m³

PUMPING RATES
Fuel Oil 200 m³/hr @ 90m head
Potable Water 150 m³/hr @ 90m head
Drill Water 200 m³/hr @ 90m head
Oil Based Mud 2 X 75 m³/h @90mtrs head
Dry Bulk 2 x 20 m³/hr

LIFE SAVING EQUIPMENT
Liferafts 6 x 25 man
FRC/Rescue Boat/Davit 1 x Semi Rigid Rescue Boat Narwhal SV-480
Immersion Suits 56

ACCOMMODATION
Berths 10 x 1-man cabin,
8 x 2-men cabins,
4 x 6-men cabin
Total 50

85 tbp, SPS, DP-2, FiFi-1

2016, ABS, Resale. Loa 65.00 m, width 16.00 m, depth 6.20 m, max draft 5.00 m. DW 1,800 tons. Deck Cargo 800 tons. Deck Area 435 m2. Location: Far East. Price: Inquire

GENERAL
Class ABS
Notation +A1(E) OFFSHORE SUPPORT VESSEL (AH, SUPPLY-HNLS, TOW) OSR-C1 +AMS + DPS-2 FFV 1, SPS CODE UWILD UNRESTRICTED SERVICE
Built 2016

DIMENSIONS
Loa 65.00 m
Lbpp 58.50 m
Breadth moulded 16.00 m
Depth 6.20 m
Draft designed 5.00 m
Accommodation 8 x 1 berth cabins: 8 men
5 x 2 berth cabins: 10 men
8 x 4-berth cabins: 32 men
Total: 50 men

PERFORMANCE
Speed 12.5 knots at trial condition, 100% MCR, design draft.
Bollard Pull 88 ton

CARGO CAPACITY
Deadweight Approx. 1,800 t at scantling draft.
Deck Loading 7 t/m2
Deck Cargo Capacity about 600 t
Deck Cargo Space about. 435 m2

TANK CAPACITY
Potable water 440 m3
Fuel oil 580 m3
WB/Drill water 690 m3
Dry bulk cargo tanks 150 m3
Mud / Brine/R.O 460 m3 (SG 2.5)
Lub oil 10 m3
Dirty oil 10m3
Foam 10 m3
Dispersant 10 m3

MACHINERY
Main Engine 2 x 3,300 HP. Medium speed
Propulsion System Two (2) four or five bladed controllable pitch propellers to be supplied.
Main Gensets Three (3) 450 KW diesel driven alternators (415V/3/50Hz).
Shaft Generator Two (2) 1000 KW shaft generator driven by gear box
Bow Thruster Two (2) transverse tunnel CPP bow thrusters, each giving a thrust of approx. 10T, to be driven by continue electrical motor.
Stern Thruster One (1) transverse tunnel CPP stern thruster, giving a thrust of approx. 8T, to be driven by continue electrical motor.

DECK MACHINERY
AH/Towing Winch One (1) set, high pressure electro-hydraulic driven, double drum, waterfall type. Braking capacity: 250 ton
Tugger Winches Two (2) electro-hydraulic tugger winches of 10 tonnes at 15 m/min
Capstan Two (2) electro-hydraulic capstans shall be installed at main deck aft (P & S), with pulling force of 10 tonnes at 15m/min.
Deck Crane One (1) electro-hydraulic telescopic crane to be installed. SWL 2t at outreach 15m.

85 tbp, SPS, DP-2, FiFi-1, Oil Rec

2013, ABS class. Loa 65.00 m, width 16.00 m, depth 6.20 m, max draft 5.00 m. DW 1,800 tons. Deck Cargo 800 tons. Deck Area 435 m2. Location: ME Gulf region. Price: Inquire

PRINCIPAL PARTICULARS
Length BP 58.50m
Breadth Moulded 16.00m
Depth Moulded 6.20m
Draft (designed) 5.00m
Built 2013
GRT/NRT 2,950/ 885 (approx)

CLASS NOTATION
ABS + A1 (E) Offshore Support Vessel, AH, Towing Vessel, Fire Fighting Ship Class 1, Oil Recovery Capability Class 1, + AMS, DPS Comply to SPS Code

PERFORMANCE
Maximum Speed 13.8 Knots @ 100% MCR
Economical Speed 12.8 Knots @ 85% MCR
Type of Fuel Marine Gas Oil
Fuel Consumption 21 m3/24 hours @ 100% MCR
16 m3/24 hours @ 85% MCR
Bollard Pull 85 Tons (max)

ACCOMMODATION
Berths 8 x 1 berth cabin – 8
3 x 2 berth cabin – 6
9 x 4 berth cabin – 36
Total 50
Hospital 1 x 1 berth cabin – 1
All cabins fully air-conditioned & c/w attached wash

CARGO CAPACITIES
Deadweight 1,800 Ton (approx)
Deck Cargo 600 mt (approx)
Deck Strength 7 Ton/m2 uniform loa 435 m2 (approx)
Clear Deck Area 550 m3 (approx)
Fuel Oil 350 m3 (approx)
Fresh Water 550 m3 (approx)
Ballast/Drill Water 400 m3 (approx)
Mud/Brine/R.O. Cement 150 m3 (approx)
Freezer / Chiller 10 m3 / 10 m3
Foam / Detergent 10 m3 / 10 m3
Rig Chain Locker Nil

PUMPS
Fuel Oil 1 x 150 m3/hr @ 70
Fresh Water 1 x 100 m3/hr @ 70
SWB/Drill Water 1 x 100 m3/hr @ 70
Liquid Mud/Brine/R.0. 2 x 100 m3/hr @ 70
Bilge/Ballast/GS/Fire 2 x 100 m3/hr @ 70
Bilge 2 x   45 m3/hr @ 30
Bulk Cement Compressor 2 x   13 m3/min @ 80 PSI

PROPULSION SYSTEM
Main Engines 2 x 3,300 PS (Niigata 8L28H)@ 750RPM
Main Generator 3 x 450 kW diesel driven, 415V/3Ph/50Hz (CAT)
Shaft Generator 2 x 900 kW
Emergency Generator 1 x 99 kW, (CAT)
Bow Thruster 2 x 10 Ton Thruster, approx 600kw, CPP (Kawasaki Wuhan)
Stern Thruster 1 x 8 Ton Thruster (Kawasaki Wuhan)
CPP Berg

MISCELLANEOUS
Liferafts 6 x 25, SOLAS standard
Rescue boat 1 x 6 c/w inboard diesel engine
Oily Water Separator 1 x 1.0 m3/hr, Ocean clean/ Boss
Water Maker 1 x 10 T/day, Sea recovery/Peter Taboada
Sewage Treatment Plant 1 x 50 men/day, Taixing/Taiko

DECK EQUIPMENT
Anchor Windlass 2 x 1 OT @ 9m/min, electro hydraulic
Drum Nil
Gypsies suitable for 32mm dia U2 chain
Bow Anchors 2 x 1,4400kg HHP Stockless Anchor
Chains 2 x 440 m (L) x 32 mm (Dia), Grade U3
Capstan 2 x 10T@ 15 m/min electro hydraulic
Tugger Winch• 2 x 10 mt@ 15 m/min electro hydraulic
Drum Capacity 250 m x 22 mm Dia
Deck Crane 1 x 2 Ton@ 15m (China Make)
Towing /AH Winch• 1 x Elec. Hyd., double drum waterfall
Upper Drum (Tow) 60 mm dia x 1200m
Lower Drum Cap (AH) 60 mm dia x 1200m
Line Pull 150 Ton@6m/min (1st layer)
Static Brake 250 Ton
Stern Roller 4.40 m (L) x 1.70 m (dia); SWL 250 mt
Lock Jaws 1 x Hydraulic 250 SWL
Tow Pin 2 x Hydraulic 250 SWL
Storage Reel 1 x 6 Ton@20 m/min

RADIO & NAVIGATION EQUIPMENT
GMDSS Area A1 + A2 + A3, consist of:
lnmarsat C 1 x Furuno Felcom-15
VHF Radio 2 x Furuno FM-8800S
Navtex Receiver 1 x Furuno NX-700B
SART 2 x McMurdo S4
EPIRB 1 x McMurdo E5
Portable VHF Radios 3 x McMurdo R2
Radar 2 x Furuno FAR2117
Echo Sounder 1 x Furuno FE-700
DGPS 1 x Furuno GP-150
Gyrocompass 1 x Anschutz Standard 22
Autopilot 1 x Anschutz PilotStar D
Magnetic Compass 1 x Liliey-Gillie MK2000
Weather Fax 1 x Furuno FAX-408
Speed Log 1 x Furuno DS-80
Wind Indicator 1 x Gill Ultrasonic
AIS 1 x Furuno FA-150
BNWAS 1 x Furuno
Fleet Broadband 1 x Furuno
DP DP 2 System Kongsberg
Joystick 1 x Kongsberg Portable Control Station
Vessel also fitted with PA Talkback System & Self-powered Telephone.

FIRE-FIGHTING EQUIPMENT & ANTI-POLLUTION EQUIPMENT
EXTERNAL
FiFi System Class 1 with water curtain all round
Fire Pump 2 x 1,650 m3/hr @ 140m head
Monitors driven by front PTO ME
water/foam 2 x fire monitors
Oil Dispersant System 2 x Cluster nozzles or overhang boom
INTERNAL
Emergency Fire Pump 1 x 45 m3/hr x 60m head
BA Recharging Comp 1 x 75 ltr/min @ 200 bar

64 tbp, DP-1, FiFi-1 waterspray, Oil Rec

2008, BV, Loa 59.00 m, width 14.60 m, depth 5.50 m, draft 4.50 m. Deadweight +/- 1,275 tons. Deck cargo: +/- 500 tons. Deck area 360 m2, accommodation 42 persons. ME Gulf region Price: Inquire

PRINCIPAL PARTICULARS
Length Overall 59.00 m
Length Waterline 56.61 m
Breadth Moulded 14.60 m
Depth Moulded 5.50 m
Draft (max) 4.50 m
Draft (design) 4.50 m
Built China
GRT / NRT 1494 / 448
Year of delivery 2008
Class Bureau Veritas Notation Class 1 + Hull + MACH “Supply Vessel & Fire Fighting Ship” 1-Water spraying; Special service – Anchor Handling Vessel Unrestricted Navigation DYNAPOS- AM/AT
Flag (Port of Registry) Singapore

PERFORMANCE
Maximum Speed / Consumption 12.5 knots / 16 m3 (24 hrs)
Service Speed / Consumption 10 knots / 13.5 m3 (24 hrs)
Economical Speed / Consumption 9 knots / 12 m3 (24 hrs)
Fuel consumption in port 0.98 m3 (24 hrs)
Type of Fuel Marine Gas Oil
Bollard Pull 64 MT

CARGO CAPACITIES
Deadweight 1275 mt
Deck Cargo 500 mt
Deck Strength 7.0 mt/m2 uniform loading
Clear Deck Area 360 m2
Deck Length 30.0 m
Deck Width 12.0 m
Fuel Oil 440 m3
Fresh Water 240 m3
Ballast/Drill Water 460 m3
Liquid Mud 250 m3
Cement Tank 187 m3 (4 x 1,650 ft3) ; Unislip
Freezer / Chiller 10 m3 / 10 m3
Foam / Detergent 10 m3 / 10 m3
Rig Chain Locker Nil

PUMPS
Fuel Oil 1 x 150 m3/hr @ 75m head; Azcue
Fresh Water 1 x 100 m3/hr @ 75m head; Azcue
SWB/Drill Water 1 x 100 m3/hr @ 75m head; Azcue
Liquid Mud * 2 x 70 m3/hr @ 85m head; (SG 2.5) Mission Circulation system
Bilge/Ballast 2 x 75 m3/hr @ 50m head; Azcue
GS / Fire Pump 1 x 75 m3/hr @ 50m head; Azcue
Bulk Cement 2 x 13 m3/min @ 80 psi air compressors; Airman system fitted with dryers
* Liquid Mud tanks are strengthened for products up to 2.5 SG and can be nominated to carry Brine

PROPULSION SYSTEM
Main Engines 2 x 1,920 kW (2575 bhp) @ 1,600 rpm Caterpillar 3516B
Main Generators 3 x 340 kW @ 1,500 rpm Caterpillar 3408 c/w Leroy Somer LSAM47.1L9 alternators rated at 320 kW/415 V/3 Ph/50 Hz
Emergency Generator 1 x 52 kW @ 1500 rpm Caterpillar C4.4 rated at 52 kW/415 V/3 Ph/50 Hz
Shaft Alternator Nil
Bow Thruster 1 x 440 kw electric-driven HRP 4000; tunnel type (CPP); 6T thrust
Stern Thruster Nil
Steering Gear 2 x Kobelt; 4T; 35 deg
Propulsion 2 x CPP Type with Kort Nozzle; Berg 690 BCP/4
Rudders 2 x high performance streamline type

DECK EQUIPMENT
Anchor Windlass 1 x electro-hydraulic Mentrade HAW-10T
Drum Nil
Gypsies suit’ for 40 mm (Ø) chains rated pull 10 mt @ 9 m/min
Warping drum 400 mm (dia) x 450 mm (L) rated pull 2 mt @ 10 m/min
Bow Anchors 2 x 1305 kg HHP anchors
Chains 440 m (L) x 36 mm (Ø) Grade U2 (each side)
Capstan 2 x 5 mt @ 15m/min electro-hydraulic; Mentrade HVC-5T
Tugger Winch 2 x 10 mt @ 15m/min electro-hydraulic; Mentrade HUW-10T Drum Capacity : 200 m (L) x 22 mm (Ø) SWR
Deck Crane 1 x 2T @ 12m electro-hydraulic Palfinger PK32080(M)C
Towing/AH Winch 1 x electro-hydraulic double drum Mentrade AHTW-150T
Upper Drum Cap (Tow) 1000 m (L) x 56 mm (Ø) SWR
Lower Drum Cap (AH) 1000 m (L) x 56 mm (Ø) SWR
Line Pull 150 mt @ 6 m/min at 1st layer
71 mt @ 12 m/min at 1st layer
50 mt @ 18 m/min at 1st layer
23 mt @ 36 m/min @ 1st layer
165 mt @ 1st layer
200 mt static @ 1st layer
Remote control from aft control stand in wheelhouse
Gypsies Nil
Warping Drums Nil
Stern Roller 5.00 m (L) x 1.60 m (Ø); SWL 200 mt
Shark Jaws 1 set electro-hydraulic Karmfork; SWL 300 mt
Tow Pins 2 x electro-hydraulic with turntable top flaps
Rope Reel 1 x electro-hydraulic Mentrade HSR-5T
Drum Capacity: 1000 m (L) x 56 mm (Ø) SWR
Reefer Points 6 x 4pin x 32A

ACCOMMODATION
Berths 2 x 1 berth cabins =   2
4 x 2 berth cabins =   8
8 x 4 berth cabins = 32
Total 42
Hospital 1 x 1 berth cabin =   1
All cabins fully air-conditioned & c/w attached washroom
GMDSS Furuno RC-1800T (Area 3) comprising:
SSB 1x Furuno FS-2570 with built in DSC
Inmarsat C 2 x Furuno Felcom 15; 1 x Furuno Felcom 15SSAS
VHF Radio 2 x Furuno FM 8800 with built-in DSC
Navtex Receiver 1 x Furuno NX 700 (518 KHz)
SART 2 x McMurdo S4 (9 GHz)
EPIRB 1 x McMurdo E3A
Portable VHF Radios 3 x McMurdo R2 (25KHz)
Radar 1 x Furuno FR 2115
1 x Furuno FR 1510 MK3
Echo Sounder 1 x Furuno FE 700
GPS 1 x Furuno GP 150
Gyrocompass 1 x Anschutz Standard 22
Autopilot 1 x Anschutz Nautopilot NP60
Magnetic Compass 1 x Cassens & Plath Reflecta 3
Weather Fax 1 x Furuno FAX 207
Speed Log 1 x Furuno DS-80
Wind Indicator 1 x RM Young 05103
AIS 1 x Furuno FA-150
DP Marine Technology Bridge Mate DP1
2 x DGPS Veripos LD2S
Joystick Marine Technology
Vessel also fitted with Vingtor Talkbalk System & Self-Powered Telephones

DP CAPABILITY PLOT
Capability Plot: All thrusters online. 0 knot Current Stepped

Wind speed in Knots

FIRE FIGHTING & ANTI-POLLUTION EQUIPMENT
EXTERNAL
FiFi System Class 1 with water curtain all round
Fire Pump 2 x 1540 m3/hr @ 13 bar FFS SFP250x350 driven by front PTO of M/E
Monitors – (water/foam) 1 x 300-1200 m3/hr; FFS1200LB
  1 x 1200 m3/hr; FFS1200LB
Oil Dispersant System 2 x 6m (6 nozzles) spray booms; Unitor
INTERNAL
Emergency Fire Pump 1 x 35 m3/hr @ 50m head; Azcue
BA Recharging Comp 1 x 260 ltrs/min @ 300bar Coltri MCH16/E-TS
CO2 system in engine room
Fire Detection & Alarm System in living spaces & engine room

SAFETY AND ENVIRONMENT
Liferafts 4 x 20 men SOLAS Approved type
2 x 25 men SOLAS Approved type
Rescue boat 1 x 6 men semi-rigid inflatable c/w outboard motor
Oily Water separator 1 x 1 m3/hr c/w 15 ppm alarm
Water Maker 1 x 5 m3/day Reverse Osmosis, Seanly SW-5T
Sewage Treatment Plant 1 x 48 men/day

TANK CAPACITY PLAN
UNITS = m3
TANK Fuel Oil Fresh Water Drill Water Oil Based Mud Base
Fuel (8) 49.13
49.13
55.43
55.43
58.78
58.78
61.08
61.08
Fresh water (3) 74.22
74.22
95.38
Drill water (10) 57.58 57.58
28.62 28.62
28.62 28.62
78.77 78.77
78.77 78.77
43.69 43.69
43.69 43.69
66.39 66.39
20.90 20.90
20.90 20.90
OBM (2) 127.16 127.16 127.16
127.16 127.16 127.16
703.12 711.75 * 467.93 254.32 254.32
* Only dedicated Fresh water tanks can carry potable water; Capacity of 243.82m3







60 tbp, DP-1, FiFi-1 waterspray

2005, BV, Loa 58.70 m, width 14.60 m, depth 5.50 m, draft 4.80 m. Deadweight +/- 1,500 tons. Deck cargo: +/- 700 tons. Deck area 370 m2, accommodation 42 persons. ME Gulf Region Price: Inquire

PRINCIPAL PARTICULARS
Year Built: 2005
Class: Bureau Veritas
Notation: Class 1 + Hull + MACH, Supply Vessel Unrestricted Navigation FiFi

DIMENSION
Length Overall: 58.70 m
Length Waterline: 56.50 m
Length BPP 53.20 m
Breadth Moulded: 14.60 m
Depth Moulded: 5.50 m
Draft Moulded: 4.80 m
GRT: 1470
NRT: 441
Deadweight: 1500 tonnes @ 4.8m draft

PROPULSION SYSTEM
Main Engine: 2 x 2,375 bhp/1600rpm
Main Generator: 3 x 315 kW 1500 rpm
Emergency Genset: 1 x 52 kw/1500 rpm
Bow Thruster: 1 x 315kw tunnel unit producing 5T thrust
Steering Gear: 2 x 35 degree – 6 tonnes – m
Propulsion: 2 x CPP Type with Kort Nozzle
Rudders: Conventional

PERFORMANCE
Maximum speed: 13.0 knots
Economical speed: 13 MT/24 Hrs @ 100% MCR
Type of fuel: Marine Gas Oil

FIRE FIGHITING EQUIPMENT
External
FiFi: FiFi 1
Fire pump: 2 x 1500m3/hr at 12bar
Fire monitor: 2 x 1200m3/hr at 11bar with remote control
Emergency Fire Pump
Internal
Fixed System in E/R: CO2 system in engine room
Fire Detection Sys. : Fire Detection & Alarm System in Accommodation
Electrical BA Recharging Compressor 75 ltr/min @ 200bar

OTHERS
Rescue Zone: Port & Stb side
Oily Water Separator: 1 x 1 m³/hr MARPOL standard
Water Maker: 1 x 5T/day Reverse Osmosis
Sewerage Treatment Plant: 1 x 42 men per day

CARGO CAPACITIES
Deck Cargo: 700 m.s
Deck Strength: 7.0 tonnes / m² uniform loading
Clear Deck Area: 370 m²
Fuel Oil: 470 m³
Fresh Water: 225 m³
Ballast/Drill Water: 460 m³
Freezer/Chiller: 10 m³
Foam: 12 m³
Detergent: 12 m³
Mud: 250 m³
Cement Tank: 4 x 1650 ft³
Wooden Sheating: 75 mm in thickness

DECK EQUIPMENT
Windlass: 10T @ 9m/min for 38 mm dia Chain with 2 cable lifter & 2 warping drums
Bow Anchors: High-holding type anchors 1,305kg
Chains: 440m x 38 mm diameter grade U2 stud link chain
Capstan: 2 x 10 t @ 15m/mins
Tugger Winch: 2 x 10 t @ 15m/mins

DISCHARGE RATES
Fuel Oil: 1 x 150m³/hr @ 75m head
Fresh Water: 1 x 100m³/hr @ 75m head
Mud Pump: 2 x 70m³/hr @ 85m head
Drill Water Pump: 1 x 100m³/hr @ 75m head

TOWING & ANCHOR HANDLING EQUIPMENT
Bollard Pull: 60 metrics tones
Tow Drum: 1000m x 56mm wire rope, upper drum
Anchor Handling: 1000m x 56mm of wire rope, lower drum
Braking Capacity: 200 tones
First Layer: Low speed 150 tonnes @ 6m/min
Mid speed 71 tonnes @ 12m/min
High speed 23 tonnes @ 36m/min
Stern Roller: 1.6m Ø and 5m lgth w/ SWL 200 tones
Shark Jaws: 1 set hydraulic operated type SWL 200T
Tow Pins: 1 set hydraulic operated type SWL 200T

NAVIGATIONAL /COMMUNICATION
GMDSS: A1 + A2 + A3
SSB: 1 X FS – 1570 (150 W)
1 X FS – 2570 (250 W)
FELCOM 15
Rack Console Sys: a) 1 set MF/HF Radio – FS2570 DSC
b) 2 X Semi Duplex Marine VHF
c) 2 x Inmarsat C Felcom E3A
CCTV: AVC 704 R(Processor) Monitor – LG
GPS Navigator: 1 x Furuno GP90
Sart: 2 x McMurdo – 3
Inmarsat C: FELCOM 15
Satellite EPRIB: 1 x McMurdo
VHF Radio: 2 X FURUNO FM 8500,25W
Portable VHF Radio: 3 x McMurdo R2
SAT – OFI: 2 x McMurdo MK3
Navtec Receiver: 1 x Furuno NX 500
X-Band Radar: 1 X FR 2105
Sat Com: 1 X FR 1500 MARK-3 SERIES
Echo Sounder: 1 x Furuno FR2115
GPS Plotter: 1 x Furuno GP90
Gyrocompass: 1 x Anschuetz Gyrostar II
Autopilot: 1 X ANSCHUETZ MP60
Weather Fax: 1 x Furuno FX207
Speed Log: 1 x Furuno DS80
Magnetic Compass: C & PLATH
Joystick : KAWASAKI KICS
AIS FURUNO FA – 100

ACCOMMODATIONS
Berths : 2 x 1 berth cabins = 2
4 x 2 berth cabins = 8
8 x 4 berth cabins = 32
Total : 42
Hospital : 1 x 1 berth cabin
All cabins are fully air-conditioned

LIFE SAVING APPLIANCE
Search Lights : 3 x 2000 W
Floodlights : 5 x 1000W
Liferafts : 4 x 20 men & 2 x 25 men
Lifebuoys : 8 pcs with buoy lights
Life jackets : 53 pcs
Rescue boat : 1 x 6 c/w outboards
Air Breathing : 4 sets apparatus



60 tbp, DP-1, FiFi-1 waterspray

2004, BV, Loa 48.00 m, width 13.20 m, depth 5.20 m, draft 4.20 m. Deadweight +/- 860 tons. deck cargo: +/- 300 tons. Deck area 250 m2, accommodation 24 persons. ME Gulf Region Price: Inquire



PRINCIPAL PARTICULARS
Year Built: 2004
Class: Bureau Veritas
Notation: + Hull + Machinery Supply Vessel; Fire Fighting Ship 1 Water Spraying Unrestricted Navigation

DIMENSIONS
Length Overall: 48.00 m
Length Waterline: 45.56 m
Breadth Moulded: 13.20 m
Depth Moulded: 5.20 m
Draft Moulded: 4.20 m
GRT: 964 MT
NRT: 289 MT
Deadweight: 860 MT

PERFORMANCE
Maximum speed: 12 knots
Economical speed: 9 knots
Type of fuel: Marine Gas Oil

CARGO CAPACITIES
Deck Cargo: 300 MT
Deck Strength: 7.5 MT / m²
Clear Deck Area: 250 m²
Fuel Oil: 520 m³
Fresh Water: 280 m³
Ballast/Drill Water: 110 m³
Freezer: 12 m³
Chiller: 12 m³
Foam: 18 m³
Detergent: 18 m³

PROPULSION SYSTEM
Main Engine: 2 x Caterpillar 3516B@ 2,375 BHP
Main Generator: 3 x Caterpillar 3408C @ 315 kW
Emergency Genset: 1 x Perkins @ 50 kW
Bow Thruster: 1 x 5 MT Tunnel Thruster
Steering Gear: 2 x 35 degree – 5 MT
Propulsion: 2 x 4 Bladed CPP in kort nozzles BERG
Rudders: 2 x Conventional Rudder

DECK EQUIPMENT
Windlass: 8 MT at 9 m/min for 36 mm diameter chain
Bow Anchors: 2 x 1080 kg HHPA
Chains: 2 x 412.5 m x 34 mm
Capstan: 2 x 5 MT @ 15 m/ min
Tugger Winch: 2 x 10 MT @ 15 m/ min
Deck Crane: 1 x Electro Hydraulic Crane SWL 5 MT @ 10 m

DISCHARGE RATES
Fuel Oil: 60 m3 / hr @ 50 m/head
Fresh Water: 60 m3 / hr @ 50 m/head

AUXILLIARY SYSTEM
Oily Water Separator: 1 x 1 m3 /hr
Water Maker: 1 x 4.9 m3/ day Reverse osmosis
Sewage Treatment Plant: 1 x 25 men per day

ACCOMMODATIONS
Berths: 24
All cabins are fully air-conditioned

FIRE FIGHITING EQUIPMENT
External
FiFi: FiFi 1
Fire pump: 2 x 1400 m3/hr at 12 bar
Fire monitor: 2 x 1400 m3/hr at 12 bar
Internal
Fixed System in E/R: CO2 system in engine room
Fire Detection System: All living spaces and engine room

TOWING & ANCHOR HANDLING EQUIPMENT
Bollard Pull: 60 MT
Tow/AH Winch: Double Drum Waterfall Type
1000 m x 56 mm wire rope (Towing)
1000 m x 56 mm of wire rope (Anchor Handling)
Braking Capacity: 200 MT
Stern Roller: 6 m & 3.5 m length, 150 MT
Shark Jaws: 300 MT hydraulic retractable
Tow Pins: 2 x 100 MT

NAVIGATIONAL /COMMUNICATION
GMDSS: A1 + A2 + A3
SSB: 1 x FURUNO FS-2570C
GPS Navigator: 1 x FURUNO GP-80
SART: 2 x MCMURDO RT9-3
Inmarsat C: 1 x FURUNO FELCOM 15
VHF Radio: 2 x FURUNO FM-8500
Navtec Receiver: 1 x Furuno NX-500
X-Band Radar: 1 x FURUNO FR-2115
1 x FURUNO FR-1510 MARK 3
Echo Sounder: 1 x FURUNO FE-700
Gyrocompass: 1 x ANSCHUTZ
Autopilot: 1 x ANSCHUTZ NP-60
Weather Fax: 1 x FURUNO FAX-207
Speed Log: 1 x FURUNO DS-80
Magnetic Compass: 1 x CASSENS & PLATH
AIS: 1 x FURUNO FA-100
Satellite EPRIB: 1 x MCMURDO E3

LIFE SAVING APPLIANCE
Liferafts: 4 x 15 persons
Lifebuoys: 8 pcs with buoy lights
Life jackets: 40 pcs
Immersion suit: 3 (exemption JLM)
Rescue boat: 1 x 6 men (rigid) c/w 15 hp
1 x 6 men (inflatable) c/w 25 hp
Air Breathing App.: 4 Nos.
EEBD: 6 Nos.









165 tbp Anchor Handling Supply Tug

1982, LR class, EU flag, 165 tbp, Loa 60m, Width 15m, Draft 6,5m. 2 x CPP with kort nozzles. 2 x bowthruster and 1 x stern thruster, MGO, 185 m2 deck space. Presently operational Baltic Sea. Price: Inquire

General
Year of construction 1982
Classification Lloyd’s Register of Shipping, 100A1, ice class 3, +LMC, UMS
Trading area Unrestricted service

Machinery & propulsion
Main engines 2 x MAK 16M453, 2 x CPP in KORT nozzles
Propulsion 2 x 4.500 kW
Steering gear 2 x Balance rudder,
Bow thruster 2 x tunnel, CP propellers, 400 BHP each, electrically driven
Stern thruster 1 x tunnel, CP propellers, 362 BHP each, diesel engine driven

Dimensions
Length overall 60,50 m
Breadth moulded 15,00 m
Depth moulded 7,00m
Draft (max.) 6,50 m
Design draft 6,20 m
Gross tonnage 1738 t
Bollard pull ahead Max 167 t
Speed max 16 kn
Speed economic 11 kn
Deck area 180 m2
Max deck cargo 625 t

Deck equipment
Towing / Anchor handling winches BRUSSELLE 2 independent drums, power 200 t, brake holding load, 300 t (1st layer), (2#) drum with capacity 1500 m x dia 76 mm
Rope reels (2#) storage reels under deck
Forward winch Windless / mooring winch
Capstan Winches 1 x 10 t hydraulic capstan aft
Tugger winches 2 x 20 t hydraulic tugger aft,
Stern roller (#1) 5,3 m x dia 1,5 m
Crane 1x PROMAC, SWL 5 t @ 5m 1 x HS Marine Crane AK 48 (5T @ 5 m & 2 t @ 10,25 m)
Towing pins KARMOY 1 set of KARM towing pins, 160 t
Stopper pins KARMOY 2 KARM forks for wire / chain with MBL 270 t
Gypsy wheels #2

Tank capacity
Fuel 1.750 m3 MGO
Fresh water 48 m3

Accommodation
Accommodation 26 berths; 4 single cabins & 11 double cabins, 1 hospital

50 tbp 40m AHTS

Ocean & Coastal Towage, Anchor Handling & Supply

2006, BV class, l x w x d (m): 40.00 x 11.80 x 4.6, 2 x Cat. 3512, 1,450 kW each, Towing/AH winch waterfall configuration. Sternroller and other AH related equipment. 2 x 600 m³/hr monitors. Inquire

GENERAL
Vessel Type Anchor Handling Tug Supply
Year Built 2007
Classification BV + Hull + Mach, Unrestricted Navigation, Tug

DIMENSIONS
Length Overall 40.0 m
Breadth 11.8 m
Depth Moulded 4.6 m
Maximum draft 3.8 m
Clear deck Space 150 m²
Deck loading 5 t/m²
GT 499

PERFORMANCE
Max Speed 12 knots
Bollard Pull 50.85 t

CAPACITY
Fuel Oil 350 m³
Potable Water 160 m³
Sewage Holding Tank 9.3 m³
Foam 7.8 m³

MACHINERY
Main Engines 2 x Caterpillar 3512, 1,450 kW each
Generators 2 x Caterpillar 3406C, 200 kW each 415v 50Hz
Bow Thruster HRP 3001TT 220 kW
Propulsion Fixed pitch in Kort Nozzles

ACCOMMODATION
Berths 2 x 1-berth cabin, 2 x 2-berth cabin,
1 x 4-berth cabin, 2 x 4-berth cabin
Total 18

FIRE FIGHTING
Monitors 2 monitors @ 600 m³/hr
Pumps 1,200 m³/hr

DECK EQUIPMENT
Towing / AH Winch Waterfall double drums
Pull 50 t
Brake Holding 120 t
Wire Capacity 1000 m x 48 mm
Tugger Winch 2 units, 5t 1st layer, 100m x 26mm
Towing Pins Hydraulic type 100 t SWL
Shark Jaws Hydraulic type 100 t SWL
Stern Roller 1.45 x 3.5m SWL, 150 t
Crane 2 t @ 6 m

LIFESAVING
Liferafts 4 x 18 man
Lifejackets 28
Lifebuoys 8
Rescue Boat Narwhal SV420

60 tbp DP-1 FiFi-1 (2 sisters)

Ocean  & Coastal Towage, Anchor Handling and Supply

2009, ABS class, DP-1, FiFi-1. l x w x d (m): 58.60 x 14.50 x 5.5, 2 x Wartsila 9L20 1,800 kW each, Towing/AH winch waterfall configuration. Sternroller and other AH related equipment. Inquire

GENERAL
Vessel Type Anchor Handling Tug Supply
Year Built 2009
Classification ABS, + A1, Towing Vessel, Fire Fighting Vessel Class 1,
Offshore Support Vessel AH, (E), + AMS, + DPS-1

DIMENSIONS
Length Overall 58.7 m
Breadth 14.6 m
Depth Moulded 5.50 m
Maximum draft 4.76 m
Clear deck Space 350 m²
Deck strength 7.5 mt/m²
Deck loading 500 t
Deadweight 1,350 t
GT 1,460

PERFORMANCE
Max Speed 13.9 kts
Economical speed 10.0 kts
Bollard Pull tonnes 61.70 mt

CAPACITY
Fuel Oil 482 m³
Potable Water 213 m³
Drill Water 463 m³
Oil Based Mud 259 m³
Dispersant 13 m³
Dry Bulk 187 m³ in 4 tanks
Foam 13 m³

PUMPING RATES
Fuel Oil 1 x 150 m³/hr @ 75 m head
Potable Water 1 x 100 m³/hr @ 75 m head
Drill Water 1 x 100 m³/hr @ 67 m head
Oil Based Mud 2 x 70 m³/hr @ 85 m head
Dry Bulk 2 x 13 m³/min @ 80psi (5.6 kg/c m³)

MACHINERY
Main Engines 2 x Wartsila 9L20 1,800 kW each
Generators 3 x Volvo D30A 569 kW
Emergency Generators 1 x Volvo  D 7A T @1.500 rpm
Bow Thruster 2 x 500 kW Tunnel Type
Propulsion 2 x CPP

ACCOMMODATION
Berths 4 x 8-berth cabin, 2 x 4-berth cabin, 1 x 2-berth cabin
Total 42

FIRE FIGHTING
Class 1
Monitors 2 x 1,642 m³/hr
Pumps 1 x 1,550 m³/hr

DECK EQUIPMENT
Towing / AH Winch Electro-hydraulic Double Drum Mentrade waterfall
Pull 150 MT @ 6.0 m/min at 1st layer
Brake Holding 200t
Wire Capacity 56 mm x 1,000m
Tugger Winch 1 x 10 t, 22 mm x 220 m
Storage Drum Electro-hydraulic, 52mm x 1,200m
Towing Pins 2 x 300 t Karmoy
Shark Jaws 1 x 300 t Karmfork
Stern Roller 1 x 200 t 1.5m x 5m
Crane 1 x 1.2 t @ 12m

LIFESAVING
Liferafts 4 x 20 man, 2 x 25 man
Lifejackets 53
FRC/Rescue Boat/Davit 1 x 6 man rigid inflatable c/w outboard motor
Lifebuoys 8
Immersion Suits 3

SPECIALIST
DP Class Marine Technologies Bridge Mate DP1

60 tbp 45m AHT

Ocean  -, Coastal Towage & Anchor Handling

2001, ABS class, l x w x d (m): 45.00 x 12.60 x 5.3, 2 x Bergen KRMB8, 1,800 kW each, Towing/AH winch waterfall configuration. Sternroller and other AH related equipment. 2 x 600 m³/hr monitors. Inquire

PARTICULARS
Vessel Type Anchor Handling Tug
Year Built 2001
Classification ABS A1, Towing Vessel, Offshore Support
Vessel AH, AMS, (E)

DIMENSIONS
Length Overall 45 m
Breadth 12.6 m
Depth Moulded 5.3 m
Maximum draft 4.6 m
Deadweight 744 t
GT 798
Clear deck Space 230 m²
Deck loading 5 t/m²

PERFORMANCE
Max Speed 12 kts
Economical speed 10 kts
Bollard Pull 60 t

CAPACITY
Fuel Oil 465 m³
Potable Water 220 m³
Sewage 5.9 m³
Foam 10.6 m³
Detergent 10.6 m³

PUMPING RATES
Fuel Oil 50 m³ @ 57 m head
Potable Water 50 m³ @ 57 m head

MACHINERY
Main Engines 2 x Bergen KRMB8 2 x 1,800 kW
Generators 2 x Cummins NTA855-D(M) 240 kW
Emergency Generators 1 x Perkins 4.236 35 kW
Bow Thruster Kamewa Ulstein Type 90 TV-B 330kW
Propulsion CPP

ACCOMMODATION
Berths 2 x 1 berth cabin, 7 x 2 berth cabin , 2 x 4 berth cabin
Total 20

FIRE FIGHTING
Class 1/2
Monitors 2 x 600 m³/hr
Pumps 1 x 1,500 m³/hr

DECK EQUIPMENT
Towing / AH Winch
Type Plimsol double drum waterfall
Pull 80t at 1st layer, 6t/m
Brake Holding 175 t
Wire Capacity 1,000 m x 52 mm
Tugger Winch 1 x Plimsol, 5 t, 120 m x 20 mm
Towing Pins 2 x Ulstein type TP 300 x 600 (440 t SWL)
Shark Jaws 1 x Ulstein retractable tong (440 t SWL)
Stern Roller Plimsol 4.2 m x 1.6 m, 150 t SWL

LIFESAVING
Liferafts 4 x 20 man
Lifejackets 48
FRC/Rescue Boat/Davit Rescue boat & Davit
Lifebuoys 9
Immersion Suits 2

165 tbp Ice class AHTS

Ocean  -, Coastal Towage, Anchor Handling & Supply

Ideal for conversion to Arctic / Polar Exploration, Expedition or Research vessel

1983, RMRS class, l x b x draft (m): 79.0 x 17.50 x 8.0. 4 x Wartsila 2,750 kW each, Double drum Towing/AH winch. Sternroller and other AH related equipment. 2 x 1200 m³/hr monitors. Available Q3-2017 Inquire

GENERAL
Built 1983
Class RMRS, KM* UL tug/supply ship/oil recovery ship

DIMENSIONS
Length over all 79.0 m
Beam over all 17.5 m
Maximum draught 8.0 m
GT 3140

MACHINERY/PROPULSION
Main engines 4 x Wartsila VASA 8R32
Total power 11,000 kW
Propulsion 2 x controllable pitch conventional
Bow thruster 1 x 883 kW
Stern thruster 1 x 588 kW

PERFORMANCE
Bollard pull (ahead) 165 tons
Speed ahead (maximum) 14 knots

CARGO CAPACITY
Deck area (aft) 456 m²
Deadweight 1600 tons
ACCOMMODATION
Accommodation 34 persons

TOWING/ANCHOR-HANDLING EQUIPMENT
Towing/AH winch Hydraulic
Double drum – 300 T. brake load
Line pull 150 tons @ 7 m/min. on 1st layer
Rig chain lockers 2 x 38.0 m³ – 76.0 m³
Stern roller 4.0 m x 2.5 m, 250 SWL

TANK CAPACITY
Fuel oil 1500 m³
Potable water 143 m³
Drill water/ballast 2115 m³
Dry bulk 568 m³

OTHER EQUIPMENT
Fire-fighting monitors 2 x 1200 m³/hr & waterspray
Crane 2 x 5 tons SWL. @ 10 m. outreach
Multiple aux. enclosed boats incl. launching devices

Platform Supply Vessels (PSV)

70m 112 tbp PSV DP-2 FiFi-1 OilRec Rescue

1999, DNV, Loa 70.40 m, width 16.0 m, depth 8.0 m. DWT: 3,000 tons. Deck cargo: 650 tons. Deck area 580 m², Rated for 280 survivors.  Inquire

GENERAL
Type VS-470. Supply/Rescue/Service Vessel/Oil Rec
Built 1999
Class DnV, +1A1 – Tug/Supply Vessel, SF, EO,
Oil Recovery, LFL*, FiFi (I), Dynpos AUTR
Certificates World Wide, SOLAS 74/78 Load line conv. 1969,
NMD Rescue class for 250 survivors

DIMENSIONS
Length .o.a. 70,40 m
Breadth 16,00 m
Depth Main deck 8,00 m
Deadweight 3010 t
GT 2425

DECK SPACE / STRENGTH
Deck area 580 m² (13,1m x 44,3m)
Deck Cargo 655 tons
Deck strength 5 t/m²

BOLLARD PULL
Continuous 100 tonnes
Max 112 tonnes

SPEED
Max speed: 14 knots-approx. 30 m3/24hrs
Eco Speed: 11 knots-approx. 10 m3/24hrs
DP operation: approx. 3,5 m3/24hrs
Stand by: approx. 2,0 m3/24hrs (outside 500m zone)

DYNAMIC POSITION SYSTEM DP-2
Kongsberg Maritime SDP-21 DNV class DYNPOS – AUTR
DGPS 2 x
Fanbeam 1 x Laser MK4.2
Radar Seatex Radius 1000 w/dual interrogators
ERN Number 87.87.72

DECK MACHINERY
Towing Winch 1x 100 tonnes, 1000m x 64mm wire
Spare drum 1x 1000m x 64mm wire
Tugger winch 2x 12 tonnes.
Capstan 2x 8 tonnes.
Cargo securing winch 4x 1,5 tonnes
Wire securing Claw 1x Karmøy W.
Towing pins 2x Karmøy SWL 95 tons
Deck crane 1 x knuckle boom, HMC 1301 LK35-15, 15m x 3,5 t

TANK CAPACITIES
Ballast water 656 m3
Pot water 835 m3
Dry bulk cargo tanks 260 m3
Base oil 273 m3 (Combination)
Fuel oil 973 m3
Liquid Mud 455 m3 (5 tanks) (Combination)
Liquid Brine 273 m3 (3 tanks) (Combination)
Methanol 150 m3 (2 tanks)
Recovered oil 1209 m3
Dispersant 61 m3

CARGO DISCHARGING PUMPS
CRA Fuel oil 2x 0-250 m³/h – 9 bar, 4” Avery Hardol male
DW/Ball 2x 0-90 m³/h – 8 bar, 4” Weco female
Potable water 2x 0-150 m³/h – 9 bar, 4” Weco female
Liquid Mud 2x 0-75 m³/h – 18 bar, 4” Weco female
Brine 2x 0-75 m³/h – 18 bar, 4” Weco female
Methanol (hydr driven) 2x 75 m³/h – 9 bar, 4 “Avery Hardol male
Base oil (elec. driven) 1x 75 m³/h – 9 bar, 4 “Avery Hardol
Dry bulk 1x 100 tons/h, 5” Weco female

ENGINES AND PROPULSION
Main Engines 2x Cat. 3608 DITA-4, 2710 bkw each
Auxiliary Engines 2x Cat. 3406 DIT, 277 bkw each
Emergency Engine 1x Cat. 3304 T, 116 bkw
Propellers 2x Scana Volsa CP75/4
Gears 2x Tenfjord steering gears
Rudders 2x Ulstein high lift rudders
Azimuth thrusters bow 1x Kamewa UL 1201 FP – 820Kw
Tunnel thruster bow: 1x Kamewa TT 1650 CP-k 736Kw
Tunnel thrusters stern: 1x Kamewa TT 1650 CP-k 736Kw

NAVIGATION EQUIPMENT
Electronic chart 1x Telechart ECS
Radar 1x 10 cm ARPA Furuno 2835S
Radar 1x 3 cm ARPA Furuno 2115FR
DPS 116 1 x
DPS 200 1 x
DGPS 1 x JRC JLR 4110 MK 2
DGPS 1 x JRC NWZ 4550
GYRO 3x Plath Navigat 1 X Mk1
Fan beam 1000m
Autopilot 1x Robertson AP 9 MK 3
Echo-sounder 1x Skipper ED 162
Doppler log 1x JRC JLN 203
Bridge guard alarm 1x Neptun

COMMUNICATION SYSTEMS
The Radio installation is according to GMDSS-A3(World Wide)
MF/HF SSB Radiotephone 1x Sailor 6301
Data Terminal 1x: NDZ127N. Keyboard: NDF 825
Printer 1x: NKG 800 D8C7NBDP, Modem: NCT 610A
Radio Control unit 1x: NTD 825
SATCOM C 1x JRC JUE 75C
INMARSAT B 1x: JRC 310 B
Printer 1x NKG 800
Telephone 1x NQW 132 B
Fax 1x B 150 HOL
VHF Dupl. GMDSS 2x JRC JHS 32A
VHF 2x Sailor RT 2048
VHF Dir. Finder 1x Taiyo TDL 1550
EPIRB 1x Jotron Tron 30S MK II Free Float
VHF 1x Icom IC A200 Helicom Radio
Helicopter Beacon 1x NDB Type: TS 1B
Radar transponders 2x. TRON SART.
UHF 3x Motorola MT 2000 portable
GMDSS VHF (Emerg.) 3x Sailor portable

ACCOMMODATION
Cabins 2 x 1 men cabins w/dayroom and bedroom
6 x 1 men cabins
4 x 2 men cabins
1 x 4 men cabins
Total 19 bunks, 12 cabins en-suite
Safety equipment acc. to Solas for 15 persons

RESCUE AND LIFE SAVING EQUIPMENT
The vessel is arranged and equipped for 250 survivors according to NMD-rules.
FRC Mob.boat 2x
Bennet Rescue Basket 1x
Dacon Rescue Scoop 1x
Sea Claw Rescue harpoon 1x
Search lights 3x, remotely controlled from bridge
Hospital 1x

OIL RECOVERY
DNV Oil rec class with ORO capacity of 1200m3
No equipment currently installed.

QSHE CERTIFICATION
ISM, ISPS, ISO-9001:2008, ISO-14001:2004

QA QUALIFICATIONS
FPAL, Achilles, Sellihca, OVID Registered and IMCA Member

85m PSV DP-2

2006, DNV, Loa 85.6 m, width 19.7 m, depth 7.4 m, draft 6.0 m. deadweight: 4,250 tons. deck cargo: 3,000 tons. Deck area 940 m2, accommodation 24 persons.  Inquire

GENERAL
Type Diesel Electric DP-2 PSV
Built 2006
Class DnV
Notation 1A1 Clean COMF V(3) DK(+) DYNPOS(AUTR)
E0 HL(2.8) LFL(*) NAUT(OSV) OILREC SF DK(+)

DIMENSIONS
Length .o.a. 85,50 m
Breadth 19,70 m
Draught 6,0 m (design/scantling)
Deadweight 4,250 t
Deck area 16 m x 58 m = 941 m²
Deck Cargo 3,200 tons
Deck strength 10 t/m²

TANK CAPACITIES
Ballast water 1,000 m3
Fuel oil 1,345 m3

DECK EQUIPMENT
Tugger winch 2 x 15 tonnes
Capstans 2 x 10 tonnes
Deck crane 1 x deck crane 3 T @ 10 m
1 x deck crane 3 T @ 16 m

PERFORMANCE
Service speed 14 knots, approx..16,3 m3/24hrs @4 gen.sets
Eco Speed 11 knots, approx. 9,3 m3/24hrs @1 gen.set:
DP operation approx. 4m3/24hrs
Stand by approx. 2 m3/24hrs (outside 500m zone)

DYNAMIC POSITION SYSTEM
DP-2 Kongsberg Maritime SDP-22 DnV class DYNPOS – AUTR 2
DGPS Cyscan
ACCOMMODATION
Cabins 12x Single Cabins 6 x Double Cabin 1x Deck Office, Total 24 –Persons
Other 1x Hospital, incl. 1 bed 1x Conference Room

ENGINES AND PROPULSION
Main Engines 4 x Caterpillar type 3516TA serie B
Main Generators: 4 x AVK type DSG 86 M1-4w rated at 2028kVA/ 1825 kW
Azimuth thrusters aft: 2 x LIPS type FS275-S/WN, each 2500 kW
Azimuth thrusters bow: 1  x LIPS type FS175-234/MNR, 880 kW
Tunnel thrusters bow: 2  x LIPS type FT225M-D, each 880 kW
Joystick: Kongsberg Maritime SJS-401



57m PSV FiFi-1

2005, BV, Loa 57.50 m, width 13.80 m, depth 5.50 m, draft 4.50 m. deadweight +/- 1,300 tons. deck cargo: +/- 500 tons. Deck area 350 m2, accommodation 42 persons.  Price: Inquire

PRINCIPAL PARTICULARS
Year Built: 2005
Class: Bureau Veritas
Notation: Class 1 + Hull + MACH, Supply Vessel Unrestricted Navigation FiFi

DIMENSION
Length Overall: 57.50 m
Length Waterline: 55.05 m
Length BPP: 52.0 m
Breadth Moulded: 13.80 m
Depth Moulded: 5.50 m
Draft Moulded: 4.50 m
GRT: 1,365
NRT: 409
Deadweight: 1,300 tonnes

PERFORMANCE
Maximum speed: 13.5 knots @ 13m.t / 24 hr.
Economical speed: 13 MT/24 hr @ 100% MCR
Type of fuel: Marine Gas Oil

CARGO CAPACITIES
Deck Cargo: 500
Deck Strength: 7.0 tonnes/m² uniform loading
Clear Deck Area: 350 m2
Fuel Oil: 370 m³
Fresh Water: 200 m³
Ballast/Drill Water: 382 m³/365 m³
Freezer/Chiller: 10 m³
Foam: 15 m³
Detergent: 15 m³
Mud: 250 m³
Cement Tank: 4 x 1,650ft3

PROPULSION SYSTEM
Main Engine: 2 x 2375 BHP (B rating)
Main Generator: 3 x 315kw/415v/3ph/50Hz
Emergency Genset: 1 x 65kw/415v/3ph/50Hz
Bow Thruster: 1 x 325kw tunnel unit producing 5T thrust
Steering Gear: 2 x 35 degree – 6 mt
Propulsion: 2 x CPP Type with Kort Nozzle
Rudders: Conventional

DECK EQUIPMENT
Windlass: 10t at 9m/min for 38 mm dia. Chain with 2 cable lifer & 2 drums
Bow Anchors: 2 x 1200kg High-holding type anchors
Chains: 440m x 38 mm dia. Grade u2 stud link chain
Capstan: 2 x 5 m.t. @ 15 m/min
Tugger Winch: 2 x 10 m.t. @ 15 m/min

FIRE FIGHITING EQUIPMENT
External
FiFi: FiFi 1
Fire pump: 2 x 1500m3/hr at 12bar
Fire monitor: 2 x 1200m3/hr at 12bar with remote control
Emergency Fire Pump
Internal
Fixed System in E/R: CO2 system in engine room
Fire Detection Sys.: Fire Detection & Alarm System in Accommodation
Electrical BA Recharging Compressor (Optional)

TOWING & ANCHOR HANDLING EQUIPMENT
Stern Roller: 1.6 m dia & 5.0 m long w/SWL 200 T

DISCHARGE RATES
Fuel Oil: 1 x 150 m3/hr @ 75 m/head
Fresh Water: 1 x 100 m3/hr @ 75 m/head
Mud Pump: 2 x 70 m3/hr @ 85 m/head

NAVIGATIONAL /COMMUNICATION
GMDSS: A1 + A2 + A3
Rack Console Sys.: a) SSB–Model FS-5000 400w – 1 set
b) DSC–Model DSC-6 MF/MF – 1 set
c) Watch Keeping Receiver – Model AA-50 – 1 set
d) NBDP–Model DP-5 – 1 set
e) Immarset C–Model Felcom 12 – 1 set
f) Printer-PP510 – 2 sets
Satellite EPRIB: 1 x Mcmurdo Model MCM-406A
Portable VHF Radio: 3 x Furuno
SAT – OFI: 2 x search and rescue radar transponder (SART)
Navtec Receiver: 1 x Furuno
X-Band Radar: 2 x Furuno 64 NM
Echo Sounder: 1 x Furuno
GPS Plotter: 1 x Furuno
Gyrocompass: 1 x Anschutz with 2 gyro repeaters
Autopilot: 1 x Anschutz
Weather Fax: 1 x Furuno
Speed Log: 1 x Furuno
Magnetic Compass: 1 x Saura
AIS: 1 unit

ACCOMMODATIONS
Berths: 2 x 1 berth cabin = 2
4 x 2 berth cabins = 8
8 x 4 berth cabins = 32
Total: 42
Hospital: 1 x 1 berth cabin
All cabins are fully air-conditioned

LIFE SAVING APPLIANCE
Search Lights: 2 x 2,000W
Floodlights: 5 x 1,000W
Liferafts: To solas requirement – 50 men
Lifebuoys: 8 pcs with buoy lights
Life jackets: 60 pcs
Immersion suit: 3 pcs
Rescue boat: 1 x 6 men
EEBD: 8 pcs

OTHERS
Rescue Zone: Port & Std main deck
Oily Water Separator: 1 x 1m3/hr (MARPOL Standard)
Water Maker: 1 x 5.0m 3/day Reverse osmosis
Sewerage Treatment Plan: 1 x 48 men per day

78m PSV DP-2 FiFi-1 Oil Rec Rescue

2010, DNV, DP-2, Emergency Response and Rescue Vessel. Loa 78.50 m, width 17.60 m, draft 6.60 m. Deadweight +/- 3,750 tons. deck cargo: +/- 2,500 tons. Deck area 755 m². Rated for 300 survivors. Location: North Sea. Inquire

GENERAL
Type: Havyard 832 CD RS
Built 2010
Class DNV, +1A1,Fire fighter(I) Clean(Design) COMF(V-3) DK(+)
Dynpos(Autr) E0 HL(2.8) LFL(*) Naut(OSV(A)) OilRec SF

DIMENSIONS
Length o.a. 78.60 m
Breadth 17.60 m
Summer draft 6.60 m
Deadweight 3750 t

DECK SPACE / STRENGTH
Deck area 755 m² (14,4m x 55,5m)
Deck Cargo 2500 tons
Deck strength 5 t/m²

SPEED AND CONSUMPTION
Service speed: 12 knots – approx. 11m3 @ 3-4 gen. sets
Eco Speed: 10 knots – approx. 6,5 m3 @ 1-2 gen. set
DP operatio  n: approx. 5m3
Stand by: approx. 3m3 (outside 500m zone)

TANK CAPACITIES
Ballast water 2887 m3
Drill water 1773 m3
Freshwater 571 m3
Dry bulk cargo tanks 300 m3
Base oil 138 m3
Fuel oil 835 m3
Liquid Mud 600 m3 (5 tanks)
Liquid Brine 360 m3 (3 tanks)
Methanol/Special Prod 327 m3 (4 tanks)
Recovered oil 1545 m3

CARGO DISCHARGING PUMPS
DW/Ballast 1 x 200 m³/h – 9 bar, 4” Weco male
Fuel oil 2 x 200 m³/h – 9 bar, 4” Avery Hardol
Fresh Water 2 x 200 m³/h – 9 bar, 4” Weco female
Liquid Mud 2 x100 m³/h – 24 bar sg =2,8, 4” Weco female
Brine 1 x 100 m³/h – 24 bar, 4” Weco male
ORO pumps 2 x 125 m³/h – 3-7 bar
Base Oil 1 x 100 m³/h – 9 bar
Special Products 2 x 75 m³/h – 9 bar
Dry bulk 2 x 25,6 m³/h, 5” Weco female

DYNAMIC POSITION SYSTEM DP-2
Rolls Royce, ICON DP 2 DnV class DYNPOS – AUTR
Two x DGNSS (Veripos LD2)
One x Laser (Cyscan Mark IV)
ERN Number: 99.99.93

ENGINES AND PROPULSION
Main engines: 2 x Cummins, QSK60-D – 1900 KW @ 1800rpm
2 x Cummins, KTA50-D – 1300 kW @ 1800rpm
Main Generators: 2 x Marelli, 1825 kW, 2 x Marelli, 1291 kW
Emergency Generators: 1 x Cummins, 99 kW
Azimuth thrusters aft: 2 x Rolls-Royce, US 205 CRP – 1500 kW
Azimuth thrusters bow: 1 x Rolls Royce, TCNS 73/50 -180 – 800 kW
Tunnell thrusters bow: 1 x Rolls Royce, TT 2000 DP FP – 800 kW

FIRE FIGHTING
DnV FiFi I PTO on Main Generators with flexible couplings
FiFi Pumps 2 x 1500 m³/h with 1800 rpm
FiFi monitors 2 x remote operated
water spray 600 m³/h

RESCUE AND LIFE SAVING EQUIPMENT
The vessel is arranged and equipped for 300 survivors according to NMD-rules.
FRC Mob. Boat 2 x Mare GTC700
Dacon Rescue Scoop 1 x
Search lights 3 x, remote contr. from bridge
Hospital with treatment bench, stretchers, medicine and poison lockers, intercom and direct ship to shore communication. Medical equipment/medicines in acc. to NMD

DECK MACHINERY
Mooring capstan 2 x main deck (vertical)
Tugger winch 2 x main deck
Capstan 1 x B deck (vertical)
Deck crane 2 x hydr.360° rotating knuckle boom

NAVIGATION EQUIPMENT
Electronic chart 2 x ECDIS TELKO
chart radar 1 x X-band Furuno Far-2827
radar 1 x S. band Furuno FAR-2837S
DGPS 2 x GP- 150/ GPA-019S
Gyro compass 2 x Anschutz standard 22
Gps gyro 1 x
Autopilot 1 Anschutz pilot star D
Echo-sounder 1 x Furuno FE-700
Doppler log 1 x Furuno DS-80
VDR 1 x Furuno VR-3000
AIS 1 x Furuno FA-150

COMMUNICATION SYSTEMS
The Radio installation is acc to GMDSS-A3(WW)
MF/HF SSB RADIO STATION 1 x Furuno,FS-2570.
VHF DSC semi duplex 2 x Furuno FM-8000S
VHF simplex 2 x Furuno FM-2721
Inmarsat C 2 x Felcom 15
Inmarsat Mini M 1 x Sailor TT3064
NAVTEX 1 x Furuno NX-700B
EPIRB 1 x Tron 40S free float
EPIRB 1 x Tron 45SX manual
Radar transponder 2 x Tron sart.
SSAS 1 x Furuno OP16-33SSAS
DMDSS VHF 3 x Tron TR-20 Portable
VHF 3 x Motorola GP340 Portable
UHF 5 x Motorola GP360 Fixed
UHF 4 x Motorola GP340 Portable
Helicopter beacon 1 x Radio Holland. TS1B.
Aeronautical VHF 1 x Jotron TR-810
Sound reception system 1 x Zenitel VSS-111
GSM Cell phone. 3 x

ACCOMMODATION
Cabins 11 x Single Cabins
12 x Double Cabins
Total 31 Persons
Other 1 x hospital

QSHE – CERTIFICATIONS
ISM, ISPS, ISO-9001:2008, ISO-14001:2004

QA QUALIFICATIONS
IMCA Member, FPAL -, Achilles -, OVID -, Sellihca Registered


95m PSV DP-2 LNG

2003, DNV, DP-2, LNG fueled. Loa 94.90 m, width 20.40 m, draft 7.85 m. Deadweight +/- 6,000 tons. deck cargo: +/- 3,550 tons. Deck area 1,020 m². Location: North Sea. Inquire

GENERAL
Type: VS 4403 (LNG)
Built 2003
Class DNV, +1A1 Supply vessel Clean COMF (V-3) DK (+) DYNPOS
(AUTR) E0 Gas fuelled HL (1.2, 2.5) LFL (*) OILREC SF

DIMENSIONS
Length o.a. 94.90 m
Breadth 20.40 m
Draught, summer 7.85 m
Deadweight approx. 6,000 t

DECK SPACE / STRENGTH
Deck area 1024 m² (17,6m x 58,2m)
Deck Cargo 3,550 tons
Deck strength 5 t/m²

TANK CAPACITIES
Ballast water (/ Drill water) 2081 m3
Freshwater 1127 m3
Dry bulk 464 m3
Base oil 220 m3
Fuel oil 1292 m3
Liquid Mud 882 m3 (8 tanks)
Liquid Brine 834 m3 (4 tanks)
Methanol 206 m3 (2 tanks)
Special Prod 278 m3 (2 tanks)
Recovered oil 882 m3

DISCHARGING PUMPS
Fuel oil 2x 0-250 m³/h – 10 bar (Hyd-driven)
Ballast/Drillwater 2x 0-200 m³/h – 10 bar
Freshwater 2x 0-200 m³/h – 10 bar
Liq. Mud 2x 0-100 m³/h – 24 bar (Screw)
Liq. Mud 2x 75-125 m³/h – 24 bar (Centrifugal)
Brine 2x 0-100 m³/h – 25 bar (Hyd-driven)
Methanol 4x 75 m³/h – 10 bar (Hyd-driven)
Spec. Prod. 2x 75 m³/h – 12 bar
Dry bulk 2x 30 m³/h – 10 bar

DYNAMIC POSITION SYSTEM DP-2
DnV class DYNPOS – AUTR Kongsberg, K-thrust
DGNSS 2 x Seatex DPS 200 GPS
Cyscan RADius 1000 D – Dual Interrogator)
ERN Number 99.99.99.97

ENGINES AND PROPULSION
Main Engines 4 x Wartsila 6R 32 DF 2010 kW, 690V – 60Hz
Main Generators 4 x ABB AMG 630 S 10 – 2438 kVA 1950 ekW, 690V / 60 Hz
Generator 1 x Cat 3304 Rating: 116 BKW Voltage: 3 x 440 V 60Hz
Azimuth thrusters aft: 2 x Rolls Royce Contaz 25 Azimut 3300kW
Azimuth thrusters forward: 1 x Rolls Royce 880 kW Azimuth
Tunnel thrusters: 2 x Rolls Royce(Kamewa) Bow Thruster 1000 kW

DECK MACHINERY
Tugger winch: 2 x 16 tons
Cargo winch: 8 x 5 tons
Deck Crane: 2 x Knuckle boom Hydra Marine 10t at 10m
Capstans: 2 x 10 tons

SPEED AND CONSUMPTION
Service speed 13,5 knots – approx. 40 m3 LNG/24hrs or 17 m3 Diesel/24hrs
Eco Speed 11 knots – approx. 27 m3 LNG/24hrs or 12 m3 Diesel/24hrs
DP operation approx. 13 m3 LNG/24hrs or 7 m3 Diesel/24hrs
Stand by: approx. 10 m3 LNG/24hrs or 4.3 m3 Diesel/24hrs

NAVIGATION EQUIPMENT
1 x Radar 10 cm Arpa 40 target , 1 x Radar 3 cm Arpa 40 target , 1 x GPS with 12 channel receiver , 2 x DGPS with interface to all rel. navigations , 3 x Gyro compasses with digital repeaters , 1 x Magnet compass , 1 x Doppler log , 1 x Echo sounder , 1 x Electronic chart system interface to all relevant navigation systems and with AIS interface

COMMUNICATION SYSTEMS
1 x HF / MF Duplex radiostation 500 W, 1 x HF / MF DSC , 2 x Duplex VHF W/DSC , 5 x Simplex VHF , 1 x Navtex Receiver , 2 x inmarsat C with EGC receiver , 1 x Inmarsat “Mini M” , 1 x inmarsat B , 1 x Fax provided for inmarsat B , 1 x Weather facsimile , 1 x VHF Directions finder , 3 x Portable VHF GMDSS , 4 x Fixed UHF with 200 channels , 1 x free float bacon , 2 x radar transponders , 3 x portable VHF , 6 x portable UHF, EEX Proof W EX – Battery , 4 x wireless telephones interfaced to cell phones , 4 x GSM mobilephone Voice/Fax/Data

ACCOMMODATION
Cabins 12 x single for officers and crew
6 x double  for passengers
1 x Mess, 2 x Dayrooms , 1 x Gym , 1 x Deck office , 1 x hospital
Total 24 Persons
Safety equipment acc. to Solas for 24 persons

RESCUE AND LIFE SAVING EQUIPMENT
FRC 1x Norsafe Mako 655 212HP
Hospital with treatment bench, stretchers, medicine and poison lockers, intercom and direct ship to shore communication.
Medical equipment/medicine in accordance to NMD

QSHE – CERTIFICATIONS
ISM, ISPS , ISO-9001:2008 , ISO-14001:2004

QA QUALIFICATIONS
IMCA Member, FPAL -, Achilles -, OVID Registered

91m PSV DP-2 Ro/Ro

2003, DNV, DP-2, Roll on Roll off capability. Loa 90.90 m, width 19.00 m, draft 6.95 m. Deadweight +/- 4,500 tons. deck cargo: +/- 2,500 tons. Deck area 1,000 m². Location: North Sea. Inquire

GENERAL
Type VS 490
Built 2003
Class DNV-GL, +1A1, SF, Supply Vessel, E0, LFL*,
  Dynpos AUTR., DK (+), HL (2,5), CLEAN, COMF (V3)

DIMENSIONS
Length o.a. 90.90 m
Breadth 19.0 m
Draught, summer 6.95 m
Deadweight 4500 t approx.
GT 3555

DECK SPACE / STRENGTH
Deck area 1000 m² (16m x 62m)
Deck Cargo 2500 tons
Deck strength 5 t/m²

SPEED AND CONSUMPTION
Max speed: 17,5 knots – approx. 40 m3/24 hrs
Eco Speed: 10 knots – approx. 101,2 m3/24hrs
DP operation: approx. 3,5 m3/24hrs
Stand by: approx. 2,0 m3/24hrs

DYNAMIC POSITION SYSTEM DP-2
DnV class DYNPOS – AUTR Kongsberg, K-Thrust
2 DGNSS (Seatex DPS 200)
Fanbeam MK 4-2
ERN Number: 99.99.99

TANK CAPACITIES
Ballast / Drill water 1838 m3
Freshwater 822 m3
Dry bulk 336 m3
Fuel oil 1217 m3
Liquid Mud 492 m3 (6 Tanks) (Combination)
Liquid Brine 246 m3 (3 tanks) (Combination)
Methanol 142 m3 (2 tanks)
Special Prod 142 m3 (2 tanks)
Base oil 246 m3

DISCHARGING PUMPS
Fuel oil (hyd-driven) 2x 0-250 m³/h -10 bar, 4” Avery Hardol male
DW/Ball (el-driven) 2x 0-200 m³/h -10 bar, 4” Weco female
Potable water (el-drv) 2x 0-200 m³/h -10 bar, 4” Weco female
Liquid Mud (hyd-drv) 3x 0- 75 m³/h -24 bar, 4” Weco female
Liquid Mud (hyd-drv) 2x 0-125 m³/h -24 bar, 4” Weco female
Brine (hyd-driven) 1x 0-100 m³/h -25 bar, 4” Weco female
Methanol (hyd drv) 4x 75 m³/h -10 bar, 4“ Avery Hardol male
Base oil (el driven) 2x 75 m³/h -10 bar, 4“ Avery Hardol
Dry bulk 2x 30 m³/h -6 bar, 5” Weco female (+4” red)

ENGINES AND PROPULSION
Main Engines 5x Caterpillar 3516B TA 1900 kW each
Generators 5x Alconsa, NIR 5064 A-4LW – 2281 kVA / 1825e kW 7690v
Emergency engine 1x Caterpillar 3408TA 448 kW
Generator 1x Caterpillar SR4-462 kVA / 370 ekW / 450v
Azimuth thrusters aft 2 x Rolls Royce Contaz 25 FP 3300 kW
Azimuth thrusters bow 1 x Rolls Royce 880 kW at 1200 rpm
Tunnel thrusters bow 2 x Brunvoll FU80 – 1000 kW at 1200 rpm

DECK MACHINERY
Tugger winch 2 x 10 tons Ulstein
Capstans 2 x 10 tons Hydrakraft
Deck crane Cargo rail crane – 1x TTS Norlift 10t 7t@17m
Deck crane Knuckle jib crane – 1x Hydramarine 3t@10m

NAVIGATION EQUIPMENT
1x Radar 10 cm Arpa 40 target, 1x Radar 3 cm Arpa 40 target , 1x GPS with 12 channel receiver , 1x DGPS with interface to all rel. navigations , 3x gyro compasses with digital repeaters , 1x magnet compass , 1x Doppler log , 1x echo sounder , 1x electronic chart system interface. to all relevant systems

COMMUNICATION SYSTEMS
1 x HF / MF Duplex radio station 500 W , 2 x Duplex VHF W/DSC , 3 x Simplex VHF , 1 x Navtex Receiver , 1 x Inmarsat C with EGC receiver , 1 x Inmarsat B , 1 x Fax provided for Inmarsat B , 1 x Weather facsimile , 1 x VHF Directions finder , 1 x Portable VHF GMDSS , 1 x Fixed UHF with 200 channels , 1 x free float bacon , 2 x radar transponders , 3 x portable VHF , 3 x portable UHF, EEX Proof W EX – Battery , 2 x wireless telephones interfaced to cell phones , 1 x GSM mobile phone Voice/Fax/Data , 1 x antenna for max. gain

ACCOMMODATION
Cabins 12 x 1 men cabins for officers and crew
  2 x 4 berth cabins for passengers
  1x mess & 2 x dayrooms , 1 x Deck office ,
  1 x Hospital , 1 x Gym , 1 x Lobby
Total 20 berths
Safety equipment acc. to Solas for 20 persons
Living containers are also placed on board

RESCUE AND LIFE SAVING EQUIPMENT
FRC 1x Norsafe Mako 655 212HP
Hospital with treatment bench, stretchers, medicine and poison lockers, intercom and direct ship to shore communication.
Medical equip /medicines in accordance to NMD

QSHE – CERTIFICATIONS
ISM , ISPS , ISO-9001:2008 , ISO-14001:2004

QA QUALIFICATIONS
IMCA Member, FPAL -, Achilles -, Sellihca – and OVID Registered

78m PSV DP FiFi-1 Oil Rec. SPS

2016, BV, Loa 78.00 m, width 18.60 m, depth 7.80 m, scantling draft 6.40 m. Deadweight +/- 4,000 tons. deck cargo: +/- 1,500 tons. Deck area 800 m2, accommodation 60 persons.          Price: Inquire

CLASSIFICATION
BV 1 +HULL +MACH SUPPLY VESSEL OIL, PRODUCT (FP>60 DEG C) LHNS, FIRE-FIGHTING SHIP 1 WATER SPRAYING, OIL RECOVERY SHIP. SPECIAL SERVICE – SPECIAL PURPOSE SHIP, UNRESTRICTED NAVIGATION, +DYNAPOS AM/AT R, INWATERSURVEY, AUT-UMS

MAIN PARTICULARS
Loa 78.00 m
Lbp 70.20 m
Breadth moulded 18.60 m
Depth moulded 7.80 m
Draft designed 6.00 m
Draft Scantling 6.40 m
Max Deadweight about 4,000 t @ 6.4 m draft
Accommodation 8   x  1-berth cabins  =  8 men
4   x  2-berth cabins  =  8 men
11  x  4-berth cabins = 44 men
total:                                 60 men
Performance Speed 13 knots at trial condition, 100% MCR, at ballast draft of 4.7m, and sea state two (2)
Deck Cargo 1,500 t
Deck Area abt. 800 m2, deck design load 7.5 t / m2

CARGO CAPACITY
Portable Water 600 m3
Fuel Oil (including cargo) 1,400 m3
Cargo Fuel Oil 600 m3
Drill Water / S.W.Ballast 1,250m3
Dry Bulk Cargo Tanks 300 m3
Mud / Brine (SG 2.5) 800 m3
Rec. Oil 1,000 m3
Base Oil 200 m3
Methanol / Chemical 200 m3

MACHINERY
Main Engine Two (2) units of marine engine, 3,000 PS each, medium speed. With front PTO for fire pumps and shaft generators. Run on MDO. Starting by air.
Fi-fi pump and shaft generator can operate simultaneously
Propulsion System Z-peller two (2) sets, fixed pitch propeller. Driven by main engine through shaft. Control at wheelhouse aft and forward control station
Main Gensets Three (3) 550 kW diesel driven alternators (440V/3/60Hz). Starting by air.
Shaft Generator Two (2) 1,100 kW shaft generators, driven by main engine front PTO through 1-in-2-out gear box
Emergency Generator One (1) emergency diesel generator set, radiator or air cooled, rated approx 99 KW (440V/3/60Hz).
Bow Thruster Two (2) transverse tunnel CPP bow thrusters of about 14 tonne thrust, each to be driven by 940 kW electrical motor with VFD starter. To be lower noise type with skewed blade and double duct fitted with noise damping material.
All necessary controls and interlocks to be provided.

Offshore Work Barge

Work Barge / Spud pontoon

Spud pontoon, with accommodation and three winch operated spuds of which one so-called walking spud. Pontoon can lift itself about 80 cm up to create a stable work platform. Ideal for shallow water offshore operations. An approx 150 ton latticeboom crane, excavator or drilling equipment can be placed on board.  For sale. Inquire

Offshore Vessels for charter only

Anchor Handling Tug Supply (AHTS) vessels

130 tbp AHTS DP-2, FiFI-1 , Oil Rec

2009, Well equipped, solid built. Adriatic. For Charter only. For availability: Inquire

GENERAL
Built 2009
Yard “Damen” shipyard – Galati
Basic Role Offshore supply, towing, anchor handling operations, fire fighting and oil recovery operations
Classification Bureau Veritas, I  HULL  MACH, Tug; Supply vessel/Special service – Anchor handling; Fire fighting ship 1; Oil Recovery Ship – water spraying Unrestricted navigation,  AUT-UMS;  DYNAPOS -AM/AT -R

DIMENSIONS
Length over all 67.10 m
Width 15.00 m
Depth 6.75 m
Draft 5.50 m
Deadweight 1913 t
GT 2485
NT 745
Deck Area 410 m2
Deck Load (CoG 1 m above deck) 900 t
Deck Load 5 t/m2

TANK CAPACITIES
Ballast / Drill Water 775 m3
Fuel Oil (service) 435 m3
Portable Water 297 m3
Dry Bulk 172 m3
Fuel Oil – Cargo 480 m3
Cargo Liquid Mud/ Brine / Fuel 455 m3
Recovered Oil (Part of L.M.) 209 m3
Chain Lockers 138 m3

PERFORMANCES (approx.)
Speed 15.0 kn
Bollard Pull 130 t
Max Speed / Consumption 15 knots / 46 m3/dan
Eco Speed / Consumption 12 knots / 26 m3/dan
Eco Speed / Consumption (one M/E) 10 knots / 15 m3/dan

PROPULSION SYSTEM
Main Enigines 2x CAT C280-12
Propulsion Power 2x 4060 kW at 1000 rpm
Propellers, R.R. 2x 3400 mm, CPP, in optima nozzles
Bow Thrusters, R.R. 2X 450 ekW, 1300 mm, CPP
Stern Thruster, R.R. 1X 450 ekW, 1300 mm, CPP

AUXILIARY EQUIPMENT
Shaft Generators 2x 1000 ekW at 1800 rpm, 440 V, 60 HZ
Generator Sets 2x CAT C18-TA, each 408 ekW at 1800 rpm, 440 V, 60 Hz
Emerg. / Harbour Gen. Set. 1x CAT C9-TA, 163 ekW at 1800 rpm, 440 V, 60 Hz
Spray Booms
Dispersant System  13,8 m3
Firefighting
Total Capacity of Main Fire Pumps 2400 m3/h

DECK LAY-OUT
Anchor Mooring Winch 1x Hydraulic, with two warping heads
Capstans 2x Hydraulic, each 5 t to pull
Deck Cranes 1x knuckle boom 2.8 t at 10.82 m (harbour with winch)
Towing Winch 1x LP Hydraulic, double drum, 150 t pull, 250 t brake
Main Towing Wire 1.100m / 64mm
Towing Pins 1x SWL 180 t
Chain Fork 1x SWL 250 t
Tugger Winch 2x Hydraulic, each 10 t pull
Fast Craft / Working Boat 1x 6.7 m, 230 HP diesel engine
Fast Rescue Boat 1x 29,4 KW

CARGO HANDLING SYSTEM
Ballast / Drill Water Pump 2x 120 m3/h at 8.0 bar
Fuel Oil Pump 2x 120 m3/h at 9.0 bar
Fresh Water Pump 1x 120 m3/h at 9.5 bar
Dry Bulk Compressor 2x 23.5 m3/min at 6.0 bar
Liquid Mud / Brine Pump 2x 75 m3/hr at 20.0 bar

ACCOMMODATION
Crew 17
Super Numeraries 12
Total 29

NAUTICAL AND COMMUNICATION EQUIPMENT
Radar 1x X-band + S-band / ARPA
DP- System DP-2
GMDSS Area A3
SATCOM fleet broad band

Self Propelled Sheerlegs

2.200 ton Self-propelled Sheerleg

Versatile Self-propelled Sheerleg for heavy lift marine construction, bridge construction, piling and salvage operations worldwide.

Sheerleg can be configured to clients’ specifications and lifts up to 2.200 tons at a height of 25 meters. With a jib up to 1.400 tons at a height of 60 meters.

Availability: Inquire

General
Built 1976
Dimensions
GT/NT 3340/1000
Length overall 72,56 m
Beam overall 30.50 m
Depth 5.50 m
Min. draught 2.50 m
Max. draught 4.90 m
Sailing height min. 49.00 m
Machinery
Propulsion 3 x 460 kW
Bow thruster 2 x 386 kW
Anchor winches Aft 1 x 10 t capacity 235 m of 56 mm Ø chain
Mooring winches Aft 3 x 10/5 t capacity 220 m of 28 mm Ø wire rope
2 x 30/10 t capacity 1000 m of 50 mm Ø wire rope
Mooring winches Fwd 4 x 10/5 t capacity 220 m of 28 mm Ø wire rope
2 x 30/10 t capacity 1000 m of 50 mm Ø wire rope
Features
Accommodation for 36 persons (can be increased
Both main tackles and jib tackles can operate together, load capacity on request.
Using deck tackles and main tackles together, loads up to 1600 t can be raised to water level

Please contact us for more details

1.200 ton Self-propelled Sheerleg

Versatile self-propelled Sheerleg for heavy lift marine construction, bridge construction, piling and salvage operations worldwide.

Sheerleg can be configured to clients’ specifications and lifts up to 1.200 tons at a height of 25 meters. With a jib up to 500 tons at a height of 45 meters.

Availability: Inquire

General
Built 1981
Class LR + 100 A 1 sheerlegs pontoon LA

Dimensions
GT/NT 5,700/1,700
Length 83.20 m
Beam 36.90 m
Depth 7.00 m
Draft (minimum) 3.00 m
Draft (maximum) 6.02 m

Machinery
Propulsion 2 x 1,000 kW
Bowthruster 2 x 440 kW

Mooring winches Aft 3 x 25 tonnes capacity 500 m of 44 mm diameter wire rope
  2 x 40 tonnes capacity 625 m of 48 mm diameter wire rope
Mooring winches Fwd 3 x 25 tonnes capacity 500 m of 44 mm diameter wire rope

Features
Accommodation for 30 people (can be increased).

Please contact us for more details

Self-propelled Accommodation / Passenger Vessels

220 pax Self-propelled Accommodation / Passenger Vessel

2004, Lloyds Register, SOLAS 2000 compliant. 220 Passengers in double rooms. Equipped for offshore operation. Safe water access on both sides. Propelled by azimuth thrusters



Availability: Inquire

General
Delivery 2004
Class Lloyds Register

Main Dimensions
Length 91.44 m
Width 15.24 m
Draft 3.81 m
GT/NT 4,954/1,486

Life Saving Equipment
Capacity 294 persons
Life boats 4
Life rafts 6

Speed & Consumption
In port 4 mt / day
Speed Manoeuvring 6 knots on 6 mt / day + 5 mt / day Aux Engine
Economic 12 knots on 5 mt / day + 12 mt / day
Full 14 knots on 5 mt / day + 16 mt / day

Tank Capacities
Fuel 248.0 m3
Fresh Water 255.0 m3
Ballast Water 209.0 m3
Sewage 97.5 m3

Machinery
Main engines 2 x Caterpillar 3516 TA, 1,471 kW each
Aux. engines 2 x Caterpillar 3516B, 1,825 kW each
Voltage 440 / 230 / 115 V, 60 Hz a.c.
Propellers 2 x Schottel CP Propellers, 5 Bladed
Thrusters 1 x fwd 735 kW Schottel CP Thruster

Public rooms and facilities
Deck5, 90 seats / 186 m2
Deck 5, 90 seats / 214 m2
Deck 4, 42 seats
Deck 2 / 132 seats
Deck 2 / 60 seats
Gift shop, Pursers office, Passenger laundry, Main dining room, Hospital, Crew lounge, Crew laundry

Cabins
Passenger Outside Cabins 101 / Beds 202
Passenger Inside Cabins 9 / Beds 18
Crew Cabins 7 / Beds 7
Crew Cabins 36 / Beds 72

Please contact us for more details

Self-propelled Accommodation / Work Barges

62 pax Self-propelled Accommodation Barge (2 sisters)

Autonomous operation. Location: WAF. For Charter only. Inquire

GENERAL
Built 2006
Class BV
Notation I x Hull x Mach, Offshore service ship Accommodation, Costal area

DIMENSIONS
Loa 70 m
Width 20 m
Depth 4.30 m
Draft max. 2.30 m
Clear deck area Abt 300 m2

CAPACITIES
GT 2,956
NT 886
Deck Cargo 150 mT
Deck Strength 220 m2 @ 5 mT / m2
Deck Strength fwd 80 m2 @ 10 mT / m2 (option crawler crane)
Deadweight 914 mT
Lightweight 1,834 mT

MACHINERY
Service speed / Abt 6 knots at 6m3/day gasoil at sea.
Consumption Abt 1.3 m3/day at anchor
Nominal power 2 x 525 kW Azimuth propellers
Bow thruster 270 kW
Generators 4 x 571 kW, 1 x Em. Gen 175 kW
Electrical power A.C. 3-ph, 400 V, 50 hz
Main Engines 4 x Baudouin M26SR V-type, 571 kW each
Propellers 2 x HRP Azimuth
Cargo Fuel pump 65 m3 / hr
Cargo FW pump 50 m3 / hr

TANK CAPACITIES
Fuel (MGO) 277 m3
Ballast (FW) 810 mT
Fresh water 500 m3
Fresh water production max 22 tons/day
Dirty oil 7 m3

ACCOMMODATION
Passengers 112
Crew 14
Catering staff (max) 12
Cabins 8 x single, 7 x double, 20 x 4 bunks, 6 x 6 bunks = 41 bunks
Capacity Total: 138 persons

DECK EQUIPMENT
Anchors 8 x 5 tons Flipper-Delta
Mooring gear 8-point mooring: 8 X 1600 m, 38 mm ø, 90 tons, 1st layer
Bow ramp Open – manual operated N/A
Deck Crane 9.3 tons outreach 13.3 m (stb side)
Rescue boats 2 x 10 knots, 6 persons each
Boat landings 2 x Surfer landings

Accommodation / Work Barges

300 pax Accommodation Barge (2 sisters)

Autonomous / Unrestricted operation. 8-point mooring. S-92 Helideck, 68 ton, 70m elevation, 12m reach service crane. Location: WAF. For Charter only. Inquire

GENERAL
Built 2007
Class Bureau Veritas
Notation I + HULL + MACH Offshore service ship/ Accommodation/ Unrestricted navigation

DIMENSIONS
Loa 100 m
Width 30.50 m
Depth 7.62 m
Draft max 5.50 m
Clear deck space 1,600 m2

CAPACITY
GT 10,413
NT 3,124
Deck cargo 1,197 mT
Deck strength 15 T/m2
Deadweight 11,120 mT
Lightweight 5,655 mT

PUMP CAPACITIES
Ballast pump 2 x 500 @ 30 m head
Fire service pump 1 x 160 m3 /hr @ 100 m head
FW pressure set 3 x 30 m3 /hr @ 43 m head
SW pressure set 3 x 30 m3 /hr @ 43 m head
Main fire monitor pump 2 x 180 m3 /hr @ 100 m head
Gen. service fire pump 2 x 130 m3 /hr @ 80 m head
FO transfer pump 2 x 45 m3 /hr @ 45 m head
Emerg. Fire pump 1 x 60 m3 /hr @ 65 m head
Foam monitor 2 units
Fire hose / station 8 x 40 mm D=15m hoses w/nozzle, 23 x 65 mm D=15m hoses w/nozzle
Desalination plant 2 x 50 m3/day Reverse Osmosis

TANK CAPACITIES
Fuel (MGO) 1715 m3
Fresh water 2,700 m3
Ballast 9,000 m3
Ballast pumps 2 x 500 m3 / h @ 30 m head
Anti heave tanks Fitted

ACCOMMODATION
Fully air conditioned, comply with ILO 92 All cabins with en-suite toilet
D deck 4 x 1 Man cabin (suite) 192
C deck 48 x 4 men cabin 4
B deck 8 x 1 men cabin 8
12 x 2 men cabin 24
18 x 4 men cabin 72
Total 300

FIRE FIGHTING / SAFETY EQUIPMENT
Portable fire extinguisher 80 x 6 kg dry powder;
3 x 50 kg dry powder; 2 x 9 CO2 ;
2 x 10 ltrs liquid chemical
FiFi-1 2 x 1450 m3 / h
Fire Alarm Central 1 central panel w/42 manual points
CO2 System Eng. room, winch, power pack rooms & paint locker room
Water mist system Diesel Generators
Life rafts rescue boats 26 x 25 men liferafts / 1 x 6 persons rigid rescue boat c/w davit
Stretcher 2 units, capable of helicopter evacuation

NAVIGATION / COMMUNICATION
GMDSS / 1 x Furuno 8800S VHF Semi Duplex
1 x Furuno FS-2570 MF/HF Radio / 1 x Furuno DMC 5 Watch Receivers
2 x Icom VX-800D Walkie Talkies / 1 x Furuno NX-700(B) Navtex
1 x Nera Worldphone Mini-M / 1 x GP-150 GPS
1 x RM Young 05103-58 Anemometer / 1 x Furuno VX2 1934C Navnet
1 x Furuno FE 700 Echo Sounder 200m working depth / 1 x Satellite compass 5c-502

FACILITIES
Main deck 1 office; Hospital 3-beds w/lockers & toilets; Paramedic room; video room w/sofa & armchair
Office deck 4 offices; Crew recreation room; radio/control room; Internet room w/corner table & chairs; waiting room w/TV, tables & chairs; video room 1w/sofa & armchair on main deck gymnasium all equiped
B deck 1 office; Messroom up to 150 pers. w/tables & chairs; galley all equiped; TV/video room w/1 smoker & 1 non-smoker area; conference room w/chairs/tables & whiteboard.
Sewage treatment 2 x 150 men capacity
Helideck Dia: 23 m, 9.3 mT loading / strength suitable for Sikorsky S92 helicopter

DECK EQUIPMENT
Mooring system 8 x point mooring winches 70 mT@7m/min pull; 2 x tugger winches 10 T each Fwd & Aft
Anchors / wires 8 x 7.0 T each (1 spare) Flipper Delta type / L=1500m, D=46mm
Main diesel generators 5 x Caterpillar 3412, 500 kW each, 1500 rpm AC, 3-phase, 415/230 V, 50Hz
Emergency generator 1 x Caterpillar 3056 DIT 86 kW, 415 V/3 Ph / 60Hz
Air compressors 2 x 80 m3/m @ 10 bar
Main crane 1 x API 2C rated crane 68.0 T @ 12m radius x 360° slewing, 70 m elevation
Provision crane 3.0 T @ 10m, 5.0 T @ 5m, hosting height 32 m
Workshop 1 complete w/lathe, 200mm Ø grinder, electric jig saw, oxy/acetylene cutting torch w/regulator & hoses & bench drill

360 pax Accommodation Barge

Unrestricted operation. ABS/IRS class. SPS compliant. 8-point mooring. Helideck, 350 ton lattice boom crane. Location: Gulf region. For Charter only. Inquire

  • Hook-up and commissioning
  • Subsea Pipeline and Construction Support
  • Deep diving support
  • Post trenching
  • Shallow water & deep water applications
GENERAL
Built Hull 1997 / 2008 (Modified, Accommodation and Machinery)
Class ABS / IRS / IR
Notation Accommodation Crane Barge
Safety Compliance SPS Code Complied

PRINCIPAL DIMENSIONS
Length oa 86.00 m
Beam 27.50 m
Depth 5.50 m
Draft 3.985 m
Clear Deck 1,200 m2 approx.
Deck Strength 10 t/m2
Ballast Up to 1,600 mt
Freshwater Capacity Up to 1,600 mt
Fuel Oil Capacity Up to 837 mt
Lube Oil Capacity Up to 1,000 l

MACHINERY
Generators 4 x 400 kW Cummins
Emergency Generator 1 x 150 kW Kirloskar
Ballast Pump 2 x 80 m3, 60 m Head
Bilge Pump 1 x 80 m3, 60 m Head
Fire Pump 2 x 80 m3, 60 m Head
Emergency Fire Pump 1 x 80 m3, 60 m Head
Fuel Oil Pump 1 x 36 m3, 40 m Head
Fuel Oil Purifier 1 x 1 m3 /h
Sewage Plant 1 x 15 m3 /h
Fresh water Pump 1 x 65 m3 30 m Head
Air Conditioning 4 x 80 TR Make Carrier

DECK EQUIPMENT
Main Crane Manitowoc, 4600 Series
Lattice Boom, Mounted Crawler Crane
Operating Radius 360 Degrees
Mooring Winch 8-Point Mooring System (4 x 2 Drums)
03 Mechanical (Amhoist)
01 Hydraulic (Detroit)
Winch Hydraulic 4 x Double Drum
Winch Mechanical Double Drum
Anchor Wire 8 x 38mm, 1000-1100 m
Anchors 7 x 6 tons Delta Flipper, 1 x 7 tons Stockless
Helideck 23.5 x 23.5 m ( 11,9 tons)
Suitable for BELL 212/412 & Sikorsky S92.
Designed as per CAP 437

ACCOMMODATION
ABS & IRS Compliance. Fully Air Conditioned, Back-up AC Plant, European Standard
Cabins 13 x 1- or 2-berth
62 x 4-berth
24 x 4- or 6-berth (acc. Modules)
Total max complement 370
Offices 3
Mess Room Seating Arrangement for 150 Persons
Hospital 1 x Fully Equipped Hospital with 4 Bed
Galley 1 x Fully equipped with walk in Chillers & Freezers

LIFE SAVING & SAFETY EQUIPMENT
As per SOLAS Class Requirement
Life Rafts 40 x 25 men capacity with SOLAS Pack A
Rescue Boat 1 x
Mike Radar Transponder 2 x

NAVIGATION AND COMMUNICATION EQUIPMENT
Radio Telephone 2 x VHF (Sailor) I DSC
Radio Telephone 1 x MF/HF (Telex Make Sailor)
SART 1 x McMurdo S4 GMDSS 9 GHz
VHF 4 x Two-Way hand-held
DGPS 2 x
Aviation Portable Radio 1 x lnmarsat-C
lnmarsat-M 1 x with Fax & Phone
Echo Sounder Furuno FCV-620
Navtex 1 x
Anemometer 1 x
EPIRB 2 x McMurdo Smartfind ES
AIS 1 x Samyung Sl-30 Universal AIS
SSB 1 x Furuno FS 1570 MF/HF
Helicopter Communications 1 x ICOM VHF Transceiver,
2 x ICOM A 24 aviation portable radio beacon

Accommodation Barges

600 pax Floatel / Accommodation Barge

600 man Accommodation Barge. Autonomous operation, Sheltered waters. Suitable for arctic & tropical conditions. location: Eastern Med. Inquire

GENERAL
Built 2011
Classification BV, I +HULL, • MACH, special service, Accommodation Barge-no propulsion Sheltered area/ (offshore sheltered enclosures) Hsig. max 0.5 mtr

DIMENSIONS
Length overall: 135.00 m
Length dwl: 129.60 m
Breadth over all: 14.20 m
Breadth (moulded): 14.15 m
Depth: 4.10 m
Deadweight: 3,185 mt
Draught Max (summer): 3.50 m
GT/NT : 6,030/1,810

CAPACITIES
Fuel oil bunkers : 111.0 m3
Fuel set and day tanks: 29.9 m3
Bilge Water tanks: 20.0 m3
Potable water: 640.0 m3
Cargo Deck strength: 5.0 t/ m2
Water Ballast: 70.0 m3
Treated Water tanks: 1,454.0 m3
Sludge: 5.0 m3

ACCOMMODATION
Complement: 600 persons
Cabins: 2 x 2-berth cabins
151 x 4-berth cabins
Other facilities: hospital, Citadel function with BA plugs on aft deck, day- /mess room and wheelhouse, Offices, Fitness, Laundry, Incinerator 850 kW, Hospital, Bar

HEAT/COLD SYSTEM
HVAC system designed for: Summer: outside +40C°/ 70% RH / inside +27C°/ 50% RH
Winter: outside -36C° /inside +18C°

MACHINERY / PERFORMANCE
Diesel Generators 4 x Scania DI 16 55M, 426 kW each, Voltage 3ph 550VAC/50Hz
Emergency Generator SISU 49 DTG, 74 kW, Voltage 3ph 79VAC/50Hz

DELIVERY RATES
Fuel oil: 2 x 6 m3/ hr
Sewage/Treated Water: 2 x Victor S108(210) G31BB9(160)+F 135m3/hr/ 4” TODO
Freshwater: 4 x CAT 3541 10,2 m3/hr

DECK EQUIPMENT
Aft Deck
Anchor/mooring winch: Menarom PEC AMV-DRC-E32C
Deck crane 2 x HSMarine 10 ton@10 m
Reefer Container Sockets 2 x
Stern Roll Optional
Fore Deck
Anchor/mooring winch Van Wijk B.V. Smit bracket

SAFETY EQUIPMENT
MOB boat CAP – 360 with outboard engine Mercury 15M
Life jackets 658 pc

COMMUNICATIONS
VHF 2 x Marine IC-M411
GMDSS 3 x Tron TR20

300 pax Floatel / Accommodation Barge (3 sisters)

300 man Accommodation Barge. Autonomous operation, Sheltered waters. Suitable for arctic & tropical conditions. location: Eastern Med. Inquire

GENERAL
Built 2009
Classification BV – II +HULL • MACH Special service/ accommodation barge- no propulsion,
               Sheltered area Offshore Sheltered Enclosures, Hsig. Max 0.5 mtr

DIMENSIONS
Length overall 116.00 m
Beam 11.40 m
Depth 4.50 m
Summer load draft 3.0 m
Light ship draft 1.62 m
GT / NT 3,590 / 1,440

CAPACITIES
Fresh water 300 m3
Sewage 900 m3
Fuel Oil 100 m3
Waste storage skips 4

ACCOMMODATION
Complement 300 persons
Cabins 75 x 4-berth cabins, each cabin have its dedicated wet cell
Other facilities: Galley and Cold/drystore capacity Messroom, Dayrooms, Fitness room
                  Internet cafe, Hospital, Changeroom, Office, Reception and Laundry
MACHINERY / PERFORMANCE
Main diesel 3 x Scania D11655M, 426 kW
Emergency Generator SISU 420SRG 75 kW

DECK EQUIPMENT
Deck crane AFB170/10, SWL 10 ton / 10 m, Double pull use, Max radius 10m, min radius 1.72 m
Anchors Klip Anchors – 1000 kg – 3 pcs
Smit bracket

ENDURANCE
12 days, based on 200 ltr sewage water production per man per day.

FRESH WATERMAKERS
5 units x 12,5 ton/day @ 5C° (outboard) Note: Ability to use depends on the sea-water quality at location.

HEAT / COLD SYSTEM
HVAC system designed for: Summer: outside +40C°/ 70% RH / inside +27C°/ 50% RH
Winter: outside -36C° / inside +18C°

ENVIRONMENTAL
Zero dumping provisions
Sewage plant Outlet criteria in accordance with RosR. suitable for 300 pax.
Incinerator TeaTech 500

290 pax Floatel / Accommodation Barge (2 sisters)

290 man Accommodation Barge. Autonomous operation, Sheltered waters. Suitable for arctic operations. location: Marmara Sea. For sale or Charter. Inquire

Type Accommodation barge – 290 Man
Year Built 2009 – Refit
Class/Classification RMRS Hostel
GRT 3,500
Length Overall 76.16 meters
Breadth 17.76 meters
Depth 4.57 meters
Max Draft 3.00 meters (approx.)
Deadweight 1341 Metric Tons (approx.)
Equipment: Two (2) x 800 kW CAT generators
Two (2) x R.O. Watermakers
One (1) x Atlas Incinerator
One (1) x KenBay Trash Compactor,
One (1) x 5 Ton Tech Hydraulic Crane,
One (1) x Headhunter Waste Treatment System
Tank Capacities Fresh Water: 170m3
Fuel Oil: 80m3
Sewage Waste: 580m3
Waste Oil: 2.2m3
Main Deck: Galley, Dry Food Storage, Three (3) Walk-In
Freezers, 150 Person Dining Area, Control
Room, Infirmary, Laundry Facility

Offshore Vessels are vessels kept at high standards of equipment and maintenance. They serve many specific operational purposes within the Maritime industry. Not only the oil & gas industry, but also marine construction work, pipe-laying, platform dismantling or are involved in the renewable energy sector. As a result thereof, a vast variety of Offshore Vessels eists nowadays. Consequently each with their own specific capability and task to suit any aspect of the requirements for those purposes.
